TELESIN Magnetic RGB Video Light User Manual

1. Introducere

Thank you for choosing the TELESIN Magnetic RGB Video Light. This portable and versatile lighting solution is designed for content creators, streamers, and photographers, offering full RGB color control, adjustable brightness, and multiple mounting options. This manual will guide you through the setup, operation, and maintenance of your device to ensure optimal performance.

2. Ce se află în cutie

Vă rugăm să verificați dacă toate articolele sunt prezente în coletul dumneavoastră:

1x Magnetic RGB Video Light
1x Plastic Cold Shoe Mount
1x Magnetic Accessory (Diffuser)
1x Interconnecting Plastic Piece (for linking lights)

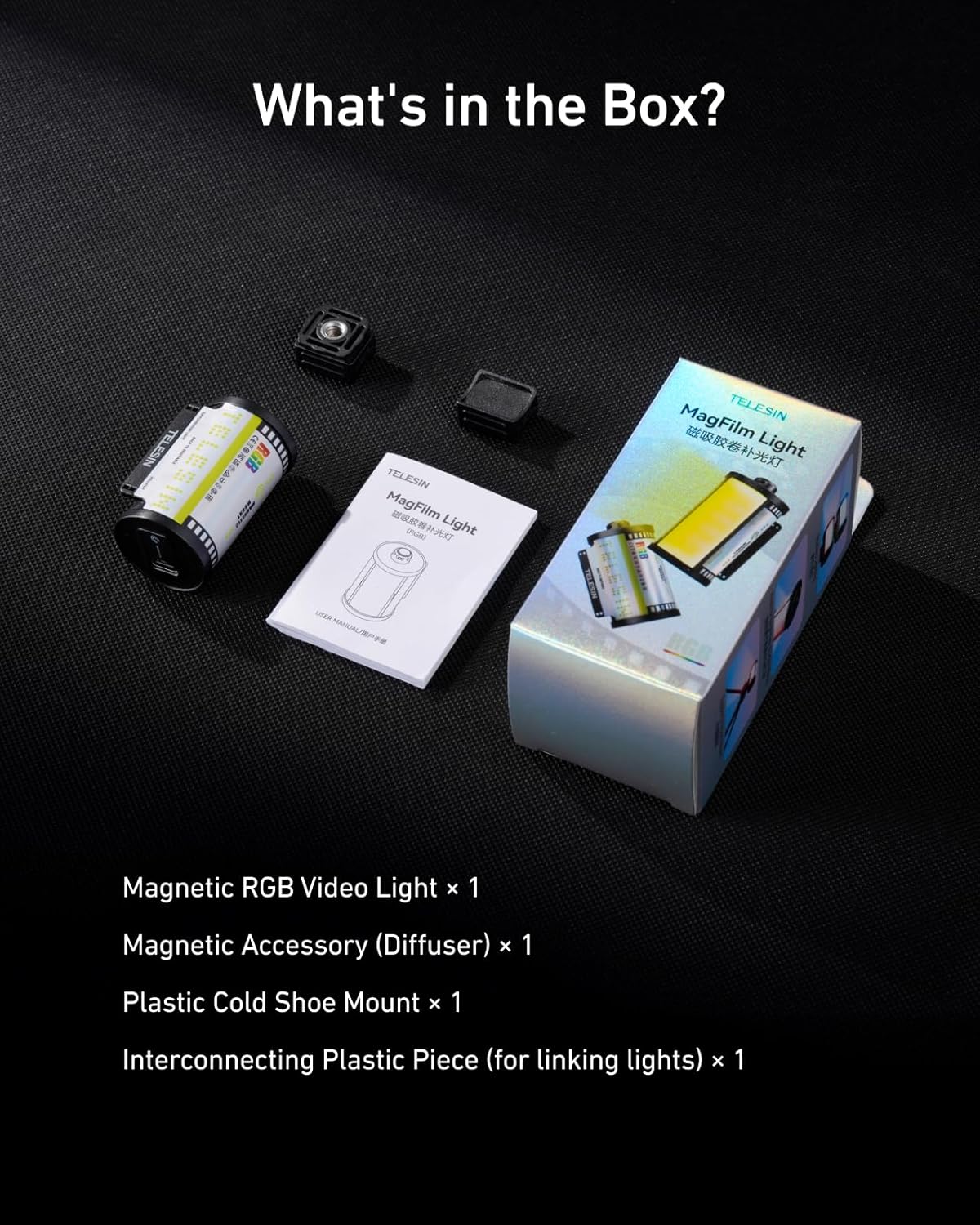

Contents of the TELESIN Magnetic RGB Video Light package, including the light, cold shoe mount, diffuser, and interconnecting piece. — Figure 2.1: Package Contents. The image displays the Magnetic RGB Video Light, a plastic cold shoe mount, a magnetic diffuser, and an interconnecting plastic piece.

3. Produs terminatview

The TELESIN Magnetic RGB Video Light features a compact design resembling a retro film roll. It incorporates a powerful LED array capable of producing a full spectrum of RGB colors and adjustable brightness. The device is equipped with a built-in rechargeable battery and multiple attachment points for versatile use.

TELESIN Magnetic RGB Video Light showing its film roll design and magnetic side attachment. — Figure 3.1: TELESIN Magnetic RGB Video Light. The light is shown with its unique film roll aesthetic and a magnetic attachment point on its side.

4. Configurare

4.1 Încărcarea dispozitivului

The video light is powered by a built-in 500mAh rechargeable battery. To charge, connect a USB Type-C cable to the charging port on the device and to a suitable power source. A full charge provides up to 1.5 hours of use at maximum RGB brightness or over 24 hours at the minimum setting.

Close-up of the TELESIN RGB Video Light showing the USB-C charging port and a charging cable connected. — Figure 4.1: Charging the Video Light. The image shows the USB-C port on the light with a charging cable inserted.

4.2 Attaching the Soft Diffuser

The included soft diffuser attaches magnetically to the front of the light. Simply align the diffuser with the light panel, and it will snap into place. This diffuser helps create softer, more flattering light, reducing harsh shadows.

Hands demonstrating the magnetic attachment of the soft diffuser to the TELESIN RGB Video Light. — Figure 4.2: Attaching the Diffuser. A hand is shown removing the magnetic diffuser from the light, revealing the LED array.

4.3 Opțiuni de montare

The TELESIN Magnetic RGB Video Light offers versatile mounting:

Suport pentru încălțăminte rece: Use the provided plastic cold shoe mount to attach the light to DSLR cameras, mirrorless cameras, tripods, or other photography/videography devices with a cold shoe slot.
Atașament magnetic: The light features a built-in strong magnet, allowing it to be securely attached to any metal surface for hands-free operation.
Interconnecting Piece: Use the interconnecting plastic piece to link multiple TELESIN lights together for wider and brighter coverage.

Various mounting possibilities for the TELESIN RGB Video Light, including on a mirrorless camera, action camera, Pocket3, and tripod. — Figure 4.3: Universal Mounting. The image illustrates the light mounted on different devices such as a mirrorless camera, action camera, Pocket3, and a tripod.

Two TELESIN RGB Video Lights magnetically attached to a metal surface, demonstrating strong magnetic attachment. — Figure 4.4: Strong Magnetic Attachment. Two lights are shown adhering to a metal surface, highlighting the magnetic feature.

Video 4.1: TELESIN Magnetic RGB LED Video Light Overview. This video demonstrates the light's features, including the detachable diffuser, power on/off, brightness adjustment, and multiple mounting options, including combining multiple lights.

5. Instrucțiuni de utilizare

5.1 Pornire/Oprire

To power on the device, press and hold the power button located on the top of the light. Repeat the action to power off.

5.2 RGB Color Control

The light offers a full RGB spectrum. Use the control knob/button to cycle through various colors and hues. This allows for creative lighting effects and setting specific moods.

Diagram showing full RGB color video light with 7-100% RGB color brightness adjustment and various color temperature settings from H:0 to H:345. — Figure 5.1: Full RGB Color Control. The diagram illustrates the range of RGB colors and brightness levels available, with examples of different hues.

5.3 Reglarea luminozității

The light supports smooth dimming from 7% to 100%. Adjust the brightness using the control knob/button to achieve the desired light intensity for your scene.

A person holding the TELESIN RGB Video Light, which is emitting a vibrant purple light, demonstrating its professional RGB color reproduction. — Figure 5.2: Professional RGB Color Reproduction. The image shows the light emitting a strong, vibrant color, highlighting its color capabilities.

6. Întreținere

To ensure the longevity and optimal performance of your TELESIN Magnetic RGB Video Light, follow these maintenance guidelines:

curatenie: Use a soft, dry cloth to clean the exterior of the light. Avoid using harsh chemicals or abrasive materials.
Depozitare: Depozitați lampa într-un loc răcoros și uscat, ferit de lumina directă a soarelui și de temperaturi extreme.
Îngrijirea bateriei: For best battery life, avoid fully discharging the battery frequently. Recharge the device regularly, even if not in use for extended periods.
Expunerea la apă: Acest dispozitiv nu este impermeabil. Evitați expunerea la apă sau umiditate ridicată.

7. Depanare

If you encounter any issues with your TELESIN Magnetic RGB Video Light, please refer to the following common problems and solutions:

Problemă	Cauza posibila	Soluţie
Lumina nu se aprinde	Baterie descărcată; Dispozitivul nu este pornit corect	Charge the battery; Press and hold the power button for 3 seconds
Cannot change color/brightness	Incorrect mode; Control knob/button issue	Ensure you are in the correct adjustment mode (refer to operating instructions); Try resetting the device by powering off and on
Lumina pâlpâie sau este instabilă	Low battery; Internal fault	Charge the battery fully; If problem persists, contact customer support
Atașarea magnetică este slabă	Surface is not metallic; Heavy load	Ensure attachment to a flat, ferrous metal surface; Avoid attaching to excessively heavy objects

If the problem persists after attempting these solutions, please contact TELESIN customer support for further assistance.

8. Specificații

Key technical specifications for the TELESIN Magnetic RGB Video Light:

Caracteristică	Detaliu
Dimensiunile produsului	2.24 x 1.18 x 1.18 inci
Greutatea articolului	2.82 uncii (40 g)
Numărul de model al articolului	TELESIN Retro Film RGB Video Light
Baterie	1 x 500mAh 9V battery (included)
Durata de viață a bateriei	Up to 1.5 hours (max RGB brightness), 24+ hours (min setting)
Tehnologia de conectivitate	USB
Interfață hardware	USB tip C
CRI	95+
Interval de dimensiune	7%-100%
Producător	TELESIN
UPC	798156816216

9. Garanție și asistență

TELESIN products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, returns, or technical support, please visit the official TELESIN website-ul lor web sau contactați direct serviciul lor de asistență pentru clienți. Păstrați bonul fiscal ca dovadă a achiziției pentru reclamațiile în garanție.

Suport online: For the latest FAQs, troubleshooting guides, and software updates, please visit the TELESIN support page.

Informații de contact: Refer to the TELESIN official website for current contact details, including email and phone support.
