Manual de utilizare pentru camera auto Qubo Trio cu 3 canale

1. Introducere

The Qubo 3-Channel Dashcam Trio is an advanced vehicle recording system designed to capture comprehensive footage from the front, rear, and interior of your vehicle. Featuring 2K QHD resolution for the front camera and Full HD for the rear and cabin cameras, along with built-in Wi-Fi and GPS, this system provides detailed records of your journeys and incidents. This manual provides essential instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance of your dashcam.

2. Configurare

2.1 Conținutul pachetului

Înainte de instalare, verificați dacă toate componentele sunt prezente:

• Qubo 3-Channel Dashcam Main Unit (Front Camera)
• Camera spate
• Cameră de cabină
• Cablu de alimentare (încărcător auto)
• Cablu de conectare la camera spate
• Mounting Adhesives/Brackets
• Manual de utilizare

2.2 Instalarea cardului SD

The dashcam supports microSD cards up to 1TB. A high-speed V30 rated card is required for reliable recording across all three channels.

1. Ensure the dashcam is powered off.
2. Locate the microSD card slot on the main unit.
3. Insert the microSD card with the contacts facing the correct direction until it clicks into place.
4. Upon first use or after prolonged use, it is recommended to format the SD card via the Qubo App or dashcam settings.

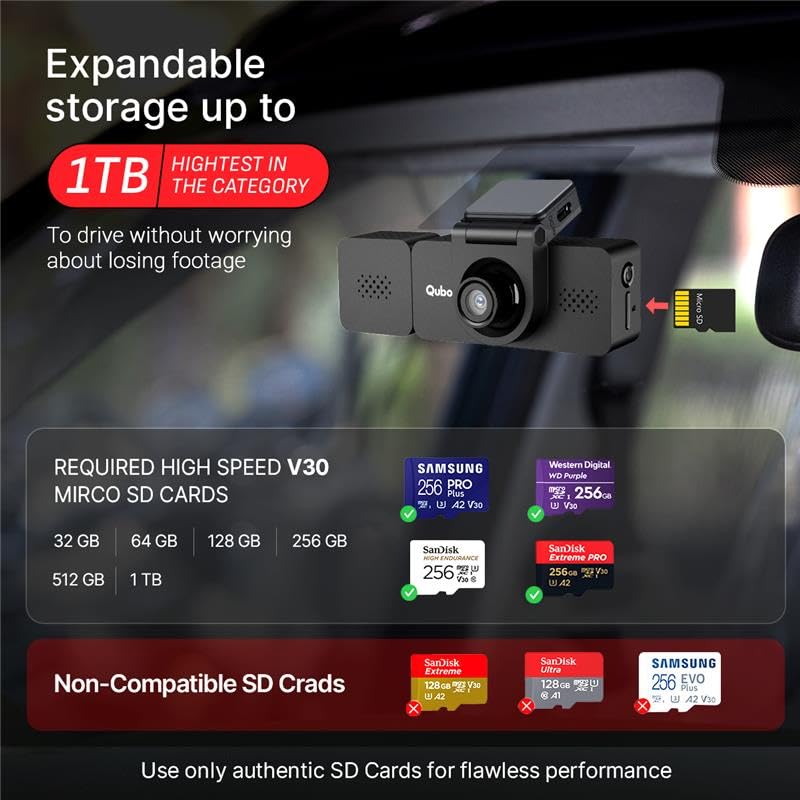

Image: The Qubo 3-Channel Dashcam main unit displaying the microSD card slot and examples of compatible V30 high-speed SD cards, supporting up to 1TB storage.

2.3 Mounting the Dashcam

Mount the dashcam securely to ensure stable footage. The main unit (front camera) typically mounts on the windshield behind the rearview mirror. The rear camera mounts on the rear windshield, and the cabin camera can be integrated with the main unit or mounted separately to cover the interior.

• Clean the mounting surface thoroughly before applying adhesive.
• Ensure the front camera has an unobstructed view a drumului.
• Position the rear and cabin cameras to cover desired areas without obstructing driver visibility.
• Route cables neatly along the vehicle's trim to avoid interference with driving.

Image: An overhead diagram of a car illustrating the 360-degree coverage provided by the Qubo 3-Channel Dashcam, with individual camera views for front (140°), rear (120°), and cabin (120°).

2.4 Conexiune la alimentare

Connect the dashcam to your vehicle's power source using the provided car charger and power cable. The dashcam will typically power on and begin recording automatically when the vehicle starts.

2.5 Instalarea și asocierea aplicației

Download the Qubo Pro App from the Google Play Store or Apple App Store to manage your dashcam settings, view trăi footage, and access recordings.

1. Caută 'Qubo Pro' in your device's app store.
2. Instalați aplicația și creați un cont dacă vi se solicită.
3. Porniți camera de bord.
4. Open the Qubo Pro App and follow the on-screen instructions to connect to your dashcam via Wi-Fi. The dashcam will broadcast a Wi-Fi network for connection.

Image: A smartphone screen displaying the Qubo Pro App interface, showing a live feed from the dashcam, video logs, and options for managing recordings and settings.

3. Instrucțiuni de utilizare

3.1 Înregistrare automată

Once powered on, the Qubo Dashcam Trio automatically begins recording. Footage is saved to the installed microSD card.

3.2 Moduri de înregistrare

• Always-On Recording: Continuous recording while the vehicle is in operation.
• Auto-Replace Recording: When the SD card is full, the oldest footage este suprascris automat de noile înregistrări.
• Auto Save on Impact (G-Sensor): The built-in G-Sensor detects sudden impacts or collisions and automatically locks the corresponding footage to prevent it from being overwritten. These 'Event Files' are stored separately.
• Instant Clip Recording: Use the app or a physical button (if available) to manually save a short clip of current footage.

Image: Screenshots from the Qubo app demonstrating different recording modes: Always-On Recording, Auto-Replace Recording, Auto Save on Impact, and Instant Clip Recording.

Image: A graphic illustrating the Collision Detection G-Sensor feature, where a sudden impact automatically locks critical footage pentru a preveni suprascrierea.

3.3 În direct View și Redare

Puteți view trăi footage from all cameras directly on the dashcam's 3.2-inch IPS LCD screen or through the Qubo Pro App on your smartphone. The app also allows you to review recorded videos, download clips, and check trip data.

Image: Diagrams highlighting the Qubo Dashcam's 3.2-inch IPS LCD screen for live viewing, built-in GPS for tracking, and integrated microphone for audio recording.

3.4 GPS Tracking and Trip History

The built-in GPS module records your vehicle's location and speed. This data, along with your trip history, can be reviewed through the Qubo Pro App, providing a comprehensive log of your journeys.

3.5 Vedere nocturnă

The dashcam features IR Night Vision for the cabin camera and advanced image processing for low-light conditions, ensuring clear recordings even in challenging lighting environments.

Image: A split image demonstrating the Qubo Dashcam's cabin camera view, capturing clear footage of the car's interior with passengers, even in low light conditions.

Image: A still from the dashcam footage demonstrating 2K QHD clarity, clearly capturing a vehicle's license plate on a busy road.

4. Întreținere

4.1 Managementul cardului SD

• Regularly format your microSD card (e.g., once a month) to maintain optimal performance and prevent data corruption. This can usually be done through the Qubo Pro App or the dashcam's settings menu.
• Replace the microSD card if you notice frequent errors, corrupted files, or a significant decrease in recording quality.

4.2 Curățare

• Gently wipe the camera lenses with a soft, lint-free cloth to ensure clear footage. Avoid abrasive materials or harsh chemicals.
• Keep the dashcam unit free from dust and debris.

4.3 de actualizări de firmware

Periodically check for firmware updates via the Qubo Pro App. Updates can improve performance, add new features, and resolve known issues. Follow the app's instructions carefully during the update process.

5. Depanare

If you encounter issues with your Qubo 3-Channel Dashcam Trio, refer to the following common solutions:

• Camera de bord nu pornește: Ensure the power cable is securely connected to both the dashcam and the car's power outlet. Check the car charger for proper function.
• Recording issues (no recording, corrupted files): Format the microSD card. If the issue persists, try a new, high-speed V30 rated microSD card. Ensure the card is inserted correctly.
• Probleme de conectivitate Wi-Fi: Ensure the dashcam is powered on and within range of your smartphone. Restart both the dashcam and your phone. Re-pair the device through the Qubo Pro App.
• Calitate video slabă: Clean the camera lenses. Ensure the dashcam is securely mounted and not vibrating excessively. Check if the recording resolution settings are optimal in the app.
• Adhesive issues: Ensure the mounting surface is clean and dry before applying adhesive. For persistent issues, consider using stronger automotive-grade adhesive tape.
• Aplicația nu răspunde: Close and reopen the Qubo Pro App. Clear the app's cache or reinstall it if necessary.

5.1 Resetare din fabrică

If troubleshooting steps do not resolve the issue, a factory reset may be necessary. Refer to the Qubo Pro App or the dashcam's settings menu for the factory reset option. Nota: A factory reset will erase all custom settings and may require re-pairing with the app.

6. Specificații

Image: The Qubo Dashcam Trio positioned on a road, illustrating its robust design and ability to maintain high performance across a wide temperature range (-20°C to 85°C).

7. Garanție și asistență

7.1 Informații despre garanție

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Qubo webPăstrați bonul fiscal ca dovadă a achiziției pentru reclamații în garanție.

7.2 Asistență pentru clienți

For technical assistance, installation support, or any other inquiries, please contact Qubo customer support:

• Toll-free helpline: 9319095757
• Producător: Hero Electronix Pvt. Ltd.
• Qubo offers installation and service support across 70+ cities.
