Introducere
This manual provides detailed instructions for the operation and maintenance of your ZAQE M4 128GB MP3 Player. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience.
The ZAQE M4 is a portable, multifunctional music player featuring a 2.4-inch full touchscreen, 128GB of internal storage, Bluetooth 5.4 connectivity, and a built-in speaker. It also includes functions such as FM radio, voice recorder, e-book reader, video player, and alarm clock.
Produs terminatview
Componente incluse
- ZAQE 128GB MP3 Player
- Manual de utilizare
- Căști
- Cablu USB de tip C
- Carcasă de protecție din silicon
Image: All items included in the ZAQE M4 MP3 Player package.
Caracteristicile dispozitivului
- Depozitare: 128GB internal memory, capable of storing approximately 16,000 songs.
- Afişa: 2.4-inch full color touchscreen for intuitive navigation.
- Conectivitate: Bluetooth 5.4 for stable wireless audio connections.
- Ieșire audio: Built-in speaker and 3.5mm headphone jack.
- Port de încărcare: USB tip C.
- Functii: Music player, FM radio, voice recorder, e-book reader, video player, alarm clock.
- Formate audio: Supports MP3, WAV, FLAC, AAC, WMA, APE.
Image: The ZAQE M4 MP3 Player displaying its main menu interface.

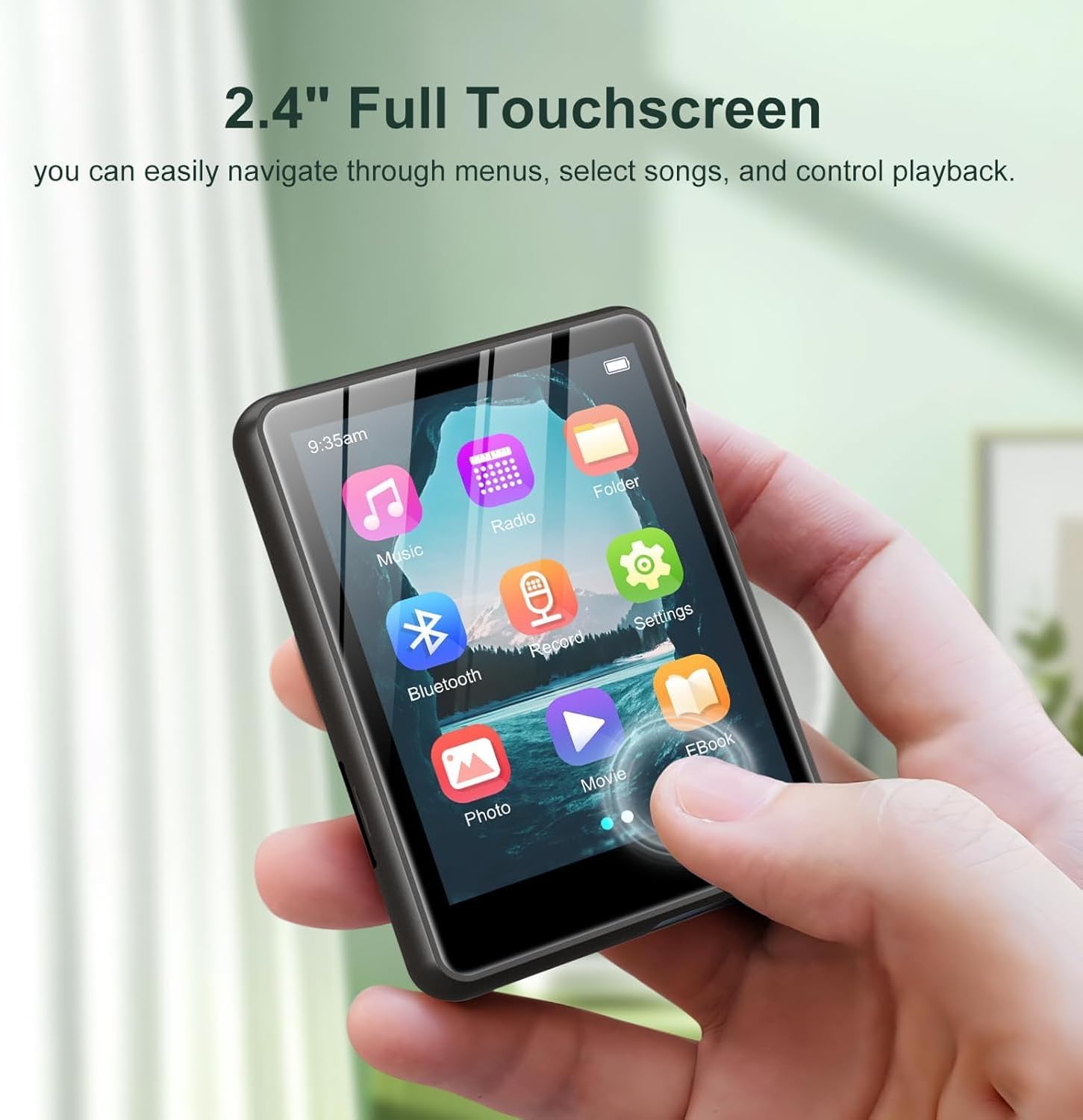

Image: A user interacting with the 2.4-inch full touchscreen of the ZAQE M4 MP3 Player.
Image: The ZAQE M4 MP3 Player playing music via its built-in speaker.
Înființat
1. Încărcarea dispozitivului
Before first use, fully charge the MP3 player. Connect the included USB Type-C cable to the device's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The battery indicator on the screen will show charging status.
Image: The 3.5mm audio jack and Type-C charging port on the ZAQE M4 MP3 Player.
2. Transferul Files
Connect the MP3 player to your computer using the USB Type-C cable. The device will appear as a removable disk drive. You can drag and drop music, video, e-book, and other compatible files directly into the device's folders.
3. Conectarea căștilor
Insert the 3.5mm jack of the included earphones (or your preferred earphones) into the headphone port located on the bottom of the device.
Instrucțiuni de operare
Navigare de bază
The ZAQE M4 features a full touchscreen interface. Tap icons to select functions, swipe to navigate menus, and use the back button (if present on-screen) or physical buttons on the side for navigation.
Redare muzică
- Din meniul principal, atingeți Muzică pictograma.
- Răsfoiți biblioteca muzicală după artist, album, gen sau toate melodiile.
- Atingeți o melodie pentru a începe redarea.
- During playback, you can control volume, play/pause, skip tracks, and access playback modes (Single Loop, List Loop, Sequential Play, Random Play) via the on-screen controls.
Image: Music playback screen showing various loop and play modes.
Image: The ZAQE M4 MP3 Player displaying music playback and supported audio formats.
Conectivitate Bluetooth
- Din meniul principal, atingeți Bluetooth icon or navigate to Setări > Bluetooth.
- Activează Bluetooth On.
- Asigurați-vă că boxele sau căștile Bluetooth sunt în modul de asociere.
- Playerul MP3 va scana dispozitivele disponibile. Selectați dispozitivul din listă pentru a-l asocia.
- După asociere, sunetul va fi direcționat prin dispozitivul Bluetooth conectat.
Image: The ZAQE M4 MP3 Player demonstrating Bluetooth 5.4 connectivity with external audio devices.
Radio FM
- Connect wired earphones to the 3.5mm jack; they act as the antenna.
- Din meniul principal, atingeți Radio pictograma.
- Folosește comenzile de pe ecran pentru a scana posturi sau pentru a regla manual o frecvență.
Image: The FM Radio function of the ZAQE M4 MP3 Player.
Înregistrator vocal
- Din meniul principal, atingeți Înregistra pictograma.
- Atingeți butonul de înregistrare pentru a începe înregistrarea.
- Tap the stop button to end and save the recording.
Cititor de cărți electronice
- Din meniul principal, atingeți EBook pictograma.
- Select an e-book file (TXT format is typically supported).
- Use the touchscreen to turn pages.
Image: The ZAQE M4 MP3 Player displaying an e-book.
Redare video
- Din meniul principal, atingeți Film pictograma.
- Selectați un videoclip file (compatible formats may vary, typically AVI, AMV).
- The video will play on the 2.4-inch screen.
Image: The ZAQE M4 MP3 Player displaying video content on its 2.4-inch color touchscreen.
Ceas cu alarmă
- Din meniul principal, navigați la Settings > Alarm Clock.
- Set the desired time and alarm sound.
- Asigurați-vă că alarma este activată.
Image: The alarm clock function of the ZAQE M4 MP3 Player.
Întreţinere
Curatenie
Wipe the device with a soft, dry, lint-free cloth. Avoid using harsh chemicals or abrasive materials, as they may damage the screen or casing.
Îngrijirea bateriei
To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, and if storing for an extended period, ensure it has at least a 50% charge.
Actualizări de software
Periodically check the manufacturer's official website for any available firmware updates. Follow the provided instructions carefully to update the device's software.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Dispozitivul nu pornește | Baterie descărcată; Prăbușire sistem | Charge the device; Press and hold the power button for 10-15 seconds to force restart. |
| Nu se poate conecta la dispozitivul Bluetooth | Bluetooth neactivat; Dispozitivul nu este în modul de asociere; Interferență | Ensure Bluetooth is on and the external device is in pairing mode. Move closer to the device. Restart both devices. |
| Nu se aude sunet din căști/difuzor | Volume too low; Faulty headphones/speaker; Incorrect output selected | Increase volume. Test with different headphones/speaker. Ensure Bluetooth is connected or headphones are fully plugged in. |
| Filenu se transferă | Loose USB connection; Incompatible file format; Full storage | Check USB cable connection. Ensure files are compatible. Delete unnecessary files pentru a elibera spațiu. |
Specificații
- Nume model: M4
- Marca: ZAQE
- Capacitate de stocare a memoriei: 128 GB
- Dimensiunea ecranului: 2.4 inchi
- Tehnologie de conectivitate: Bluetooth 5.4
- Caracteristica speciala: Difuzor încorporat
- Dispozitive compatibile: Căști
- Baterii: 1 baterie A (inclusă)
- Greutatea articolului: 6.4 uncii
- Dimensiuni pachet: 5.83 x 5.79 x 0.75 inci
- Data primului disponibil: 30 august 2025
Image: The ZAQE M4 MP3 Player highlighting its 128GB internal memory.
Garanție și suport
Informații despre garanție
The ZAQE M4 MP3 Player comes with a warranty of up to 24 months from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
Asistență pentru clienți
For any questions, technical assistance, or warranty claims, please contact ZAQE customer support. Refer to the contact information provided on the product packaging or the official ZAQE website-ul pentru cele mai recente detalii de asistență.
