Manual de utilizare a zgărzii de dresaj pentru câini PaiPaitek PD516U fără șocuri

Introducere

The PaiPaitek PD516U No Shock Dog Training Collar is designed to provide a humane and effective way to train your dog. Utilizing ultrasonic sound, vibration, and beep modes, this collar helps correct unwanted behaviors without causing pain or discomfort. It features a long-range remote, multi-dog control capabilities, and a durable, adjustable design suitable for various dog sizes.

Image: The PaiPaitek training collar emphasizing its 100% pain-free design with no shock or prongs, showing a happy dog and a sad dog with skin irritation from traditional collars.

Ce este inclus

Upon opening your PaiPaitek PD516U package, you will find the following components:

• Transmițător de la distanță (1)
• Receiver Collar (1)
• Adjustable Collar Strap (1)
• Cablu de încărcare USB (1)
• Snur (1)
• Manual de utilizare (1)
• Cutie (1)

For a visual guide to the package contents, please watch the unboxing video below:

Image: The complete PaiPaitek PD516U training system, including the remote transmitter, receiver collar, and a training whistle.

Produs terminatview

Familiarize yourself with the components of your training system:

Transmițător la distanță

• Ecran de afișare: Shows current mode, intensity level, and battery status.
• Butoane de mod: Dedicated buttons for Ultrasonic, Vibration, and Beep modes.
• Ajustarea intensității: Use the +/- buttons to adjust intensity levels.
• Butonul de canal: Switch between channels to control up to three dogs.
• Blocare de securitate: Previne activarea accidentală.
• Lanternă: Built-in for night training and visibility.

Guler receptor

• No Prongs: Designed for humane training without skin irritation.
• Cureaua reglabila: Fits dog necks from 8 to 27 inches, suitable for dogs 10-120 lbs.
• Design impermeabil: Ensures durability in various conditions.
• Port de încărcare: Type-C for fast charging.

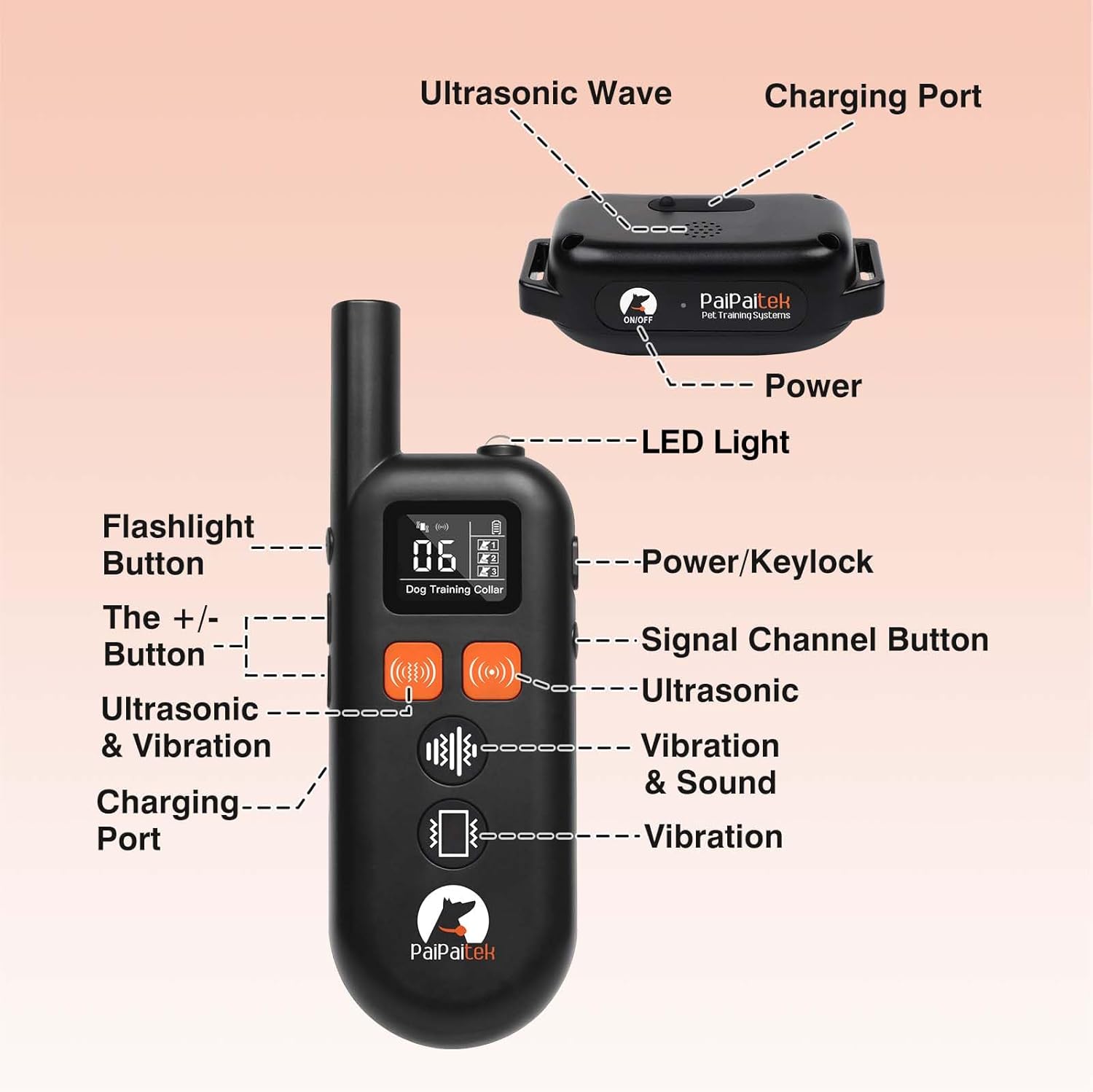

Image: A detailed diagram labeling the various buttons and features on both the remote transmitter and the receiver collar, including ultrasonic wave output, charging ports, LED light, and mode buttons.

Înființat

Încărcarea Dispozitivelor

Both the remote transmitter and receiver collar use rechargeable Lithium Polymer batteries. Use the provided dual-port Type-C USB charging cable to charge both devices simultaneously.

• Connect the charging cable to a USB power source (computer, power adapter, laptop, or power bank).
• Plug the Type-C connectors into the charging ports on the remote and receiver.
• A full charge takes approximately 2 hours. The devices offer up to 20 days of working time on a single charge.

Image: The remote and receiver collar connected to a dual Type-C charging cable, illustrating the quick charge and long battery life features.

Pairing the Receiver Collar and Remote

If your collar is not responding, it may need to be re-paired. Follow these three simple steps:

1. Press and hold the receiver's power button for 3 seconds until the red light flashes. Release immediately.
2. Turn on your remote transmitter.
3. Select a channel (1, 2, or 3) on the remote and press any vibration button. When you feel the collar vibrate, pairing is successful.

Montarea gulerului

Proper fit is crucial for the effectiveness and comfort of the collar:

• Ensure the receiver is centered on your dog's neck.
• Adjust the strap so that you can comfortably fit one finger between the collar and your dog's neck. It should be snug but not too tight.
• Limit collar wear to a maximum of 12 hours daily. Regularly check your dog's neck every 1-2 hours for any signs of irritation.
• The adjustable collar fits dogs with neck sizes from 8 to 27 inches, suitable for breeds weighing 10-120 lbs.

Image: An illustration showing the adjustable nature of the collar, demonstrating its fit for various dog breeds and sizes, from small to large.

Moduri de operare

The PaiPaitek PD516U offers three humane training modes:

• Modul cu ultrasunete: Provides 16 adjustable levels of ultrasonic sound.
• Modul de vibrație: Offers 9 adjustable levels of vibration.
• Modul bip: Features 9 different tones.

These modes can be used individually or in combination to provide customized training tailored to your dog's temperament and specific behavioral needs. The system is effective for correcting behaviors such as excessive barking, chasing, or running away.

Image: A visual representation of the safe and effective training modes available, including ultrasonic (1-16 levels), ultrasonic & vibration (1-16 levels), vibration (1-9 levels), and vibration & sound (1-9 levels).

Long Range Control & Multi-Dog System

• The remote offers a reliable and stable control range of up to 3300 feet, ideal for training in large outdoor spaces.
• The unique 3-channel system allows you to train up to three dogs simultaneously with individual settings saved for each collar.

Image: The remote transmitter shown with a vast green landscape in the background, illustrating its 3300ft remote range and the ability to control three dogs (Dog 1, Dog 2, Dog 3) via its 3-channel system.

Security Lock & Night Training

• The remote features an accident-proof security lock to prevent unintended activation of the training modes.
• A built-in flashlight on the remote enables safe training and monitoring in low-light conditions, enhancing visibility during evening walks.

Image: A visual demonstration of the remote's security lock feature to prevent misoperation and its built-in flashlight for nighttime location and control, highlighting its portability.

Ghid de instruire

For optimal results and your dog's well-being, consider the following:

• Start with the lowest intensity level for any mode and gradually increase if necessary.
• Use the collar for short, consistent training sessions.
• Always provide positive reinforcement when your dog exhibits desired behavior.
• Never use the collar to punish your dog or for aggressive behavior.
• Ensure your dog is comfortable and not stressed during training.

Întreţinere

To ensure the longevity and proper functioning of your PaiPaitek training collar:

• curatenie: Hand wash the collar strap as needed. Wipe the receiver and remote with a damp pânză.
• Protecția apei: Always securely cover the rubber charging cap on the receiver to protect it from water damage, especially before exposing it to moisture.
• Depozitare: Păstrați dispozitivul într-un loc răcoros și uscat atunci când nu este utilizat.

Depanare

If you encounter issues with your PaiPaitek PD516U, try the following:

• Collar Not Responding: Re-pair the receiver and remote following the steps in the 'Pairing the Receiver Collar and Remote' section.
• Fără putere: Ensure both the remote and receiver are fully charged.
• Operare inconsistentă: Check the battery levels. Ensure there are no obstructions between the remote and the collar, and that you are within the 3300ft range.
• Iritarea pielii: If your dog develops skin irritation, discontinue use immediately and consult a veterinarian. Ensure the collar is not too tight and is removed regularly.

Specificații

Garanție și suport

The PaiPaitek PD516U No Shock Dog Training Collar comes with a 1 an garanție.

For any questions, technical support, or warranty claims, please contact PaiPaitek customer service. You can find more information and contact details on the official PaiPaitek store page: PaiPaitek Store.
