1. Introducere
Thank you for choosing the RebotAi A11 Android 15 Tablet. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device. The RebotAi A11 features an 11-inch 2.5K IPS display, a powerful MediaTek Helio G100 Octa-Core processor, 24GB RAM, 128GB ROM, and an 8200 mAh battery, designed for a smooth and immersive user experience.

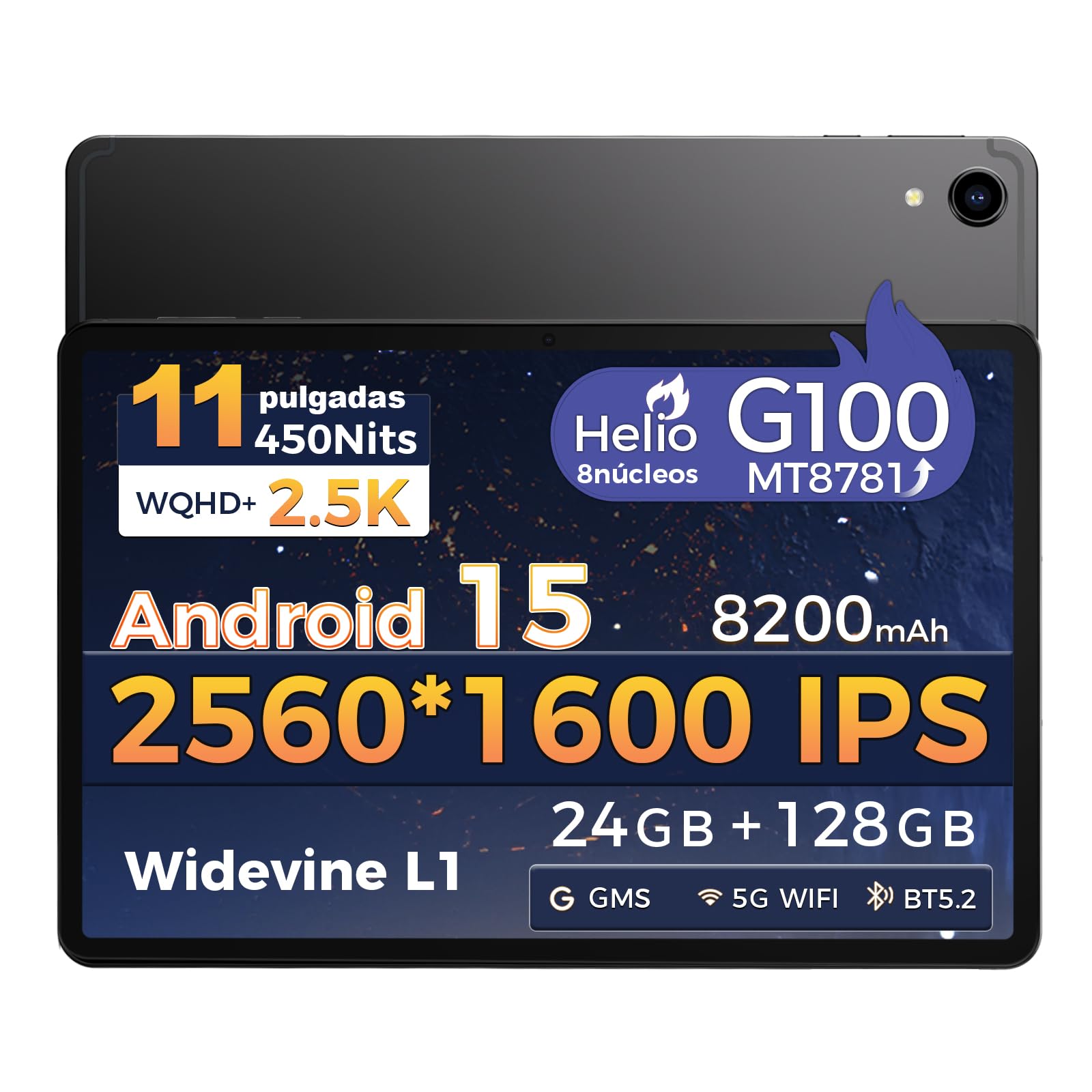

Imagine: față view of the RebotAi A11 Tablet.
2. Ce se află în cutie
Upon opening your RebotAi A11 package, please ensure all the following items are present:
- RebotAi A11 Tablet (x1)
- Leather Case (x1)
- USB-C to USB-C Charging Cable (x1)
- Stylus (x1)
- SIM Ejector Pin (x1)
- Manual de utilizare (x1)
Note: In accordance with global environmental guidelines, the RebotAi A11 tablet does not include a wall charger. Only a USB-C charging cable is provided.
Image: Contents of the RebotAi A11 Tablet package.
3. Configurare
3.1 Încărcarea bateriei
Before first use, fully charge your tablet. Connect the provided USB-C cable to the tablet's USB-C port and the other end to a compatible USB wall charger (not included) or a computer. The tablet supports 20W PD fast charging.
3.2 Pornire/Oprire
- Pentru a porni: Press and hold the Power button located on the side of the tablet until the RebotAi logo appears.
- Pentru a opri: Press and hold the Power button until the power options appear on the screen, then select "Power Off."
- Pentru a reporni: Press and hold the Power button until the power options appear, then select "Restart."
3.3 Configurare inițială
When you power on the tablet for the first time, follow the on-screen instructions to:
- Selectați limba dvs.
- Conectați-vă la o rețea Wi-Fi.
- Conectați-vă cu contul dvs. Google sau creați unul nou.
- Configurați blocarea ecranului (PIN, model, parolă sau deblocare facială).
3.4 Introducerea unui card MicroSD
The RebotAi A11 supports MicroSD cards up to 1TB for expanded storage. Use the provided SIM ejector pin to open the card tray, insert the MicroSD card into the designated slot, and then close the tray securely.
3.5 Utilizarea stylusului
The included stylus can be used for precise navigation, drawing, writing, and signing documents on the tablet's screen. No charging is required for the stylus.
Imagine: Laterală view of the RebotAi A11 Tablet, showing ports and buttons.
4. Instrucțiuni de utilizare
4.1 Caracteristici de afișare
The RebotAi A11 features an 11-inch IPS Full HD 2.5K anti-glare display with a resolution of 2560 x 1600 pixels. It supports Widevine L1 certification for high-definition streaming and dynamic brightness adjustment. The anti-glare screen and immersive reading mode help prevent eye fatigue.
Image: The RebotAi A11's 2.5K high-definition display with eye protection and automatic brightness.
Image: Widevine L1 support for premium streaming services.
4.2 Performanță și stocare
The tablet is powered by the MediaTek Helio G100 Octa-Core processor (MT8781), featuring 2 high-performance Cortex-A76 cores and 6 power-efficient Cortex-A55 cores. This ensures smooth operation for daily tasks, social media, video playback, and light gaming. It comes with 8GB base RAM, expandable by 16GB virtual RAM for a total of 24GB, and 128GB of internal storage, expandable up to 1TB via a MicroSD card.
Image: The Helio G100 chip, demonstrating high performance and energy efficiency.
Image: Large capacity storage with 24GB RAM and 128GB ROM, expandable to 1TB.
4.3 Camere
The RebotAi A11 is equipped with a 5MP front-facing camera and a 16MP rear-facing camera. These cameras are suitable for video calls, online meetings, and capturing everyday moments with clear and natural images.
Image: The 5MP front and 16MP rear cameras for clear photos and video calls.
4.4 Managementul bateriei
The tablet features an 8200 mAh high-capacity battery, providing long-lasting power for reading, online courses, video playback, and office work. It supports 20W PD fast charging, allowing the device to be fully charged quickly.
Image: Powerful 8200 mAh battery with 20W fast charging for extended use.
4.5 Conectivitate
The RebotAi A11 supports dual-band Wi-Fi (2.4GHz and 5GHz) with 802.11ac for fast and stable internet access. It also includes Bluetooth 5.2 for energy-efficient wireless connections and GPS for precise navigation, compatible with Beidou, Galileo, and GLONASS.
Image: Fast connectivity and precise positioning with dual-band Wi-Fi, Bluetooth 5.2, and GPS.
4.6 Multitasking
With the dual-screen function, you can run two applications simultaneously on a single screen. This allows for seamless navigation, watching videos while chatting, or consulting information while working.
Image: Dual-screen functionality for fluid multitasking.
4.7 Audio
Equipped with dual BOX speakers, the tablet offers an immersive audio experience for both movies and music. The balanced reproduction of highs and lows creates a pleasant listening experience.
Image: Immersive and crystal-clear audio from dual BOX speakers.
4.8 Intelligent Sensors
The A11 is equipped with intelligent sensors and AI, offering a more intelligent user experience. The gyroscope improves immersion in games, while the magnetometer ensures precise navigation, even in tunnels. Other sensors include G-sensor (automatic rotation), proximity sensor (automatic screen off), and ambient light sensor (adjustable backlight).
Image: Intelligent detection with various sensors for enhanced user experience.
4.9 Caracteristici fizice
The tablet features a uniform metallic body crafted with advanced nano-coating technology, providing a smooth and delicate touch while being durable. Its surface is resistant to fingerprints and scratches, offering a high-quality texture and feel. It is surprisingly light at 510g and thin at 7.8mm.
Image: The tablet's lightweight and slim design, achieved through nano-molding technology.
5. Întreținere
5.1 Curățarea tabletei
Pentru a curăța tableta, folosiți o lavetă moale, fără scame. Pentru petele persistente, ștergeți ușor.ampen the cloth with water or a screen-safe cleaner. Avoid using harsh chemicals, abrasive materials, or excessive moisture.
5.2 Actualizări de software
Verificați și instalați periodic actualizări de software pentru a asigura performanță optimă, securitate și acces la funcții noi. De obicei, puteți găsi această opțiune în Setări > Sistem > Actualizare sistem.
5.3 Îngrijirea bateriei
Pentru a prelungi durata de viață a bateriei:
- Evitați temperaturile extreme.
- Nu lăsați bateria să se descarce complet frecvent.
- Deconectați încărcătorul odată ce tableta este complet încărcată.
- Reglați luminozitatea ecranului la un nivel confortabil.
6. Depanare
| Problemă | Soluție posibilă |
|---|---|
| Tableta nu pornește | Ensure the battery is charged. Connect to a power source for at least 30 minutes. If it still doesn't turn on, try a forced restart by holding the power button for 10-15 seconds. |
| Ecranul nu răspunde | Reporniți tableta. Dacă problema persistă, efectuați o resetare la setările din fabrică (datele se vor pierde). |
| Probleme de conexiune Wi-Fi | Reporniți routerul Wi-Fi și tableta. Uitați de rețea în setările tabletei și reconectați-vă. Asigurați-vă că vă aflați în raza de acoperire a semnalului Wi-Fi. |
| Aplicațiile se blochează sau se blochează | Ștergeți memoria cache și datele pentru aplicația problematică din Setări > Aplicații. If the issue continues, uninstall and reinstall the app. Ensure sufficient storage space is available. |
| Bateria se descarcă rapid | Reduce screen brightness, close unused apps, disable Wi-Fi/Bluetooth when not in use. Check battery usage in Setări > Baterie pentru a identifica aplicațiile care consumă multă energie. |
7. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Marca | RebotAi |
| Serie model | A11 |
| Dimensiunile produsului | 25 x 15 x 5 cm |
| Greutate | 900 g |
| Culoare | Gri |
| Dimensiunea ecranului | 11 inchi |
| Rezoluția ecranului | 2560 x 1600 pixeli (2.5K) |
| Producator procesor | MediaTek |
| Modelul procesorului | Helio G100 (MT8781) |
| Viteza procesorului | 2.2 GHz |
| Dimensiunea RAM | 8 GB (extensibil până la 24 GB cu RAM virtuală) |
| Capacitate de stocare | 128 GB (extensibil până la 1 TB prin MicroSD) |
| Spate WebRezoluția camerei | 16 MP |
| Faţă WebRezoluția camerei | 5 MP |
| Sistem de operare | Android 15 |
| Conectivitate wireless | Wi-Fi 6 (802.11ac, 802.11n), Bluetooth 5.2, GPS |
| Capacitatea bateriei | 8200 mAh |
| Durata medie a bateriei | 24 de ore |
| Încărcare rapidă | 20W PD |
8. Garanție și asistență
RebotAi offers a 2 an garanție for your tablet, ensuring peace of mind with your purchase. We are committed to providing excellent customer service.
8.1 Asistență pentru clienți
If you encounter any technical issues or have questions regarding the use of your RebotAi A11 tablet, our customer support team is available 24/7. You can contact us through the seller contact option on the Amazon product page.
Image: RebotAi customer service support information.
