1. Introducere
This manual provides essential instructions for the safe and effective use of your POSEIDON Cordless Rotary Tattoo Machine Kit HM124. Please read this manual thoroughly before operating the device and retain it for future reference. Proper understanding and adherence to these guidelines will ensure optimal performance and longevity of your equipment.
2. Informații de siguranță
- Always ensure the machine is clean and sterilized before each use.
- Use only sterile, individually packaged cartridge needles.
- Wear appropriate personal protective equipment, including gloves, during setup and operation.
- Nu lăsați aparatul și toate accesoriile la îndemâna copiilor.
- Nu scufundați mașina în apă sau în orice alt lichid.
- Avoid operating the machine if it shows any signs of damage or malfunction.
- Dispose of used needles and other contaminated materials according to local regulations for biohazardous waste.
- Consult a medical professional for any health concerns related to tattooing.
3. Conținutul pachetului
Your POSEIDON Cordless Rotary Tattoo Machine Kit HM124 includes the following items:
- Cordless Rotary Tattoo Pen (HM124 model)
- 2 Rechargeable Lithium Polymer Batteries (1500mAh each)
- Cablu de încărcare de tip C
- 20 EO Gas-Sterilized Cartridge Needles (5x1205RL, 5x1207RL, 5x1209RS, 5x1007CM)
- 30ml Black Tattoo Ink
- 10x5ml Color Tattoo Inks
- 40 Ink Cups
- Marker Pen
- Tattoo Sticker
- Mănuși
- Capac pentru mânere
- 2x 3mm Practice Skin
- 2x Transfer Paper
- 4x Mats
Imaginea 3.1: Pesteview of the complete POSEIDON Cordless Rotary Tattoo Machine Kit contents.
4. Produs terminatview
The POSEIDON HM124 is a professional-grade cordless rotary tattoo machine designed for precision and portability. It features a 4.2mm stroke, suitable for various tattooing techniques including lining, shading, and permanent makeup. The machine is compatible with all standard cartridge needles.
4.1 Caracteristici cheie
- Funcționare fără fir: Powered by rechargeable batteries for freedom of movement.
- Vol. reglabiltage: 9-step adjustable voltage (4V–12V) for versatile use.
- High-Density Battery: 1500mAh battery capacity providing 5-8 hours of working time per charge.
- Încărcare de tip C: Fast and convenient USB-C charging.
- Precision Cartridge System: Ensures stable needle motion and optimal ink flow.
Image 4.1: The POSEIDON Cordless Rotary Tattoo Machine, highlighting its motor speed (8V 8500rpm), stroke length (4.2mm), and working voltage (4-12V).
Image 4.2: The tattoo pen demonstrating its adjustable needle length feature and 4.2mm stroke.
Image 4.3: Details on the 1500mAh battery capacity, showing 1.5 hours charging time for 5 hours of working time.

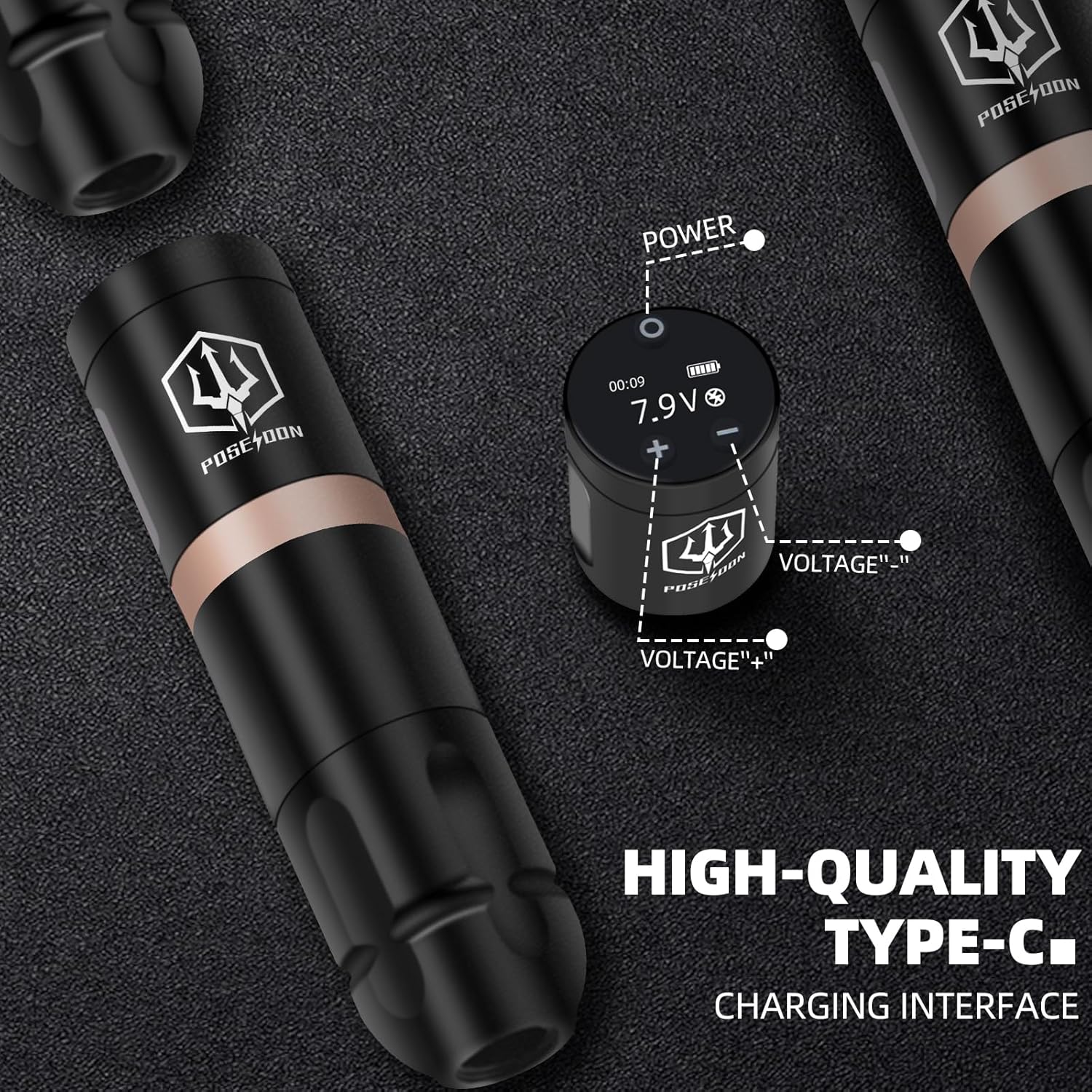

Image 4.4: Illustration of the high-quality Type-C charging interface on the battery pack.
Image 4.5: Close-up of the precision cartridge system, engineered for sharp lines, seamless shading, and minimal tissue trauma.
5. Instrucțiuni de configurare
5.1 Încărcarea bateriei
- Ensure the battery is securely attached to the tattoo machine.
- Connect the provided Type-C charging cable to the charging port on the battery.
- Conectați celălalt capăt al cablului la un adaptor de alimentare USB compatibil (nu este inclus).
- Indicatorul bateriei de pe afișaj va afișa starea de încărcare. O încărcare completă durează de obicei 1.5 ore.
- Odată încărcată complet, deconectați cablul.
5.2 Attaching the Cartridge Needle
- Carefully remove a sterile cartridge needle from its individual sealed packaging.
- Insert the needle cartridge into the machine's grip, twisting gently until it locks into place. Ensure it is seated firmly.
- Adjust the needle depth by rotating the grip of the machine.
5.3 Initial Assembly and Overview
Video 5.1: This video demonstrates the unboxing, assembly of the battery and needle cartridge, and basic operation of the POSEIDON Cordless Rotary Tattoo Machine Kit.
6. Instrucțiuni de utilizare
6.1 Pornire/Oprire
- To power on the machine, press and hold the power button (circle icon) on the battery pack for a few seconds until the display illuminates.
- Pentru a opri, apăsați și țineți apăsat din nou butonul de pornire până când afișajul se stinge.
6.2 Adjusting Voltage
- Once powered on, the display will show the current voltage.
- Use the '+' and '-' buttons on the battery pack to increase or decrease the voltage in 9 steps, ranging from 4V to 12V.
- Selectați volumul corespunzătortage based on your tattooing technique and needle type.
6.3 Tattooing Process (Practice)
For beginners, it is highly recommended to practice on the provided practice skin before attempting to tattoo on human skin.
- Prepare your workspace with all necessary sterile equipment, including ink cups and inks.
- Dip the needle into the tattoo ink, ensuring the tip is adequately loaded.
- Gently apply the needle to the practice skin at the desired angle and depth.
- Move the machine smoothly and consistently to create lines or fill areas.
- Regularly clean the needle and dip into ink as needed.

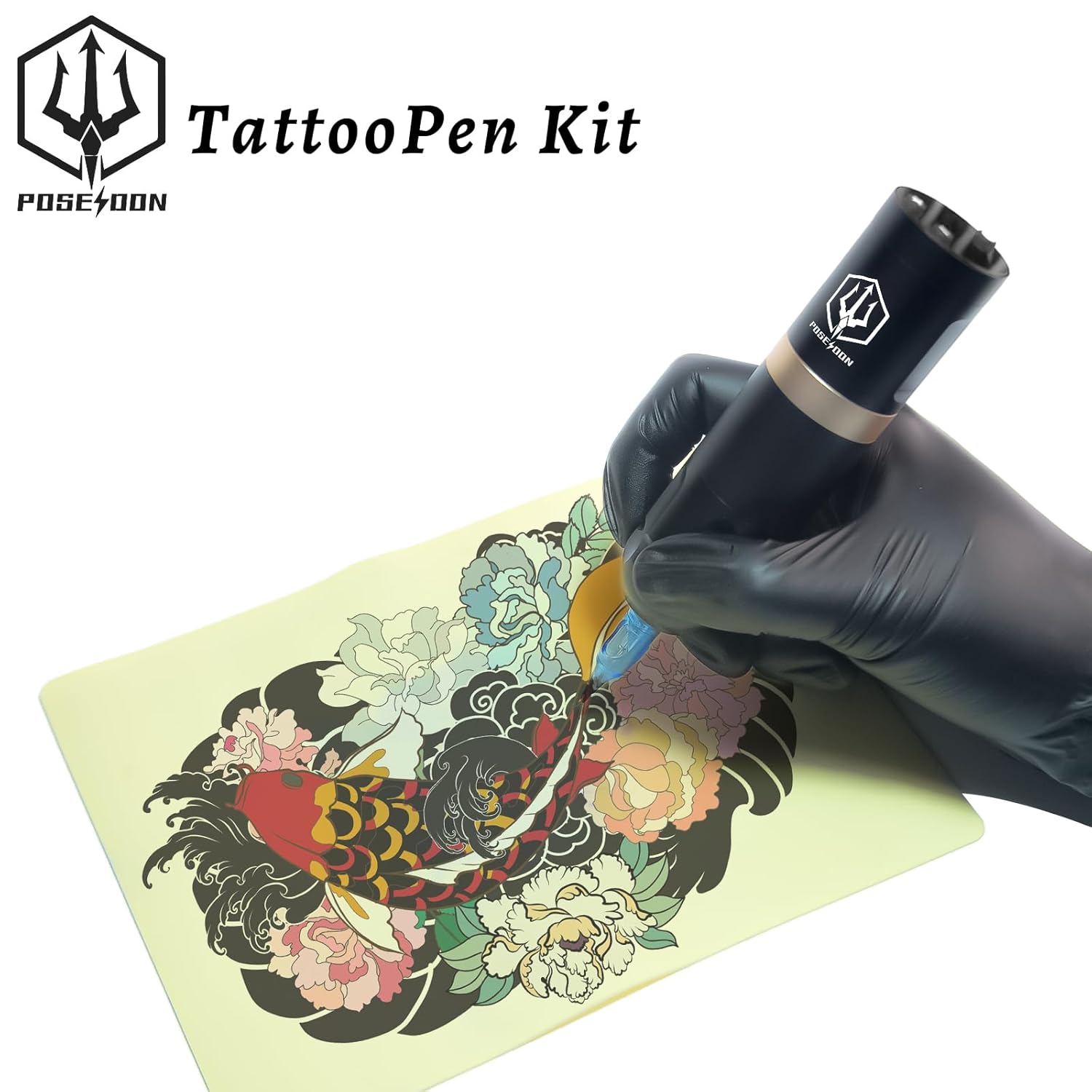

Image 6.1: A hand wearing a glove demonstrates using the tattoo pen on a practice skin, showing the application of ink.
7. Întreținere
7.1 Curăţarea maşinii
- After each use, disconnect the battery and remove the needle cartridge.
- Wipe down the exterior of the machine with a sterile wipe or a cloth dampened with an approved disinfectant solution.
- Do not allow liquids to enter the internal components of the machine.
- Asigurați-vă că mașina este complet uscată înainte de depozitare.
7.2 Îngrijirea bateriei
- Depozitați bateriile într-un loc răcoros și uscat, ferit de lumina directă a soarelui.
- Avoid overcharging or completely draining the batteries to prolong their lifespan.
- If not in use for an extended period, charge the batteries to approximately 50% before storage.
7.3 Needle Disposal
Used tattoo needles are biohazardous waste. Dispose of them immediately after use in a designated sharps container. Follow all local regulations for the disposal of sharps and biohazardous materials.
8. Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Mașina nu pornește. | Baterie descărcată sau descărcată. | Încărcați complet bateria. |
| Mașina se oprește în timpul funcționării. | Bateria este descărcată sau descărcată. | Replace with a charged battery or recharge the current one. |
| Needle not moving correctly. | Needle cartridge not properly seated. | Ensure the needle cartridge is securely twisted and locked into the grip. |
| Inconsistent ink flow. | Needle depth incorrect or ink too thick. | Adjust needle depth. Ensure ink is suitable for machine use. |
9. Specificații
- Model: HM124
- Lungimea cursei: 4.2mm
- Vol. De lucrutage: 4V–12V (9-step adjustable)
- Viteza motorului: 8V 8500rpm
- Tip baterie: Polimer de litiu
- Capacitate baterie: 1500mAh (each battery)
- Timp de încărcare: Aproximativ 1.5 ore
- Timp de lucru: 5-8 hours per battery
- Interfață de încărcare: Tip-C USB
- Dimensiuni mașină: 11.97 x 9.29 x 4.13 inci (Pachet)
- Greutate: 2.45 Pounds (Package)
- UPC: 716597329799
- Nivel de rezistență la apă: Nu este rezistent la apă
10. Garanție și asistență
POSEIDON offers a satisfaction guarantee with a refund or replacement policy. For any questions, concerns, or support needs regarding your tattoo machine kit, please contact POSEIDON customer service through the retailer where the product was purchased. Please refer to your purchase documentation for specific warranty terms and contact information.
