Haozee Smart Irrigation Computer YCF-Zigbee-WT-2 OUTLET User Manual

1. Introducere

The Haozee Smart Irrigation Computer YCF-Zigbee-WT-2 OUTLET is an intelligent watering timer designed for garden hoses. It features two independent water outlets and can be controlled remotely via an application when connected to a Tuya Zigbee Hub. This manual provides instructions for setup, operation, and maintenance to ensure optimal performance of your device.

Figure 1: Haozee Smart Irrigation Computer and its mobile application interface.

2. Informații de siguranță

• Citiți cu atenție toate instrucțiunile înainte de utilizare.
• This device is designed for outdoor use with garden hoses.
• Do not immerse the device in water. The device has an IPX5 waterproof rating, meaning it is protected against low-pressure water jets from any direction, but not submersion.
• Asigurați-vă că toate conexiunile sunt sigure pentru a preveni scurgerile.
• Keep out of reach of children. Contains small parts that may pose a choking hazard.
• Use only the specified battery type (check device for markings).

Figure 2: Product label showing safety warnings regarding small parts and choking hazards.

3. Conținutul pachetului

Verificați dacă toate componentele sunt prezente:

• Haozee Smart Irrigation Computer (YCF-Zigbee-WT-2 OUTLET)
• Manual de utilizare (acest document)
• Note: Tuya Zigbee Hub and batteries are not included and must be purchased separately.

4. Configurare

4.1. Instalarea bateriei

1. Localizați compartimentul bateriei de pe dispozitiv.
2. Deschideți capacul compartimentului bateriei.
3. Insert the required batteries (e.g., AA or AAA, check device for specific type) ensuring correct polarity.
4. Închideți bine capacul compartimentului bateriei.

4.2. Instalare fizică

1. Attach the Haozee Smart Irrigation Computer to a standard outdoor faucet. Ensure the connection is tight to prevent leaks.
2. Connect your garden hoses to the two independent water outlets at the bottom of the device. The connections are made of 30% reinforced nylon fiber material for durability.

Figure 3: Device connected to a faucet with two hoses, illustrating independent zone control.

4.3. Connecting to Tuya Zigbee Hub and App

The Haozee Smart Irrigation Computer requires a Tuya Zigbee Hub for remote control functionality. Ensure your Zigbee Hub is set up and connected to your home network according to its own instructions.

1. Download the Tuya Smart or Smart Life application from your mobile device's app store.
2. Înregistrați-vă sau conectați-vă la contul dvs.
3. Add your Tuya Zigbee Hub to the application if you haven't already.
4. Follow the in-app instructions to add the Haozee Smart Irrigation Computer to your Zigbee network via the Tuya Zigbee Hub.
5. Once paired, you can manage the device remotely.

Figure 4: Remote control of the irrigation timer via the mobile application.

5. Instrucțiuni de utilizare

5.1. Independent Water Outlets

The device features two independent water outlets, each with its own switch. This allows for separate watering schedules and durations for different areas of your garden, such as flower beds, lawns, or vegetable gardens.

Figure 5: Illustration of two independent watering zones with distinct schedules.

5.2. Watering Modes

The Haozee Smart Irrigation Computer supports various watering modes accessible through the mobile application:

• Control manual: Turn the device on or off instantly as needed directly from the app.
• Modul cronometrat: Set specific start and end times for watering to maintain consistent garden humidity.
• Modul ciclic: Configure watering to repeat within a set period of time, allowing for interval-based irrigation.

Figure 6: Application interface for setting timed and cyclical watering schedules.

5.3. Funcția de întârziere la ploaie

To prevent overwatering during rainy periods, the device offers a Rain Delay mode. You can manually set a delay from 1 to 7 days based on real-time weather forecasts available in the mobile application. This feature helps conserve water and protects your plants from excessive moisture.

Figure 7: Rain Delay feature selection in the mobile application.

5.4. Integrarea controlului vocal

The Haozee Smart Irrigation Computer supports voice control through Amazon Alexa and Google Assistant. After linking your Tuya account with your voice assistant, you can issue commands such as "Alexa, open the Smart Dual Water Timer" to manage your watering schedules.

Figure 8: Voice control functionality with Amazon Alexa and Google Assistant.

5.5. Home Assistant and Zigbee2mqtt Support

For advanced users, the Haozee Smart Irrigation Computer supports integration with Home Assistant via Zigbee2mqtt. This allows for linking with other Tuya sensors, such as soil temperature and humidity sensors, to create a more comprehensive smart irrigation system.

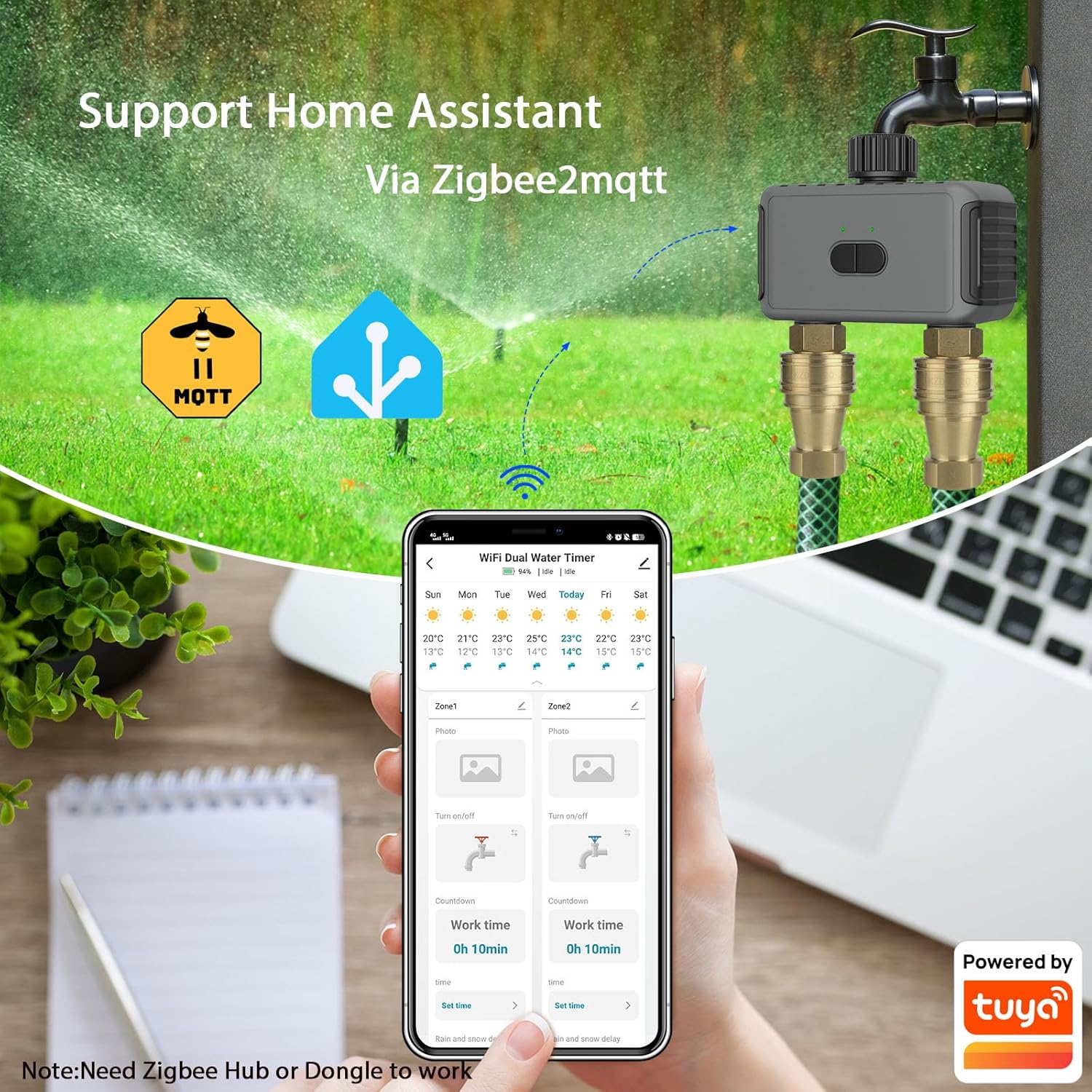

Figure 9: Integration with Home Assistant and Zigbee2mqtt for advanced automation.

6. Întreținere

• Înlocuire baterie: Replace batteries when the low battery indicator appears in the app or on the device.
• curatenie: Periodically wipe the exterior of the device with a damp pânză. Nu utilizați agenți de curățare abrazivi sau solvenți.
• winterization: In freezing climates, disconnect the device from the faucet and store it indoors to prevent damage from ice expansion.
• Verificarea conexiunii: Regularly inspect hose connections for wear or leaks and tighten as necessary.

7. Depanare

8. Specificații

9. Garanție și asistență

The Haozee Smart Irrigation Computer is manufactured with high-quality materials and undergoes rigorous testing. While specific warranty details are not provided in this manual, please refer to the product packaging or the retailer's website pentru informații despre garanție.

For technical support or inquiries, please contact your retailer or the manufacturer, Haozee. Contact information may be available on the product packaging or the official Haozee website-ul.
