WOLFBOX X3 Dash Cam

Produs terminatview

The WOLFBOX X3 Dash Cam is a high-performance dual dash camera system designed to provide comprehensive recording of your driving experience. It features a front camera with 2.5K (2560*1440P) resolution at 60 frames per second and a rear camera with 1080P resolution at 30 frames per second, ensuring clear and detailed footage. Equipped with the advanced STARVIS 2 IMX675 sensor, the X3 excels in low-light conditions, reducing noise and motion blur. Its integrated 5.8GHz Wi-Fi and GPS capabilities allow for fast data transfer and accurate location/speed tracking. The intuitive touch screen and Advanced Driver Assistance System (ADAS) enhance user interaction and driving safety.

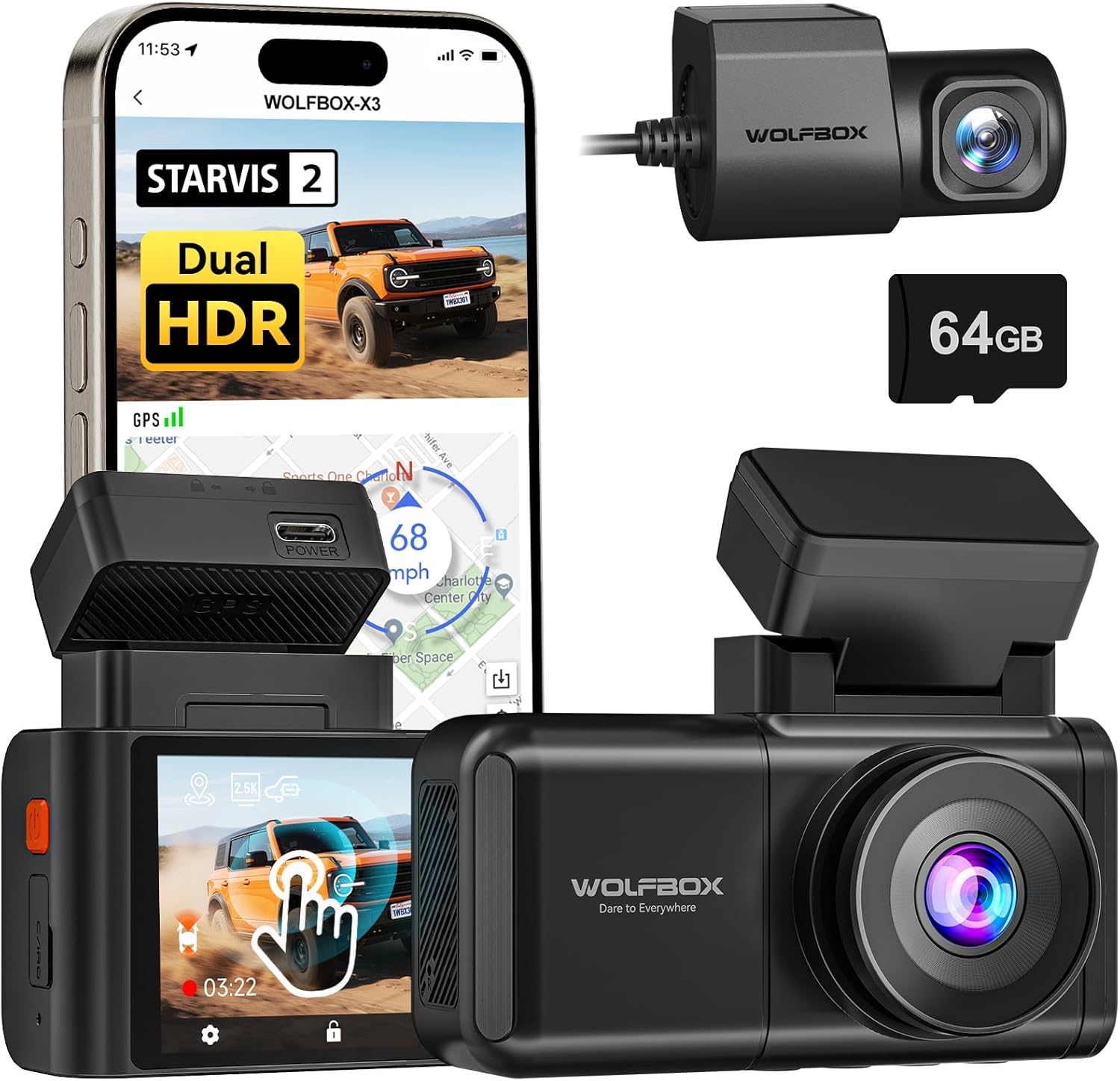

Image: The WOLFBOX X3 Dash Cam, showcasing its main unit, rear camera, and the included 64GB SD card, alongside a smartphone displaying the companion app interface.

Ce este în cutie

Upon unboxing your WOLFBOX X3 Dash Cam, please verify that all the following components are included:

• X3 Dash Cam (Main Unit)
• Suport GPS
• Cameră spate 1080P
• Cablu de alimentare USB-C
• Cablu came spate
• Instrument de tăiere a firului de mașină
• Autocolant electrostatic
• 64GB Memory Card (pre-formatted)
• Muntele adeziv
• Manual de utilizare (acest document)
• Încărcător auto
• Ghid rapid
• Instrument de instalare

Image: A visual representation of the WOLFBOX X3 Dash Cam package contents, including the main dash cam unit, rear camera, power cables, and mounting accessories.

Configurare și instalare

Follow these steps for proper installation of your WOLFBOX X3 Dash Cam:

1. Pregătiți suprafața de montare: Clean the area on your windshield where the dash cam will be mounted. Ensure it does not obstruct your view. Apply the electrostatic sticker to the chosen area on the windshield. This allows for easy removal without residue.
2. Montați camera frontală: Attach the GPS bracket to the electrostatic sticker. The main dash cam unit then slides onto the GPS bracket. Ensure it is securely fastened.
3. Instalați camera spate: Mount the rear camera on your rear window using its adhesive. Route the rear camera cable from the main unit to the rear camera. Use the provided car wire trim tool to tuck the cable neatly along the vehicle's headliner and pillar trim for a clean installation.
4. Conectare alimentare: Plug the USB-C power cable into the main dash cam unit and the car charger into your vehicle's 12V DC power outlet.
5. Introduceți cardul SD: The included 64GB SD card is pre-formatted. Insert it into the designated slot on the dash cam.
6. Reglați unghiul camerei: Power on the dash cam and adjust the lens angle of both the front and rear cameras to ensure they capture the desired field of view.

Image: Diagram illustrating the connection of the rear camera to the main dash cam unit.

Image: Diagram illustrating the proper attachment of the GPS bracket to the main dash cam unit.

Instrucțiuni de operare

Operare de bază

• Pornire/Oprire: Camera de bord se va porni automat și va începe înregistrarea când contactul vehiculului este pornit. Se va opri automat când contactul este oprit.
• Înregistrare în buclă: The X3 features continuous loop recording. When the memory card is full, the oldest unlocked footage va fi suprascris de noile înregistrări.
• Senzor G: În cazul unui impact sau al unei coliziuni bruște, senzorul G încorporat va detecta automat evenimentul și va bloca înregistrarea video curentă. file, împiedicând suprascrierea acestuia.

Image: An illustration demonstrating the loop recording feature and G-Sensor impact detection, ensuring critical footage este salvat.

Interfață cu ecran tactil

The WOLFBOX X3 is equipped with a responsive touch screen for easy navigation and settings adjustment. Simply tap or swipe on the screen to access menus, review footage, or change settings.

Image: A user demonstrating interaction with the intuitive touch screen of the WOLFBOX X3 Dash Cam for effortless menu navigation.

Wi-Fi and GPS Connectivity

The built-in 5.8GHz Wi-Fi allows for fast and stable connection to the WOLFBOX app on your smartphone. This enables seamless video transfers, live preview, and easy sharing of footage. The integrated GPS module accurately records your vehicle's speed and location, embedding this data directly into your video files for irrefutable evidence.

Image: The WOLFBOX X3 Dash Cam in a vehicle, with a smartphone displaying the WOLFBOX app, highlighting the 5.8GHz Wi-Fi and GPS functionalities for fast data transfer and location tracking.

Sistem avansat de asistență a șoferului (ADAS)

The X3 incorporates ADAS technology to proactively alert you to potential road hazards, enhancing driving safety. Key ADAS features include:

• Avertizare coliziune frontală (FCW): Alerts you if you are approaching a vehicle too quickly.
• Avertizare la părăsirea benzii de rulare (LDW): Notifies you if your vehicle drifts out of its lane without signaling.
• Stop & Go: Informs you when the vehicle in front of you starts moving after a stop.

Image: Visual representation of the WOLFBOX X3's Advanced Driver Assistance System (ADAS) in action, showing alerts for forward collision, lane departure, and stop-and-go traffic.

Dual HDR Recording

The WOLFBOX X3 supports Dual HDR (High Dynamic Range) recording, which automatically balances footage in extreme lighting conditions. This feature preserves critical details in both bright highlights and deep shadows, ensuring clear video quality whether driving into direct sunlight or through tunnels. Note: For HDR recording, the front camera resolution switches to 2.5K at 30fps.

Image: A side-by-side comparison demonstrating the improved visibility and detail captured with Dual HDR Recording enabled on the WOLFBOX X3 Dash Cam, especially in challenging lighting.

24H Parking Monitor

For continuous surveillance when your vehicle is parked, the X3 offers a 24-hour parking monitor function. This feature requires an additional hardwire kit (ASIN: B09X9F8GMT), which is sold separately. The parking monitor includes:

• Collision Detection Monitor: Records footage if an impact is detected while parked.
• Monitorizare time-lapse: Records continuous footage at a low frame rate to save storage space, capturing events over extended periods.

Image: An illustration of the WOLFBOX X3's 24-hour Parking Monitor capabilities, showing both collision detection and time-lapse recording modes for comprehensive vehicle security.

Întreţinere

• Managementul cardului SD: Regularly format the included 64GB SD card (at least once a month) to ensure optimal performance and prevent data corruption. You can do this through the dash cam's settings menu. Replace the SD card if you notice any recording errors or degradation in performance.
• Curățarea lentilelor și a ecranului: Use a soft, lint-free cloth to gently wipe the front and rear camera lenses and the dash cam's touch screen. Avoid using abrasive cleaners or solvents that could damage the surfaces.
• Actualizări firmware: Check the official WOLFBOX website or app periodically for firmware updates. Keeping your dash cam's firmware up-to-date ensures you have the latest features and performance improvements.

Depanare

If you encounter any issues with your WOLFBOX X3 Dash Cam, please refer to the following common problems and solutions:

Specificații

Garanție și suport

WOLFBOX is committed to providing high-quality products and excellent customer service. Your WOLFBOX X3 Dash Cam comes with the following:

• 12 luni garanție: A full one-year guarantee from the date of purchase, covering manufacturing defects and malfunctions.
• Politica de returnare în 7 de zile: You may return the product within 7 days of receipt for a refund or exchange, subject to terms and conditions.
• Recuperarea defectelor: Products found to be defective will be eligible for return or replacement.

For dedicated support, setup assistance, or troubleshooting, please contact WOLFBOX customer service:

E-mail: service@wolfbox.com

Telefon: +1 888 296 8399
