Manual de instrucțiuni pentru stația de andocare pentru hard disk-uri Yottamaster KB500 cu 5 bay-uri

1. Introducere

The Yottamaster 5-Bay Hard Drive Docking Station KB500 is a versatile device designed for efficient data management, offering both high-speed data transfer and offline cloning capabilities. It supports up to five 2.5-inch or 3.5-inch SATA SSD/HDD drives, with a total capacity of up to 90TB. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

• 5-Bay Offline Cloning: Simultaneously clone up to four hard drives from a single source without a PC connection.
• 90TB Large Capacity: Supports five 2.5" or 3.5" SATA I/II/III SSD/HDD drives, with a single disk capacity up to 18TB.
• 5Gbps High-Speed Transfer: Features USB 3.2 Gen 1 Type-C output and UASP acceleration protocol for fast data transfer.
• Compatibilitate: Compatible with Windows and Mac OS, offering tool-free installation, plug-and-play, and hot-swappable capability.
• Design durabil: Constructed from high-quality plastic and aluminum alloy for protection and enhanced heat dissipation.

2. Produs terminatview

The Yottamaster 5-Bay Hard Drive Docking Station facilitates efficient file backup and data transfer, safeguarding your valuable data.

3. Configurare și instalare

3.1 Instalarea unității

The Yottamaster docking station features tool-free installation for both 2.5-inch and 3.5-inch SATA SSD/HDD drives. Ensure the device is powered off before inserting or removing drives.

1. Gently open the drive bay flap.
2. Align your 2.5-inch or 3.5-inch SATA drive with the connector inside the bay.
3. Carefully push the drive down until it is securely seated. The flap will close around the drive.
4. Repeat for additional drives as needed.

Image illustrating the tool-free installation process for 2.5-inch and 3.5-inch SATA SSD/HDD drives.

3.2 Conectarea la un computer

The docking station supports both USB-C and USB-A connections for broad compatibility.

1. Connect the power adapter to the DC 12V port on the back of the docking station and plug it into a power outlet.
2. Connect the included USB 3.2 Gen 1 Type-C cable to the docking station's Type-C port.
3. Connect the other end of the USB cable to an available USB-C or USB-A port on your computer. For optimal performance, use a USB 3.0 or higher port.
4. Flip the power switch on the back of the docking station to the 'ON' position. The power indicator LED will illuminate.
5. Your computer should automatically detect the connected drives.

Diagram illustrating the universal compatibility of the docking station with various USB-C and USB-A devices and operating systems.

4. Instrucțiuni de utilizare

4.1 Mod de transfer de date

Once connected to your computer and powered on, the installed drives will appear as individual storage devices. You can drag and drop files, perform backups, or access data directly from any of the five bays. The USB 3.2 Gen 1 interface, combined with UASP, ensures transfer speeds of up to 5Gbps.

Image demonstrating high-speed 5Gbps data transfer from the docking station to a laptop.

4.2 Offline Cloning Mode

The offline cloning function allows you to duplicate a source drive to up to four target drives without needing a computer connection. Ensure the target drives have equal or greater capacity than the source drive.

1. Asigurați-vă că stația de andocare este oprită.
2. Introduceți Unitate sursa into the designated 'Source' bay (usually the first bay).
3. Introduceți Target Drives into the 'Target' bays (up to four drives).
4. Conectați adaptorul de alimentare și porniți stația de andocare.
5. Press and hold the 'CLONE' button for approximately 3-5 seconds until the cloning indicator lights begin to flash.
6. Release the button, then press it again within 5 seconds to confirm and start the cloning process.
7. The progress indicator LEDs (25%, 50%, 75%, 100%) will illuminate sequentially to show the cloning status.
8. Once all indicator LEDs are solid, the cloning process is complete. Power off the device before removing drives.

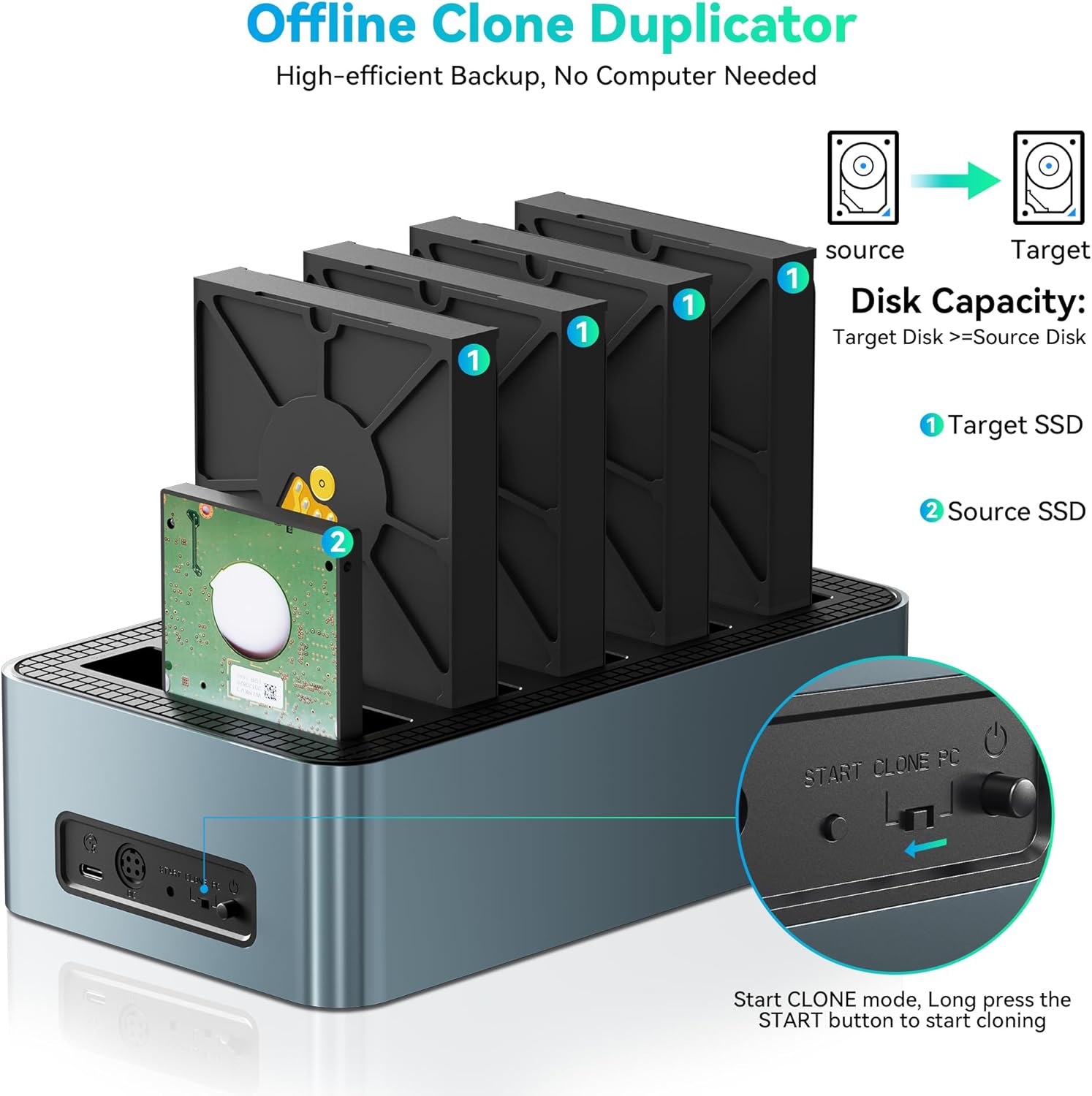

Diagram showing the offline cloning process from a source drive to multiple target drives.

Step-by-step visual instructions for initiating the offline cloning function.

5. Întreținere

To ensure the longevity and optimal performance of your Yottamaster docking station, follow these maintenance guidelines:

• curatenie: Folosiți o lavetă moale și uscată pentru a curăța exteriorul dispozitivului. Evitați substanțele de curățare lichide sau materialele abrazive.
• Depozitare: Depozitați dispozitivul într-un loc răcoros și uscat, ferit de lumina directă a soarelui și de temperaturi extreme.
• Manipulare: Manevrați dispozitivul cu grijă. Evitați să îl scăpați sau să îl supuneți la impacturi puternice.
• Disiparea căldurii: Ensure proper ventilation around the device. The aluminum alloy design aids in heat dissipation, but do not block ventilation holes.

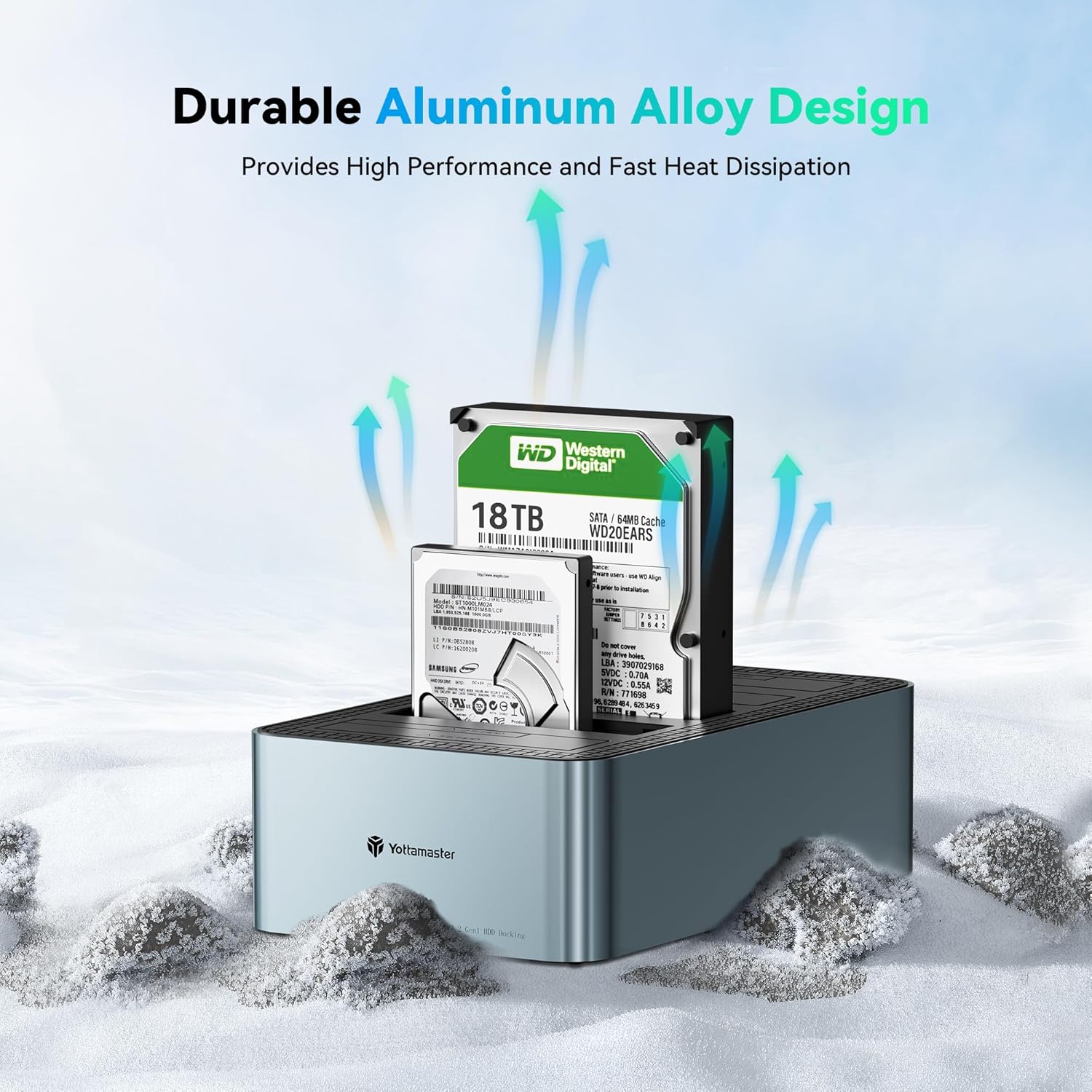

Image highlighting the durable aluminum alloy design, which contributes to effective heat dissipation.

6. Depanare

If you encounter issues with your Yottamaster docking station, please refer to the following common troubleshooting steps:

• Unitate nedetectată:
  • Asigurați-vă că adaptorul de alimentare este conectat corect și că dispozitivul este pornit.
  • Verify that the USB cable is properly connected to both the docking station and your computer.
  • Încercați un alt port USB pe computer.
  • Ensure the drive is correctly seated in its bay. Remove and reinsert the drive.
  • Check your computer's Disk Management (Windows) or Disk Utility (Mac OS) to see if the drive is recognized but uninitialized or unformatted.
• Viteze mici de transfer:
  • Ensure you are connected to a USB 3.0 (or higher) port on your computer. USB 2.0 ports will result in slower speeds.
  • Verify that your operating system supports UASP (USB Attached SCSI Protocol) for enhanced performance.
  • The performance of the drives themselves can affect transfer speeds. Older HDDs will be slower than modern SSDs.
• Offline Cloning Failure:
  • Ensure the target drive(s) capacity is equal to or larger than the source drive's capacity.
  • Verificați dacă unitățile sursă și destinație sunt introduse corect în compartimentele respective.
  • Follow the offline cloning steps precisely, especially the timing for pressing the 'CLONE' button.

7. Specificații

8. Garanție și asistență

Yottamaster products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Yottamaster website-ul.

For technical support, troubleshooting assistance, or any inquiries regarding your Yottamaster 5-Bay Hard Drive Docking Station KB500, please contact Yottamaster customer service through their official website-ul sau distribuitorul de unde a fost achiziționat produsul.
