Zintronic P3 PTZ IP WiFi Outdoor Camera User Manual

Introducere

This manual provides comprehensive instructions for the Zintronic P3 PTZ IP WiFi Outdoor Camera, model IKPW330V1. This advanced surveillance camera features a 3MP sensor for crystal-clear Full HD video, Pan-Tilt-Zoom (PTZ) functionality for wide area coverage, automatic motion tracking, and efficient LED night vision for clear images in low-light conditions. It supports local recording to a microSD card (up to 128GB) and offers remote management via the intuitive CamHipro application. Key features include two-way audio communication, instant motion detection notifications, and live remote viewing from any location. This camera is an ideal solution for monitoring homes, offices, or businesses, combining advanced functions with ease of use.

Informații de siguranță

• Ensure the power supply meets the camera's specifications (5W).
• Install the camera in a location where it is protected from extreme weather conditions, despite being rated for outdoor use.
• Avoid direct exposure to water or moisture during installation and operation.
• Nu încercați să dezasamblați sau să modificați camera. Acest lucru poate anula garanția și poate provoca daune.
• Keep the camera away from strong magnetic fields or sources of interference.
• Utilizați numai accesorii aprobate de producător.

Conținutul pachetului

Verificați dacă toate articolele sunt prezente în colet:

• Zintronic P3 PTZ IP WiFi Camera (IKPW330V1)
• Antena WiFi
• Manual de utilizare (acest document)

Produs terminatview

The Zintronic P3 PTZ IP WiFi Camera is designed for outdoor surveillance, offering robust features in a compact, rotatable dome-shaped housing. Familiarize yourself with the camera's components:

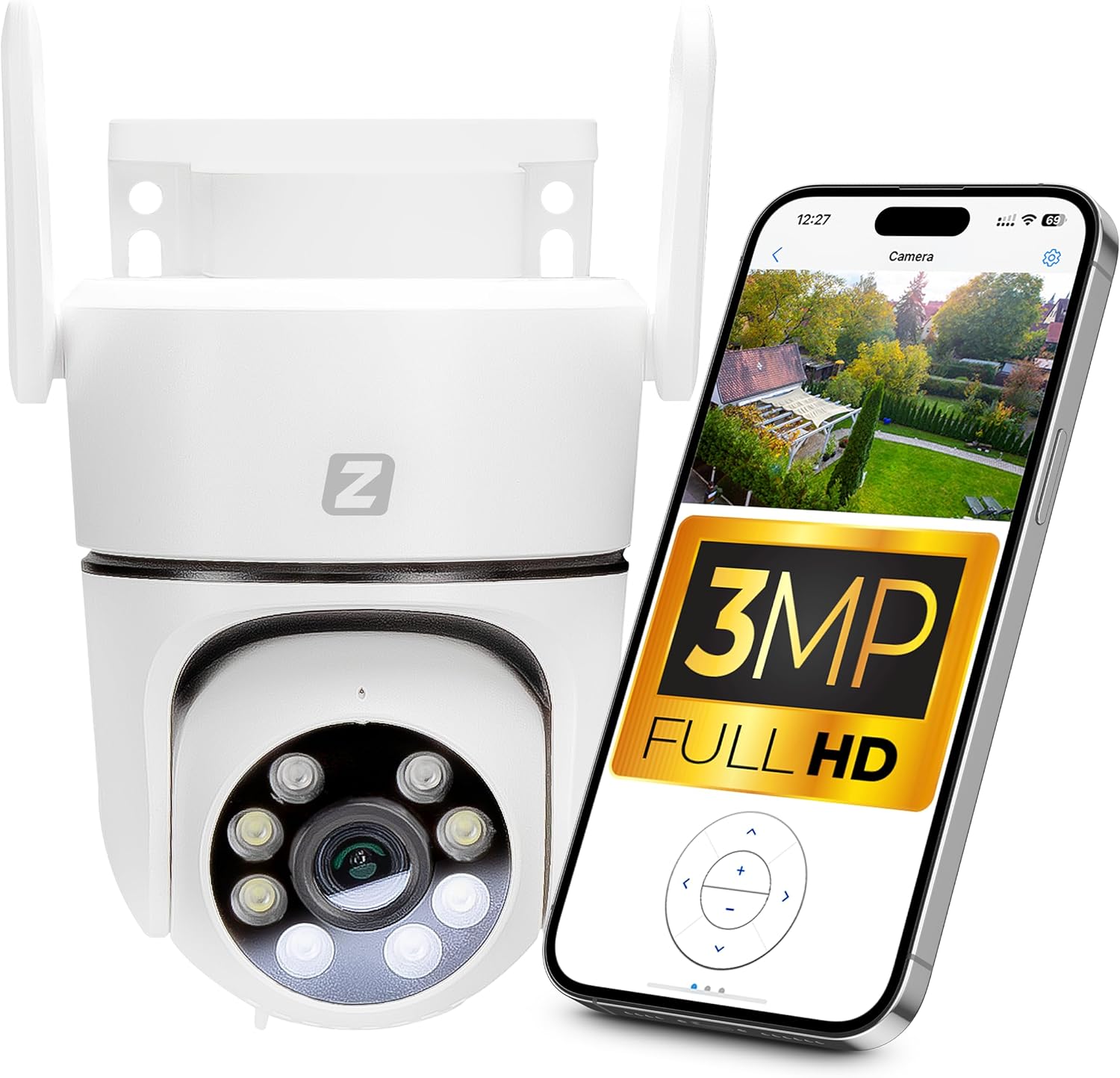

Figure 1: Zintronic P3 PTZ IP WiFi Camera with mobile app interface showing live feed.

Figura 2: Față view of the Zintronic P3 PTZ camera, highlighting the lens and LED illuminators.

Figura 3: lateral view of the Zintronic P3 PTZ camera, showing the antenna and mounting bracket.

Figura 4: Spate view of the Zintronic P3 PTZ camera, showing the antenna connections.

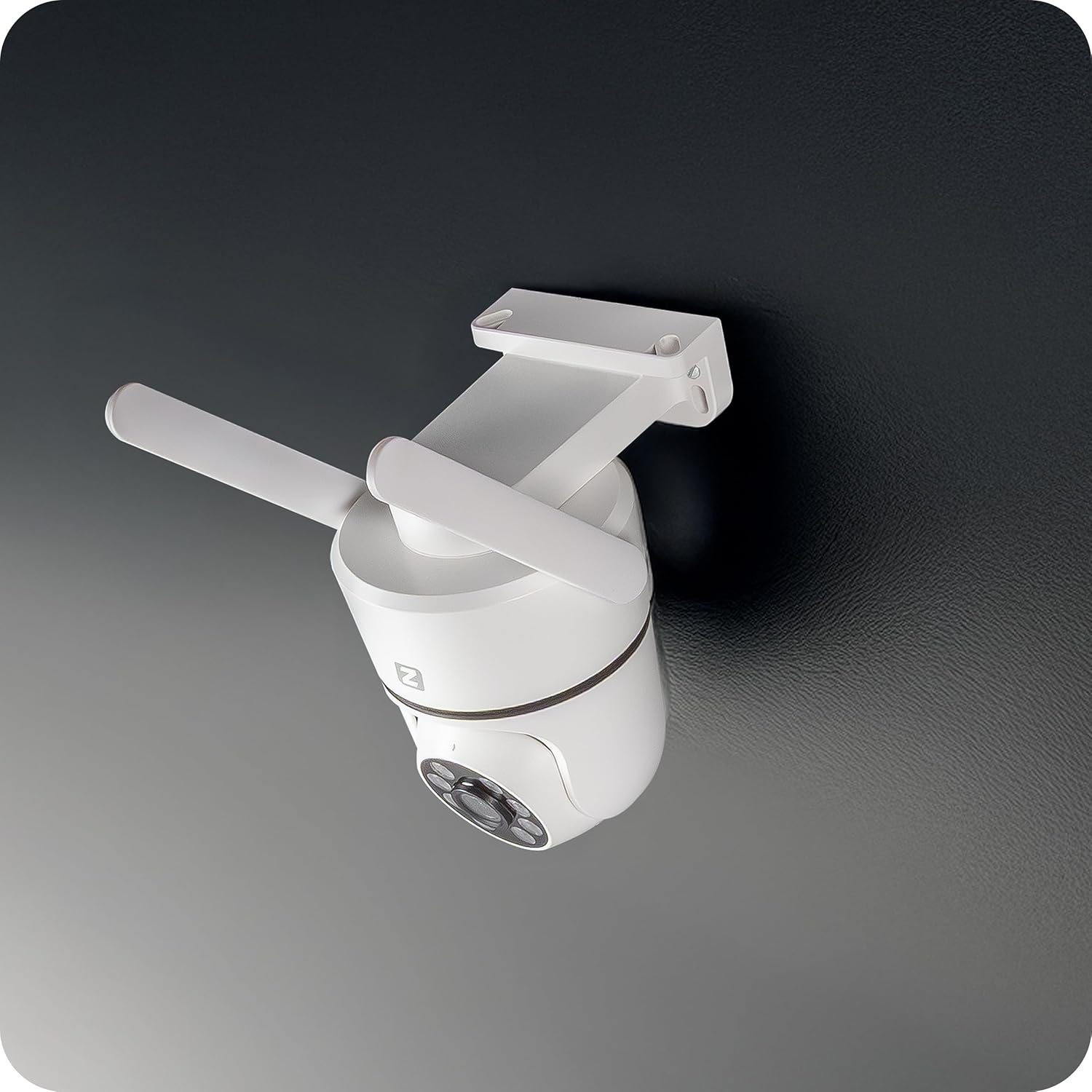

Figura 5: Înclinat view of the Zintronic P3 PTZ camera, showcasing its rotational capability.

Figura 6: Prim-plan frontal view of the Zintronic P3 PTZ camera, detailing the lens and LED array.

Componente cheie:

• Obiectivul camerei: Captează video footage.
• LED Illuminators: Provide illumination for night vision, including color night vision.
• Microfon: Pentru intrare audio și comunicare bidirecțională.
• Vorbitor: Pentru ieșire audio și comunicare bidirecțională.
• Antene WiFi: Pentru conectivitate la rețeaua wireless.
• Suport de fixare: For wall or ceiling installation.
• Slot pentru card MicroSD: For local video storage (up to 128GB).
• Port de alimentare: Pentru conectarea adaptorului de alimentare.

Înființat

1. Instalare fizică

1. Alegeți o locație: Select a suitable outdoor location for optimal surveillance coverage, considering the camera's 89-degree viewing angle and 40-meter night vision range. Ensure the location has a stable Wi-Fi signal and access to a power source.
2. Montare: The camera supports wall or ceiling mounting. Use the provided mounting bracket and hardware to securely attach the camera.
3. Conectați antena WiFi: Screw the WiFi antenna(s) onto the designated ports on the camera.
4. Pornire: Connect the power adapter to the camera's power port and plug it into an electrical outlet. The camera will initiate its self-test and rotation.

Figure 7: Ceiling mount example.

Figure 8: Wall mount example.

2. Instalarea aplicației și crearea contului

1. Download CamHipro App: Caută "CamHipro" in your smartphone's app store (Google Play Store for Android or Apple App Store for iOS) and install it.
2. Înregistrare Cont: Open the CamHipro app and follow the on-screen instructions to register a new account using your email address or phone number.

3. Conexiune la rețea

1. Adăugați dispozitiv: In the CamHipro app, tap the "+" icon to add a new device.
2. Selectați tipul dispozitivului: Choose "IP Camera" or scan the QR code usually found on the camera or its packaging.
3. Conectați-vă la WiFi: Follow the app's prompts to connect the camera to your 2.4GHz Wi-Fi network. This typically involves entering your Wi-Fi password and allowing the app to generate a QR code for the camera to scan, or using an audio pairing method.
4. Inițializarea dispozitivului: Once connected, the camera will be added to your account. You can then name the camera and begin live viewing.

Instrucțiuni de operare

1. în direct View

Open the CamHipro app and select your camera from the device list to access the live video feed. You can view footage in real-time from your smartphone, tablet, or computer.

2. PTZ Control (Pan-Tilt-Zoom)

În direct view screen, use the on-screen controls to pan (rotate horizontally 360°), tilt (rotate vertically), and digitally zoom the camera. The camera also features automatic motion tracking, where it can follow detected movement within its field of view.

3. Înregistrare și redare

• MicroSD Card Recording: Insert a microSD card (up to 128GB, not included) into the camera's slot for local storage of recordings. The camera will automatically record based on your settings (e.g., continuous, motion-triggered).
• Cloud Storage (Optional): Check the CamHipro app for available cloud storage options, which may require a subscription.
• Redare: Acces înregistrat footage through the "Playback" section in the CamHipro app. You can filter by date and time.

4. Motion Detection Settings

Configure motion detection sensitivity and areas within the app's settings. When motion is detected, the camera can send instant notifications to your smartphone and begin recording.

5. Sunet bidirecțional

Utilize the built-in microphone and speaker for two-way audio communication. Tap the microphone icon in the live view to speak through the camera, and listen to audio from the camera's surroundings.

6. Moduri de vedere nocturnă

The camera features advanced LED illuminators for night vision up to 40 meters. It can automatically switch to night mode in low light, providing clear, and in some configurations, color images at night.

Întreţinere

• curatenie: Gently wipe the camera lens and housing with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Actualizări firmware: Regularly check the CamHipro app for firmware updates. Keeping the firmware updated ensures optimal performance and security.
• Stabilitatea rețelei: Asigurați-vă că rețeaua Wi-Fi este stabilă și puternică pentru funcționarea neîntreruptă a camerei.

Depanare

• Aparat foto offline: Check power connection and Wi-Fi signal strength. Restart the camera and your router. Ensure the camera is within Wi-Fi range.
• Nu se poate conecta la aplicație: Verify correct Wi-Fi password. Ensure your phone is connected to a 2.4GHz Wi-Fi network during setup. Try resetting the camera (refer to app instructions for reset procedure).
• Calitate video slabă: Check network bandwidth. Ensure the lens is clean. Adjust camera placement for optimal lighting.
• Detectarea mișcării nu funcționează: Verify motion detection settings in the app. Ensure the detection area is correctly configured.
• Fără audio: Check volume settings on your phone and in the app. Ensure the camera's microphone and speaker are not obstructed.

Specificații

Garanție și suport

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Zintronic website. You may also contact Zintronic customer service directly for assistance with your IKPW330V1 camera.
