1. Introducere
This manual provides detailed instructions for the installation, operation, and maintenance of your SOUNDKITS Bluetooth Retro Car Radio. Please read this manual thoroughly before using the product to ensure proper function and safety. This unit combines classic aesthetics with modern audio technology, offering Bluetooth connectivity, AM/FM radio, USB, and AUX input capabilities.
2. Informații de siguranță
Always prioritize safety during installation and operation. Improper installation can lead to electrical hazards or damage to your vehicle. Consult a professional if you are unsure about any installation steps. Do not operate the unit in a way that distracts you from driving. Keep the volume at a level that allows you to hear external traffic sounds.
3. Conținutul pachetului
- Bluetooth Vintage Car Stereo Unit
- Mounting Kits & Wires
- Manual de instructiuni
4. Produs terminatview
The SOUNDKITS Retro Car Radio features a classic design with modern functionality. It includes a high-resolution LCD display, rotary knobs for volume and settings, and push-buttons for various functions such as band selection, mode switching, and clock settings.
Imagine: față view of the SOUNDKITS Bluetooth Retro Car Radio, showing the display, rotary knobs, and control buttons.
5. Configurare și instalare
5.1 Dimensiuni și compatibilitate
The unit is designed for a standard single DIN opening, with dimensions of 7.4 inches (L) x 3.8 inches (D) x 2 inches (H). This ensures compatibility with a wide range of classic vehicles.
5.2 Schema electrică
Refer to the following diagram for proper wiring connections. Ensure all connections are secure and correctly matched to avoid damage to the unit or vehicle electrical system.
Image: Detailed diagram illustrating the dimensions of the radio and the wiring harness connections for power, speakers, and auxiliary inputs.
5.3 Montare
Secure the unit into the single DIN dashboard opening using the provided mounting kit. Ensure the unit is firmly in place to prevent movement during vehicle operation.
6. Instrucțiuni de utilizare
6.1 Pornire/Oprire și control volum
Press the left rotary knob to power the unit on or off. Rotate the left knob to adjust the volume level.
6.2 Selectarea modului
Press the 'MODE' button to cycle through available audio sources: FM, AM, Bluetooth, USB, and AUX. The current mode will be displayed on the LCD screen.
6.3 Conectivitate Bluetooth
Pentru a vă asocia dispozitivul prin Bluetooth:
- Select 'Bluetooth' mode using the 'MODE' button.
- Activați Bluetooth pe dispozitivul dvs. mobil și căutați dispozitivele disponibile.
- Select 'SOUNDKITS' from the list to pair.
- După asociere, puteți transmite sunet și puteți efectua/primi apeluri hands-free.
Image: Illustration of Bluetooth connectivity, showing hands-free calling and wireless audio streaming capabilities.
6.4 Funcționarea radioului AM/FM
Press the 'BAND' button to switch between FM1, FM2, FM3, AM1, and AM2 bands. Use the rotary knob on the right to manually tune frequencies or press 'AMS' for automatic station scanning and storage.
Image: Displaying AM/FM radio functionality with 30 station presets and automatic/manual search options.
Intrare USB de 6.5" și AUX
Connect a USB drive to the rear-mounted USB port or an audio device to one of the two auxiliary inputs. The unit supports MP3, WMA, and FLAC audio files.
Image: The car radio unit with connected USB and AUX cables, highlighting its digital multimedia playback capabilities.
6.6 Setări audio
Press the left rotary knob briefly to access audio settings such as Bass, Treble, Balance, Fader, and EQ presets (Pop, Rock, Classic). Rotate the knob to adjust values. The unit also features a dedicated subwoofer output.

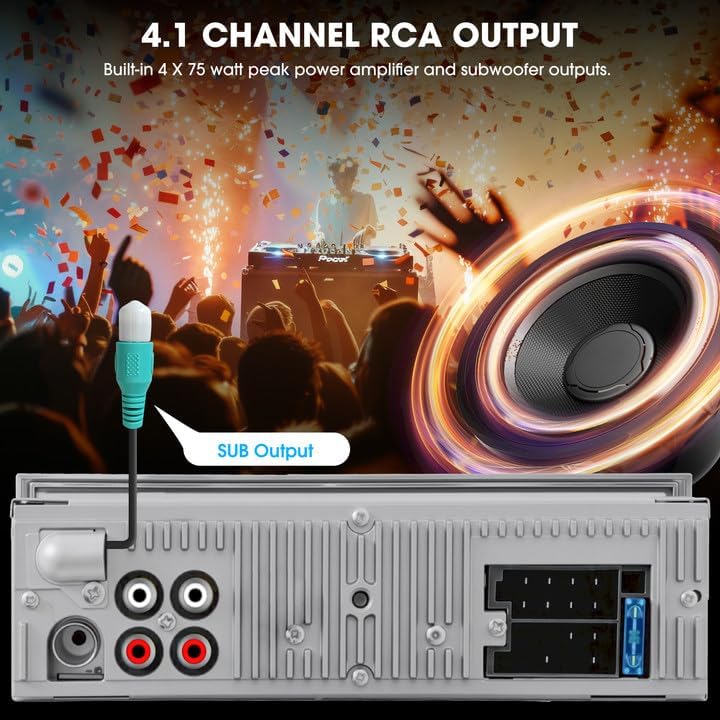

Imagine: Spate view of the radio showing the 4.1-channel RCA outputs, including a dedicated subwoofer output.
7. Întreținere
To maintain the performance and appearance of your car radio, follow these guidelines:
- curatenie: Folosiți o cârpă moale și uscată pentru a curăța suprafața unității. Evitați substanțele de curățare abrazive sau solvenții.
- Îndepărtarea prafului: Periodically clean dust from the display and buttons.
- Evitați lichidele: Nu expuneți unitatea la apă sau alte lichide.
8. Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Fără putere | Cablare incorectă; Siguranță arsă | Check power connections; Replace fuse if necessary |
| Nici un sunet | Cablare incorectă a difuzorului; Volum prea scăzut; Silențiu activat | Verify speaker connections; Increase volume; Deactivate mute function |
| Bluetooth nu se conectează | Bluetooth not enabled on device; Unit not in pairing mode | Ensure Bluetooth is on and unit is in Bluetooth mode; Re-attempt pairing |
| Recepție radio slabă | Antena nu este conectată; Zonă cu semnal slab | Check antenna connection; Try tuning in a different location |
9. Specificații
- Dimensiuni produs: 3.8" D x 7.4" L x 2" H
- Greutatea articolului: 1.2 lire sterline
- Tehnologie de conectivitate: Auxiliar, Bluetooth, USB
- Tipul controlerului: Control manual, buton
- Caracteristici speciale: 4.1-Chn RCA Subwoofer Outputs 300W Peak Power, AM FM Radio with RDS, Bluetooth Calling Music Streaming, Retro-style Stereo Knob & Buttons Control Digital Display, USB AUX-IN Preset EQ
- Dispozitive compatibile: Amplifier, Smartphone, Speaker, Subwoofer
- Mod de ieșire audio: Stereo
- Configurația canalului de sunet surround: 4.1
10. Garanție și asistență
For product support or inquiries, please refer to the contact information provided by your retailer or the manufacturer's official website. Information regarding extended protection plans may be available through your point of purchase.
