Manual de utilizare telefon mobil cu clapă Qubo X247 4G pentru seniori

1. Introducere

This manual provides essential instructions for the safe and efficient operation of your Qubo X247 4G Flip Phone. Designed with seniors in mind, this device features large buttons, a clear display, loud volume, and an emergency SOS function. Please read this manual thoroughly before using your phone.

Imaginea 1.1: The Qubo X247 flip phone in its open position, displaying the large, easy-to-read keypad and the main color screen. The phone features a simple interface designed for ease of use.

2. Produs terminatview

2.1 Conținutul pachetului

• Qubo X247 Flip Phone
• Cablu USB-C
• Adaptor de alimentare
• Manual de utilizare

2.2 Caracteristici cheie

• Răspuns automat: Answer calls by simply opening the flip.
• Butoane mari și afișaj clar: Easy to see and press for comfortable use.
• Volum puternic: Ensures calls and notifications are heard clearly.
• Buton de urgență SOS: Quickly contact pre-set emergency contacts.
• Voice Annunciation: Numbers pressed are announced aloud to prevent dialing errors.
• Încărcare USB-C: Port de încărcare modern și convenabil.
• Funcții esențiale: Includes flashlight, FM radio, alarm, calculator, and calendar.
• Compatibilitate rețea 4G: Supports various mobile networks.

Imaginea 2.1: Un pesteview of the Qubo X247's functional applications, including messaging, calendar, FM radio, camera, flashlight, speed dial, music/video player, alarm, Bluetooth, and calculator, all accessible through the phone's interface.

3. Configurare

3.1 Instalarea cartelei SIM și a bateriei

1. Scoateți capacul din spate: Deschideți ușor capacul din spate al telefonului folosind crestătura prevăzută.
2. Introduceți cartela/cartelele SIM: Locate the SIM card slot(s). This phone supports Dual SIM. Carefully insert your 4G compatible SIM card(s) into the designated slot(s) with the gold contacts facing down, ensuring it clicks into place.
3. Introduceți bateria: Place the battery into the battery compartment, aligning the gold contacts on the battery with the contacts in the phone.
4. Înlocuiți capacul din spate: Align the back cover and press firmly until it snaps securely into place.

3.2 Încărcare inițială

Before first use, fully charge the phone battery. Use only the provided USB-C cable and power adapter.

1. Conectați cablul USB-C la portul de încărcare din partea inferioară a telefonului.
2. Conectați celălalt capăt al cablului USB-C la adaptorul de alimentare.
3. Conectați adaptorul de alimentare la o priză de perete.
4. The charging indicator on the screen will show the charging status. Allow the phone to charge until the battery icon indicates a full charge.

Imaginea 3.1: The Qubo X247 phone connected to a USB-C charger, illustrating its modern charging port and emphasizing its extended battery life of over 7 days on a single charge.

4. Instrucțiuni de utilizare

4.1 Pornire/Oprire

• Pentru a porni: Press and hold the red 'End Call' button (power button) until the screen lights up.
• Pentru a opri: Press and hold the red 'End Call' button until the power-off options appear, then select 'Power Off'.

4.2 Efectuarea apelurilor

1. Open the phone's flip.
2. Use the large numeric keypad to dial the desired phone number. Each number pressed will be announced aloud for confirmation.
3. Press the green 'Call' button to initiate the call.
4. To end the call, press the red 'End Call' button or close the phone's flip.

4.3 Preluarea apelurilor

When an incoming call is received:

• Simply open the phone's flip to automatically answer the call.
• Alternatively, press the green 'Call' button to answer.
• To end the call, close the phone's flip or press the red 'End Call' button.

Imaginea 4.1: The Qubo X247 phone illustrating its intuitive call management: simply open the flip to answer an incoming call and close it to end the call. This feature is tested for durability with 100,000 open/close cycles.

4.4 Funcția de urgență SOS

The SOS button is located on the back of the phone and is designed for quick access in emergencies.

1. Configurarea contactelor SOS: Navigate to the 'SOS Settings' in the phone's menu to add up to 5 emergency contacts. These contacts will receive an emergency SMS and be called in sequence when the SOS button is activated.
2. Activarea SOS: Press and hold the red SOS button on the back of the phone for a few seconds. The phone will automatically send an emergency SMS to your pre-set contacts and then begin dialing them one by one until a connection is made.

Imaginea 4.2: A hand pressing the red SOS button on the back of the Qubo X247 phone. This feature allows users to quickly call and send emergency messages to pre-set contacts.

4.5 Alte funcții

• Lanternă: Activate the built-in LED flashlight via a dedicated button or menu option for illumination in dark environments.
• Radio FM: Access the FM radio feature to listen to local stations. Headphones may be required for optimal reception.
• Camera: The phone includes a 0.3MP camera for simple photo capture. Access it through the main menu.
• Speed Dial/Photo Contacts: Assign frequently called numbers to speed dial keys (M1, M2, M3) or set up photo contacts for easy recognition and dialing.
• Controlul volumului: Adjust the call and ringtone volume using the dedicated side buttons or through the settings menu. The phone is designed with a loud ringtone for clear audibility.

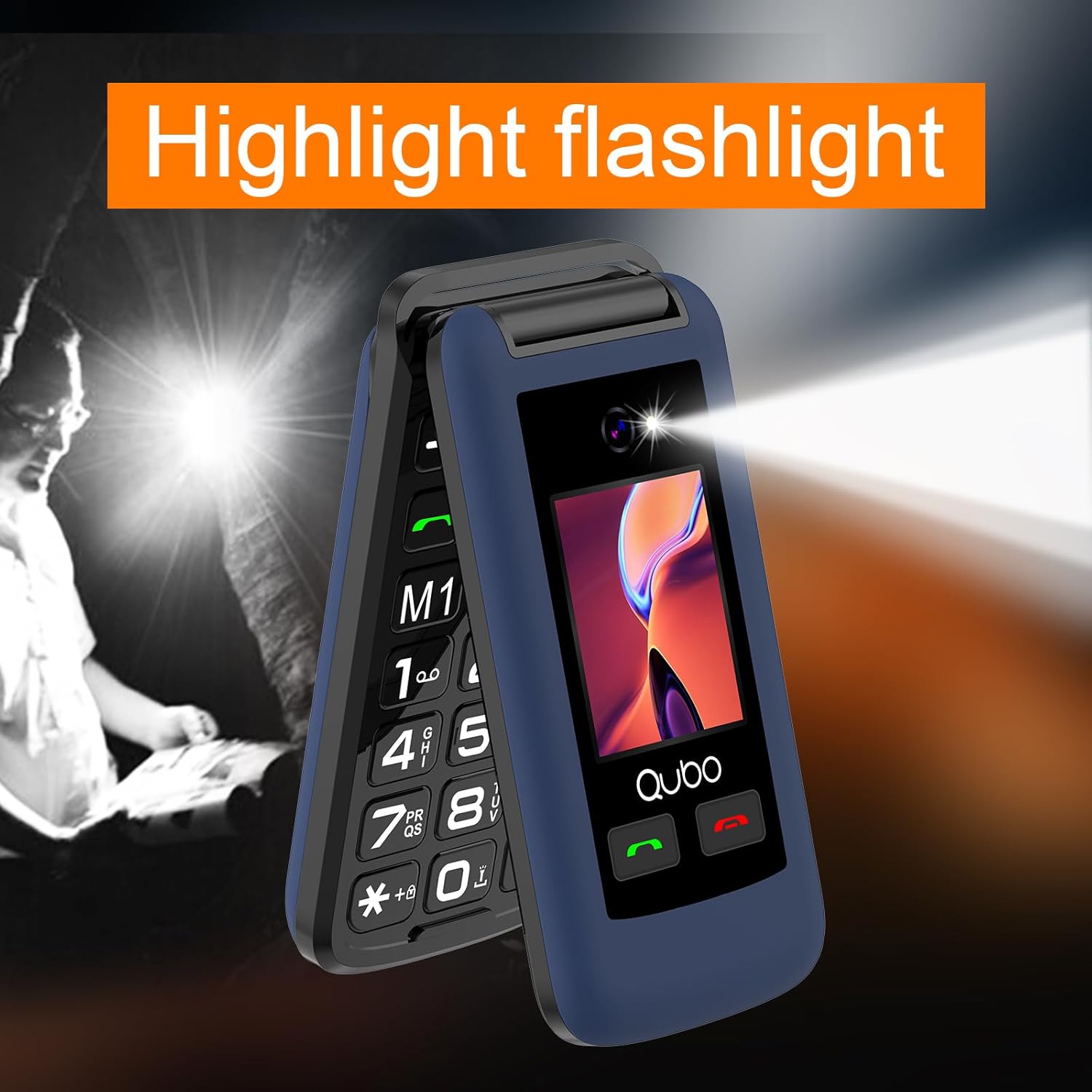

Imaginea 4.3: The Qubo X247 phone with its built-in LED flashlight illuminated, demonstrating its utility in low-light conditions.

Imaginea 4.4: The Qubo X247 phone illustrating its loud ringtone capability, designed to ensure calls are not missed, especially for users with hearing difficulties.

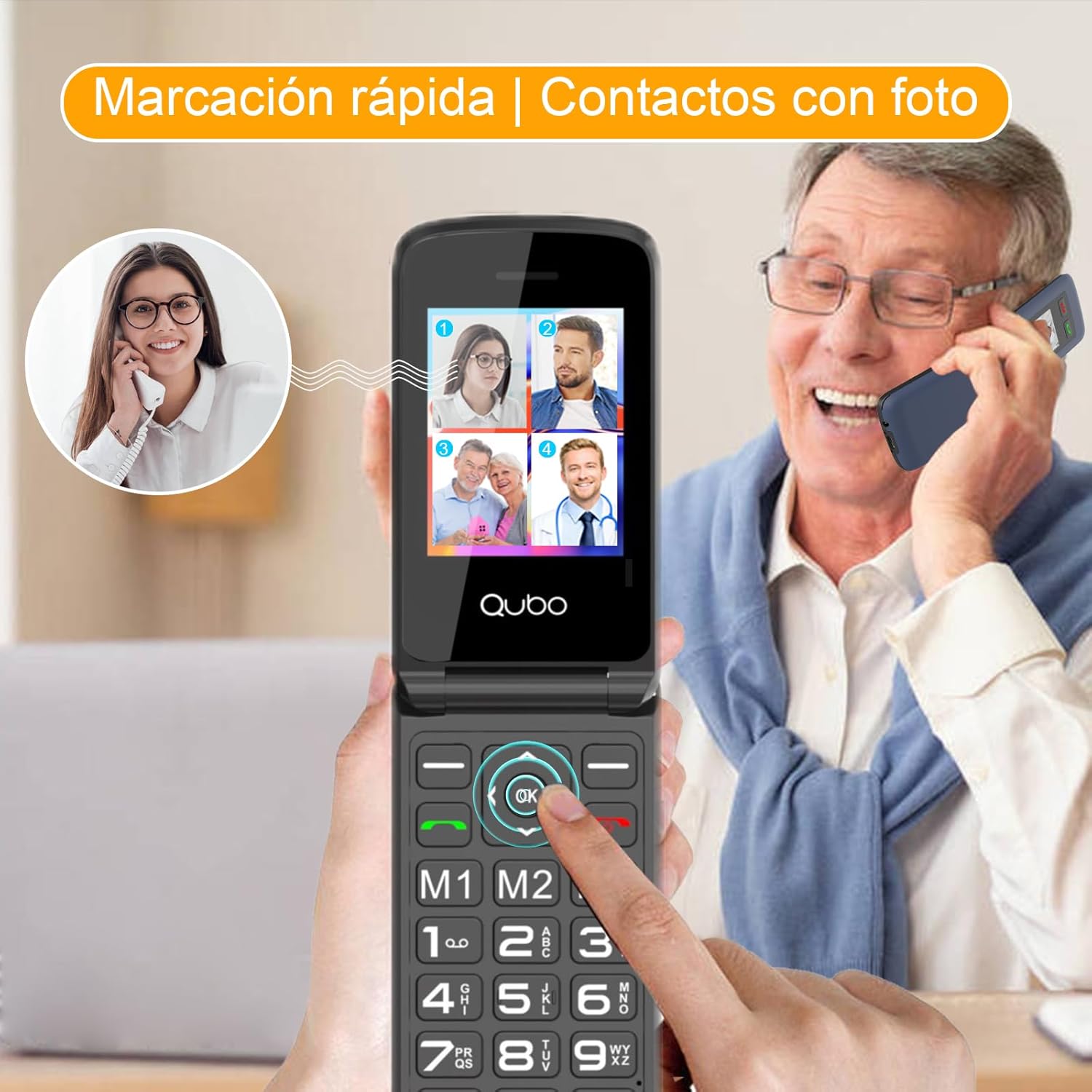

Imaginea 4.5: A senior user interacting with the Qubo X247 phone, which displays photo contacts for easy speed dialing, simplifying the process of connecting with loved ones.

Imaginea 4.6: The Qubo X247 phone highlighting its integrated camera and clear HD screen, capable of displaying photos and providing a good visual experience.

5. Întreținere

5.1 Curățare

• Folosiți o lavetă moale și uscată pentru a curăța exteriorul telefonului.
• Avoid using liquid cleaners, aerosols, or harsh chemicals, as these can damage the phone.

5.2 Îngrijirea bateriei

• Nu expuneți bateria la temperaturi extreme.
• Avoid puncturing or damaging the battery.
• If the battery appears swollen or damaged, discontinue use and replace it with an authorized Qubo battery.
• For optimal battery life, avoid frequently draining the battery completely before recharging.

6. Depanare

7. Specificații

8. Garanție și asistență

8.1 Informații despre garanție

Your Qubo X247 Flip Phone comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including coverage duration and claim procedures. Keep your proof of purchase for warranty claims.

8.2 Asistență pentru clienți

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Qubo customer support. Contact details can typically be found on the Qubo official website-ul sau pe ambalajul produsului dumneavoastră.
