Zumex Essential Basic Commercial Citrus Juicer

1. Introducere

The Zumex Essential Basic Commercial Citrus Juicer (Model 04810) is a professional-grade electric juicer designed for medium-volume operations in commercial settings such as foodservice establishments, hotels, juice bars, and catering businesses. This manual provides comprehensive instructions for the safe installation, operation, maintenance, and troubleshooting of your juicer to ensure optimal performance and longevity.

2. Instrucțiuni de siguranță

Read all safety instructions carefully before operating the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Siguranta electrica: Ensure the juicer is connected to a grounded 115V/60Hz electrical outlet. Do not use extension cords unless absolutely necessary and ensure they are rated for the appliance's power requirements. Always unplug the unit before cleaning, maintenance, or if it will be left unattended.
• Siguranța personală: Keep hands, hair, and loose clothing away from moving parts during operation. Never attempt to reach into the feeder or squeezing mechanism while the machine is running. Use caution when handling sharp components during cleaning.
• Plasare: Place the juicer on a stable, level, and dry surface. Ensure adequate ventilation around the unit. Do not operate near heat sources or in wet environments.
• curatenie: Always unplug the juicer before cleaning. Do not immerse the main motor unit in water or other liquids. Refer to the 'Cleaning and Maintenance' section for detailed instructions.
• Copii și personal neautorizat: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Keep children away from the appliance.

3. Produs terminatview

The Zumex Essential Basic is designed for efficient and hygienic citrus juicing. Familiarize yourself with its components and features.

3.1. Componente cheie

• Alimentator: Top basket for loading fruits.
• Squeezing Mechanism: Internal components that extract juice from fruits.
• Juice Tap/Outlet: Where the fresh juice is dispensed.
• Waste Bins: Integrated containers for collecting fruit peels.
• Panou de control: Simple ON/OFF button for operation.

3.2. Caracteristici

• Eficiență ridicată: Processes up to 22 fruits per minute.
• Fruit Capacity: Feeder holds 4-5 fruits.
• Fruit Size Compatibility: Accommodates citrus fruits between 65-81mm (2.56-3.19 inches) in diameter.
• Motor puternic: 300W motor for consistent performance.
• Self-Service System: Operare simplă cu un singur buton.
• Integrated Waste Bins: For efficient waste management.
• ASAP Anti-bacteria System: Enhances hygiene.

Imaginea 1: Faţă view of the Zumex Essential Basic Commercial Citrus Juicer, showcasing the transparent squeezing mechanism and integrated waste bins.

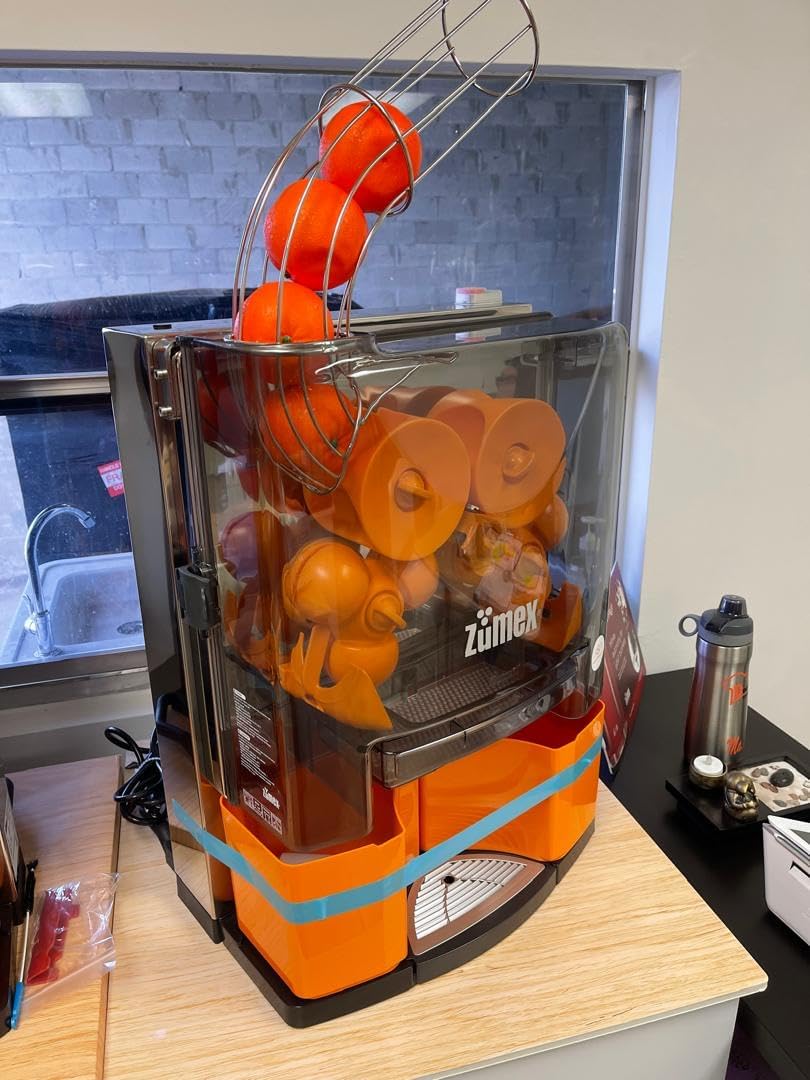

Imaginea 2: The Zumex Essential Basic Commercial Citrus Juicer in a commercial setting, with oranges loaded into the top feeder ready for juicing.

4. Configurare

Follow these steps to set up your juicer for the first time.

1. Despachetarea: Scoateți cu grijă toate componentele din ambalaj. Verificați dacă toate piesele sunt prezente și nedeteriorate.
2. Plasare: Position the juicer on a sturdy, flat, and dry countertop or table capable of supporting its weight (approximately 100 lbs). Ensure there is sufficient space around the unit for ventilation and operation.
3. Curățare inițială: Before first use, thoroughly clean all parts that will come into contact with fruit or juice. Refer to Section 6, 'Cleaning and Maintenance', for detailed instructions. Ensure all parts are completely dry before assembly.
4. Asamblare: Reassemble the cleaned components according to the manufacturer's instructions (typically involves placing the squeezing mechanism, feeder, and waste bins correctly).
5. Conexiune de alimentare: Plug the power cord into a dedicated, grounded 115V/60Hz electrical outlet.

5. Instrucțiuni de utilizare

Operating the Zumex Essential Basic is straightforward due to its self-service design.

1. Prepararea fructelor: Select fresh, firm citrus fruits. Ensure they are clean and within the recommended size range of 65-81mm (2.56-3.19 inches) in diameter. Over-sized or under-sized fruits may cause jamming or inefficient juicing.
2. Load Fruits: Place 4-5 prepared fruits into the top feeder.
3. Poziția containerului: Place a suitable juice collection container (e.g., pitcher, glass) under the juice tap.
4. Începeți stoarcerea: Press the 'ON' button located on the control panel. The machine will begin to automatically feed and squeeze the fruits.
5. Monitorizare funcționare: The juicer will continue to process fruits until the feeder is empty or the 'OFF' button is pressed. Monitor the waste bins and empty them as they fill to prevent overflow.
6. Stop Juicing: Press the 'OFF' button to stop the machine at any time.

6. Curățare și întreținere

Regular cleaning and maintenance are crucial for hygiene, performance, and extending the lifespan of your juicer.

6.1. Curățenie zilnică

1. Deconectați: Deconectați întotdeauna storcătorul de fructe de la priză înainte de curățare.
2. Dezasamblați: Carefully remove all detachable parts, including the feeder, squeezing mechanism components, and waste bins.
3. Spălare manuală: Hand wash all removable parts with warm, soapy water. Use a soft brush if necessary to remove pulp residue. Rinse thoroughly under running water.
4. Ștergeți: Ștergeți exteriorul unității principale cu reclameamp Nu utilizați substanțe de curățare abrazive și nu scufundați unitatea principală în apă.
5. Uscați și reasamblați: Ensure all parts are completely dry before reassembling them onto the main unit. This prevents water spots and potential bacterial growth.

6.2. Întreținerea periodică

• Inspecţie: Periodically inspect all components for wear and tear, especially the squeezing elements and seals. Replace any damaged parts immediately.
• ASAP Anti-bacteria System: Ensure the ASAP system components are clean and functioning correctly as per manufacturer guidelines.

7. Depanare

Consultați această secțiune pentru probleme frecvente și soluțiile aferente.

8. Specificații

Detailed technical specifications for the Zumex Essential Basic Commercial Citrus Juicer.

9. Garanție și asistență

For detailed warranty information, technical assistance, or to purchase replacement parts, please contact Zumex customer service or your authorized dealer. Keep your purchase receipt as proof of purchase for warranty claims.

Zumex Contact Information: Refer to the official Zumex website or your product documentation for the most current contact details.
