Manual de instrucțiuni pentru camera de urmărire non-celulară SPYPOINT Force 24

1. Produs terminatview

The SPYPOINT Force 24 is a non-cellular trail camera designed for capturing high-quality images and videos of wildlife and for security monitoring in areas without cellular coverage. It records 2K video with sound and captures 24-megapixel still photos. The camera features a fast 0.5-second trigger speed, a 70-foot detection range, and low-glow infrared LEDs for clear day and night captures without disturbing subjects. Footage is saved directly to an SD card, eliminating the need for data plans or subscriptions.

Figura 1: Față view of the SPYPOINT Force 24 Trail Camera.

2. Conținutul pachetului

Asigurați-vă că toate elementele sunt prezente înainte de a continua configurarea:

• SPYPOINT Force 24 Trail Camera
• Curea de montare
• Manual de utilizare (acest document)

3. Configurare

3.1. Instalarea bateriei

The Force 24 camera requires 8 AA batteries. For optimal performance and extended battery life, lithium or high-quality alkaline batteries are recommended. Rechargeable batteries can also be used.

1. Open the camera latch on the side to access the internal compartment.
2. Localizați compartimentul bateriei.
3. Introduceți 8 baterii AA, asigurându-vă că polaritatea este corectă (+/-), așa cum este indicată în interiorul compartimentului.
4. Închideți bine compartimentul bateriei.

3.2. Introducerea cardului SD

A MicroSD card (not included) is required to store photos and videos. The camera supports cards up to 32 GB.

1. With the camera open, locate the SD card slot.
2. Insert a formatted MicroSD card into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.
3. It is recommended to format the SD card using the camera's menu before first use.

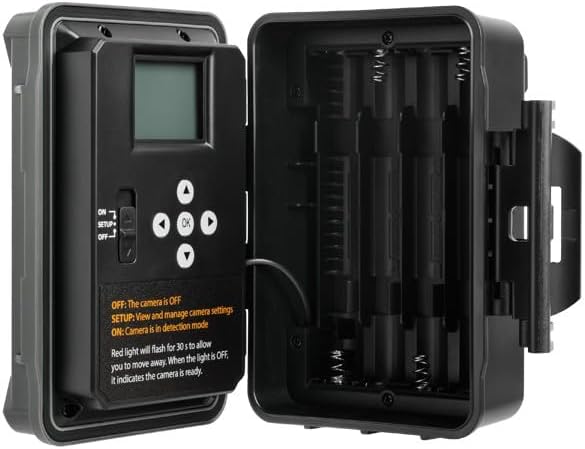

Figura 2: Intern view of the camera showing the control panel and battery compartment.

4. Moduri de operare

The SPYPOINT Force 24 offers four versatile operating modes:

• Mod foto: Capturează imagini statice.
• Mod video: Records video clips with sound.
• Modul Time-Lapse: Captures images at set intervals over a period.
• Time-Lapse Plus Mode: Combines time-lapse photography with motion-triggered captures.

4.1. Selectarea unui mod

Use the camera's internal control panel to navigate through the menu and select your desired operating mode. Refer to the on-screen instructions for specific settings within each mode.

4.2. Detectarea mișcării și viteza de declanșare

The camera features a 0.5-second trigger speed and a 70-foot detection range to ensure quick capture of moving subjects. The low-glow infrared LEDs provide discreet illumination for night captures.

5. Camera Interface and Controls

The camera's internal display and buttons allow for easy configuration and review of captured media.

• ON/SETUP/OFF Switch: Controls the camera's power and enters setup mode.
• Butoane de navigare: Used to move through menu options and review imagini / videoclipuri.
• Buton OK: Confirmă selecțiile.
• Buton de meniu: Accesează meniul principal de setări.

When in SETUP mode, the red light will flash for 30 seconds, allowing you time to move away before the camera enters detection mode. When the light is OFF, the camera is ready.

6. Întreținere

• Înlocuire baterie: Replace batteries when the low battery indicator appears on the screen or in the app.
• Managementul cardului SD: Regularly check the SD card capacity. Transfer important files to a computer and format the card periodically to maintain optimal performance.
• curatenie: Keep the camera lens, PIR sensor, and infrared LEDs clean from dirt, dust, and debris using a soft, dry cloth.
• Protecția mediului: Ensure the camera is securely mounted and latches are closed to protect against weather elements.

7. Depanare

• Camera nu pornește: Verificați instalarea bateriilor și asigurați-vă că bateriile sunt noi.
• Nicio fotografie/videoclip realizat: Verify the SD card is inserted correctly and has sufficient space. Check motion detection settings and ensure the camera is in ON mode.
• Calitate slabă a imaginii: Clean the camera lens and ensure there are no obstructions. Check the camera's position relative to the subject and lighting conditions.
• Durată scurtă de viață a bateriei: Ensure high-quality batteries are used. Adjust camera settings such as detection delay and video length to conserve power.

8. Specificații

• Model: FORȚA-24
• Rezoluție foto: 24 Megapixeli
• Rezoluție video: 2K with Sound
• Viteza de declanșare: 0.5 secunde
• Interval de detectare: 70 picioare
• Raza blițului: 70 feet (Low Glow IR)
• Sursa de alimentare: 8 baterii AA (nu sunt incluse)
• Depozitare: MicroSD Card (up to 32 GB, not included)
• Dimensiuni: 8 x 4 x 3 inci
• Greutatea articolului: 1 kilogram

9. Garanție și asistență

The SPYPOINT Force 24 trail camera comes with a two-year warranty, ensuring reliable performance. For technical assistance, troubleshooting, or warranty claims, please refer to the official SPYPOINT support channels or visit their website-ul.

Pentru informații și resurse suplimentare, vizitați SPYPOINT Store.
