1. Introducere
This manual provides detailed instructions for the installation, operation, and maintenance of your COOAU D20 Dash Cam. The D20 dash camera is designed to capture high-quality video footage both in front of and inside your vehicle, offering enhanced security and evidence recording. Please read this manual thoroughly before using the product to ensure proper function and safety.

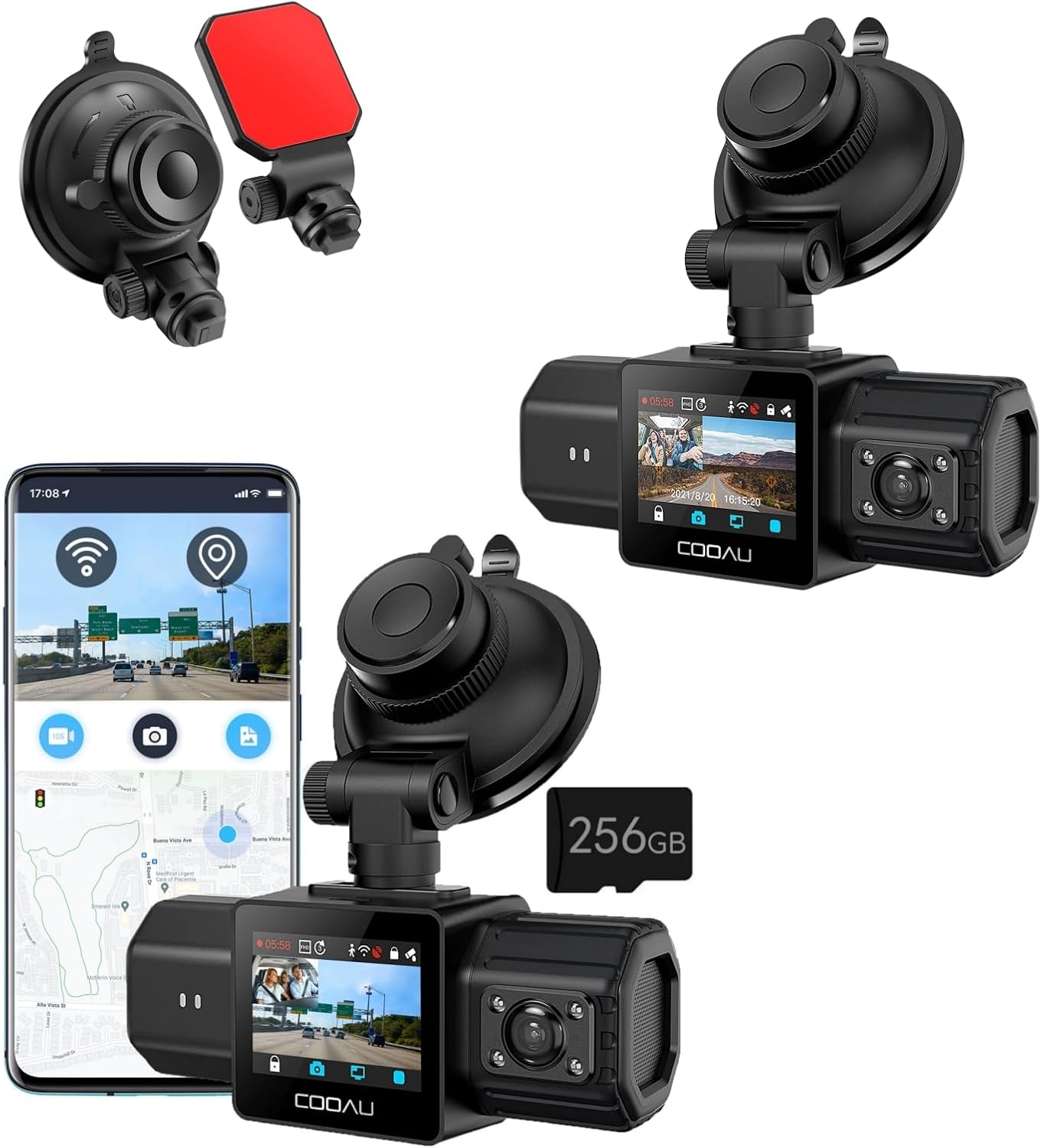

Image 1: COOAU D20 Dash Cam with various mounting options and a smartphone showing the companion app.
2. Conținutul pachetului
Vă rugăm să verificați dacă toate articolele sunt prezente în coletul dumneavoastră:
- COOAU D20 Dash Cam
- 256GB Memory Card (pre-installed)
- Suport pentru ventuză
- Suport adeziv 3M
- Cablu de alimentare (încărcător auto)
- Manual de utilizare
3. Produs terminatview
The COOAU D20 Dash Cam features a compact design with dual lenses for comprehensive coverage. It integrates advanced technologies such as GPS, WiFi, and infrared night vision to provide a reliable recording solution for your vehicle.
Imaginea 2: Explodată view illustrating the high-quality materials used in the D20 Dash Cam's construction, including high temperature resistance, corrosion resistance, wear resistance, and flame retardant PC+ABS shell.
4. Configurare și instalare
The D20 Dash Cam offers two primary installation methods: the suction cup mount for flexible placement and the 3M adhesive mount for a more permanent fixture.
4.1 Instalarea suportului cu ventuză
- Curățați parbrizul: Ensure the area on your windshield where you intend to mount the dash cam is clean and dry.
- Atașați suportul: Press the suction cup firmly against the windshield and engage the lock lever to secure it.
- Atașați camera de bord: Glisați camera de bord pe suport până când se fixează în poziție cu un clic.
- Ajustați și testați: Reglați unghiul camerei pentru a fi optim viewing and ensure it is stable.
Image 3: Step-by-step guide for installing the dash cam using the suction cup mount, showing cleaning the windshield, attaching the mount, attaching the dash cam, and adjusting the view.
4.2 3M Adhesive Mount Installation
For a more permanent installation, use the 3M adhesive mount. Clean the surface thoroughly before applying the adhesive. Once applied, press firmly for several seconds to ensure a strong bond. Allow the adhesive to cure for at least 24 hours before attaching the dash cam.
Image 4: Illustrates the two distinct installation options: the suction cup mount and the 3M adhesive mount, highlighting their attachment mechanisms.
4.3 Conexiune la alimentare
Connect the provided car charger to your vehicle's 12V power outlet and then to the dash cam. The dash cam will typically power on automatically when the vehicle starts and power off when the engine is turned off.
5. Instrucțiuni de utilizare
5.1 Dual Recording (Front and Interior)
The D20 Dash Cam simultaneously records the road ahead in 2.5K (2560 x 1440P) at 30fps with a 170° wide-angle lens, and the vehicle's interior in 1080P with a 150° wide-angle lens. This dual recording capability ensures comprehensive coverage.
Image 5: Visual representation of the dual recording capability, showing a clear 2.5K front view (170° angle) and a 1080P interior view (150° angle).
5.2 Built-in GPS and WiFi
The dash cam features built-in GPS to record your driving speed (KM/H or MPH), route, and location, providing crucial data in case of an incident. The integrated WiFi allows you to connect the dash cam to the COOAU Dash App on your smartphone. Through the app, you can view trăi footage, record, download, and share recordings without needing to remove the memory card.
Image 6: Smartphone screens demonstrating the COOAU Dash App's functionality, including GPS tracking on a map and browsing recorded video files.
5.3 Înregistrare în buclă
The D20 Dash Cam supports seamless loop recording. When the 256GB memory card is full, the system automatically overwrites the oldest unlocked files with new recordings. This ensures continuous recording without manual intervention.
Image 7: Diagram showing the loop recording process, where older files are overwritten as the 256GB card fills up, along with estimated recording times for different card sizes.
5.4 Monitorizarea parcării
The 24-hour parking monitor feature provides surveillance even when your vehicle is parked. It includes:
- Collision Lock: Înregistrează și blochează automat mâncareatagla detectarea unui impact.
- Detectarea mișcării: Records when motion is detected around the vehicle.
- Interval de timp: Înregistrează continuu la o rată redusă de cadre pentru a economisi spațiu de stocare.
Nota: A hardwire kit (sold separately) is required to enable the 24-hour parking monitoring features.

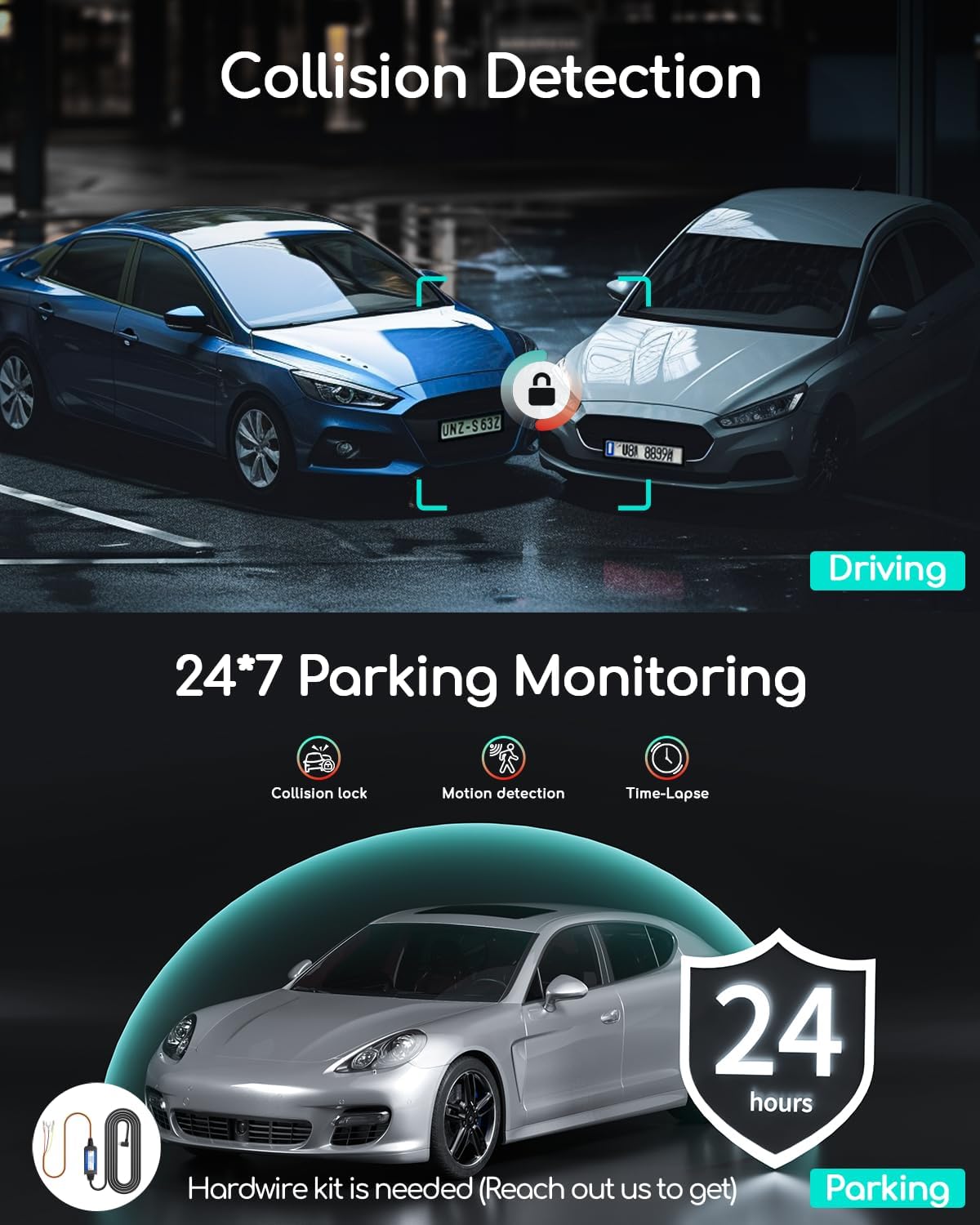

Image 8: Visual explanation of collision detection during driving and the 24/7 parking monitoring features, including collision lock, motion detection, and time-lapse, noting the requirement for a hardwire kit.
Viziune nocturnă IR 5.5
Equipped with F/1.8 apertures, EV adjustment, and WDR (Wide Dynamic Range) technology, the D20 Dash Cam provides clear video recording in low-light conditions, enhancing visibility and safety during nighttime driving.
Image 9: Depicts the Super Night Vision capability of the dash cam, showing a clear view of a city street at night, supported by F/1.8 Apertures, EV adjustment, and WDR Technology.
5.6 G-Senzor
The built-in G-Sensor detects sudden movements or impacts and automatically locks the current video footage to prevent it from being overwritten by loop recording. This ensures critical event footage este păstrat.
6. Întreținere
- curatenie: Folosiți o cârpă moale și uscată pentru a curăța lentilele și corpul camerei. Evitați utilizarea de produse de curățare abrazive sau solvenți.
- Card de memorie: Periodically format the memory card (at least once a month) to maintain optimal performance and prevent data corruption. Back up any important files înainte de formatare.
- Actualizări firmware: Check the COOAU official website or app for any available firmware updates to ensure your dash cam has the latest features and improvements.
- Temperatură: Evitați expunerea camerei de bord la temperaturi extreme pentru perioade lungi de timp, deoarece acest lucru poate afecta durata de viață a bateriei și integritatea componentelor.
7. Depanare
- Camera de bord nu pornește: Ensure the power cable is securely connected to both the dash cam and the car's power outlet. Check if the car's power outlet is functioning.
- Probleme de înregistrare: Format the memory card. Ensure the memory card is inserted correctly. Try a different compatible memory card if issues persist.
- Calitate video slabă: Clean the camera lenses. Ensure the protective film has been removed from the lenses. Adjust exposure settings if necessary.
- Probleme de conexiune WiFi: Ensure the dash cam's WiFi is enabled. Restart both the dash cam and your smartphone. Ensure you are within range of the dash cam's WiFi signal.
- GPS-ul nu funcționează: Asigurați-vă că camera de bord are o vizibilitate clară view of the sky for GPS signal acquisition. It may take a few minutes for the GPS to lock onto satellites.
8. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Model | D20 |
| Rezoluția camerei frontale | 2.5K (2560 x 1440P) @ 30fps |
| Cameră frontală Viewunghiul ing | 170° |
| Rezoluția camerei interioare | 1080P @ 30fps |
| Cameră interioară Viewunghiul ing | 150° |
| Suport card de memorie | Up to 256GB (256GB card included) |
| GPS | Încorporat |
| Wifi | Încorporat |
| Vedere de noapte | IR Night Vision, F/1.8 Apertures, WDR |
| Monitor de parcare | Collision Lock, Motion Detection, Time-Lapse (requires hardwire kit) |
| G-Senzor | Da |
| Înregistrare în buclă | Da |
9. Garanție și asistență
COOAU offers professional and efficient customer service for the D20 Dash Cam. This includes:
- Prompt email replies within 24 hours.
- Worry-free returns within 30 days.
- 2 ani garanție.
- Suport tehnic pe viață.
For technical assistance or warranty claims, please contact COOAU customer service through their official website-ul sau informațiile de contact furnizate împreună cu ambalajul produsului.
