Manual de utilizare pentru sistemul de sonerie interfon vizual cu 2 unități visiPower SY828NH2IDEND2

1. Introducere

This manual provides detailed instructions for the installation, operation, and maintenance of your visiPower SY828NH2IDEND2 2-Unit Visual Intercom Doorbell System. This system is designed for home and apartment use, offering secure visual communication and access control.

The SY828NH2IDEND2 system utilizes a 2-wire bus connection, simplifying installation by transmitting power, audio, video, and control signals through a single non-polarity cable. It supports up to two outdoor units and six indoor monitors, making it suitable for various configurations.

Caracteristici cheie:

• 2-Wire Bus System: Simplified wiring for power, audio, video, and control signals.
• Sistem extensibil: Supports up to 2 outdoor units and 6 indoor monitors.
• Durable Outdoor Unit: Rain and oxidation-proof aluminum alloy with white LED night vision.
• 7-inch Color TFT LCD Monitor: High-definition display with adjustable brightness, contrast, and volume.
• Dual Lock Control: Ability to unlock two electronic door locks simultaneously.
• Hands-free Intercom: Convenient communication between indoor units and with the outdoor unit.
• RFID Access: Supports RFID keyfobs for door unlocking (5 keyfobs included).
• Door Monitoring: View the outdoor area from the indoor monitor.

2. Conținutul pachetului

Verificați dacă toate componentele enumerate mai jos sunt prezente în pachet:

Imaginea 2.1: Pesteview of all included components for the visiPower SY828NH2IDEND2 system. This includes the outdoor camera unit, two indoor monitors, power supply, mounting screws, various connection wires, user manual, exit button, and electronic door lock.

• 1 x Outdoor Unit (Embedded mounted Camera)
• 2 x Indoor Unit (Monitor)
• 1 x DC24V 2.5A Power Supply
• 1 x Electronic Door Lock
• 1 x Exit Button
• 1 x 4-core Connection Lock Terminal Wire
• 1 x 2.54*2P 2-core Connection Terminal Wire
• 1 x 2.0*2P 2-core Connection Terminal Wire
• 1 x șuruburi și șuruburi
• 1 x Manual de utilizare
• 5 x RFID Keyfobs (including add/delete keyfobs)

3. Configurare și instalare

Careful installation is crucial for optimal performance. It is recommended to test the system components before permanent installation.

3.1. Schema de cablare

The system uses a 2-wire bus connection. Refer to the diagram below for proper wiring connections between the outdoor unit, indoor monitors, power supply, and electronic lock.

Imaginea 3.1: Detailed wiring diagram illustrating the 2-wire bus connection. The outdoor unit connects to the power supply, which then connects to the indoor monitors. The electronic lock and exit button are also connected to the system.

• Connect the 2-wire bus cable from the outdoor unit to the power supply.
• Connect the power supply to the indoor monitors using the 2-wire bus cable.
• Connect the electronic door lock to the designated terminals on the outdoor unit or power supply, as indicated in the diagram.
• Connect the exit button to the appropriate terminals for internal door release.
• Ensure all connections are secure and correctly polarized (though the 2-wire bus is non-polarity, other connections might require attention).

3.2. Instalarea unității exterioare

The outdoor unit is designed for embedded mounting. Ensure the mounting location provides a clear view of the entrance and is protected from direct heavy rain.

Imaginea 3.2: A explodat view of the outdoor unit, highlighting its internal circuitry, camera lens, white LED for night vision, speaker, microphone, call buttons, RFID card reader, and DIP switches for configuration.

1. Prepare an opening in the wall according to the embedded size specifications (118mm x 245mm x 38mm).
2. Route the necessary wiring through the opening.
3. Connect the 2-wire bus, electronic lock wires, and exit button wires to the outdoor unit's terminals as shown in the wiring diagram (Image 3.1) and component view (Imaginea 3.2).
4. Secure the outdoor unit into the prepared opening using the provided screws.

3.3. Instalarea monitorului de interior

The indoor monitors can be desk-mounted or wall-mounted.

Imaginea 3.3: Rear and side panel details of the indoor monitor, indicating the location of the DIP switches, BUS connection, menu buttons, and volume controls.

1. Choose a suitable location for the indoor monitor, ensuring it is within reach and provides clear visibility.
2. For wall mounting, secure the hanging mount to the wall using screws.
3. Connect the 2-wire bus cable to the BUS terminal on the back of the monitor (refer to Image 3.3).
4. Mount the monitor onto the hanging mount or place it on a desk.

3.4. Conexiunea sursei de alimentare

Connect the DC24V 2.5A power supply to a standard AC 100-240V outlet. Ensure the power supply is connected to the system's main bus line as per the wiring diagram.

Imaginea 3.4: The system's switching power supply, detailing its AC input and DC output terminals, and its compatibility with an electric box rail for secure installation.

4. Instrucțiuni de utilizare

4.1. Indoor Monitor Functions

Imaginea 4.1: Front panel of the indoor monitor, showing the various buttons and indicators for operation.

• Butonul de monitorizare: Apăsați pentru view the live feed from the outdoor camera.
• Unlock 1 Button: Press to unlock the primary electronic door lock.
• Unlock 2 Button: Press to unlock the secondary electronic door lock (if connected).
• Talk/Intercom Button:
  • When a visitor presses the call button on the outdoor unit, the indoor monitor will ring. Press this button to establish two-way communication.
  • Press this button to initiate intercom communication with other indoor monitors in the system.
• Reglarea volumului: Use the 'Talk Volume' and 'Ring Volume' controls on the side of the monitor (refer to Image 3.3) to adjust audio levels.
• Luminozitate/Contrast: Adjust these settings via the monitor's menu (accessed via menu buttons on the side, Image 3.3) for optimal display quality.
• Nu deranjați: Activate the 'Do Not Disturb' switch on the side of the monitor (Image 3.3) to silence incoming calls.

4.2. Outdoor Unit Operation

• Butoane de apel: Visitors press the call button(s) to initiate a call to the indoor monitor(s).
• RFID Card Reader: Present an authorized RFID keyfob to the RFID card reader area to unlock the connected electronic door lock.
• Vedere de noapte: The integrated white LEDs automatically activate in low-light conditions to provide clear night vision.

4.3. RFID Keyfob Management

The system includes 5 RFID keyfobs: an 'Add Card', a 'Delete Card', and 3 user keyfobs. Additional user keyfobs can be programmed.

1. Adding a Keyfob: Present the 'Add Card' to the outdoor unit's RFID reader. The system will enter programming mode. Then, present each new user keyfob you wish to add. Present the 'Add Card' again to exit programming mode.
2. Deleting a Keyfob: Present the 'Delete Card' to the outdoor unit's RFID reader. The system will enter programming mode. Then, present each user keyfob you wish to delete. Present the 'Delete Card' again to exit programming mode.

5. Întreținere

• curatenie: Folosiți un moale, damp cloth to clean the surfaces of the outdoor unit and indoor monitors. Avoid abrasive cleaners or solvents.
• Unitate exterioară: Periodically check the outdoor unit for any obstructions to the camera lens or microphone/speaker. Ensure the unit remains securely mounted.
• Cablaj: Occasionally inspect visible wiring for any signs of damage or loose connections.

6. Depanare

If you encounter issues with your visiPower intercom system, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact visiPower customer support for further assistance.

7. Specificații

Outdoor Camera Unit:

• Material: Aliaj de aluminiu
• Camera: 1/3" CMOS, 1000TV line
• View Unghi: 92°
• Vedere de noapte: LED alb
• Conexiune: BUS 2-wire
• User Capacity (RFID): 2000 User Cards
• Tip card: RFID compatible card, 125Khz
• Instalare: Embedded mounted
• Dimensiuni: 265 mm (L) x 128 mm (l) x 48 mm (înălțime)
• Embedded Size: 118 mm (L) x 245 mm (l) x 38 mm (înălțime)

Monitor interior:

• Ecran: LCD color TFT de 7 inchi
• Pixeli efectivi: 800 x 480
• Conexiune: BUS 2-wire
• Dimensiuni: 151 mm (L) x 80 mm (l) x 38 mm (înălțime)

Electronic Door Lock:

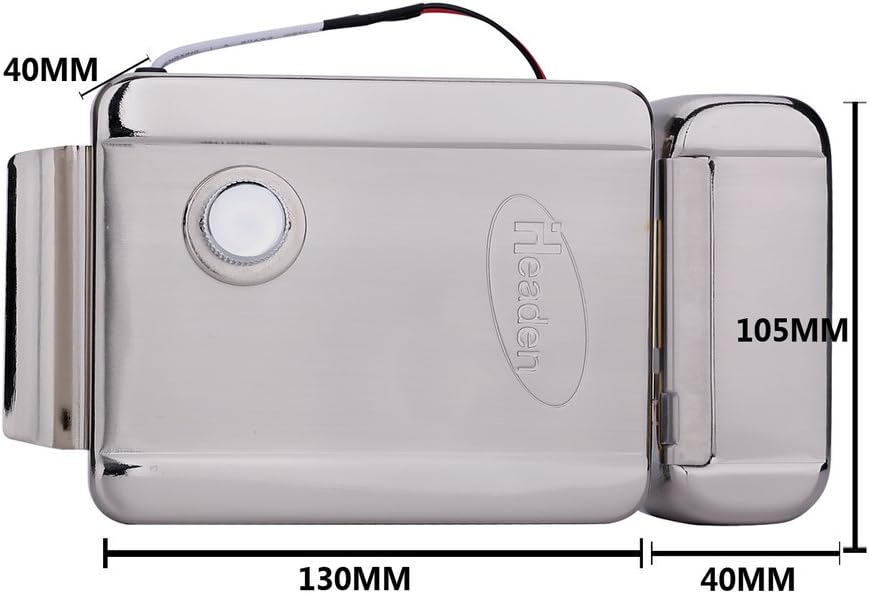

Imaginea 7.1: Dimensions of the included electronic door lock.

• Vol. De lucrutage: 12VDC
• Curent de lucru: 150mA
• Material: Oţel inoxidabil
• Dimensiuni: 130 mm (L) x 105 mm (l) x 37 mm (înălțime)
• Durata de viață: de 500,000 ori

Sistem general:

• Sursa de alimentare: Electric cu fir
• Alimentare electrică: DC24V 2.5A (Input: 100-240VAC)
• Tehnologie de conectivitate: Wired (BUS 2-wire)
• Culoare: White (Monitors), Silver (Outdoor Unit)
• Greutatea articolului: Aproximativ 8 kg (pachetul total)
• Dimensiuni produs (pachet): 12 x 12.5 x 5.5 inci

8. Garanție și asistență

For warranty information and technical support, please refer to the documentation provided with your purchase or contact visiPower customer service directly. Keep your purchase receipt as proof of purchase.

Producător: visiPower

For assistance, visit the official visiPower store or contact their support channels.
