Manual de utilizare pentru sistemul de securitate ARENTI 3x4G LTE + 2xSolar WiFi

1. Introducere

This manual provides detailed instructions for the installation, operation, and maintenance of your ARENTI 3x4G LTE Cameras and 2xSolar WiFi Security System. This comprehensive system is designed to provide surveillance for various environments, offering both cellular and WiFi connectivity options.

The system includes three GO3G 4G LTE cameras for areas without WiFi access and two GO2T Solar WiFi cameras for locations with WiFi coverage. Both camera types offer 2K live feed, advanced motion detection, and robust weather resistance.

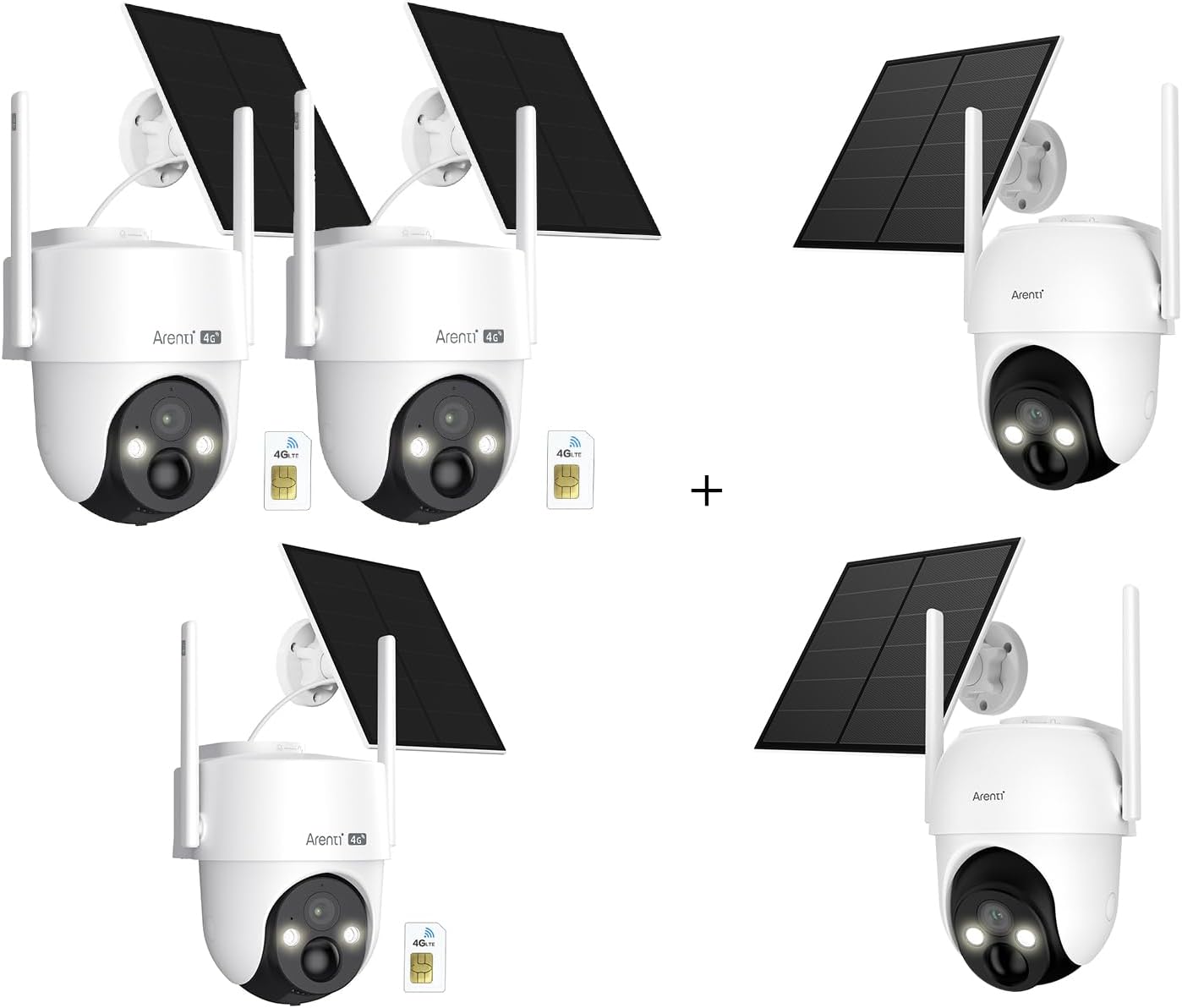

Imaginea 1.1: Pesteview of the ARENTI 3x4G LTE Cameras and 2xSolar WiFi Security System components.

2. Conținutul pachetului

Vă rugăm să verificați dacă toate articolele sunt prezente în coletul dumneavoastră:

• 3 x ARENTI GO3G 4G LTE Cameras
• 2 x ARENTI GO2T Solar WiFi Cameras
• 3 x SIM Cards (for GO3G cameras, with 3-day free data trial)
• 5 x Solar Panels (integrated or separate, for charging)
• 5 x Mounting Brackets and Screw Kits
• 1 x Manual de utilizare (acest document)

3. Configurare

3.1 ARENTI GO3G 4G LTE Camera Setup

1. Introduceți cartela SIM: Locate the SIM card slot on the GO3G camera. Carefully insert the provided SIM card. Ensure it is correctly oriented.
2. Pornire: Ensure the camera is charged or connected to its solar panel. The camera will power on automatically.
3. Conexiune la aplicație: Download the 'Arenti' app from your device's app store. Create an account or log in. Follow the in-app instructions to add your GO3G camera by scanning the QR code on the device.
4. Montare: Choose a suitable location with good cellular signal and adequate sunlight for the solar panel. Use the provided mounting hardware to securely install the camera. The camera is IP65 weatherproof.

Image 3.1: ARENTI GO3G 4G LTE camera with its solar panel and a SIM card, illustrating the cellular connectivity.

Image 3.2: An ARENTI 4G LTE camera installed in an outdoor environment, demonstrating its use in remote locations without WiFi.

3.2 ARENTI GO2T Solar WiFi Camera Setup

1. Încărcați bateria: Fully charge the camera's internal 5200mAh battery before initial use.
2. Conectați panoul solar: Connect the adjustable solar panel to the camera. Position the solar panel to receive maximum direct sunlight for continuous charging.
3. Conexiune la aplicație: Download the 'Arenti' app. Create an account or log in. Follow the in-app instructions to add your GO2T camera by scanning the QR code on the device and connecting it to your home WiFi network.
4. Montare: Choose a suitable location within your WiFi range and with adequate sunlight for the solar panel. Use the provided mounting hardware to securely install the camera. The camera is IP65 weatherproof.

Image 3.3: ARENTI GO2T Solar WiFi camera with its solar panel, demonstrating live feed viewing on a smartphone.

4. Instrucțiuni de utilizare

4.1 În direct View și telecomandă

• Open the Arenti app to view live 2K video feeds from all connected cameras.
• For GO3G and GO2T cameras, use the app to remotely control the camera's pan (355°) and tilt (90°) functions to adjust the viewunghiul de ing.

Image 4.1: Illustration of the camera's 355-degree pan and 90-degree tilt capabilities, providing wide area coverage.

Image 4.2: The camera's ability to cover a full 360-degree area through its pan and tilt functions, controlled via the app.

4.2 Detectarea mișcării și alertele

• Both GO3G and GO2T cameras feature AI-powered PIR motion tracking for human and vehicle detection.
• Customize detection zones within the Arenti app to focus on specific areas of interest.
• Primește notificări push instantanee pe smartphone atunci când este detectată mișcare.
• GO2T WiFi cameras include two-way audio, allowing you to communicate through the camera.
• Some models may feature integrated spotlights and sirens, which can be activated manually or automatically upon detection.

Image 4.3: Demonstration of PIR intelligent human detection, showing a spotlight, siren, and a smartphone alert notification.

Image 4.4: Visual representation of enhanced AI intelligent detection, highlighting smart tags for objects like cars, packages, and pets during playback.

4.3 Înregistrare și stocare video

• Cameras support 2K Ultra HD video recording, including full-color night vision.
• Foo înregistrattage can be stored in the cloud (free basic plan available) or locally on an SD card (up to 256GB, sold separately).
• All cloud and SD card footage is secured with AES-128 encryption.

Image 4.5: Comparison of 2K Ultra HD video quality during the day and at night, showcasing full-color night vision capabilities.

5. Întreținere

• curatenie: Periodically clean the camera lens and solar panel surfaces with a soft, damp o lavetă pentru a asigura performanțe optime și eficiență de încărcare. Evitați substanțele de curățare abrazive.
• Battery Check (GO2T): Monitor the battery level of your GO2T cameras via the Arenti app. Ensure solar panels are free from obstructions to maintain consistent charging.
• Puterea semnalului: Regularly check the cellular signal (for GO3G) and WiFi signal (for GO2T) in the app to ensure stable connectivity. Adjust camera placement if signal is consistently weak.
• Actualizări firmware: Keep your camera firmware updated through the Arenti app to access new features and security enhancements.

6. Depanare

• Camera nu pornește: Ensure the battery is charged. For solar cameras, check the solar panel connection and sunlight exposure.
• No Live Feed/Connectivity:
  • GO3G (4G LTE): Verify SIM card insertion, check cellular signal strength in the app, and ensure your data plan is active.
  • GO2T (WiFi): Check your home WiFi network status, ensure the camera is within WiFi range, and re-pair the camera with the app if necessary.
• Detectarea mișcării nu funcționează: Check detection zone settings in the app. Ensure PIR sensor is not obstructed. Adjust sensitivity settings.
• Calitate video slabă: Clean the camera lens. Ensure adequate lighting. Check network stability for optimal streaming.
• Probleme cu aplicația: Ensure the Arenti app is updated to the latest version. Restart the app or your smartphone.

7. Specificații

8. Garanție și asistență

Pentru informații despre garanție și asistență tehnică, vă rugăm să consultați site-ul oficial ARENTI. website or contact ARENTI customer service directly. Details can typically be found on the product packaging or within the Arenti app's 'About Us' section.

Resurse online: Vizitați ARENTI Store on Amazon pentru informații suplimentare despre produs și asistență.
