1. Introducere
This manual provides detailed instructions for the proper use and maintenance of your BOBLOV A30 Mini Body Camera. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity.
Image: The BOBLOV A30 Mini Body Camera shown with its various accessories, including the charging dock, extra battery, lanyard, bike mount, and clip.
2. Ce se află în cutie
Upon opening your BOBLOV A30 Mini Body Camera package, you should find the following items:
- Cameră corporală BOBLOV A30
- Two (2) Rechargeable Batteries
- Dual-Slot Charging Dock
- Cablu USB
- Suport pentru biciclete
- Şnur
- Clip
- Manual de utilizare
Image: A visual representation of all items included in the BOBLOV A30 Mini Body Camera package, laid out neatly.
3. Configurare
3.1. Instalarea și încărcarea bateriei
- Insert a battery into the designated battery compartment on the camera. Ensure it clicks into place securely.
- To charge the batteries, place them into the dual-slot charging dock. Connect the charging dock to a power source using the provided USB cable. The indicator lights on the dock will show charging status.
- A full charge provides up to 7 hours of continuous 1080P recording or 6 hours of 4K recording per battery.

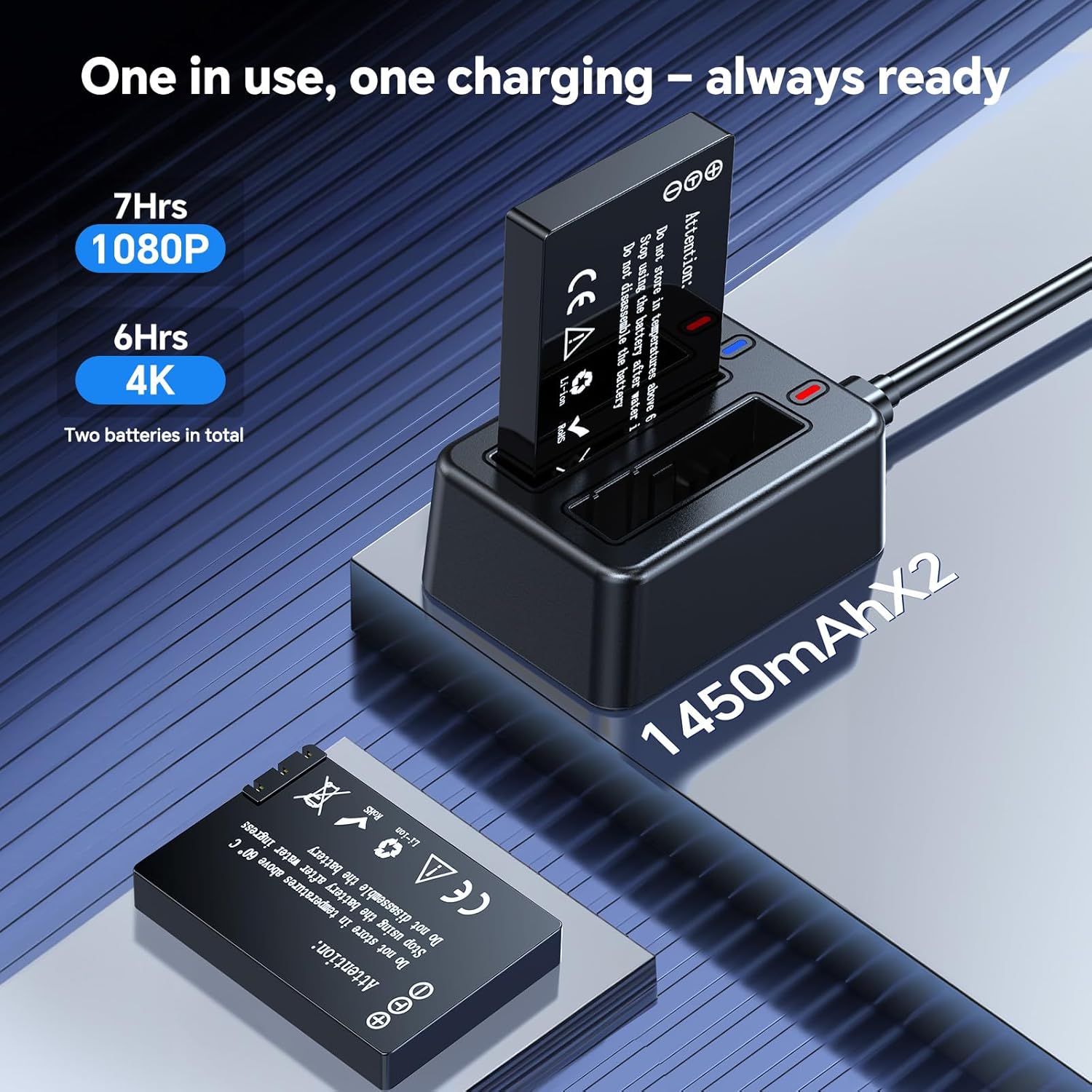

Image: The dual-slot charging dock with two batteries, one inserted and one ready for insertion, illustrating the charging process.
3.2. Instalarea cardului MicroSD
The camera supports external microSD cards for storage. Insert a compatible microSD card into the card slot on the camera. Ensure the card is correctly oriented before insertion.
4. Instrucțiuni de utilizare
4.1. Pornire/Oprire
Apăsați și mențineți apăsat butonul de pornire/oprire pentru a porni sau opri camera.
4.2. Înregistrarea videoclipurilor
Once powered on, press the Record button to start video recording. Press it again to stop recording. The camera supports 4K Ultra HD resolution for detailed footage.
Image: A comparison showing the clarity of 4K resolution video captured by the BOBLOV A30 Mini Body Camera versus standard resolution.
4.3. Lentilă rotativă la 180°
The camera features a 180° rotatable lens, allowing you to adjust the shooting angle as needed. Simply rotate the lens manually to capture footage from various perspectives (forward, upward, downward).
Image: The BOBLOV A30 Mini Body Camera demonstrating its 180° rotatable lens, showing different angles of rotation.
4.4. Înregistrare în buclă
The camera supports loop recording, which automatically overwrites the oldest footage when the storage card is full. This ensures continuous recording without manual deletion of files.
Image: The BOBLOV A30 Mini Body Camera screen displaying recording information, with icons indicating loop recording and compatibility with Windows and Mac operating systems.
4.5. Opțiuni de montare
The BOBLOV A30 offers flexible mounting options to suit various activities:
- Clip: Attach the camera to clothing, bags, or other surfaces.
- Şnur: Wear the camera around your neck for easy access.
- Bike Mount: Securely attach the camera to bicycle handlebars for outdoor adventures.
Image: The BOBLOV A30 Mini Body Camera displayed with its clip, lanyard, and bike mount accessories, illustrating different ways to wear or attach the camera.
Imagine: Examples of the BOBLOV A30 Mini Body Camera being used during cycling, hiking, and for educational purposes, demonstrating its versatility.
4.6. Conectarea la un computer
Connect the camera to your computer using the provided USB cable to transfer files. The camera is compatible with both Windows and Mac operating systems.
5. Întreținere
5.1. Îngrijirea bateriei
To maximize battery life, avoid fully discharging the batteries frequently. Store batteries in a cool, dry place when not in use. Use only the provided charging dock and cable.
5.2. Managementul stocării
Regularly transfer important footage from the microSD card to a computer or external storage device. While loop recording prevents storage from filling up, backing up data is recommended.
5.3. Curatenie
Folosiți o lavetă moale și uscată pentru a curăța corpul camerei. Pentru obiectiv, folosiți o lavetă specială pentru curățarea obiectivelor și o soluție pentru a evita zgârieturile. Nu utilizați substanțe chimice dure sau materiale abrazive.
6. Depanare
- Camera nu pornește: Ensure the battery is fully charged and correctly inserted. Try using the second battery.
- Probleme de înregistrare: Check if the microSD card is properly inserted and has sufficient free space. Format the card if necessary (this will erase all data).
- Calitate video slabă: Ensure the lens is clean and free from smudges. Check recording settings to confirm 4K resolution is selected.
- Calculatorul nu recunoaște camera: Încercați un alt port USB sau cablu. Asigurați-vă că aparatul foto este pornit când este conectat.
7. Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | A30 (A23) |
| Rezoluție captură video | 4K |
| Tehnologia senzorului foto | CMOS |
| Lentila rotativa | 180 de grade |
| Battery Life (1080P) | Up to 7 hours (per battery) |
| Battery Life (4K) | Up to 6 hours (per battery) |
| Tip memorie flash | Micro SD |
| Format de captură video | MOV |
| Dimensiunea ecranului | 1.3 inchi |
| Tehnologia de conectivitate | USB |
| Greutatea articolului | 9.9 uncii |
| Culoare | Negru |
8. Garanție și asistență
BOBLOV oferă o Acoperire produs 24 de luni for its supporters. For any technical assistance or inquiries, BOBLOV offers a quick response within 24 hours and lifetime technical support.
For further support or to visit the official store, please refer to the BOBLOV Store.
Image: BOBLOV brand information highlighting customer satisfaction, global reach, 24-month product coverage, and 24-hour technical support.
