GONEO Universal Travel Adapter GN-L10U15A Instruction Manual

1. Introducere

The GONEO Universal Travel Adapter GN-L10U15A is designed to provide power connectivity for your electronic devices in various countries worldwide. This compact adapter features multiple plug types, AC outlets, and USB charging ports, making it a versatile solution for international travel.

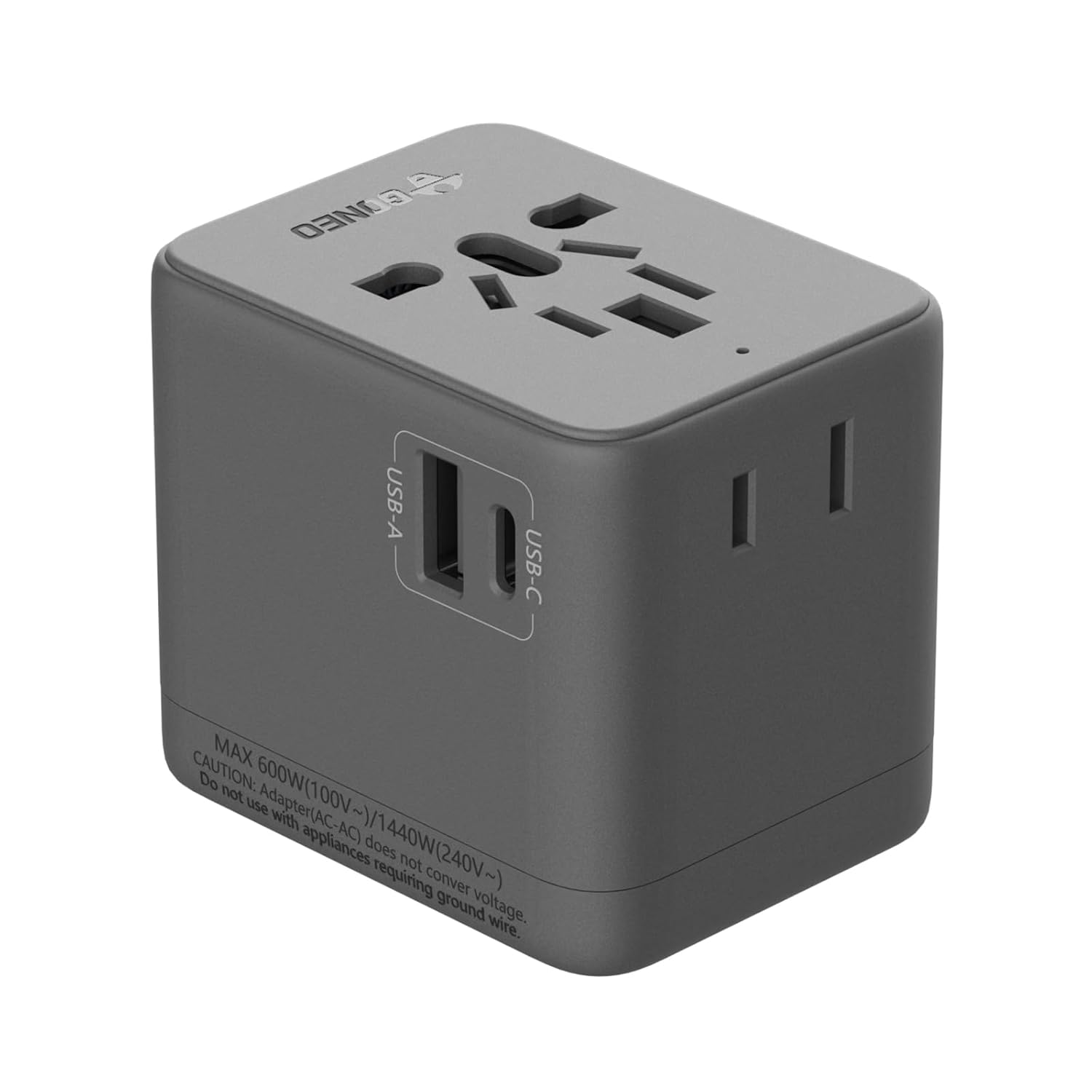

Imaginea 1.1: Față view of the GONEO Universal Travel Adapter, showcasing its compact design and integrated USB ports.

2. Informații importante privind siguranța

WARNING: This product only converts the socket shape; it does not convert voltage. Ensure your devices are dual-voltage (100V-240V) or compatible with the local voltage. Using devices that require voltage conversion may cause damage to the device or the adapter.

The GONEO Universal Travel Adapter incorporates multiple safety features to protect your devices:

• Supratemperatură
• Peste voltage Protecție
• Protecție la supracurent
• Protecție la supraîncărcare
• Protecție la scurtcircuit
• Subervoltage Protecție
• Protecție la suprasarcină
• Chip Protection

Image 2.1: Visual representation of the eight circuit protection mechanisms integrated into the adapter for enhanced safety.

3. Produs terminatview

3.1 Componente

The adapter features:

• 1 Universal AC Socket
• 1 USB-A Port (5V 2.4A)
• 1 USB-C Port (5V 3A)
• 1 Type-A Socket (for specific regions)

Imaginea 3.1: Prim-plan view of the adapter, highlighting the USB-A and USB-C charging ports.

3.2 Tipuri de prize

The adapter integrates retractable plugs for compatibility with major international standards:

• European (EU)
• Regatul Unit (Marea Britanie)
• Statele Unite ale Americii (SUA)
• Australia (AU)

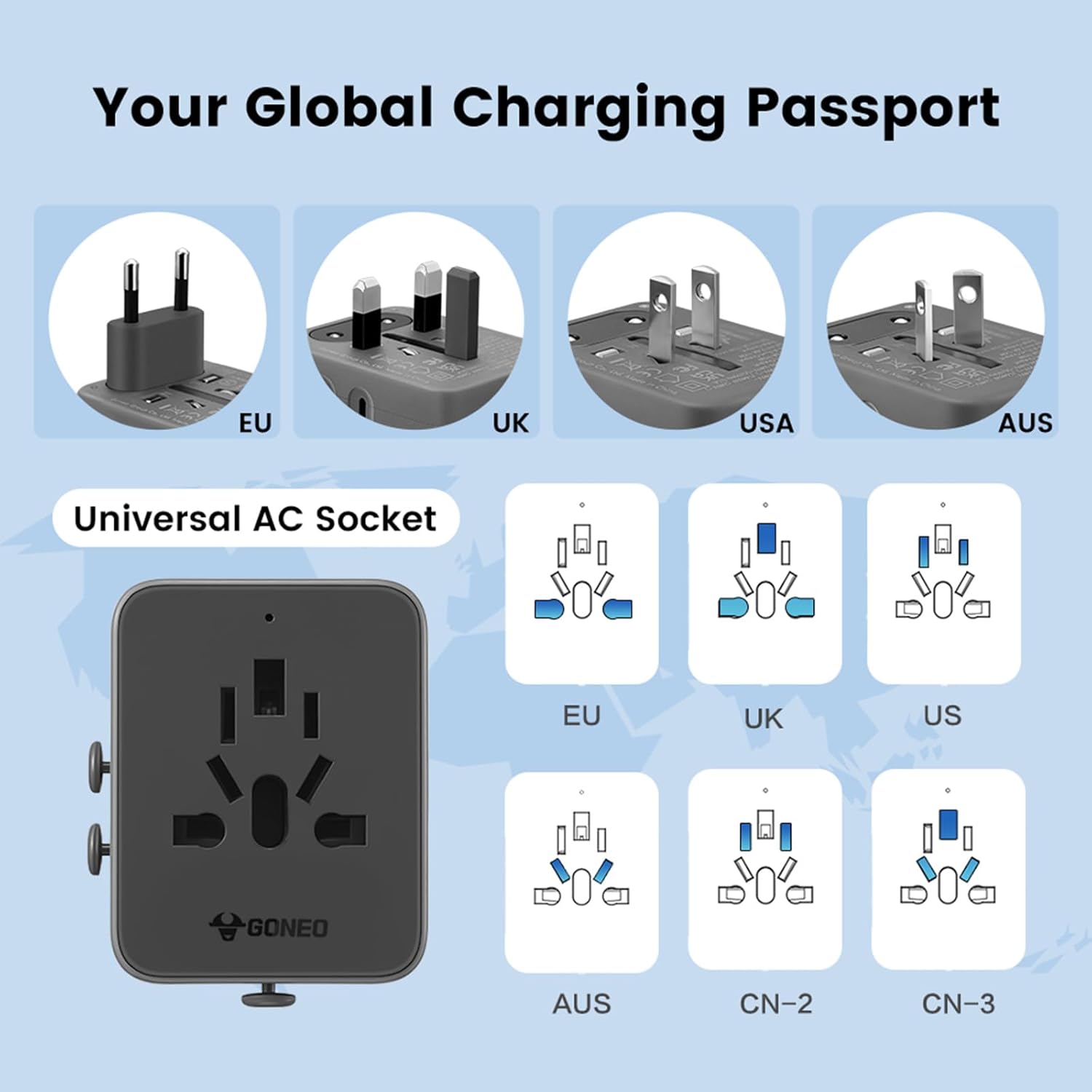

Image 3.2: Illustration of the various integrated plug types (EU, UK, US, AU) and the universal AC socket design.

4. Configurare și operare

4.1 Selecting the Correct Plug

1. Identify the required plug type for your destination country.
2. Slide the corresponding plug selector on the side of the adapter to extend the correct pins.
3. Ensure the other plug types are fully retracted before inserting the adapter into a wall socket.

4.2 Conectarea dispozitivelor

1. Once the adapter is securely plugged into a wall outlet, connect your device's power cord to the universal AC socket.
2. For USB-powered devices, connect your USB cable to either the USB-A or USB-C port.
3. The adapter supports charging up to 4 devices simultaneously (1 AC, 1 USB-A, 1 USB-C, 1 Type-A).

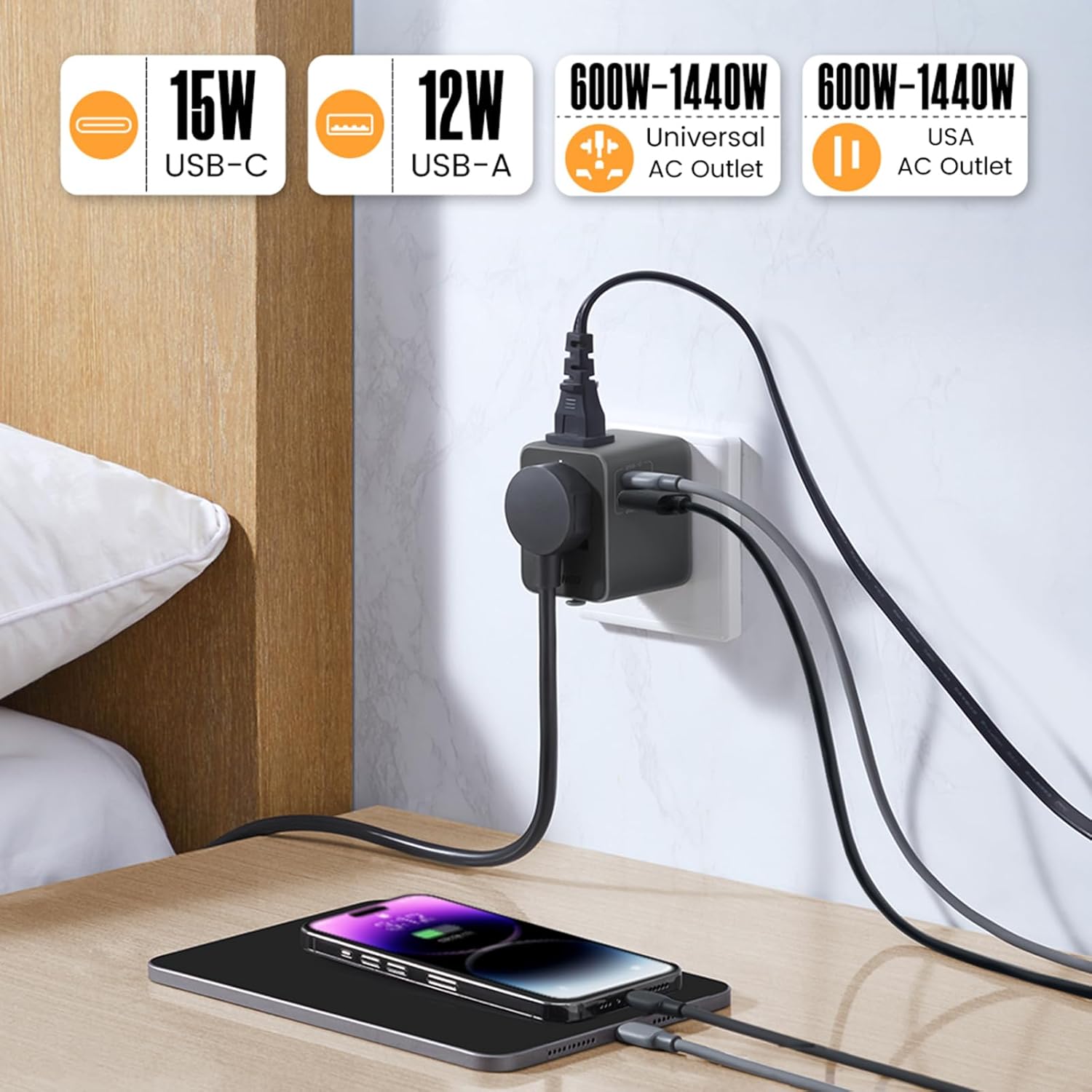

Image 4.1: The adapter in use, demonstrating simultaneous charging of a phone and tablet via USB ports while an AC device is also connected.

5. Automatic Reset Feature

The GONEO Universal Travel Adapter features an automatic reset mechanism. In the event of an overload, the adapter will temporarily cease operation to protect connected devices and itself. Unlike traditional fuses that require manual replacement, this adapter will automatically reset after approximately 10 seconds once the overloaded device is removed or replaced with one within the rated power range.

Image 5.1: Comparison highlighting the convenience and safety of the automatic reset feature over traditional, replaceable fuses.

6. Compatibilitate

This adapter is compatible with devices operating within a voltage range of 100V to 240V. It is suitable for charging various electronic devices such as smartphones, tablets, laptops, cameras, and other USB-powered gadgets.

Imaginea 6.1: Examples of devices compatible with the adapter, including laptops, smartphones, cameras, and electric toothbrushes.

7. Îngrijire și întreținere

• Keep the adapter dry and clean. Avoid exposure to moisture or extreme temperatures.
• Clean the adapter with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Depozitați adaptorul într-un loc răcoros și uscat atunci când nu îl utilizați.
• Nu încercați să dezasamblați sau să modificați adaptorul.

8. Depanare

8.1 Adapter Not Providing Power

• Verificați priza de perete: Ensure the wall socket is active and providing power.
• Conexiune la priză: Verify that the correct plug type is fully extended and securely inserted into the wall socket.
• Conexiune dispozitiv: Confirm that your device's cable is properly connected to the adapter.
• Resetare la suprasarcină: If the adapter stopped working, it might have triggered the automatic reset due to an overload. Remove the connected device, wait 10 seconds, and then reconnect a device within the rated power.

8.2 Dispozitivul nu se încarcă

• Compatibilitate dispozitiv: Ensure your device is compatible with the local voltage and the adapter's output specifications.
• Integritatea cablului: Încearcă un alt cablu de încărcare pentru a exclude o problemă cu cablul.
• Adapter Ports: Test different USB ports or the AC socket to identify if a specific port is affected.

9. Specificații

Image 9.1: The adapter shown in hand, illustrating its compact and portable dimensions for travel.

10. Garanție și asistență

For warranty information or technical support, please refer to the product packaging or contact GONEO customer service through the retailer where the product was purchased. Keep your purchase receipt for warranty claims.
