EMKE PFR7645X1B-VC Electric Towel Radiator User Manual

Introducere

Thank you for choosing the EMKE Electric Towel Radiator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read these instructions carefully before use and retain them for future reference.

This 180-degree swivel, wall-mounted electric towel radiator is designed to provide warmth and convenience in your bathroom. Featuring efficient carbon fiber heating technology, it quickly heats up and offers a comfortable temperature without requiring connection to a central heating system. Its intelligent control system, including an LCD touchscreen, WiFi connectivity, and Tuya app support, allows for precise temperature and timer settings.

Informații importante privind siguranța

Respectați întotdeauna măsurile de siguranță de bază atunci când utilizați aparate electrice pentru a reduce riscul de incendiu, electrocutare și vătămare corporală.

• Citiți toate instrucțiunile înainte de a utiliza acest aparat.
• Nu scufundați aparatul în apă sau alte lichide.
• Asigurați-vă că sursa de alimentare voltagcorespunde cu eticheta cu valorile tehnice de pe aparat.
• Țineți cablul de alimentare departe de suprafețele încălzite.
• Nu utilizați niciun aparat cu cablul sau ștecherul deteriorat sau după ce aparatul funcționează defectuos sau a fost deteriorat în vreun fel.
• Acest aparat este conceput exclusiv pentru utilizare în interior, în special în băi.
• Ensure proper ventilation around the radiator. Do not cover the radiator while in operation.
• The appliance surface can become hot during operation. Avoid direct contact with skin to prevent burns.
• The plug features integrated residual current protection for enhanced safety.

Conținutul pachetului

Vă rugăm să verificați conținutul pachetului pentru a vă asigura că toate articolele sunt prezente:

• EMKE Electric Towel Radiator Unit
• Mounting Kit (screws, wall plugs, brackets)
• Installation Instructions (German, please refer to this manual for English instructions)

Configurare și instalare

The EMKE Electric Towel Radiator is designed for wall-mounted installation. It features a 180-degree swivel function for flexible use and includes an integrated storage rack.

Pașii de instalare:

1. Alegeți locația: Select a suitable wall location in your bathroom, ensuring it is within reach of a power outlet and away from direct water spray. Consider the 180-degree swivel range for optimal functionality.
2. Marcați punctele de găurire: Use the provided mounting template or measure carefully according to the dimensions (refer to the 'Specifications' section and image below) to mark the drilling points on the wall.
3. Găuri: Dați găuri în punctele marcate folosind un burghiu adecvat pentru tipul de perete. Introduceți diblurile.
4. Atașați paranteze: Secure the mounting brackets to the wall using the screws provided in the mounting kit.
5. Montarea radiatorului: Carefully attach the towel radiator unit to the secured mounting brackets. Ensure it is firmly in place and level.
6. Conectare alimentare: Plug the power cord into a suitable electrical outlet. The integrated residual current protection in the plug enhances safety.

Imagine: Detailed dimensions and swivel range of the EMKE Electric Towel Radiator. The diagram shows a height of 760mm, width of 450mm, wall distance of 148mm, and the 180-degree swivel mechanism. The storage shelf dimensions are 410x130x20mm.

Imagine: A închide view of the towel holder's swivel mechanism. It highlights the ABS plug and swivel tube design, which reduces metal-to-metal friction for smooth rotation.

Storage Rack Installation:

The radiator includes an integrated storage rack for additional convenience. This rack is typically pre-assembled or easily attaches to the top of the unit. Ensure it is securely fastened before placing items on it.

Imagine: The EMKE Electric Towel Radiator featuring its integrated storage shelf. The shelf dimensions are indicated as 410 x 130 x 20mm, providing practical space for bathroom accessories or folded towels.

Instrucțiuni de operare

The EMKE Electric Towel Radiator offers intelligent control via an integrated LCD touchscreen, WiFi, and the Tuya app.

LCD Touchscreen Control:

The control panel features an intuitive LCD touchscreen for easy adjustments.

Imagine: The LED touch control panel of the EMKE Electric Towel Radiator. It displays real-time status (e.g., 55°C), timer mode (1-9 hours), temperature adjustment (30-70°C), and power on/off. Recommended temperature ranges for different fabric types are also shown.

• Pornire/Oprire: Press the power button to turn the radiator on or off.
• Reglarea temperaturii: Use the temperature controls to set your desired temperature between 30°C and 70°C.
• Modul temporizator: Activate the timer function to set the operating duration from 1 to 9 hours. The radiator will automatically turn off after the set time.
• Mod temperatură constantă: A 55°C constant temperature mode is available for consistent warmth and efficient drying. This temperature is reached in seconds and helps prevent bacterial growth.
• Real-time Status Display: The LCD screen shows the current temperature and operating status.

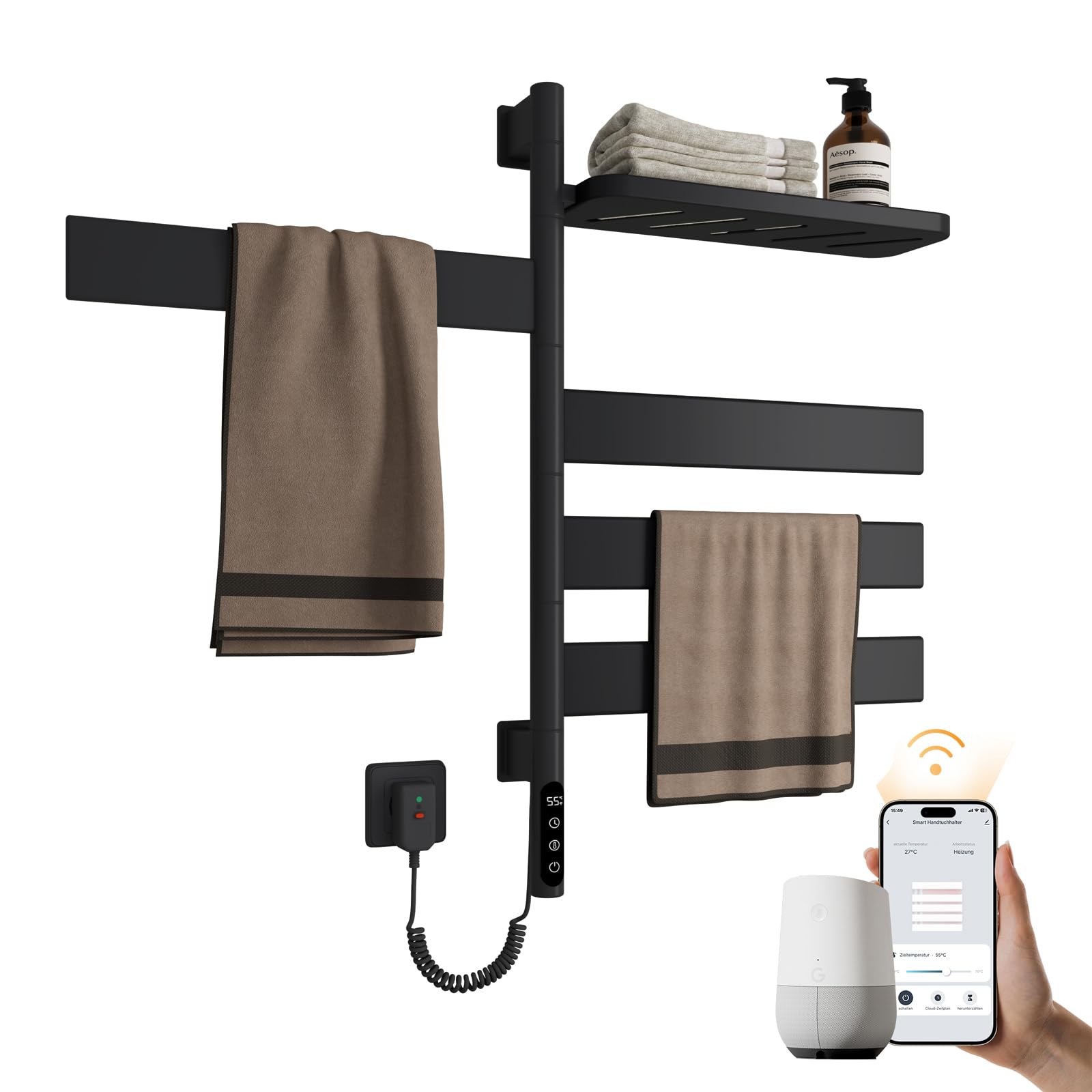

Imagine: Illustration showing the EMKE Electric Towel Radiator reaching 55°C in seconds, highlighting its efficiency in preventing bacterial growth on towels.

WiFi and Tuya App Control:

For enhanced convenience, the radiator can be controlled remotely via WiFi and the Tuya Smart App.

1. Descărcați aplicația: Download the Tuya Smart App from your smartphone's app store (iOS or Android).
2. Înregistrare/Autentificare: Create an account or log in to the Tuya Smart App.
3. Adăugați dispozitiv: Follow the in-app instructions to add your EMKE Electric Towel Radiator as a new device. This typically involves putting the radiator into pairing mode (refer to the app or radiator's display for specific instructions).
4. Telecomanda: Once connected, you can control the temperature, set timers, and monitor the radiator's status from anywhere using your smartphone.
5. Control vocal: The radiator also supports voice control through compatible smart home assistants (e.g., Amazon Alexa, Google Assistant) once integrated with the Tuya app.

Imagine: A smartphone displaying the Tuya Smart App interface, demonstrating real-time control of smart home devices, including the EMKE Electric Towel Radiator. The app shows current temperature (27°C) and heating status.

Întreţinere

Regular maintenance ensures the longevity and optimal performance of your EMKE Electric Towel Radiator.

• curatenie: Disconnect the power before cleaning. Wipe the surface with a soft, damp Nu utilizați produse de curățare abrazive, solvenți sau substanțe chimice dure, deoarece acestea pot deteriora finisajul.
• Îndepărtarea prafului: Periodically remove dust from the heating elements and surfaces to maintain heating efficiency.
• Inspecţie: Verificați periodic cablul de alimentare și ștecherul pentru a depista orice semne de deteriorare. Dacă constatați deteriorări, întrerupeți utilizarea și contactați serviciul de asistență pentru clienți.
• Protecția apei: The radiator has an IPX5 water protection rating, making it suitable for humid bathroom environments. However, avoid direct water jets or prolonged exposure to excessive moisture.

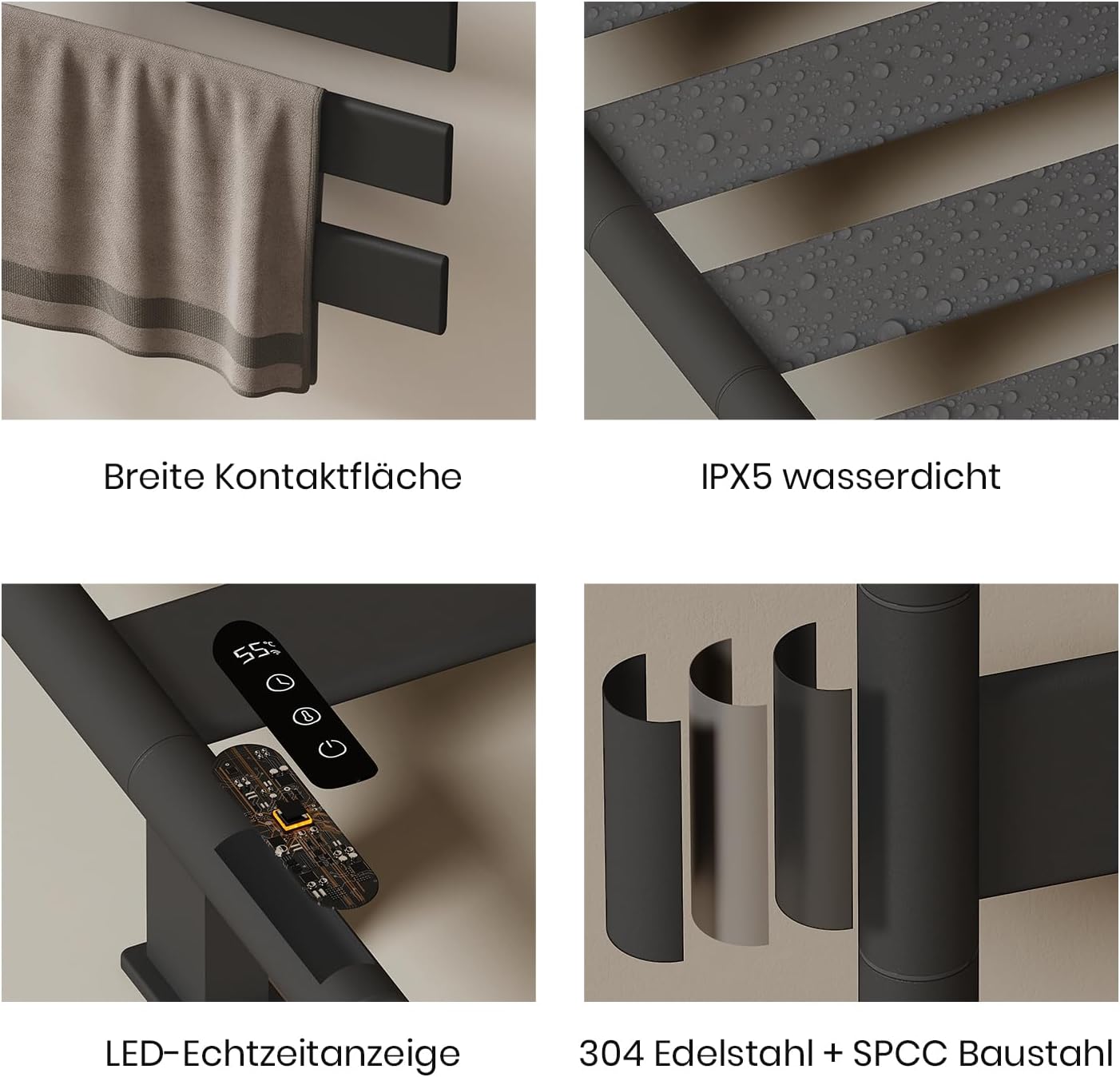

Imagine: Detailed features of the EMKE Electric Towel Radiator. This includes a wide contact surface for efficient towel warming, IPX5 waterproof rating for bathroom safety, an LED real-time display for easy monitoring, and construction from 304 stainless steel and SPCC structural steel for durability.

Depanare

If you encounter issues with your EMKE Electric Towel Radiator, refer to the following common problems and solutions:

• Radiatorul nu încălzește:
  • Verificați dacă ștecherul este introdus corect în priză.
  • Ensure the power switch on the radiator is turned on.
  • Verify that the temperature setting is above the ambient temperature.
  • Verificați dacă întrerupătorul s-a declanșat.
• Afișajul nu funcționează:
  • Ensure the radiator is powered on.
  • Dacă afișajul rămâne stins, încercați să deconectați și să reconectați unitatea.
• Probleme de conectivitate WiFi:
  • Asigurați-vă că rețeaua WiFi de acasă este activă și se află în raza de acțiune.
  • Check if the radiator is in pairing mode as per the Tuya app instructions.
  • Restart your router and the radiator, then attempt to reconnect.
  • Ensure you are using a 2.4GHz WiFi network, as many smart devices do not support 5GHz.
• Zgomote sau mirosuri neobișnuite:
  • Turn off the radiator immediately and unplug it.
  • Contactați serviciul de asistență pentru clienți pentru asistență. Nu încercați să reparați unitatea singur.

If the problem persists after trying these steps, please contact EMKE customer support.

Specificatii tehnice

Garanție și suport

EMKE provides comprehensive customer service for your product.

• Garantie reparatie: Your EMKE Electric Towel Radiator comes with a 2-year repair warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.
• POLITICA DE RETURNARE: A 14-day return policy is offered, allowing you to return the product if you are not satisfied. Please refer to your purchase agreement or retailer's policy for specific return conditions.
• Asistență clienți: For any questions, technical assistance, or warranty claims, please contact EMKE customer support through the retailer where you purchased the product or visit the official EMKE website pentru informații de contact.
