SriHome NVS010-IPC047 PTZ Surveillance Camera System User Manual

1. Introducere

This manual provides detailed instructions for the installation, operation, and maintenance of your SriHome NVS010-IPC047 PTZ Surveillance Camera System. This system includes a 10.1-inch LCD touch screen NVR (Network Video Recorder) and four 5MP wireless PTZ cameras, designed for comprehensive indoor and outdoor security monitoring.

The system features high-resolution video recording, advanced motion detection with humanoid recognition, two-way audio communication, and various night vision modes, including full-color night vision. The NVR comes with a pre-installed 500GB hard drive for local storage and supports expansion up to 16TB.

Figure 1: SriHome NVS010-IPC047 Surveillance System components, including the 10.1-inch NVR and four PTZ cameras.

2. Conținutul pachetului

Verificați dacă toate articolele enumerate mai jos sunt prezente în colet:

• 1x 10.1-inch LCD Touch Screen NVR Host
• 4x IPC047 5MP Wireless PTZ Cameras (System supports up to 8 cameras)
• 1x 12V2A Power Adapter for NVR
• 4x 12V Power Adapters for Cameras
• 5x Screw Packs for mounting
• 1x Manual de utilizare (acest document)
• 1x cablu Ethernet

3. Instrucțiuni de configurare

3.1 NVR Overview și Conexiuni

Familiarize yourself with the NVR's ports and features before proceeding with installation.

Figure 2: NVR rear panel with Audio Output, HDMI, VGA, LAN, USB, and 12V Power ports. Dimensions are also shown.

• Port de ieșire audio: Connect external speakers if desired.
• Port HDMI: Connect to an external monitor for larger display.
• Port VGA: Connect to an external monitor (VGA compatible).
• Port LAN: Connect an Ethernet cable to your router for internet access and mobile app functionality. This connection is essential for remote viewprin intermediul aplicației.
• Port USB mouse: Connect a USB mouse for easier navigation of the NVR interface.
• Port de alimentare 12V: Connect the NVR power adapter.
• 2.5" HDD Bay: Located on the top, this bay houses the pre-installed 500GB HDD and supports expansion up to 16TB.

3.2 Initial Power-Up and Camera Pairing

1. Power the NVR: Connect the 12V2A power adapter to the NVR's power port and plug it into an electrical outlet. The NVR will power on and the 10.1-inch LCD screen will display the boot sequence.
2. Alimentați camerele: Connect each of the four 5MP cameras to their respective 12V power adapters and plug them into electrical outlets. Ensure the cameras are within the wireless range of the NVR (up to 60 meters in open environments, 10-25 meters with partitions).
3. Împerecherea automată: The cameras are pre-paired with the NVR. Once both the NVR and cameras are powered on, the cameras should automatically connect to the NVR and display live video feeds on the LCD screen.
4. Network Connection (for App Access): Connect the NVR to your router using the provided Ethernet cable. This is crucial for enabling remote viewing and control via the mobile application.

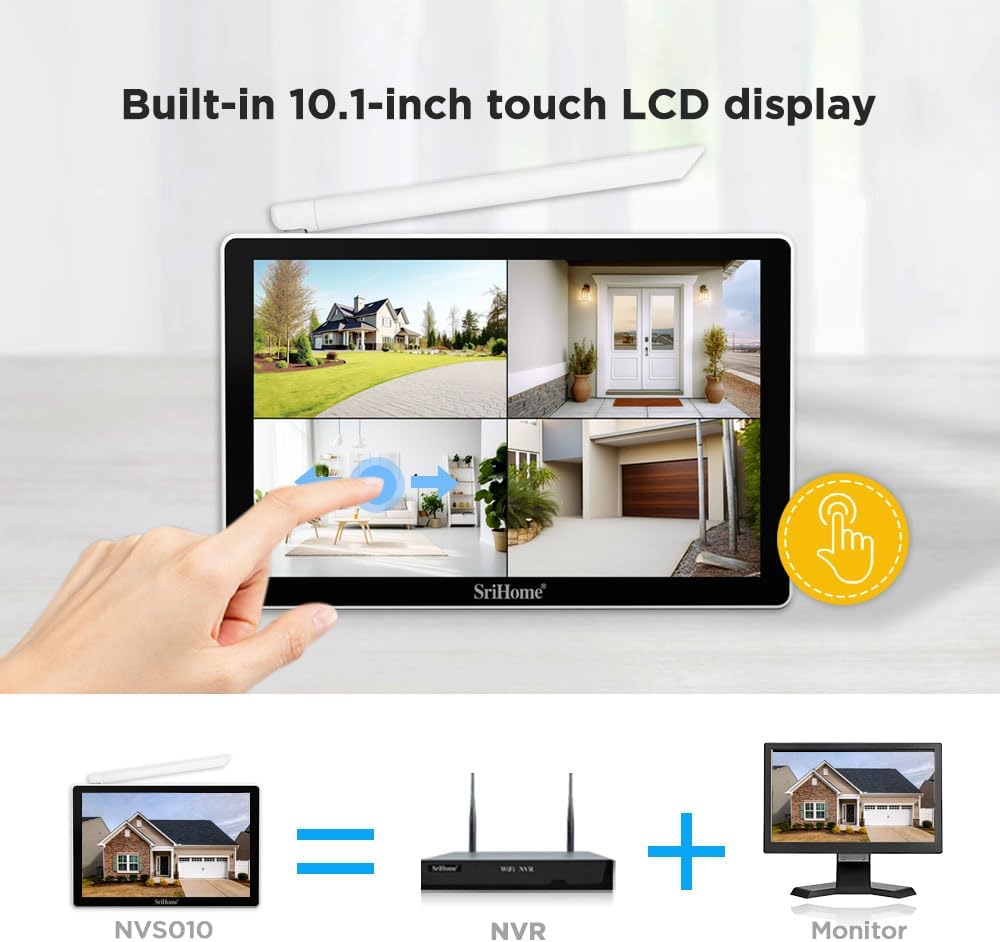

Figure 3: The NVR features a built-in 10.1-inch touch LCD display for direct viewing și control.

3.3 Camera Placement and Wireless Range

Consider the following when positioning your cameras:

• Sursa de alimentare: Each camera requires a continuous power supply. Plan your installation to ensure access to electrical outlets.
• Semnal wireless: The system utilizes a wireless bridge mode to extend signal range. Cameras with a strong signal can relay the signal to cameras with weaker signals, extending the maximum range up to 60 meters in open areas. In environments with walls or obstructions, the effective range is typically 10-25 meters.
• Acoperire optimă: Position cameras to cover critical areas, taking advantage of their PTZ capabilities for wider surveillance.
• Protecție împotriva intemperiilor: While cameras are IP66 waterproof, consider sheltered locations to prolong their lifespan and ensure optimal performance in extreme weather.

Figure 4: Illustration of the relay bridge transmission feature, showing how cameras can extend the wireless signal range up to 60 meters.

4. Funcționare

4.1 În direct View și Redare

The NVR's 10.1-inch LCD touch screen allows for direct viewing of live feeds from all connected cameras. You can switch between single-camera view și o grilă cu mai multe camere viewÎnregistrat footage can be accessed and played back directly from the NVR interface.

4.2 Camera Control (PTZ)

Camerele PTZ oferă flexibilitate viewunghiuri:

• Tigaie: Rotate horizontally up to 340°.
• Înclinare: Adjust vertically up to 90°.
• Zoom digital: 5X digital zoom is available. Note that this is digital zoom, not optical zoom.

Control the camera's pan and tilt functions using the NVR's touch screen interface or through the mobile application.

Figure 5: Demonstrates the 5MP (2560*1920) resolution compared to 2MP (1920*1080) and illustrates the 345° pan and 90° tilt rotation capabilities of the cameras.

4.3 Moduri de vedere nocturnă

The cameras offer three night vision modes:

• Infrared Night Vision (Default): Oferă imagini clare alb-negru în condiții de lumină slabă folosind LED-uri infraroșii.
• Viziune nocturnă full-color: When motion is detected, the camera's white lights activate, enabling full-color video recording. This mode can also be manually activated or scheduled via the app (default schedule: 17:00 to 08:00). The brightness of the white light is adjustable.
• Mod de alarmă: Similar to full-color night vision, but the white light activates specifically upon alarm detection.

Figure 6: Illustrates the visual difference between day vision, infrared night vision (black and white), and full-color night vision when white lights are activated.

4.4 Detectarea mișcării și alertele

The system features advanced motion detection with humanoid recognition to minimize false alarms. When humanoid motion is detected, the system will:

• Automatically track the movement of the detected person.
• Send instant alert notifications to your mobile phone via the app.
• Activate full-color night vision if configured.

You can customize the motion detection sensitivity and define specific detection zones and periods through the NVR interface or mobile application.

Figure 7: Shows the camera's motion-tracking capability and how humanoid detection triggers an alarm push notification on a smartphone.

4.5 Sunet bidirecțional

Each camera is equipped with a built-in microphone and speaker, enabling two-way audio communication. This allows you to:

• Speak to individuals near the camera from your mobile phone.
• Listen to audio from the camera's location.

Figure 8: Depicts the two-way audio function, showing a person receiving a package and communicating with someone remotely via the camera.

4.6 Aplicație mobilă

Download the official SriHome mobile application from your device's app store. The app allows for:

• Telecomanda live viewing of all cameras.
• Remote PTZ control.
• Comunicare audio bidirecțională.
• Acces la foo înregistrattage and playback.
• Configuration of motion detection settings and alerts.

Ensure your NVR is connected to the internet via an Ethernet cable for the mobile app to function correctly.

5. Întreținere

• Curățare regulată: Periodically clean the camera lenses and the NVR screen with a soft, dry cloth to ensure clear image quality and touch responsiveness. Avoid abrasive cleaners.
• Actualizări firmware: Verificați oficialul SriHome website or mobile app for any available firmware updates for your NVR and cameras. Keeping your system updated ensures optimal performance and security.
• Verificări de conectare: Regularly inspect all power and Ethernet cable connections to ensure they are secure and free from damage.
• Managementul stocării: The 500GB HDD provides approximately 30 days of continuous recording for four cameras using H.265+ compression. If you require longer storage, consider upgrading the HDD to a maximum of 16TB. The system automatically overwrites the oldest footage when the disk is full.
• Protecția mediului: While cameras are IP66 waterproof and dustproof, extreme temperatures (-10°C to 50°C) can affect performance. Ensure proper ventilation for the NVR.

Figure 9: Highlights the IP66 waterproof and dustproof rating of the cameras, indicating their suitability for outdoor use in diverse weather conditions.

6. Depanare

6.1 No Video Display on NVR Screen

• Verificați puterea: Ensure both the NVR and all cameras are properly powered on and their power adapters are securely connected.
• Conexiune cameră: Verify that cameras are within the effective wireless range of the NVR. Obstructions like thick walls can reduce signal strength.
• Reporniți: Încercați să reporniți atât NVR-ul, cât și camerele.

6.2 Mobile App Not Connecting or Showing Cameras

• Conexiune Ethernet: The NVR requires a wired Ethernet connection to your router for mobile app functionality. Ensure the Ethernet cable is securely connected to both the NVR's LAN port and your router.
• Acces la internet: Confirm that your router has an active internet connection.
• Permisiunile aplicației: Check that the SriHome app has all necessary network permissions on your smartphone.

6.3 NVR Touch Screen Unresponsive

• Ecran curat: Ensure the screen is clean and free of dust or debris that might interfere with touch input.
• Reboot NVR: A simple restart can often resolve temporary software glitches affecting touch responsiveness.
• Use USB Mouse: If the touch screen remains unresponsive, connect a USB mouse to the NVR for navigation and control.

6.4 Issues with HDMI Output

• Connect External Device First: If you intend to use an external monitor via HDMI, ensure the external monitor is connected and powered on înainte enabling the "Video to HDMI" option in the NVR settings.
• Dispozitiv de intrare: If the NVR's screen turns off after enabling HDMI output without an external monitor, you may need to connect a USB mouse to regain control, as the NVR's touch screen might act as a touchpad for the (non-existent) external display, making navigation difficult.

7. Specificații

8. Garanție și asistență

For warranty information, please refer to the documentation provided with your purchase or contact SriHome customer support directly. Information regarding spare parts availability is not provided in the product specifications.

For technical assistance, troubleshooting beyond this manual, or general inquiries, please visit the official SriHome website-ul web sau contactați departamentul de asistență pentru clienți. Datele de contact se găsesc de obicei pe ambalajul produsului sau pe fișa producătorului. website-ul.
