Manual de utilizare pentru pornitorul de asistare WOLFBOX 2000A

1. Produs terminatview

The WOLFBOX 2000A Jump Starter is a high-capacity portable power solution designed to jump-start 12V vehicles. Equipped with a 12000mAh battery, it is suitable for gasoline engines up to 7 liters and diesel engines up to 6 liters. Its compact design and integrated features make it an essential tool for roadside emergencies and outdoor activities.

Image: The WOLFBOX 2000A Jump Starter unit, jumper cables, USB-C cable, and a carry bag.

Caracteristici cheie:

• High-Capacity Jump Starting: 2000A peak current and 12000mAh battery, capable of starting 12V vehicles with up to 7L gas or 6L diesel engines.
• Display LCD HD: Provides clear status indicators, including battery percentage, fast charging mode, current input, and high-temperature warning.
• Porturi de încărcare rapidă: Features 1 x 30W Type-C in/out port and 1 x QC3.0 USB-A port for quick charging of electronic devices.
• Design portabil: Palm-sized and weighing just 1lb, includes a convenient canvas bag for easy transport.
• Lanternă LED integrată: 300-Lumen flashlight with SOS, strobe, and high-beam modes for emergency situations.
• Construcție durabilă: Resistant to cold, water, and dust.

2. Ce se află în cutie

Verificați dacă toate următoarele articole sunt incluse în pachetul dumneavoastră:

• MegaVolt12 Jump Starter
• Cablu jumper
• Carry Bag
• C to C Fast Charge Cable
• Manual de utilizare

Image: A visual representation of all items included in the box: the jump starter unit, jumper cables, carry bag, C to C fast charge cable, and user manual.

3. Configurare și încărcare

Taxă inițială:

Before first use, fully charge the WOLFBOX 2000A Jump Starter. Use the provided C to C Fast Charge Cable with a compatible 30W USB-C power adapter (not included). The HD LCD display will show the charging progress.

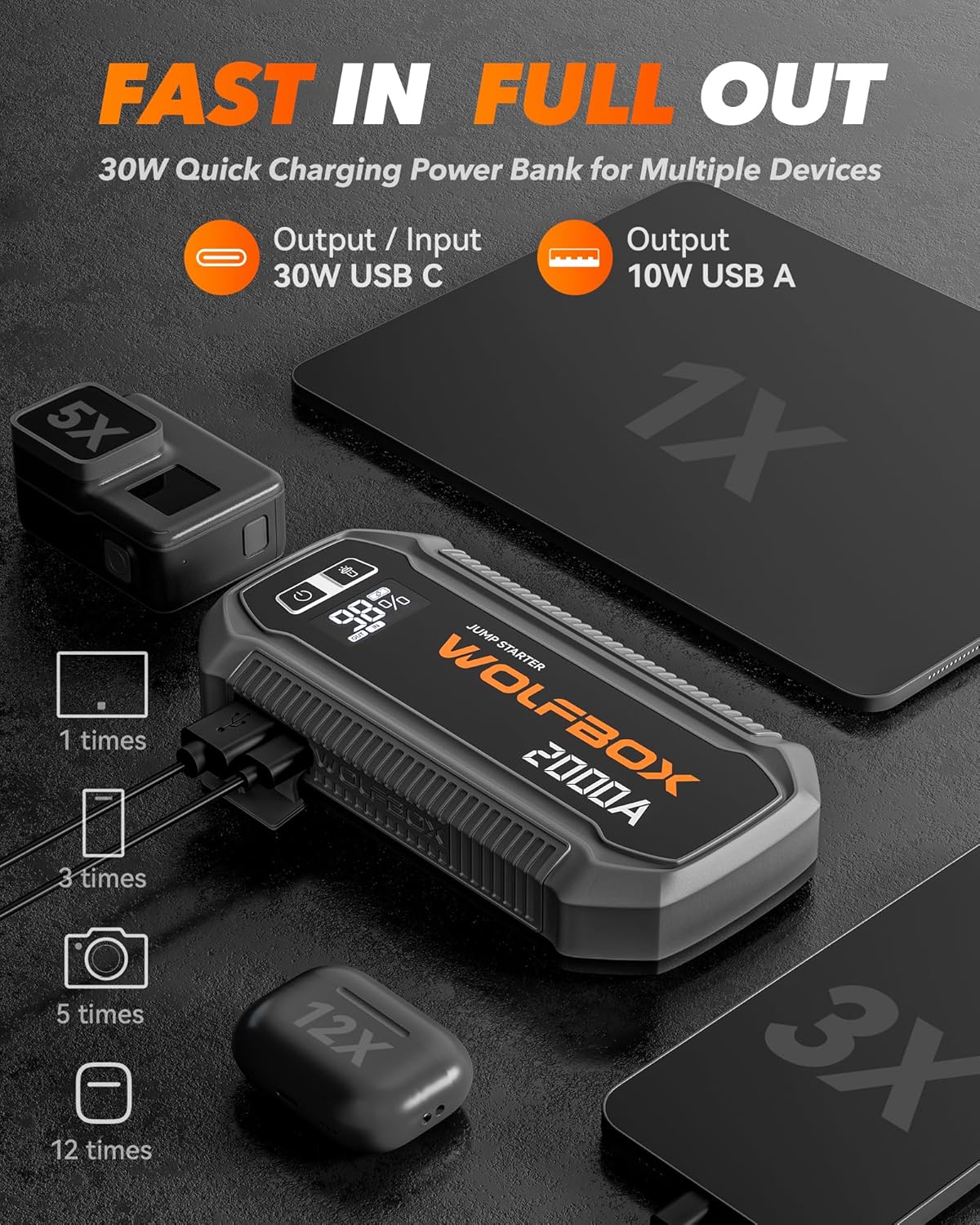

Image: The WOLFBOX 2000A Jump Starter connected via its USB-C port, illustrating its fast charging capability for multiple devices.

A full charge can be achieved in approximately 1.5 hours. The unit can charge up to 80% in just one hour. The jump starter can also charge other electronic devices like phones and tablets via its USB-C and USB-A ports.

Image: The jump starter being charged via USB-C, and simultaneously charging a smartphone, demonstrating its two-way charging capability.

4. Instrucțiuni de utilizare

Follow these steps to safely jump-start your vehicle:

1. Insert Jumper Cable: First, insert the blue connector of the smart jumper cable into the main unit of the jump starter.
2. Conectați Clamps: Conectați cl. roșuamp to the positive (+) terminal of your car battery and the black clamp la borna negativă (-) sau la un punct de împământare adecvat de pe șasiul vehiculului.
3. Indicator de verificare: The smart cable indicator light will turn green if the connection is correct. If the battery voltage is too low, the green light might flash. In this case, press the 'BOOST' button on the smart cable. The green light should then become solid.
4. Pornirea vehiculului: Odată ce martorul verde este aprins continuu, porniți vehiculul.
5. Deconecta: After the vehicle starts, immediately disconnect the clamps from the car battery, then disconnect the smart cable from the jump starter unit.

Image: A visual step-by-step guide showing how to use the jump starter: inserting the cable, connecting clamps, checking the green light/boost button, and starting the vehicle.

Folosind lanterna LED:

The integrated 300-Lumen LED flashlight offers multiple modes:

• Press the flashlight button once for constant high-beam.
• Press again for SOS mode (flashing pattern).
• Press a third time for strobe mode (rapid flashing).
• Apăsați a patra oară pentru a stinge lanterna.

Image: The WOLFBOX 2000A Jump Starter held in hands, with its bright 300-lumen LED flashlight illuminated, highlighting its lighting, SOS, and strobe functions.

5. Întreținere

To ensure the longevity and optimal performance of your WOLFBOX 2000A Jump Starter, please adhere to the following maintenance guidelines:

• Încărcare regulată: To extend the life of the internal Lithium Polymer battery, it is recommended to charge the product every six months, even if not in use.
• Depozitare: Store the jump starter in its provided carry bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• curatenie: Use a soft, dry cloth to clean the unit. Do not use harsh chemicals or abrasive materials.

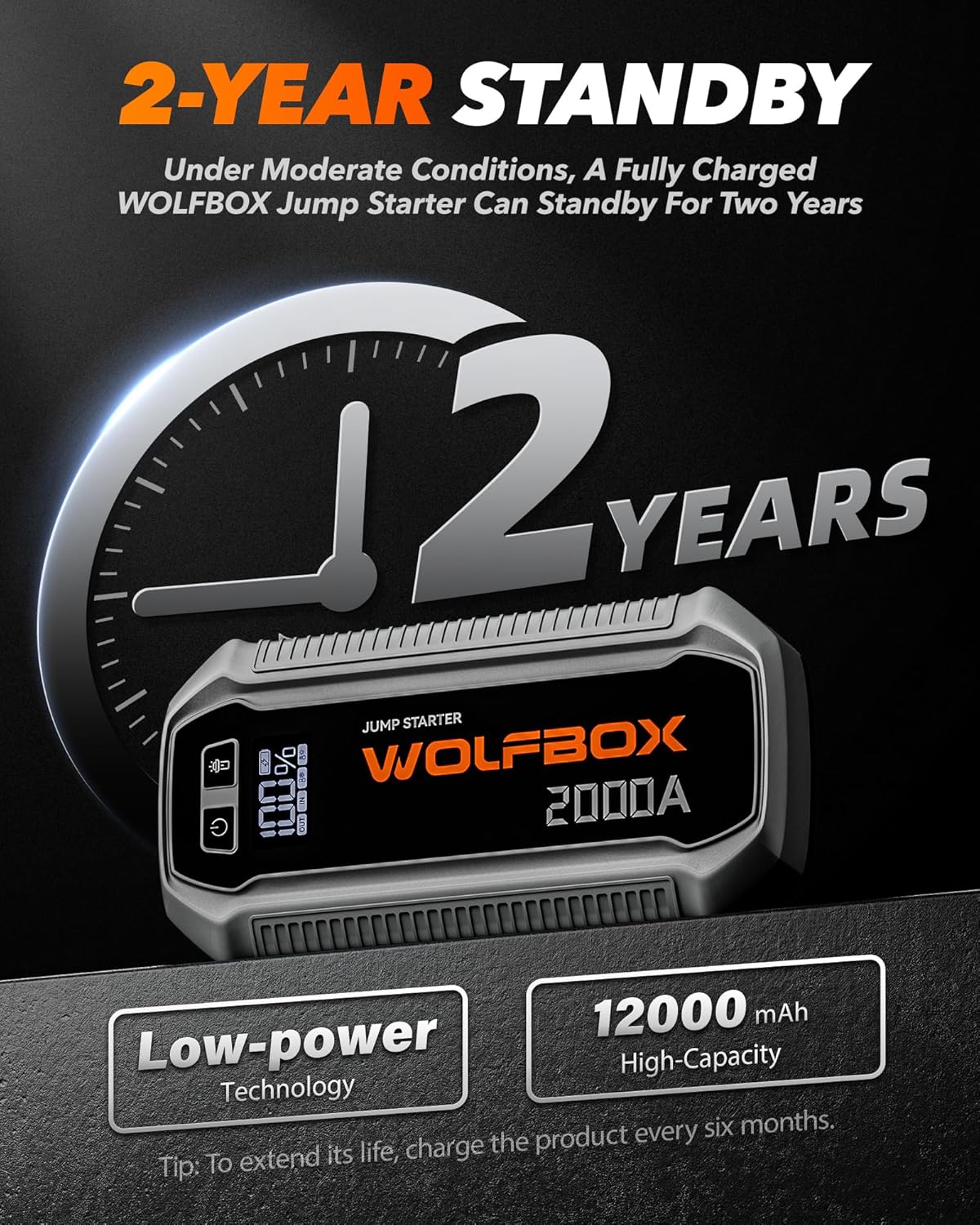

Image: The WOLFBOX 2000A Jump Starter next to a graphic indicating '2 Years Standby' and '12000 mAh High-Capacity', with a tip to charge every six months.

6. Depanare

If you encounter issues with your WOLFBOX 2000A Jump Starter, consider the following common solutions:

• Unitatea nu pornește: Ensure the unit is sufficiently charged. If the battery is completely drained, it may take a few minutes of charging before the display activates.
• Vehiculul nu pornește:
• Check that the jumper cable clamps are securely connected to the correct battery terminals (red to positive, black to negative/ground).
• If the vehicle battery is extremely low, press the 'BOOST' button on the smart cable to force a stronger current.
• Ensure the vehicle's ignition is off before connecting and on when attempting to start.
• Probleme de afișare: If the HD LCD display is not clear or responsive, try fully charging the unit. Extreme temperatures can also affect display performance; allow the unit to return to moderate temperatures.
• Probleme de încărcare: Ensure the C to C Fast Charge Cable is properly connected to both the jump starter and a working 30W USB-C power adapter.

For persistent issues, please refer to the Warranty & Customer Services section for support contact information.

7. Specificații

8. Warranty & Customer Services

WOLFBOX is committed to providing high-quality products and excellent customer support.

• Garantie: The WOLFBOX 2000A Jump Starter comes with a 24-month warranty.
• POLITICA DE RETURNARE: Enjoy a 7-day return policy.
• Defecte: Returns are accepted for defects.
• Actualizări de software: Benefit from available software upgrades.
• Serviciu Clienți 24/7: For any issues related to the product, installation, or usage, please contact our customer service team.

Informații de contact:

E-mail: service@wolfbox.com

Telefon: +1 888 296 8399
