FOXWELL BT301, NT630 Plus

Manual de utilizare pentru testerul de baterii FOXWELL BT301 și scanerul OBD2 NT630 Plus

Models: BT301, NT630 Plus | Brand: FOXWELL

1. Introducere

Welcome to the user manual for your FOXWELL BT301 Battery Tester and NT630 Plus OBD2 Scanner. This comprehensive guide provides detailed instructions on the setup, operation, maintenance, and troubleshooting of both devices. The BT301 is designed for testing 6V and 12V vehicle batteries, while the NT630 Plus offers advanced diagnostic capabilities for OBD2, Anti-lock Braking System (ABS), and Supplemental Restraint System (SRS/Airbag) in vehicles.

Please read this manual thoroughly before operating the devices to ensure correct usage and to prevent damage to the tools or your vehicle.

2. Informații de siguranță

Always observe the following safety precautions when working with vehicle electrical systems and diagnostic tools:

  • Wear appropriate eye protection (safety goggles) and protective clothing.
  • Asigurați-vă că zona de lucru este bine ventilată.
  • Keep a fire extinguisher nearby when working with batteries.
  • Avoid smoking or open flames near vehicle batteries.
  • Do not touch hot engine parts or exhaust systems.
  • Keep the devices dry and clean. Do not expose them to moisture or extreme temperatures.
  • Folosiți doar cablurile și accesoriile furnizate.
  • Disconnect the devices from the vehicle when not in use.

3. Conținutul pachetului

Verificați dacă toate articolele sunt prezente în colet:

  • Unitate de testare a bateriilor FOXWELL BT301
  • FOXWELL NT630 Plus OBD2 Scanner Unit
  • OBDII Diagnostic Cable (for NT630 Plus)
  • Baterie Clamp Cable (for BT301)
  • Cablu USB (pentru actualizări)
  • Manual de utilizare (acest document)

4. Produs terminatview

4.1 FOXWELL BT301 Battery Tester

The BT301 is a dedicated 6V and 12V battery tester designed to accurately assess the health of your vehicle's battery, cranking system, and charging system. It supports various battery types including AGM flat plate, AGM spiral, GEL, EFB, and regular flooded batteries.

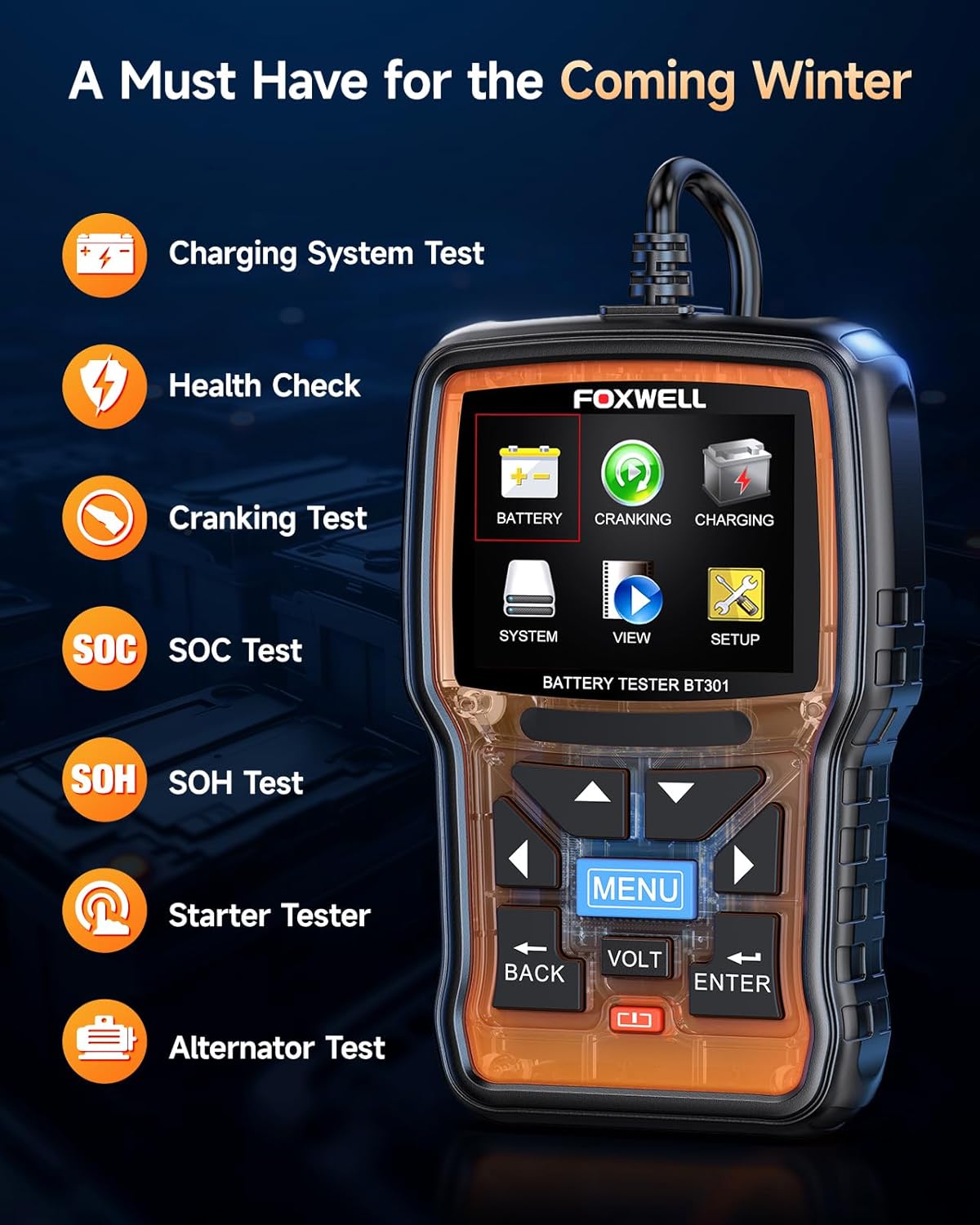

FOXWELL BT301 Battery Tester showing main menu with options for Battery, Cranking, Charging, System, Viewși Configurare.

Imaginea 4.1: FOXWELL BT301 Battery Tester displaying its main menu options.

Key Features of BT301:

  • Verificare starea bateriei: Provides a comprehensive analysis of battery condition.
  • Test de pornire: Evaluează performanța motorului de pornire.
  • Testul sistemului de încărcare: Assesses the alternator and regulator's output.
  • Testul SOC: State of Charge test.
  • Testul SOH: State of Health test.
  • Supports 6V and 12V batteries.
  • Compatible with various battery types: AGM Flat Plate, AGM Spiral, GEL, EFB, Regular Flooded.
FOXWELL BT301 Battery Tester connected to various battery types including AGM Flat Plate, AGM Spiral, GEL, and EFB batteries.

Imaginea 4.2: The BT301 Battery Tester demonstrating compatibility with multiple battery types.

4.2 FOXWELL NT630 Plus OBD2 Scanner

The NT630 Plus is a powerful diagnostic tool that provides full OBD2 functions, along with specialized diagnostics for Anti-lock Braking System (ABS) and Supplemental Restraint System (SRS/Airbag). It also includes advanced service functions such as ABS Auto Bleed, Steering Angle Sensor (SAS) Calibration, Oil Service Light Reset, and Electronic Parking Brake (EPB) Reset.

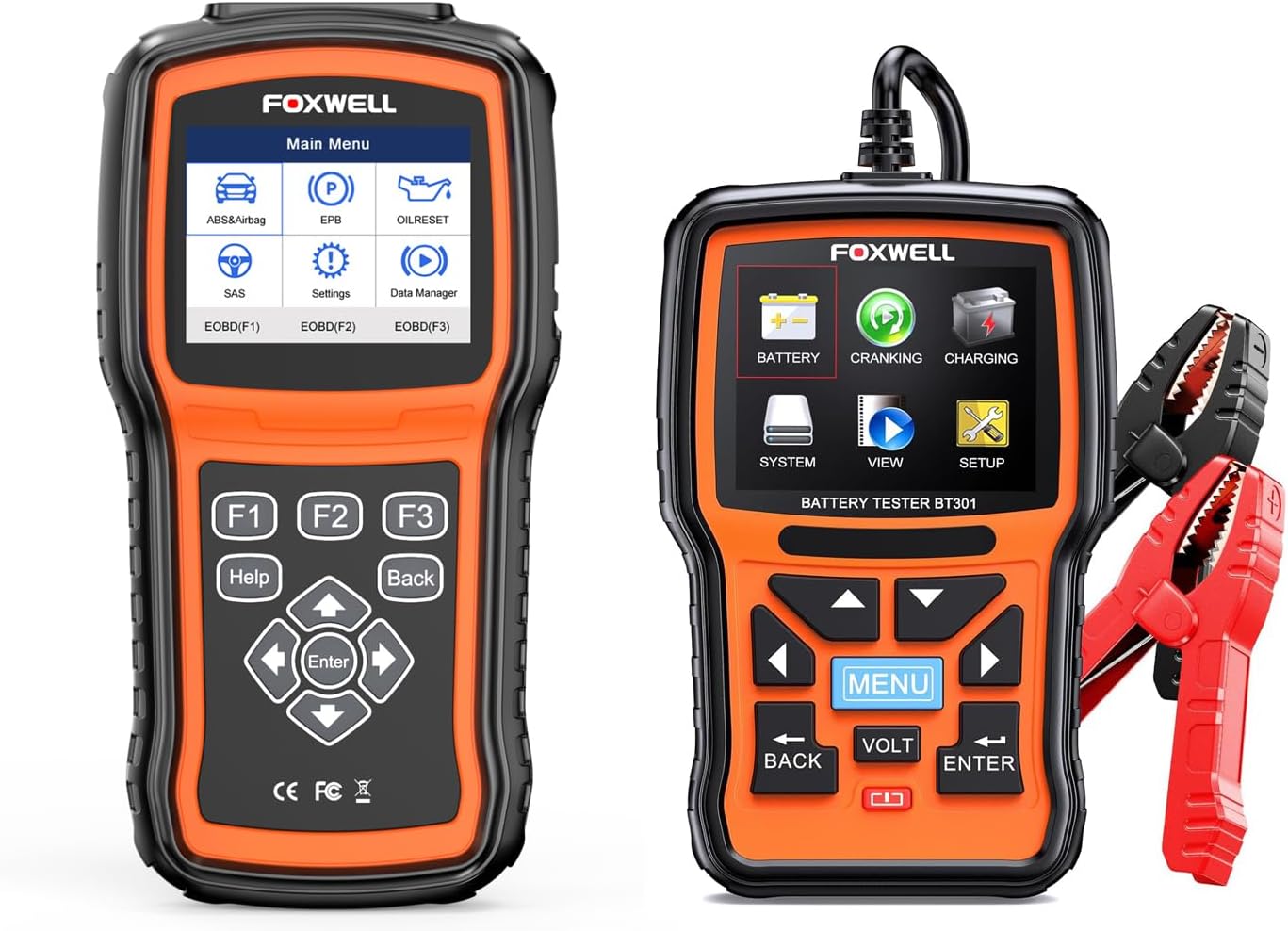

FOXWELL NT630 Plus OBD2 Scanner and BT301 Battery Tester side-by-side. The NT630 Plus shows a main menu with options like ABS&Airbag, EPB, Oil Reset, SAS, Settings, and Data Manager.

Imaginea 4.3: The FOXWELL NT630 Plus OBD2 Scanner (left) and BT301 Battery Tester (right).

Key Features of NT630 Plus:

  • Full OBD2/EOBD Functions: Read/Clear Codes, Live Data, Freeze Frame, I/M Readiness, O2 Monitor Test, On-Board Monitor Test, Component Test, Vehicle Info, Modules Present.
  • Diagnosticarea sistemului ABS: Reads and clears ABS fault codes, performs active tests, and supports ABS Auto Bleed.
  • SRS/Airbag System Diagnostics: Reads and clears SRS fault codes, performs active tests.
  • Calibrare SAS: Resetează senzorul de unghi de direcție.
  • Resetare martor indicator service ulei: Resetează martorul luminos de service al uleiului după un schimb de ulei.
  • Resetare EPB: Resets the electronic parking brake after maintenance.
  • Automatic VIN identification.
Diagram illustrating the three diagnostic systems: OBD2, SRS, and ABS/VSA, within a transparent car outline.

Imaginea 4.4: Visual representation of the three main diagnostic systems covered by the NT630 Plus.

5. Configurare

5.1 Initial Setup for BT301

Connecting the BT301:

  1. Asigurați-vă că contactul vehiculului este oprit.
  2. Conectați pozitivul roșu (+) clamp la borna pozitivă a bateriei.
  3. Conectați negativul negru (-) clamp la borna negativă a bateriei.
  4. The BT301 will power on automatically.

5.2 Initial Setup for NT630 Plus

Connecting the NT630 Plus:

  1. Localizați conectorul de legătură de date (DLC) cu 16 pini al vehiculului, de obicei sub bordul de bord, pe partea șoferului.
  2. Ensure the vehicle's ignition is in the 'ON' position (engine can be off).
  3. Plug the OBDII diagnostic cable into the vehicle's DLC.
  4. Connect the other end of the cable to the NT630 Plus unit.
  5. The NT630 Plus will power on automatically.

6. Instrucțiuni de utilizare

6.1 Using the BT301 Battery Tester

Navigare prin meniul principal:

Use the arrow keys (Up, Down, Left, Right) to navigate through menu options. Press the ENTER button to confirm a selection and the SPATE button to return to the previous screen. The MENIU button typically returns to the main menu.

Efectuarea unui test al bateriei:

  1. Din meniul principal, selectați BATERIE și apăsați ENTER.
  2. Select the appropriate battery type (e.g., Regular Flooded, AGM, GEL) and press ENTER.
  3. Introduceți pornirea la rece a bateriei Amps (CCA) rating, usually found on the battery label, and press ENTER.
  4. The BT301 will perform the test and display the results, such as battery voltage, measured CCA, and overall battery health (e.g., 'GOOD BATTERY', 'CHARGE BATTERY', 'REPLACE BATTERY').
Close-up of the FOXWELL BT301 screen displaying various battery test results like 'GOOD BATTERY', 'CHARGE BATTERY', 'REPLACE BATTERY', 'CRANKING NORMAL', and 'LOW OUTPUT'.

Imaginea 6.1: Example of battery test results displayed on the BT301 screen.

Testul sistemului de pornire:

  1. Din meniul principal, selectați PORNIRE și apăsați ENTER.
  2. Urmați instrucțiunile de pe ecran pentru a porni motorul.
  3. The BT301 will analyze the cranking voltage and time, providing a result on the starter's performance.

Testul sistemului de încărcare:

  1. Din meniul principal, selectați ÎNCĂRCARE și apăsați ENTER.
  2. Follow the on-screen prompts, which may include revving the engine to a specific RPM.
  3. The BT301 will measure the alternator's output and ripple voltage, indicating the charging system's health.

6.2 Using the NT630 Plus OBD2 Scanner

Navigare prin meniul principal:

The NT630 Plus features function buttons (F1, F2, F3) for quick access, along with directional arrows, ENTER, SPATE, și AJUTOR buttons. Use the arrow keys to navigate and ENTER pentru a confirma selecțiile.

OBD2 Diagnostics:

  1. Din meniul principal, selectați EOBD(F1) or EOBD(F2) (depending on the specific menu layout) and press ENTER.
  2. Selecta Citiți coduri la view current, pending, and permanent diagnostic trouble codes (DTCs).
  3. Selecta Șterge codurile to erase DTCs and turn off the Check Engine Light (MIL). Ensure the underlying issue is resolved before clearing codes.
  4. Selecta Date live la view real-time sensor data from the vehicle's engine control unit (ECU).
  5. Selecta Înghețați cadru la view a snapshot of sensor data recorded when an emission-related fault occurred.

Diagnosticarea sistemului ABS:

  1. Din meniul principal, selectați ABS&Airbag și apăsați ENTER.
  2. Selecta ABS from the submenu.
  3. Choose options like Citiți coduri, Șterge codurile, sau Date live to diagnose the ABS system.
  4. Pentru ABS Auto Bleed, select this function and follow the on-screen instructions carefully. This procedure helps remove air from the brake system after component replacement or fluid changes.
Illustration of ABS Auto Bleed process, showing a car's brake system, a mechanic adding brake fluid, and a foot pressing the brake pedal.

Imaginea 6.2: Visual guide to the ABS Auto Bleed function.

SRS/Airbag System Diagnostics:

  1. Din meniul principal, selectați ABS&Airbag și apăsați ENTER.
  2. Selecta SRS/Airbag from the submenu.
  3. Choose options like Citiți coduri or Șterge codurile to diagnose the Supplemental Restraint System.
Screenshots showing full functions for ABS SRS/Airbag diagnostics: Read Codes, Clear Codes, Freeze Frame, Live Data, and Auto VIN.

Imaginea 6.3: Pesteview of diagnostic functions available for ABS and SRS/Airbag systems.

Special Functions (NT630 Plus):

  • Calibrare SAS: Selecta SAS from the main menu. This function is used to reset the steering angle sensor after steering system repairs or alignment. Follow the on-screen prompts carefully.
  • Resetare martor indicator service ulei: Selecta RESETARE ULEI from the main menu. This function allows you to reset the oil service light after an oil change, ensuring the vehicle's maintenance schedule is correctly updated.
  • Resetare EPB: Selecta EPB from the main menu. This function is essential when servicing components of the electronic parking brake system, such as replacing brake pads. It safely retracts and re-engages the parking brake calipers.
Illustration of three hot reset functions: SAS Calibration, Oil/Service Light Reset, and EPB Reset, with diagrams of a car's steering, engine, and electronic parking brake.

Imaginea 6.4: Visual explanation of the SAS Calibration, Oil/Service Light Reset, and EPB Reset functions.

7. Întreținere

7.1 Îngrijirea dispozitivului

  • curatenie: Folosiți un moale, damp lavetă pentru curățarea dispozitivului casing. Nu utilizați agenți de curățare abrazivi sau solvenți.
  • Depozitare: Store the devices in a dry, cool environment, away from direct sunlight and extreme temperatures.
  • Actualizări de software: Verificați periodic site-ul oficial FOXWELL website for software updates to ensure your devices have the latest vehicle coverage and functionalities. Connect the device to a computer using the provided USB cable for updates.
  • Verificarea cablului: Regularly inspect the diagnostic cables and battery clamps for any signs of damage or wear. Replace damaged cables immediately.

8. Depanare

If you encounter issues while using your FOXWELL devices, refer to the table below for common problems and their solutions.

ProblemăSoluţie
Dispozitivul nu pornește.For BT301: Ensure battery clamps are securely connected to the correct battery terminals. For NT630 Plus: Verify the OBDII cable is firmly connected to the vehicle's DLC and the ignition is ON. Check vehicle's fuse for the OBDII port.
NT630 Plus fails to link with vehicle.Confirm the vehicle's ignition is ON. Check if the OBDII cable is properly connected. Ensure the vehicle is OBDII compliant (most vehicles from 1996 onwards). Try connecting to a different OBDII compliant vehicle to rule out device issue.
BT301 shows 'Battery Error' or inconsistent results.Ensure battery terminals are clean and free of corrosion. Verify that the correct battery type and CCA rating were entered. Ensure a stable connection of the battery clamps.
Cannot clear DTCs with NT630 Plus.Ensure the ignition is ON and the engine is OFF. If the underlying fault is still present, the codes will reappear immediately. Address the root cause of the DTCs first.
Ecranul este blocat sau nu răspunde.Disconnect the device from the vehicle/battery, wait a few seconds, and reconnect. If the issue persists, perform a software update if available.

9. Specificații

9.1 FOXWELL BT301 Battery Tester

  • Vol. De operaretage: 6V - 12V
  • Interval de testare: 100-2000 CCA
  • Afişa: LCD cu iluminare din spate
  • Temperatura de functionare: 0°C până la 50°C (32°F până la 122°F)
  • Temperatura de depozitare: -20°C până la 70°C (-4°F până la 158°F)

9.2 FOXWELL NT630 Plus OBD2 Scanner

  • Afişa: Color TFT screen
  • Vol. De operaretage: 8V - 18V (from vehicle battery)
  • Conectivitate: OBDII 16-pin DLC, USB
  • Temperatura de functionare: 0°C până la 60°C (32°F până la 140°F)
  • Temperatura de depozitare: -20°C până la 70°C (-4°F până la 158°F)
  • Protocoale: Supports all OBDII protocols (ISO9141-2, ISO14230-4, SAEJ1850, ISO15765-4)
