1. Produs terminatview
This manual provides instructions for the installation and maintenance of the YITAMOTOR Fender Flares Kit. These fender flares are designed to provide additional tire coverage and protection for your vehicle's wheel wells.
The fender flares are constructed from high-quality polypropylene (PP) material, engineered for durability and resistance to deformation, shrinkage, and cracking, even in various climates. They feature a smooth black finish and are UV-resistant. The flares can also be painted to match your vehicle's color preferences.
Image: Four individual YITAMOTOR fender flares, showcasindesignul produsului.
2. Conținutul pachetului
Verificați dacă toate componentele sunt prezente înainte de a începe instalarea:
- 1 x Fender Flares Kit (4 pieces: 2 front, 2 rear)
- 1 x Set of Mounting Hardware (including 304 stainless steel screws)
- 1 x Manual de instrucțiuni (acest document)
3. Specificațiile produsului
| Atribut | Detaliu |
|---|---|
| Marca | YITAMOTOR |
| Numărul de model | MAYIM2msJi |
| Material | Polipropilenă (PP) |
| Finisaj exterior | Negru neted |
| Culoare | Black (Paintable) |
| Greutatea articolului | 16.54 lire sterline |
| Dimensiuni produs (L x l x H) | 49.21 x 11.02 x 31.69 inci |
| Tip de potrivire | Potrivire specifică vehiculului |
| Tipul de service al vehiculului | 2019-2024 Chevy Silverado 1500 (Excl. 2019 LD) |

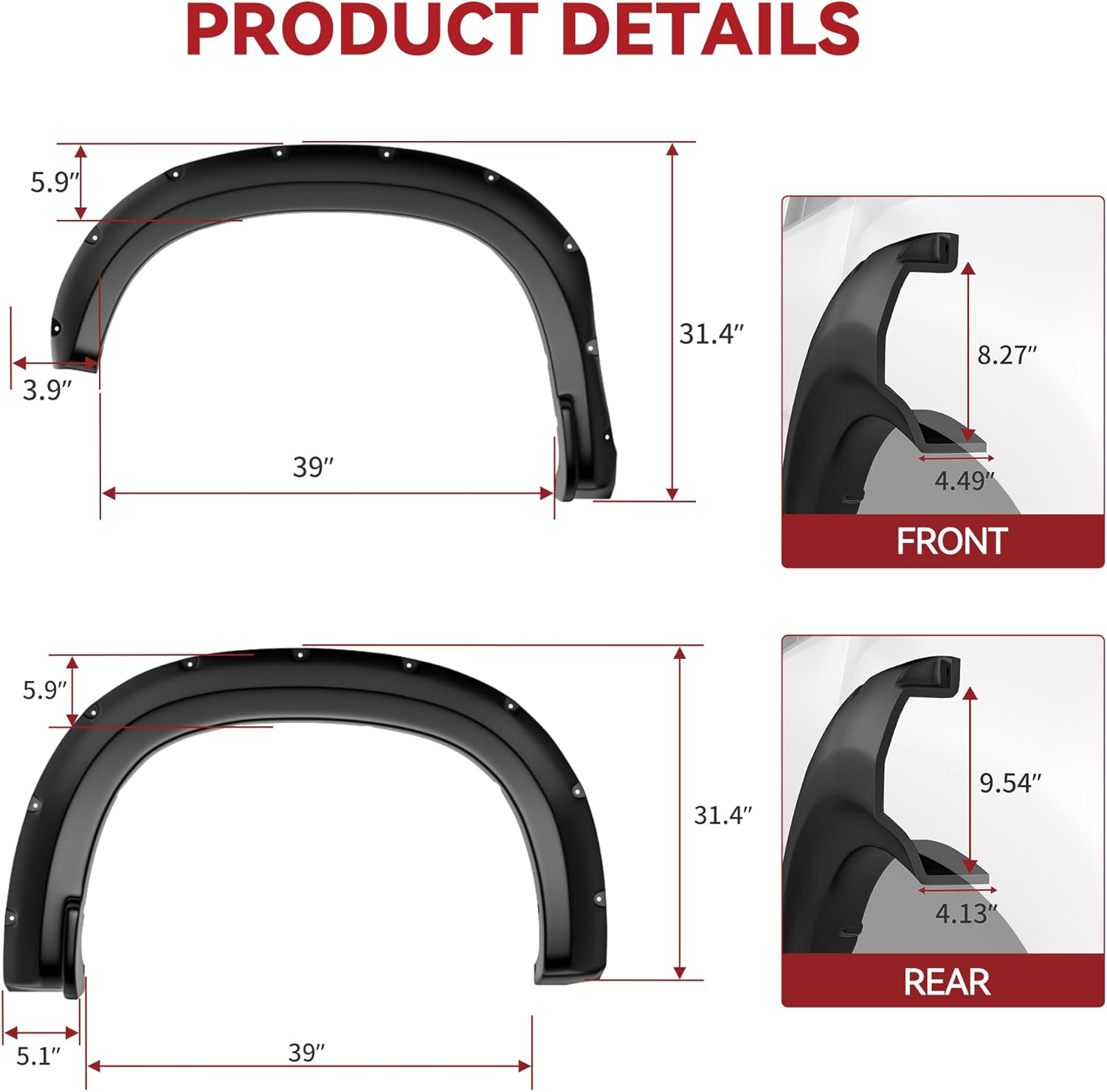

Image: Technical drawing illustrating the dimensions of the front and rear fender flares.
4. Ghid de instalare
Follow these steps for proper installation of your YITAMOTOR Fender Flares. No cutting is required for installation.
4.1. Preinstalare
- Inspectați componentele: Unpack the fender flares and mounting hardware. Verify all parts are present and undamaged.
- Clean Vehicle Surface: Thoroughly clean the area around the wheel wells where the fender flares will be installed. Ensure surfaces are free of dirt, debris, and wax.
- Test de potrivire: Temporarily hold each fender flare against its corresponding wheel well to ensure proper alignment and fitment before permanent installation.
Image: A person bending a fender flare to show its flexible material, aiding in installation.
4.2. Procesul de montare
- Aliniați și fixați: Position the fender flare onto the wheel well. The flares are designed with pre-drilled slots and holes that align with existing mounting points on your vehicle.
- Instalați hardware: Use the provided 304 stainless steel screws and other mounting hardware to secure the fender flares. Ensure all bolts are tightened securely but do not overtighten to avoid damaging the flares or vehicle.
- Repeat for All Flares: Follow the same procedure for installing the remaining three fender flares.
Image: A hand indicating the precise fitment of a fender flare on a truck's wheel well.
Imagine: Un prim-plan view of a bolt head securing the fender flare, highlighting the bolt-riveted design.
4.3. Post-instalare
After installation, double-check all mounting points to ensure the flares are securely attached and there are no loose components.
Image: A truck with YITAMOTOR fender flares installed, illustrating the 'no cutting installation' and the smooth black finish.
5. Utilizare și caracteristici
The YITAMOTOR Fender Flares are designed to enhance your vehicle's appearance and provide practical benefits:
- Wheel Well Protection: Shields your wheel wells from mud, scratches, and other road debris, especially during off-road driving.
- Construcție durabilă: Made from high-impact thermoplastic, resistant to extreme weather conditions, ensuring long-lasting performance.
- Paintable Surface: The smooth black coating allows for custom painting to match or complement your vehicle's color.
Image: A side-by-side comparison showing a truck's wheel well before and after fender flare installation, demonstrating protection from rust and damage.
Image: A fender flare being painted blue, illustrating the product's paintable surface for customization.
6. Întreținere
To maintain the appearance and longevity of your fender flares:
- Curățare regulată: Wash the fender flares regularly with mild soap and water to remove dirt, mud, and road grime.
- Evitați substanțele chimice dure: Do not use abrasive cleaners or harsh chemicals that could damage the finish or material.
- Inspectați periodic: Periodically check the mounting hardware for tightness and ensure the flares remain securely attached.
Image: A person cleaning a fender flare on a truck with a pressure washer, demonstrating routine maintenance.
7. Depanare
Dacă întâmpinați probleme în timpul sau după instalare, luați în considerare următoarele:
- Croială lejeră: Ensure all mounting hardware is correctly installed and tightened. Re-check alignment.
- Părți lipsă: Refer to the 'Package Contents' section. If parts are missing, contact YITAMOTOR customer support.
- Probleme de compatibilitate: Double-check your vehicle's year, make, and model against the product's compatibility information.
8. Garanție și asistență
For warranty information or technical assistance, please refer to the official YITAMOTOR website-ul web sau contactați direct serviciul lor de asistență pentru clienți. Păstrați bonul fiscal ca dovadă a achiziției.
