1. Introducere
Thank you for choosing the ieGeek S1 Solar Panel Integrated Security Camera. This manual provides essential information for the safe and efficient use of your device. This camera features a 2K (3MP) resolution, integrated solar panel for continuous power, PIR human detection, two-way audio, and is Alexa compatible. Its IP65 waterproof design ensures reliable outdoor performance.
Image 1.1: ieGeek S1 Solar Panel Integrated Security Camera with a smartphone displaying its live feed.
2. Conținutul pachetului
Vă rugăm să verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:
- ieGeek S1 Battery Security Camera x1
- Power Cable (USB) x1
- Șuruburi și ancore x4
- Manual de instrucțiuni x1
- Autocolant de poziționare x1
Image 2.1: All components included in the ieGeek S1 package.
Imaginea 2.2: Detaliată view of the included accessories.
3. Configurare
3.1 Încărcare inițială
Before first use, it is recommended to fully charge the security camera for up to 8 hours using a 5V/2A power adapter (not included, USB cable provided).
3.2 Wi-Fi Requirements
The camera supports 2.4GHz Wi-Fi networks only. 5GHz networks are not supported. Ensure your Wi-Fi network is configured for 2.4GHz.
3.3 Descărcare și instalare a aplicației
Download the "ieGeek Cam" app from your device's app store (iOS or Android). Register an account and log in.
3.4 Power On and Reset
Open the cap at the bottom of the camera. Press and hold the "power" button to turn on the device. A red light will flash slowly, indicating it's ready for setup. If the red light is not flashing, press and hold the "reset" button for 4-5 seconds until a beep sound is heard and the red light flashes slowly.
3.5 Împerecherea camerei
Follow the in-app instructions to add your camera. You can connect via Bluetooth or by scanning a QR code displayed on your phone with the camera lens.
Video 3.1: Demonstrates the connection method for ieGeek S2 camera, which is similar to S1 setup.
Video 3.2: Shows the general camera connection procedure using the app.
3.6 Montarea camerei
Use the provided positioning sticker to mark the drill holes on your desired installation surface. Drill the holes, insert the anchors, and then secure the camera bracket with screws. Attach the camera to the bracket by rotating it clockwise until secure. Ensure the solar panel is positioned to receive maximum sunlight.
Image 3.1: A person installing the ieGeek S1 camera on a wall, highlighting its easy, wireless setup.
Video 3.3: Demonstrates the installation process for a security camera.
4. Instrucțiuni de utilizare
4.1 În direct View și monitorizare la distanță
Access the live feed of your camera anytime, anywhere through the ieGeek Cam app. Monitor your property 24/7 and review inregistrat footage.
Imaginea 4.1: Diverse views from the camera, illustrating remote monitoring capabilities.
4.2 PIR Human Detection and Alerts
The camera features a PIR sensor that detects human and animal movement. Upon detection, it automatically starts recording to the free cloud storage (6-second recording/7-day auto-overwrite) and sends push notifications with photos to your smartphone. Customize detection areas and sensitivity levels (10 levels) to minimize false alarms.
Image 4.2: Visual representation of PIR human detection in action.
Image 4.3: App interface for setting detection areas and sensitivity.
4.3 Night Vision and Alarm Modes
Equipped with 18 high-brightness LED lights and 4 infrared LED lights, the camera offers enhanced color night vision, providing clear images even in darkness. It supports three night defense modes:
- Light Deterrence Mode: Flashes bright lights upon detection.
- Sound and Light Alarm Mode: Activates sound and light alarms.
- Siren Alarm Mode: Emits a loud siren.
These modes can be customized or turned off via the app.
Image 4.4: The camera's powerful LED lights providing clear night vision.
Image 4.5: Illustration of the three available night defense modes.
4.4 Sunet bidirecțional
The built-in microphone and speaker allow for real-time two-way communication through the app. This is useful for speaking to visitors or deterring intruders.
Image 4.6: Demonstrating the two-way audio feature for communication.
4.5 Opțiuni de stocare
The camera supports both local storage via a microSD card (up to 128GB, sold separately) and permanent free cloud storage (6-second recording/7-day auto-overwrite). Video encryption ensures privacy.
Imaginea 4.7: Pesteview of the two available storage methods for recorded footage.
4.6 Compatibilitate Alexa
The camera is compatible with Alexa voice assistants, allowing you to view the monitoring screen with simple voice commands.
Image 4.8: Demonstrating Alexa integration for hands-free monitoring.
Video 4.1: Un overview of the camera's various functions and features.
5. Întreținere
5.1 Încărcare solară

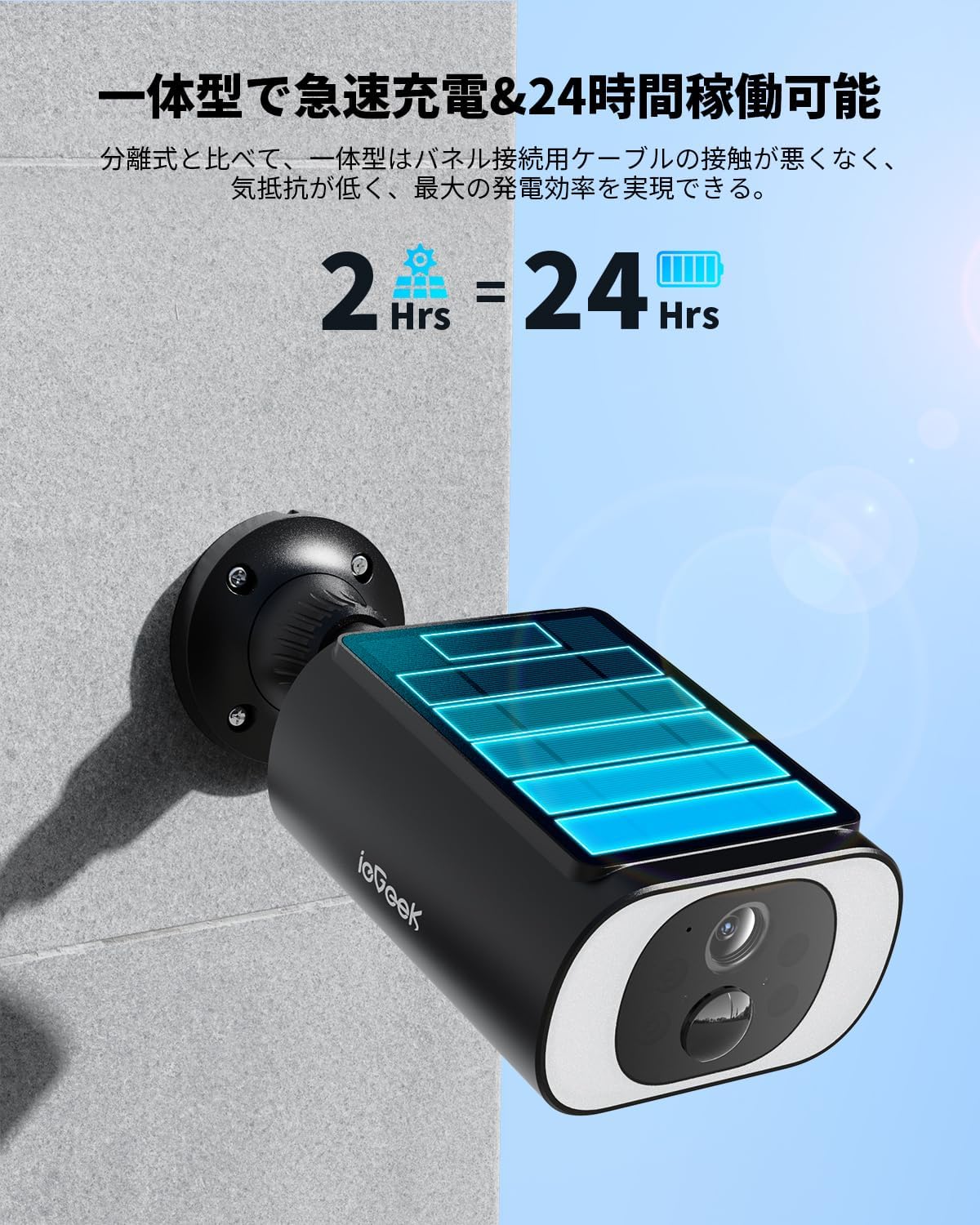

The integrated monocrystalline silicon solar panel has a high conversion rate of 19.5% and a black coating for excellent heat absorption, allowing the camera to operate year-round without interruption. Ensure the solar panel is clean and free from obstructions for optimal charging.
Image 5.1: The camera's solar charging capability, providing continuous power.
5.2 Rezistența la intemperii
With an IP65 waterproof rating and a fully sealed USB port, the camera is designed for long-term outdoor use in various weather conditions, including rain, snow, and typhoons.
Image 5.2: The camera's robust IP65 waterproof design.
6. Depanare
If you encounter any issues with your ieGeek S1 camera, please refer to the following common troubleshooting steps:
- Fără putere: Ensure the camera is fully charged. Check the power button and reset the device if necessary.
- Probleme de conexiune Wi-Fi: Verify your Wi-Fi is 2.4GHz. Ensure the camera is within range of your router. Try resetting the camera and re-pairing.
- Alarme false: Adjust the PIR detection sensitivity and customize the detection area in the app.
- Calitate slabă a imaginii: Ensure the lens is clean and free from obstructions. Check your Wi-Fi signal strength.
- Fără înregistrare: Check if a microSD card is inserted correctly or if cloud storage is active. Ensure motion detection is enabled.
For further assistance, please contact ieGeek customer support.
7. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Model de produs | S1 |
| Rezoluție captură video | 1296p (2K 3MP) |
| Tehnologia de conectivitate | Fără fir (Wi-Fi 2.4 GHz) |
| Caracteristici speciale | Two-Way Audio, PIR Human Detection, Night Color Recording, Alexa Compatibility |
| Utilizare în interior/exterior | În aer liber |
| Tip de montare | Montare pe perete |
| Dimensiunile produsului (Lxlxh) | 10 x 10 x 10 mm |
| Greutatea produsului | 540 g |
| Baterie inclusă | Da |
8. Garanție și asistență
ieGeek offers a 1-year warranty for this product. Additionally, a special 1-year extended protection plan is available, providing a maximum of 2 years of coverage. For any inquiries or support, please contact our official email. We aim to respond within 12 hours on weekdays, ensuring your rights are protected.
