Manual de utilizare pentru lanternă tactică de buzunar EverBrite E011183AE, reîncărcabilă, cu unghi de 90 de grade, cu 600 lumeni

1. Introducere

Thank you for choosing the EverBrite E011183AE 600 Lumens Rechargeable 90-Degree Tactical Pocket Flashlight. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new flashlight. Please read this manual thoroughly before use and retain it for future reference.

This compact and versatile flashlight features a 90-degree swivel head, a strong magnetic base, and Type-C recharging, making it suitable for various applications including night working, outdoor activities, camping, și situații de urgență.

2. Informații de siguranță

• Do not shine the light directly into eyes. The high intensity beam can cause temporary vision impairment.
• A nu se lăsa la îndemâna copiilor.
• Do not disassemble the flashlight. This may void the warranty and cause damage.
• Use only the provided charging cable or a compatible Type-C cable for charging.
• Evitați expunerea lanternei la temperaturi extreme sau la lumina directă a soarelui pentru perioade lungi de timp.
• This product is not water resistant. Avoid immersion in water or exposure to heavy rain.

3. Conținutul pachetului

Verificați dacă toate articolele sunt prezente în colet:

• EverBrite E011183AE Flashlight
• Cablu de încărcare (Tip-C)
• Manual de utilizare (Acest document)

4. Produs terminatview

The EverBrite E011183AE flashlight is designed for portability and versatility. Key features include:

• Ultra Bright LED: Oferă o lumină de până la 600 de lumeni.
• Trei moduri de iluminare: High, Low, and Strobe for various lighting needs.
• 90-Degree Swivel Head: Allows for adjustable lighting angles.
• Baza magnetica puternica: Enables hands-free attachment to metal surfaces.
• Pocket Metal Clip: For secure attachment to belts, hat brims, or pockets.
• Reîncărcabil de tip C: Încărcare convenabilă și rapidă.
• Compact și ușor: Ușor de transportat și depozitat.

Figura 4.1: EverBrite E011183AE Flashlight with its 90-degree swivel head and Type-C charging port visible, alongside the charging cable.

Componente:

Figura 4.2: Detailed diagram illustrating the key components of the flashlight, including the Osram LED, switch button, pocket metal clip, magnetic base, and Type-C charging port, along with its compact dimensions.

• Emițător LED: High-brightness Osram LED.
• Power/Mode Switch Button: Controls power and lighting modes. Includes an indicator light.
• 90-Degree Swivel Head: Allows adjustment of the light beam direction.
• Baza magnetica: Integrated magnet for hands-free use.
• Clip de buzunar: Removable clip for secure carrying.
• Port de încărcare tip C: Pentru reîncărcarea bateriei interne.

5. Configurare

5.1 Încărcare inițială

Before first use, fully charge the flashlight. The flashlight is equipped with a built-in rechargeable battery.

1. Localizați portul de încărcare Type-C pe corpul lanternei.
2. Connect the provided Type-C charging cable to the flashlight's charging port.
3. Conectați celălalt capăt al cablului de încărcare la o sursă de alimentare USB (de exemplu, portul USB al computerului, adaptorul USB de perete).
4. The switch indicator light will illuminate roşu în timpul încărcării.
5. După încărcarea completă (aproximativ 1.5 ore), indicatorul luminos se va aprinde verde.
6. Disconnect the charging cable. The flashlight is now ready for use.

A full charge provides up to 6 hours of use on low brightness mode.

6. Instrucțiuni de utilizare

6.1 Pornire/Oprire și selectare mod

Figura 6.1: Illustration of the flashlight's three lighting modes and the button press sequence for power and mode selection.

• Pentru a porni/dezactiva: Press and hold the power button for approximately two seconds.
• Pentru a comuta între moduri: Once the flashlight is on, short press the power button to cycle through the modes: High Bright (600 Lumens) → Low Bright (150 Lumens) → Strobe.

6.2 Using the 90-Degree Swivel Head

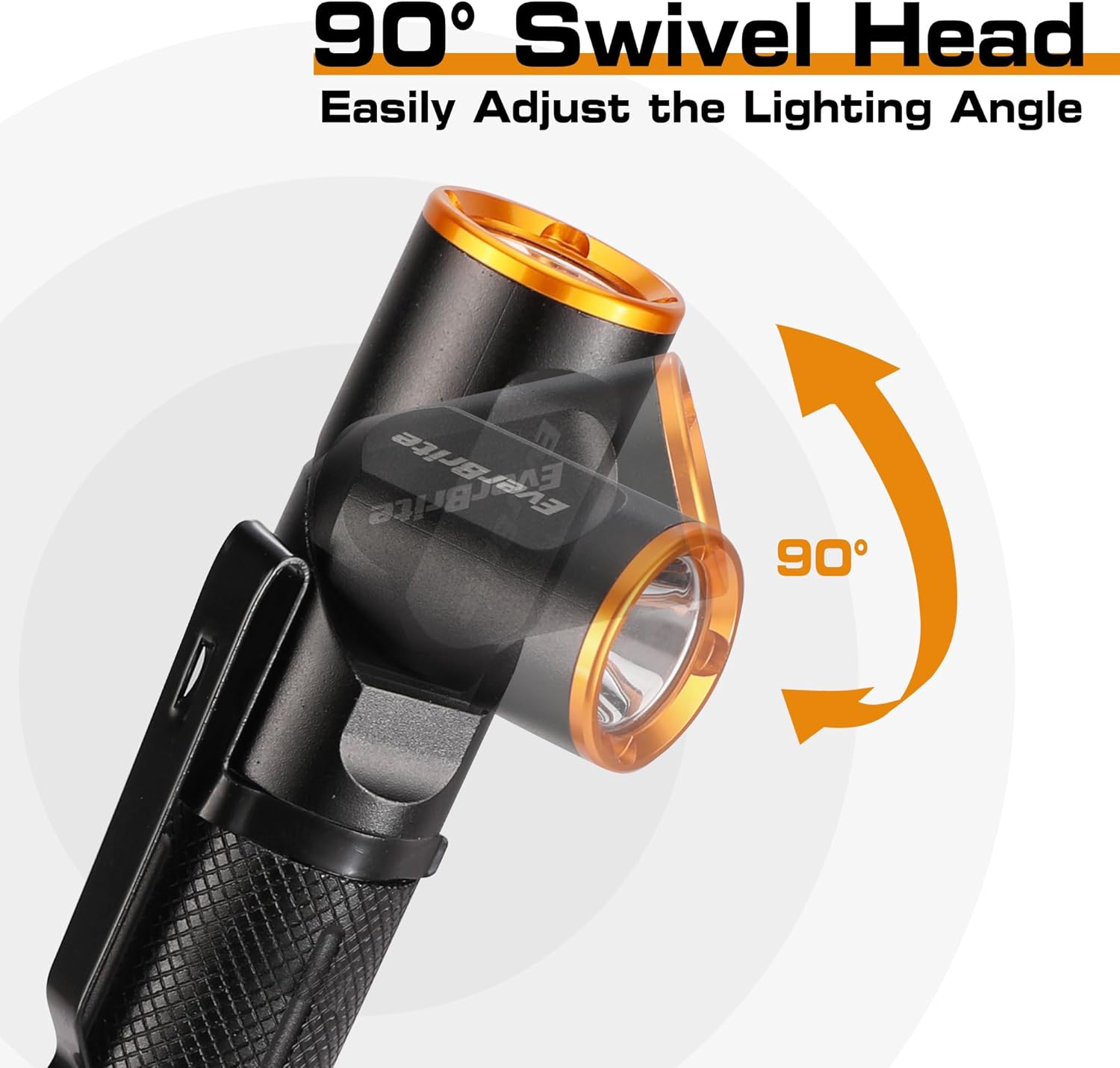

Figura 6.2: The flashlight head rotating 90 degrees to adjust the beam direction.

The flashlight head can be rotated 90 degrees to direct the light precisely where needed. Gently rotate the head to achieve the desired angle. This feature is particularly useful for hands-free operation when combined with the magnetic base or pocket clip.

6.3 Utilizing the Magnetic Base and Pocket Clip

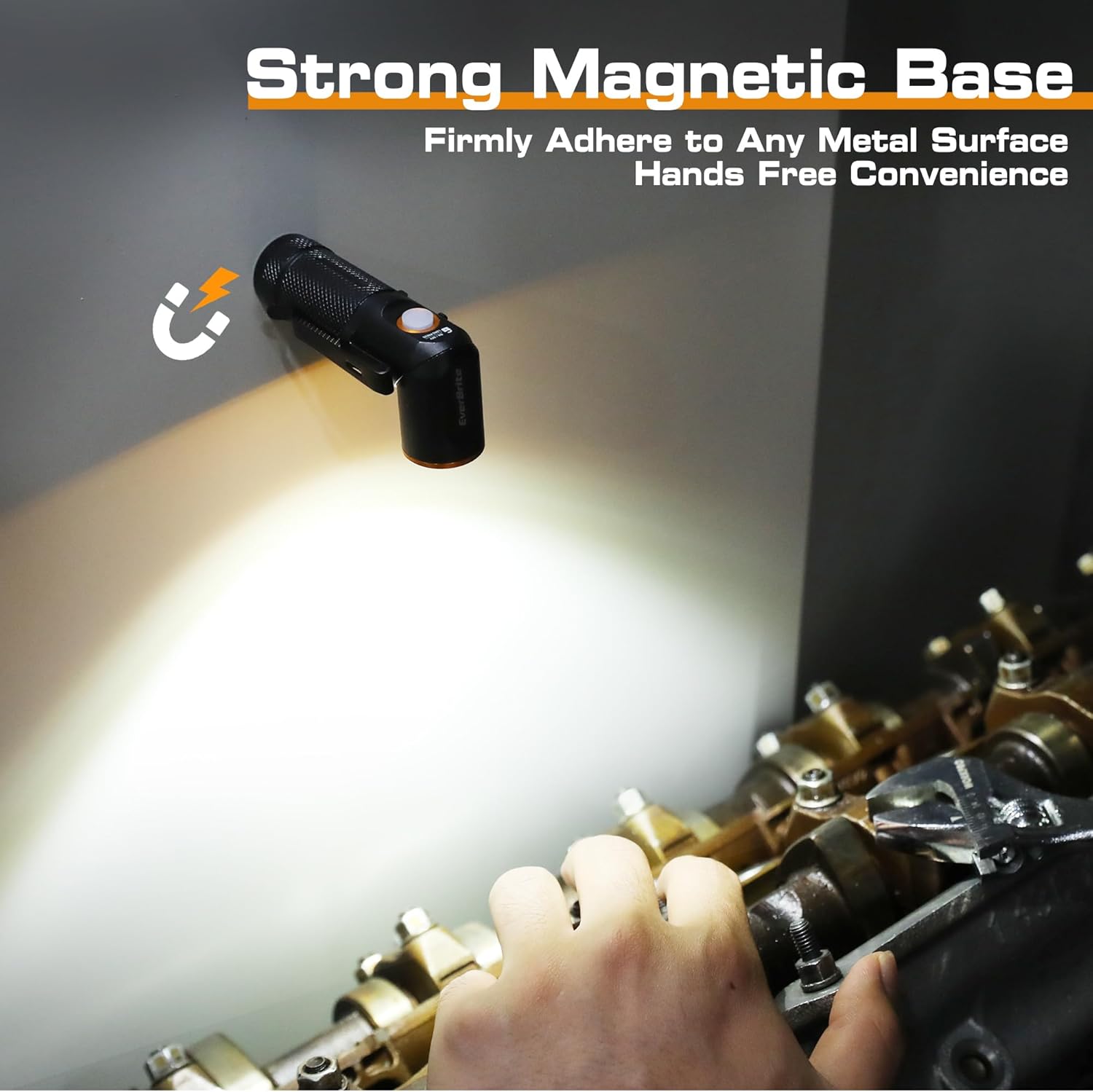

Figura 6.3: Flashlight securely attached to a metal surface using its magnetic base, providing hands-free illumination.

Figura 6.4: Examples of carrying the flashlight using the pocket clip on clothing or a hat brim.

• Baza magnetica: The strong magnet in the base allows the flashlight to adhere firmly to any ferrous metal surface, providing convenient hands-free lighting for tasks such as auto repair or working in dark spaces.
• Clip de buzunar: Use the integrated metal clip to attach the flashlight to your belt, hat brim, shirt pocket, or pants pocket for easy access and hands-free illumination.

7. Întreținere

• curatenie: Ștergeți lanterna cu un material moale, damp o lavetă pentru a îndepărta murdăria sau resturile. Nu utilizați produse de curățare abrazive sau solvenți.
• Depozitare: Store the flashlight in a cool, dry place when not in use. For long-term storage, ensure the battery is partially charged (around 50%) to prolong battery life. Recharge every 3-6 months.
• Îngrijirea bateriei: Avoid fully depleting the battery frequently. Recharge promptly when the indicator shows low battery.

8. Depanare

9. Specificații

10. Garanție și asistență

EverBrite products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official EverBrite website. Vă rugăm să păstrați dovada achiziției pentru reclamații în garanție.
