1. Informații importante privind siguranța
Read this instruction manual carefully before using the appliance and save it for future reference. Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Siguranta electrica: Asigurați-vă că voltagIndicat pe aparat corespunde volumului de rețea localtage înainte de conectare. Nu utilizați aparatul cu un cablu sau un ștecher deteriorat.
- Pericol de abur: The steamer produces hot steam. Keep hands and face away from the steam nozzle during operation. Do not direct steam at people or pets.
- Rezervor de apă: Only fill the water tank with clean tap water. Do not add perfumes, vinegar, starch, descaling agents, or other chemicals, as these can damage the appliance or cause stains.
- Stabilitate: Always place the steamer on a stable, flat surface. Ensure the poles are securely locked in place.
- Copii: Acest aparat nu este destinat utilizării de către copii. Nu lăsați aparatul și cablul acestuia la îndemâna copiilor.
- Întreţinere: Unplug the appliance before cleaning or performing any maintenance. Allow it to cool completely.
2. Produs terminatview
Familiarize yourself with the components of your Philips 1000 Series Stand Steamer.
Figura 2.1: Pesteview of the Philips 1000 Series Stand Steamer components, including the adjustable double pole, large plastic plate, 3 steam settings dial, 36g/min continuous steam nozzle, detachable 1.8L water tank, and calc clean feature.
- A. Steam Nozzle: Delivers continuous steam for wrinkle removal.
- B. Steam Hose: Connects the base unit to the steam nozzle.
- C. Adjustable Double Pole: Provides stability and allows height adjustment for various garment lengths.
- D. Integrated Hanger: For conveniently hanging garments during steaming.
- E. Water Tank: Detachable 1.8L capacity for extended steaming sessions.
- F. Steam Settings Dial: Allows selection of three custom steam settings for different fabric types.
- G. Power Button/Indicator: Turns the appliance on/off and indicates operational status.
- H. De-Calc/Easy Rinse Knob: For performing the descaling function.
- I. Base Unit: Conține elementul de încălzire și rezervorul de apă.
- J. Fabric Brush: (Included accessory) Helps to open fabric weave for better steam penetration on thicker fabrics.
- K. Protective Glove: (Included accessory) For hand protection during steaming.
3. Configurare și asamblare
Follow these steps to assemble your stand steamer before first use.
- Despachetați componente: Scoateți cu grijă toate piesele din ambalaj.
- Asamblați stâlpii: Insert the adjustable double poles into the designated slots on the base unit until they click into place. Ensure they are stable.

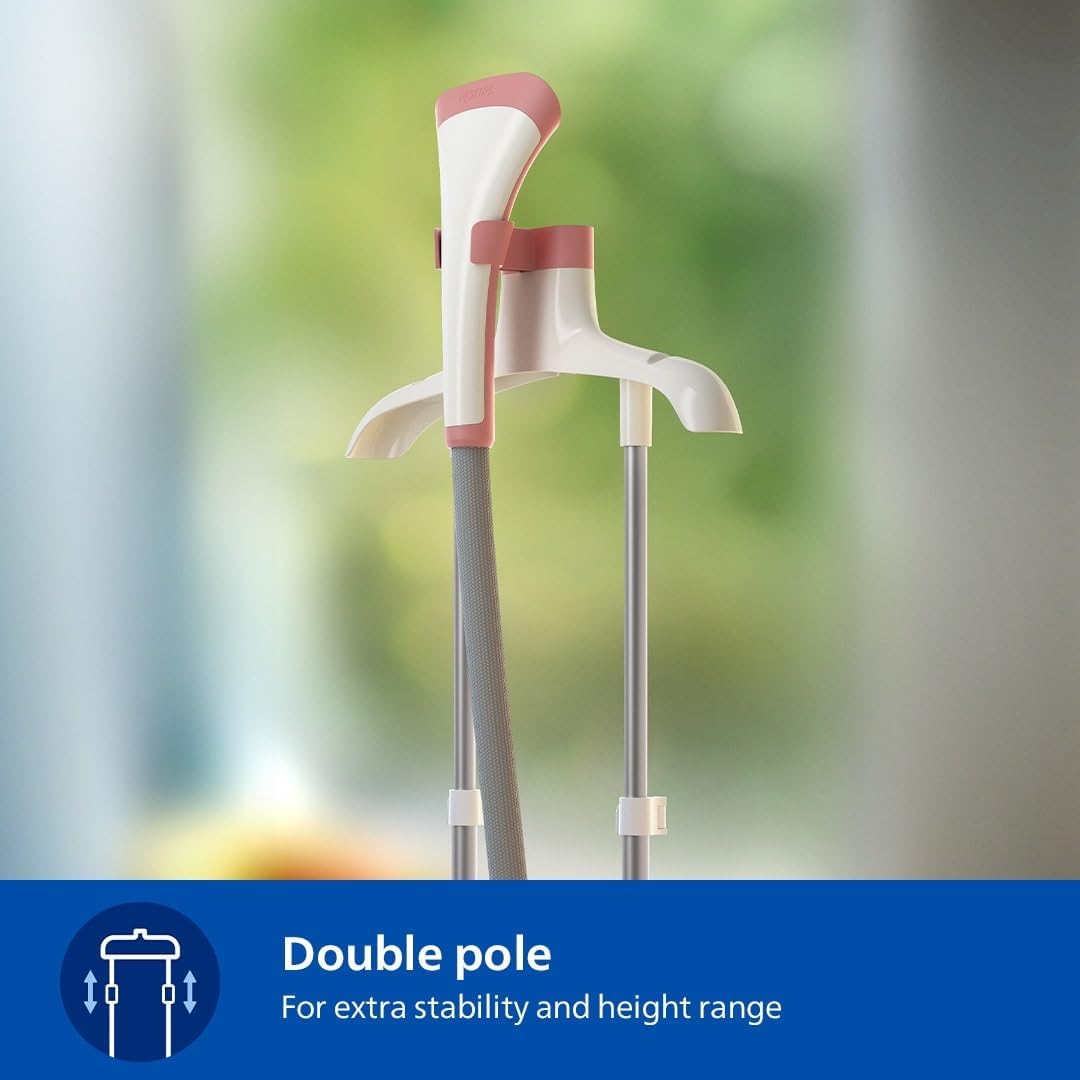

Figure 3.1: The double pole system provides stability and allows for height adjustment.
- Atașați cuierul: Slide the integrated garment hanger onto the top of the poles.
- Conectați furtunul de abur: Securely attach the steam hose to the steam outlet on the base unit.
- Umpleți rezervorul de apă: Remove the detachable 1.8L water tank from the base. Open the cap, fill with clean tap water, and close the cap securely. Reinsert the water tank into the base unit.
Figure 3.2: The large 1.8L detachable water tank minimizes the need for frequent refills.
- Poziția aburului: Place the assembled steamer on a stable, level surface, away from walls or furniture that could be damaged by steam.
4. Instrucțiuni de utilizare
Learn how to effectively use your Philips Stand Steamer for optimal results.
4.1 Pornirea și încălzirea
- Asigurați-vă că rezervorul de apă este umplut și introdus corect.
- Conectați cablul de alimentare la o priză cu împământare.
- Press the power button. The indicator light will illuminate, and the steamer will begin to heat up. It heats up in approximately 45 seconds.
- Once ready, steam will start to emit from the nozzle.
4.2 Selecting Steam Settings
The steamer offers three custom steam settings to suit various fabric types.
Figure 4.1: The steam settings dial allows you to choose the appropriate steam level for your fabric.
- Low Steam: For delicate fabrics like silk, synthetics, and cashmere.
- Medium Steam: For lightweight fabrics such as cotton shirts and dresses.
- High Steam: For thick fabrics like denim, wool, and coats, providing a powerful 36g/min continuous steam output.
Figure 4.2: The steamer delivers a continuous steam output of 36g/min for effective de-wrinkling.
Rotate the steam settings dial to select your desired steam level.
4.3 Călcarea cu abur a hainelor
- Hang the garment on the integrated hanger.
- Hold the steam nozzle close to the fabric, but do not press it directly against delicate materials.
- Move the nozzle slowly downwards over the fabric. For stubborn wrinkles, gently stretch the fabric with your free hand (using the protective glove for safety).
- For thicker fabrics, attach the fabric brush accessory to the steam nozzle to help open the weave and allow steam to penetrate deeper.
- The hot steam also helps to kill 99.9% of bacteria and remove odors, refreshing your clothes.
Figure 4.3: Steaming helps to sterilize fabrics, eliminating 99% of bacteria and dust mites.
- The large steam plate allows for fewer strokes, making the process more efficient.
Figure 4.4: The steamer features a large steam plate for efficient wrinkle removal.
- The steamer is safe for use on all ironable fabrics, including delicate materials.
Figure 4.5: The steamer is safe for use on a wide range of ironable fabrics, from delicate to heavy.
4.4 Finishing Steaming
- Când ați terminat, apăsați butonul de alimentare pentru a opri aparatul.
- Deconectați cablul de alimentare de la priză.
- Lăsați aparatul să se răcească complet înainte de depozitare.
5. Întreținere și curățare
Regular maintenance ensures optimal performance and extends the lifespan of your steamer.
5.1 Descaling (Easy Rinse Function)
To prevent limescale buildup and maintain strong steam output, regularly use the Easy Rinse descaling function. The frequency depends on water hardness and usage.
- Asigurați-vă că aparatul este deconectat de la priză și complet răcit.
- Scoateți rezervorul de apă.
- Place the steamer over a sink or basin.
- Locate the De-Calc/Easy Rinse knob on the base unit. Turn the knob to the "unlock" position and pull it out to drain the water from the base.

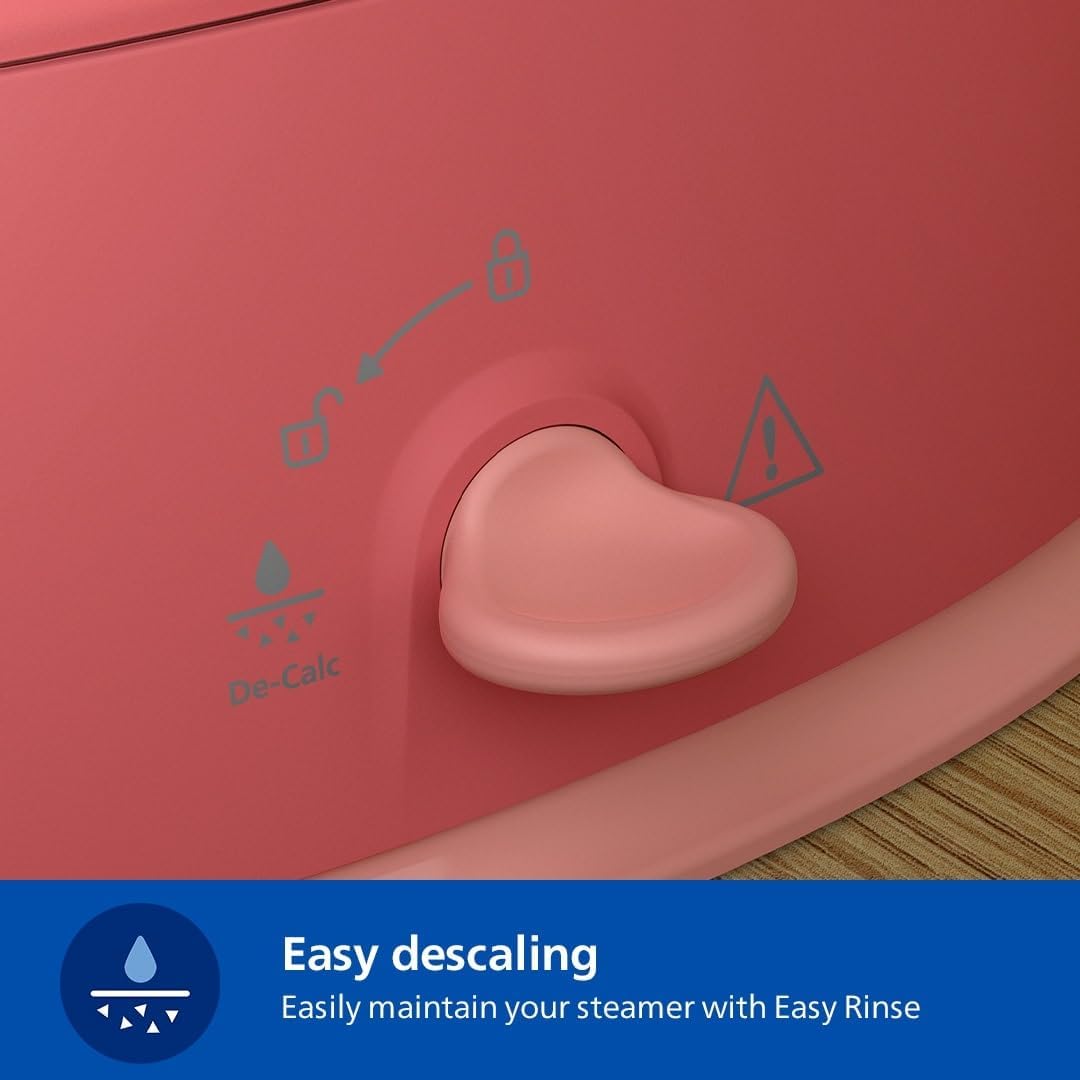

Figure 5.1: The Easy Descaling knob allows for simple maintenance to remove calcium deposits.
- Rinse the base unit with clean water, shaking gently, until no more scale particles come out.
- Reinsert and lock the De-Calc/Easy Rinse knob.
- Refill the water tank and perform a short steaming cycle to flush out any remaining residue.
5.2 Curățarea aparatului de călcat cu abur
- Ștergeți exteriorul aparatului cu un material moale, damp pânză.
- Clean the steam nozzle plate with a damp pânză. Nu folosiți agenți de curățare abrazivi.
- If the steam hose becomes clogged, gently stretch it to dislodge any mineral buildup.
6. Depanare
Consultați această secțiune pentru probleme frecvente și soluțiile aferente.
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| No steam or weak steam. | Water tank is empty or not properly inserted. Limescale buildup. Steamer not heated sufficiently. | Refill water tank and ensure it's correctly seated. Perform descaling (Easy Rinse). Allow 45 seconds for heating. |
| Curge apă din duză. | Condensation in the hose. Steamer not hot enough. | Allow the steamer to heat up fully before use. Hold the nozzle higher than the hose to allow condensation to drain back into the base. |
| Aparatul nu pornește. | Nu este conectat la priză. Problemă cu priza. | Asigurați-vă că este conectat corect cablul de alimentare la o priză funcțională. Verificați întrerupătorul. |
| Hainele rămân șifonate. | Incorrect steam setting. Steaming too quickly. Fabric type. | Select a higher steam setting for thicker fabrics. Move the nozzle slower. For very stubborn wrinkles, consider using an iron. |
7. Specificații
Key technical details of the Philips 1000 Series STE1020/40 Stand Steamer.
- Model: STE1020/40
- Putere: 1800 wați
- Ieșire continuă de abur: 35g/min (as per product specifications)
- Capacitatea rezervorului de apa: 1.8 litri
- Voltage: 220 volți
- Dimensiuni produs: 43.4L x 30.3W x 168.2H centimetri
- Greutatea articolului: 2.95 kilograme
- Componente incluse: Fabric brush, Protective glove, Integrated hanger
- Culoare: Roșu moale
8. Garanție și asistență
For warranty information and product support, please refer to the official Philips website-ul sau contactați serviciul pentru clienți.
- Garantie: This product comes with a standard manufacturer's warranty. Please retain your proof of purchase for warranty claims. Specific warranty terms and duration may vary by region.
- Asistență clienți: For technical assistance, spare parts, or service, visit the official Philips website or contact their local customer support center. You can find contact details on the Philips website or in the warranty booklet provided with your product.
- Resurse online: Additional FAQs, troubleshooting guides, and product registration may be available on the Philips support website-ul.
