NENO Bambino Baby Monitor User Manual

Introducere

The NENO Bambino is an electronic baby monitor system designed to provide reliable surveillance of your child. It includes a receiver unit and a camera unit, capable of pairing with up to four cameras for comprehensive home monitoring. With an extended range of up to 300 meters outdoors and 50 meters indoors, it is suitable for various living environments. Key features include two-way communication, pre-installed lullabies, night vision, and an alarm function, all housed in a child-friendly design.

Ce este în cutie

Vă rugăm să verificați conținutul pachetului pentru a vă asigura că toate articolele sunt prezente:

• NENO Bambino Baby Monitor Receiver Unit
• NENO Bambino Baby Monitor Camera Unit
• Adaptoare de alimentare (x2)
• USB Charging Cables (x2)
• Flexible Headband Mount
• Manual de utilizare

Descrierea imaginii: Un deasupra capului view of the NENO Bambino Baby Monitor's complete package contents. It shows the monitor, the camera with its flexible mount, two power adapters, two USB cables, and the instruction manual, all arranged neatly on a white background next to the product box.

Înființat

1. Încărcarea dispozitivelor

Before first use, fully charge both the receiver and camera units. Connect the provided power adapters to the respective units and plug them into a power outlet. The charging indicator will illuminate.

2. Amplasarea unității camerei

Position the camera unit in your child's room to ensure a clear view of the crib or play area. The flexible headband mount allows for stable and comfortable mounting on various surfaces, such as crib rails or shelves. Adjust the camera angle as needed.

Descrierea imaginii: Un prim plan view of the NENO Bambino camera unit, featuring its green, cat-ear-shaped housing and white base. Green arrows indicate the camera's ability to rotate on its stand, highlighting its flexible positioning.

3. Pairing Additional Camera Units (Optional)

The NENO Bambino receiver can be paired with up to four camera units. To pair an additional camera, access the pairing menu on the receiver and follow the on-screen instructions. Ensure the new camera is powered on and within range.

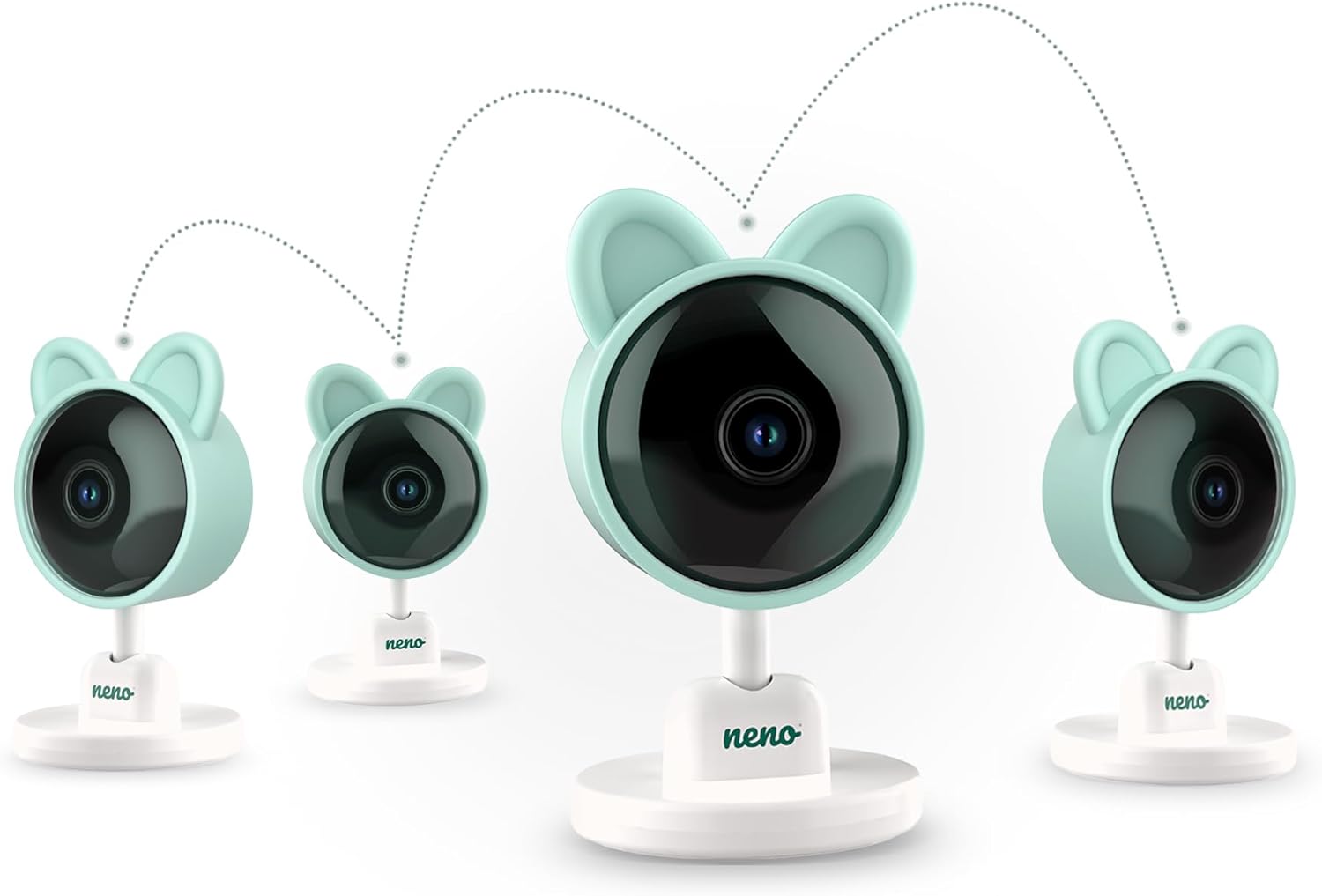

Descrierea imaginii: An illustration showing one main NENO Bambino camera unit in the center, with three additional camera units positioned around it. Dotted lines connect all four cameras, symbolizing their ability to be linked to a single monitoring system.

Instrucțiuni de operare

1. Pornire/Oprire

Press and hold the power button on both the receiver and camera units to turn them on or off.

2. Navigating the Receiver Menu

Use the directional buttons and the 'OK' button on the receiver to navigate through the menu options and adjust settings.

Descrierea imaginii: A close-up of the NENO Bambino receiver unit, showing its large screen displaying a sleeping baby. The control buttons, including the directional pad and function buttons, are visible on the right side of the screen.

3. Comunicare bidirecțională

To speak to your child, press and hold the microphone button on the receiver. Your voice will be transmitted through the camera unit. Release the button to listen.

Descrierea imaginii: An illustration depicting the NENO Bambino receiver and camera units facing each other. Purple speech bubble icons with sound waves emanate from both devices, visually representing the two-way communication feature.

4. Modul Noapte

The camera automatically activates infrared (IR) diodes in low-light conditions, providing clear visibility up to 5 meters in complete darkness. The IR LEDs are invisible to the human eye, ensuring your child's sleep is undisturbed.

5. Alarmă de temperatură

The built-in temperature sensor continuously monitors the room temperature. You can set a temperature range on the receiver, and an alarm will notify you if the temperature deviates from your set parameters.

6. Cântece de leagăn

The monitor includes 6 pre-installed lullabies. Access the lullaby menu on the receiver to select and play a soothing melody for your child.

7. Funcția de alarmă

Utilize the alarm function on the receiver to set reminders for important events such as feeding times, nap schedules, or medication administration.

8. VOX Standby Mode

In VOX (Voice Operated eXchange) standby mode, the monitor's screen will automatically turn off to conserve battery. It will reactivate when noise is detected in the child's room, ensuring you are alerted to any sounds.

9. Funcția de zoom

The camera features a 4x digital zoom. Use the zoom controls on the receiver to get a closer view of your child without entering the room.

10. Interval de operare

The NENO Bambino offers a substantial operating range: up to 300 meters in open outdoor areas and up to 50 meters indoors, depending on environmental factors and obstructions.

Întreţinere

Curatenie

Wipe the monitor and camera units with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners or solvents. Ensure the devices are unplugged before cleaning.

Îngrijirea bateriei

To prolong battery life, avoid fully discharging the units frequently. Store the devices in a cool, dry place if not in use for extended periods.

Depanare

• Fără semnal/Conexiune slabă:
  Ensure both units are powered on and fully charged. Move the receiver closer to the camera unit. Check for obstructions like thick walls or other electronic devices that might interfere with the signal.
• Fără sunet/Sunet slab:
  Check the volume settings on the receiver. Ensure there are no obstructions blocking the microphone or speaker on either unit.
• Ecranul nu se aprinde:
  Check if the unit is charged. If in VOX mode, make a sound near the camera to activate the screen.
• Bateria se descarcă rapid:
  Ensure VOX mode is enabled to conserve power. Reduce screen brightness.
