Manual de utilizare pentru încălzitorul de aer diesel VEVOR 8KW 12V

1. Introducere

The VEVOR 8KW 12V Diesel Air Heater is an all-in-one unit designed to provide efficient and rapid heating for various applications. This powerful heater ensures a comfortable environment in cold conditions by quickly preheating the air and maintaining desired temperatures. It is suitable for use in motorhomes, trucks, buses, boats, cabins, and warehouses. Key features include an energy-saving fuel pump, a durable aluminum body for uniform heat dissipation, and a user-friendly LCD thermostat with remote control for convenient operation.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your VEVOR Diesel Air Heater. Please read it thoroughly before use and retain it for future reference.

Figure 1.1: VEVOR 8KW 12V Diesel Air Heater in use, warming a vehicle.

2. Informații de siguranță

AVERTIZARE: Failure to follow these safety instructions could result in fire, explosion, electric shock, or other serious injury or property damage.

• Pericol de monoxid de carbon: This heater produces carbon monoxide, which is an odorless and colorless gas that can cause death. Always ensure adequate ventilation when operating the heater. Never operate the heater in an enclosed space without proper exhaust ventilation to the outside.
• Sistem de evacuare: The exhaust pipe must always be routed outdoors and away from any air intakes to prevent exhaust gases from entering the heated space. Regularly inspect the exhaust system for leaks or damage.
• Manipularea combustibilului: Use only diesel fuel. Do not use gasoline or other volatile fuels. Refuel in a well-ventilated area and away from open flames or ignition sources. Ensure the fuel cap is securely fastened.
• Instalare: Install the heater according to the provided instructions. Ensure all connections (fuel, electrical, exhaust, air intake) are secure and leak-free. Do not modify the heater or its components.
• Protecție la supraîncălzire: The heater is equipped with overheat protection. Do not block the air intake or outlet. Ensure sufficient clearance around the heater for proper airflow.
• Siguranta electrica: Ensure the power supply matches the heater's requirements (12V). Do not operate with damaged cables or connections.
• Copii și animale de companie: Keep children and pets away from the heater during operation. The heater surfaces can become hot.
• Materiale inflamabile: Keep flammable materials, liquids, and vapors away from the heater. Maintain a safe distance from walls, furniture, and other objects.
• Verificarea scurgerilor: Before initial use and periodically thereafter, check all fuel lines and connections for leaks. Address any leaks immediately.

Figure 2.1: Enhanced Security Features of the Heater.

3. Conținutul pachetului

Verify that all items listed below are included in your package. If any parts are missing or damaged, please contact VEVOR customer support.

• 1 x All-in-One Diesel Heater Unit
• 1 x telecomandă
• 1 x Tobă de eșapament
• 1 x filtru de aer
• 1 x Țeavă de admisie
• 1 x Țeavă de evacuare
• 1 x țeavă de evacuare
• 1 x Heat Insulating Pipe Cover
• 1 x Installation Kit (includes clamps, screws, and other necessary hardware)
• 1 x Manual de utilizare

Figure 3.1: Contents of the Product Package.

4. Specificații

Figura 4.1: Specificații detaliate ale produsului.

5. Configurare și instalare

Proper installation is crucial for the safe and efficient operation of your diesel air heater. Refer to the diagram below and follow these general guidelines. For detailed, step-by-step instructions, consult the separate installation guide provided with your product.

Pasi generali de instalare:

1. Alegeți o locație: Select a stable, flat, and well-ventilated location for the heater. Ensure there is sufficient clearance around the unit for air circulation and maintenance.
2. Montați încălzitorul: Securely mount the heater using the provided installation parts. Ensure it is stable and cannot tip over.
3. Connect the Exhaust Pipe: Attach the exhaust pipe to the heater and route it safely outside the vehicle or structure. Ensure the exhaust gases are directed away from any windows, doors, or air intakes. Use the muffler to reduce noise.
4. Connect the Air Intake Pipe: Attach the air intake pipe and air filter. Ensure the air intake is clear of obstructions.
5. Connect the Outlet Pipe: Attach the hot air outlet pipe to direct heated air into the desired space.
6. Conexiune combustibil: Fill the integrated fuel tank with clean diesel fuel. Ensure the fuel cap is tightly sealed. Connect the fuel line from the tank to the heater's fuel pump.
7. Conexiune electrică: Connect the heater to a 12V power source. Ensure all electrical connections are secure and insulated.
8. Verificare inițială: Before starting, double-check all connections for tightness and ensure there are no fuel leaks or obstructions in the air and exhaust paths.

Figure 5.1: Installation Guide Diagram.

6. Instrucțiuni de utilizare

The VEVOR Diesel Air Heater can be operated using the integrated LCD control panel or the included remote control.

6.1 Panou de control LCD

The LCD panel provides real-time status and allows for precise control over the heater's functions.

• Pornire/Oprire: Press the power button (usually marked with a circle and vertical line) to turn the heater on or off.
• Reglarea temperaturii: Use the 'Up' (▲) and 'Down' (▼) buttons to set your desired temperature. The heater will automatically adjust its output to maintain this temperature.
• Setări: Press the 'Setting' (gear icon) button to access various parameters such as fan speed, fuel pump frequency, and timer settings. Use the 'Up' and 'Down' buttons to navigate and 'OK' to confirm.
• Funcția de cronometru: The 24-hour timer allows you to schedule automatic power on and off times. This is useful for pre-heating your space before arrival.

6.2 Telecomandă

The remote control offers convenient operation from a distance of up to 30 meters (98 feet).

• Pornire/Oprire: Use the 'ON' and 'OFF' buttons to start or stop the heater.
• Reglarea temperaturii/puterii: Use the '+' and '-' buttons to increase or decrease the heating power or target temperature.
• Preîncălzire: You can use the remote to pre-heat your vehicle or space before entering, ensuring a warm environment upon arrival.

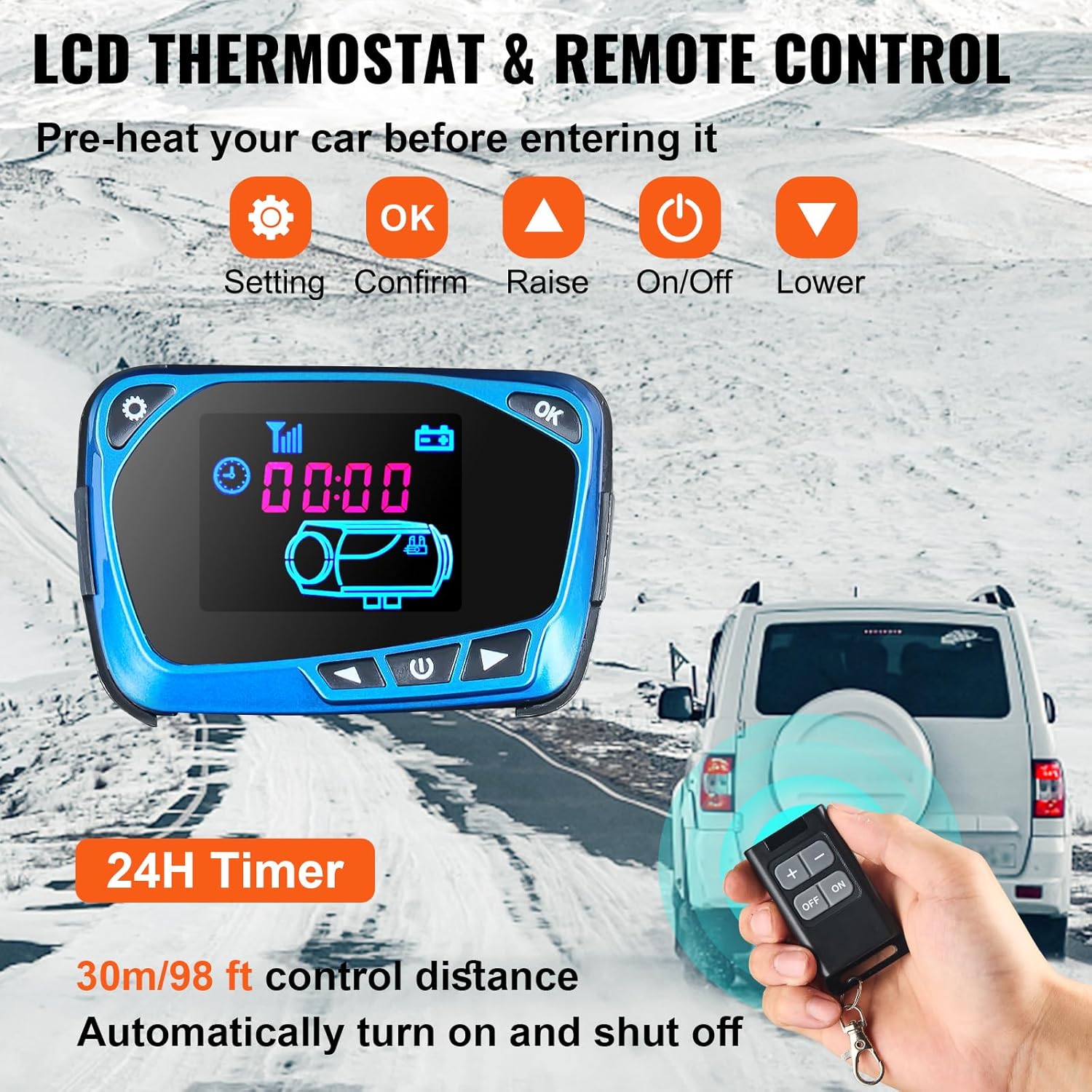

Figura 6.1: Termostat LCD și telecomandă.

Figure 6.2: Low Noise Operation for a Quiet and Warm Space.

7. Întreținere

Întreținerea regulată asigură longevitatea și performanța optimă a încălzitorului de aer diesel VEVOR.

• curatenie: Curățați periodic exteriorul încălzitorului cu o lavetă moale șiamp cloth. Do not use abrasive cleaners or solvents. Ensure the air intake and outlet grilles are free from dust and debris.
• filtru de aer: Inspect and clean the air filter regularly. A clogged air filter can reduce efficiency and potentially cause overheating. Replace if damaged.
• Sistem de alimentare cu combustibil: Check fuel lines for any signs of wear, cracks, or leaks. Ensure all connections are tight. It is recommended to periodically check and clean the fuel filter to prevent blockages.
• Sistem de evacuare: Inspect the exhaust pipe and muffler for any blockages, corrosion, or damage. Ensure the exhaust gases can exit freely and safely.
• Conexiuni electrice: Verificați dacă toate conexiunile electrice sunt sigure și fără urme de coroziune.
• Depozitare: Dacă depozitați încălzitorul pentru o perioadă lungă de timp, asigurați-vă că rezervorul de combustibil este gol și că unitatea este curată și uscată. Depozitați într-un loc răcoros și uscat.

8. Depanare

Dacă întâmpinați probleme cu încălzitorul de aer diesel VEVOR, consultați următoarele probleme și soluții comune:

Dacă problema persistă după încercarea acestor soluții, vă rugăm să contactați serviciul de asistență pentru clienți VEVOR pentru asistență.

9. Garanție și asistență

Produsele VEVOR sunt concepute pentru durabilitate și performanță. Pentru informații privind acoperirea garanției, vă rugăm să consultați cardul de garanție inclus odată cu achiziția sau să vizitați site-ul oficial VEVOR. website-ul.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact VEVOR customer service through their official channels. When contacting support, please have your product model number (Diesel Standheizung 8KW) and purchase details readily available.

Puteți vizita magazinul VEVOR de pe Amazon pentru mai multe informații: Magazin VEVOR
