VECELO Twin Size Metal Loft Bed Instruction Manual

1. Informații de siguranță

Important: Vă rugăm să citiți cu atenție toate instrucțiunile înainte de asamblare și utilizare. Păstrați acest manual pentru referințe ulterioare.

• Always use the guardrails when using the upper bed to prevent accidental falls.
• Do not exceed the maximum weight capacity of 400 lbs (181 kg) for the upper bed.
• Be cautious of sharp edges during assembly. Wear protective gloves if necessary.
• Ensure the bed is securely assembled and all bolts are tightened before use.
• Securely fasten the bed to the wall using the provided anti-tip accessories to prevent tipping.
• Keep the area around the bed clear to prevent falls and obstructions.
• For your safety, the mattress surface of the upper bed must be at least 5 inches (127 mm) below the top edge of the guardrail when selecting a mattress. This bed fits any standard size twin mattress.
• Nu permiteți copiilor sub 6 ani să stea pe patul superior.
• Interziceți jocurile tari pe sau sub pat.
• Folosiți întotdeauna scara pentru a urca și a ieși din patul superior.

2. Conținutul pachetului

Verificați dacă toate componentele sunt prezente înainte de a începe asamblarea. Dacă lipsesc sau sunt deteriorate piese, vă rugăm să contactați serviciul clienți.

• 1 x VECELO Twin Size Metal Loft Bed Frame (various metal components including side frames, head/footboards, ladder, slats, and support bars)
• 1 x manual de instrucțiuni
• 1 x Assembly Kit (includes all necessary screws, bolts, and tools for assembly, along with anti-tip accessories)

3. Configurare (Instrucțiuni de asamblare)

Assembly typically requires two adults. Follow the steps below carefully. Refer to the included assembly kit for specific hardware identification.

3.1 Despachetare și pregătire

• Eliberați o zonă spațioasă pentru adunare.
• Despachetați toate componentele și așezați-le pe o suprafață moale și curată pentru a preveni zgârieturile.
• Identify all parts and hardware using the provided parts list in the assembly kit.

3.2 Asamblarea cadrului

1. Assemble Headboard/Footboard Sections: Connect the vertical posts to the arched headboard/footboard pieces using the specified bolts and washers. Ensure all connections are finger-tight at this stage.
2. Atașați șinele laterale: Connect the long side rails to the assembled headboard/footboard sections. Again, keep bolts finger-tight to allow for adjustments.
3. Instalați barele de susținere: Secure the horizontal support bars to the lower sections of the bed frame. These provide additional stability.
4. Strângeți toate conexiunile: Once the main frame is assembled, systematically tighten all bolts using the provided Allen wrench. Ensure all connections are secure but do not overtighten.

3.3 Ladder and Slat Installation

5. Asamblați scara: Attach the ladder steps to the ladder side rails. The ladder can be installed on either the left or right side of the bed, depending on your room configuration. Secure it firmly to the bed frame.
6. Instalați șipcile de pat: Place the metal bed slats across the bed frame. The unique slot structure helps fix the slats firmly and prevents noise. Ensure all slats are properly seated.

3.4 Securing the Bed

7. Atașați dispozitivul anti-răsturnare: Securely fasten the bed to the wall using the provided anti-tip nails and brackets. This is crucial for stability and safety, especially for high structures.

3.5 Assembly Videos

3.6 Imagini ale produselor

În general view of the VECELO Twin Size Metal Loft Bed in Off White, showcasing the spacious area beneath the bed, ideal for customization.

Detaliat view of the triangular support structure and anti-tip device, illustrating how these features enhance bed stability and safety.

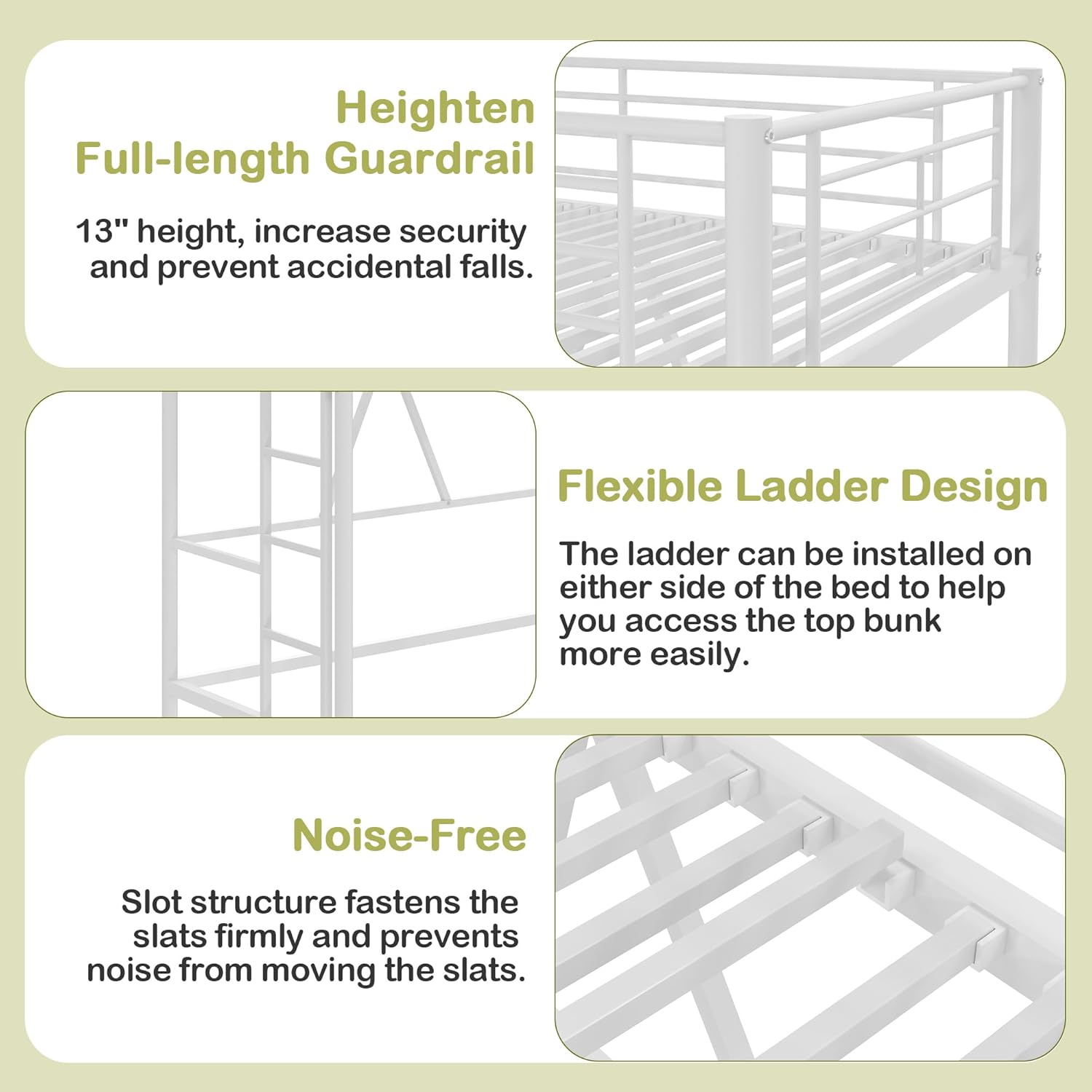

Illustrations highlighting key features: the 13-inch heightened guardrail for safety, the flexible ladder design that can be installed on either side, and the noise-free slot structure for slats.

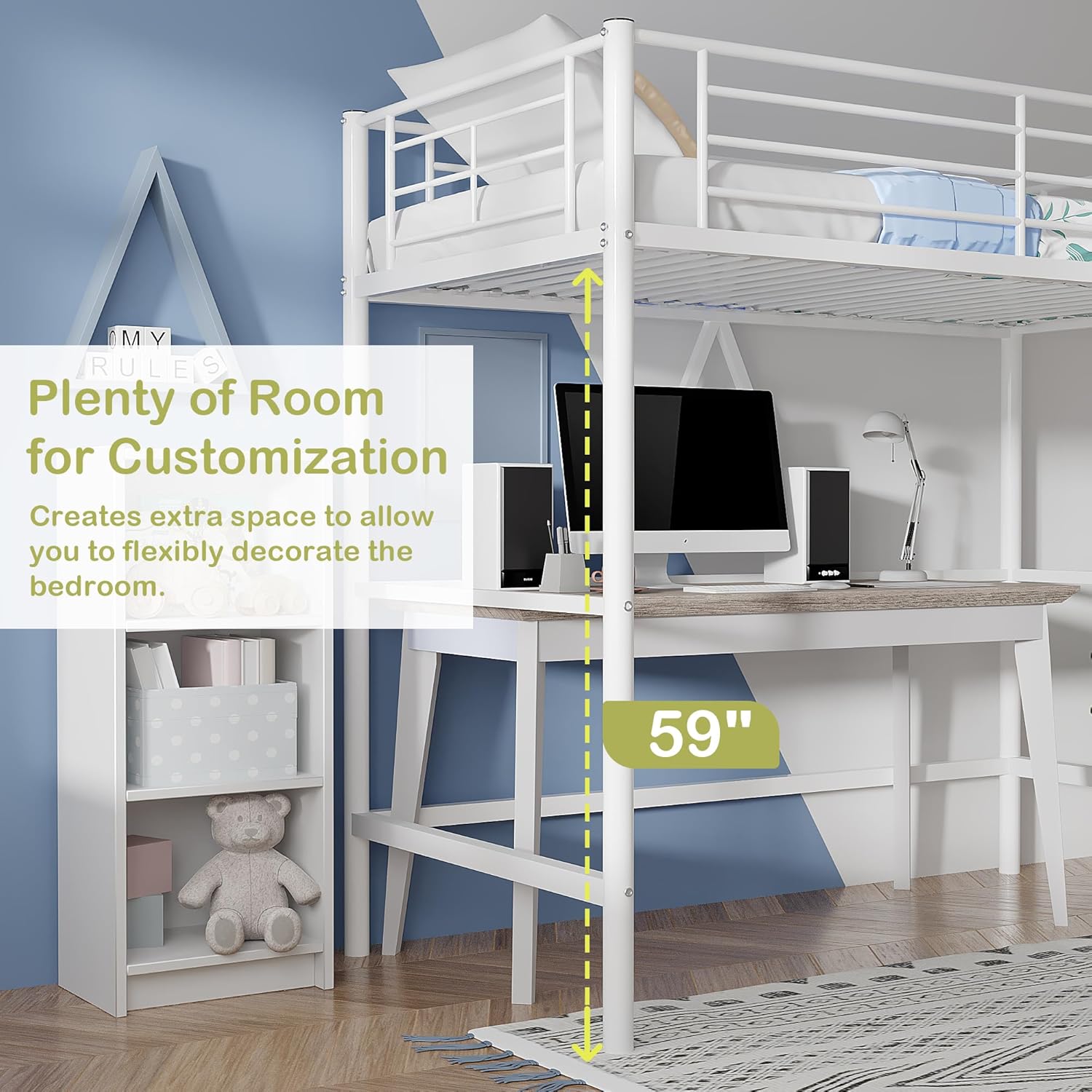

A lifestyle image showing the VECELO Twin Size Metal Loft Bed with a functional desk setup in the spacious under-bed area.

Another lifestyle image featuring the VECELO Twin Size Metal Loft Bed, demonstrating a cozy seating arrangement in the versatile under-bed space.

A detailed diagram illustrating the overall dimensions of the VECELO Twin Size Metal Loft Bed (78"L x 41.5"W x 72"H) and the recommended mattress thickness (less than 8").

4. Instrucțiuni de utilizare

• Folosind scara: Always use the ladder to safely access and exit the upper bunk. Ensure the ladder is securely attached before climbing.
• Amplasarea saltelei: Place a standard twin-size mattress on the upper bunk. Ensure the mattress surface is at least 5 inches (127 mm) below the top edge of the guardrail.
• Capacitate de greutate: The upper bunk has a maximum weight capacity of 400 lbs. Do not exceed this limit.
• Spațiu sub pat: The 59-inch clearance under the bed can be utilized for a desk, storage, or a seating area.

5. Întreținere

• curatenie: Ștergeți cadrul metalic cu reclamăamp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners that could damage the powder-coated finish.
• Inspecție regulată: Verificați periodic toate șuruburile și conexiunile pentru a vă asigura că rămân strânse. Strângeți-le din nou dacă este necesar.
• Reducerea zgomotului: The noise-free slat design minimizes squeaking. If any noise occurs, check slat placement and frame connections.

6. Depanare

• Clatinarea patului: Ensure all bolts are securely tightened. Verify that the anti-tip device is properly installed and fastened to the wall.
• Scârțâit: Check that all bed slats are correctly seated in their slots and that all frame connections are tight.
• Dificultate de asamblare: Review the assembly instructions and videos. Ensure you are using the correct hardware for each step. If issues persist, contact customer support.

7. Specificații

8. Garanție și asistență pentru clienți

VECELO is committed to providing quality products and excellent customer service.

• Returnări: Acest produs este eligibil pentru retururi ușoare în 90 de zile. Vă rugăm să consultați politica de returnare a comerciantului pentru detalii.
• Planuri de protecție: Extended protection plans (e.g., 2-Year, 3-Year) may be available for purchase separately. Check with your retailer for options.
• Serviciu clienți: If you have any questions, concerns, or require assistance with your VECELO Twin Size Metal Loft Bed, please feel free to e-mail us. Our friendly customer service team is ready to help.
