BOTSLAB Dash Cam User Manual

1. Introducere

This manual provides detailed instructions for the installation, operation, and maintenance of your BOTSLAB G980H 4K Dual Dash Cam and G300H 2.5K Front Dash Cam. Please read this manual thoroughly before using the device to ensure proper functionality and safety. Keep this manual for future reference.

2. Conținutul pachetului

Vă rugăm să verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:

• BOTSLAB G980H 4K Dual Dash Cam Unit
• BOTSLAB G300H 2.5K Front Dash Cam Unit
• Hardwire Kit (Included as per product specifications)
• Cablu de alimentare
• Rear Camera Cable (for G980H)
• Suporturi de montare
• Manual de utilizare (Acest document)

3. Produs terminatview

The BOTSLAB G980H and G300H dash cams are designed to provide high-quality video recording for vehicle safety and security. The G980H offers true 4K resolution for the front camera and 1080P for the rear, while the G300H provides 2.5K front recording. Both models incorporate advanced features for an enhanced driving experience.

Caracteristici cheie:

• True 4K Front Recording (G980H): Utilizes a Sony IMX 415 sensor for superior clarity.
• 2.5K Front Recording (G300H): Provides enhanced clarity at 30 frames per second.
• Sisteme avansate de asistență a șoferului (ADAS): Powered by a 1.5TOPS AI NPU chip, offering real-time alerts for pedestrian collisions, vehicle movement ahead, lane departure, and headway monitoring.
• GPS încorporat: Records journey details including speed and location, viewable on Google Maps via your phone.
• 24/7 Parking Mode: Provides theft and vandalism protection when the vehicle is off (requires dedicated hardwire kit, ASIN: B0D3QK86TQ).
• Senzor G: Automatically locks video footage during collisions or sudden movements to prevent overwriting.
• Vedere de noapte: Enhanced clarity in low-light conditions.

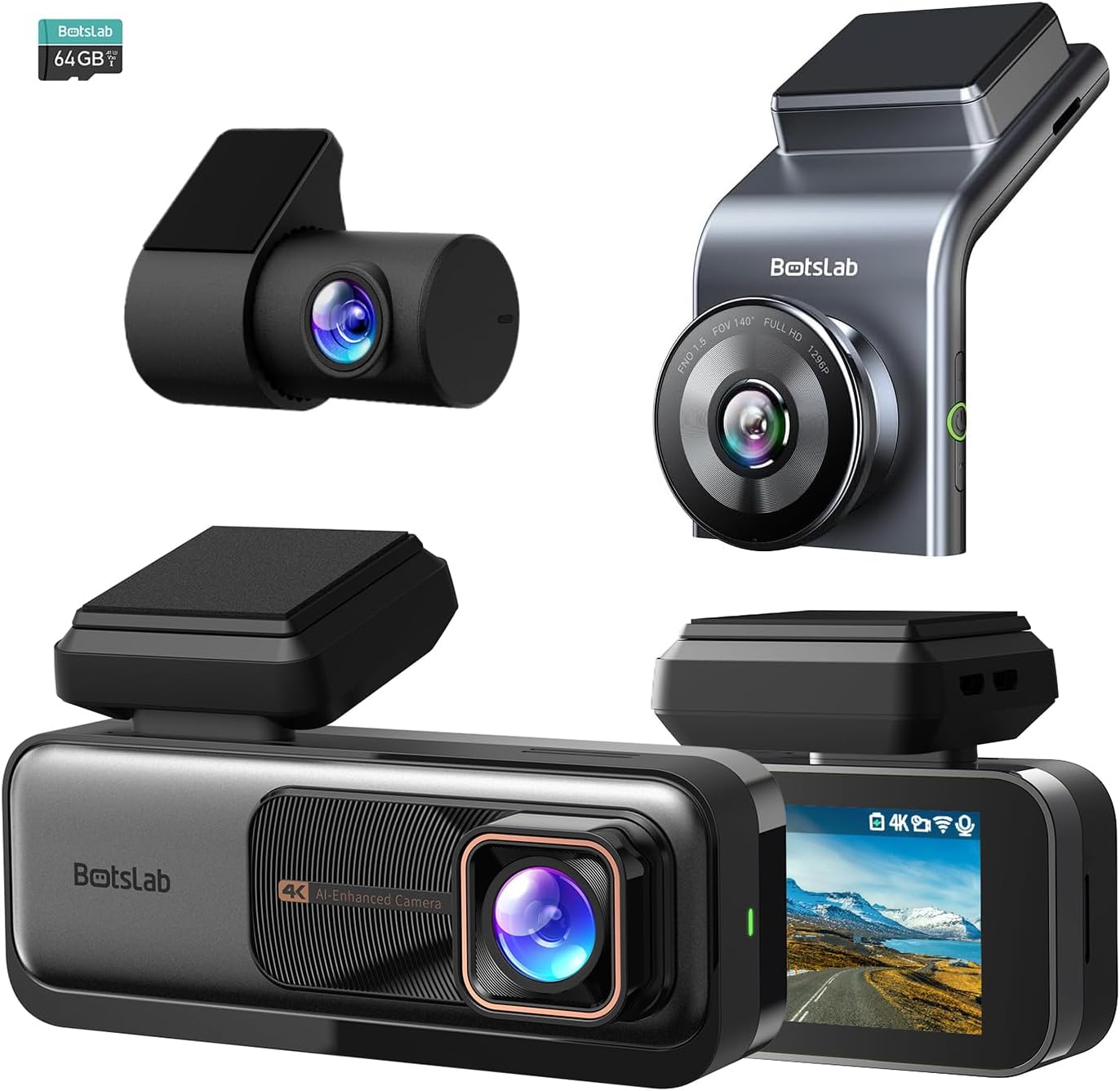

Figura 3.1: Pesteview of the BOTSLAB G980H and G300H dash cam units.

Figure 3.2: Illustration of the Sony IMX 415 sensor and the 6-layer lens with F1.5 aperture for enhanced clarity.

4. Configurare și instalare

Proper installation is crucial for optimal performance of your dash cam. Follow these steps carefully:

4.1 Pregătirea pentru instalare

1. Alegeți o locație: Alegeți un loc pe parbriz care să nu vă obstrucționeze vederea. view, de obicei în spateleview oglindă.
2. Curățați parbrizul: Ensure the mounting area is clean and dry for secure adhesion.
3. Introduceți cardul SD: Insert a compatible microSD card (not included, unless specified) into the dash cam's card slot. Ensure the card is formatted before first use (refer to Section 6.1).

4.2 Montarea camerei de bord

1. Attach the mounting bracket to the dash cam unit.
2. Remove the protective film from the adhesive pad on the bracket.
3. Firmly press the dash cam with the bracket onto the chosen windshield location for at least 30 seconds.
4. For the G980H, install the rear camera on the rear windshield, ensuring a clear view.

4.3 Conexiune la alimentare

1. Connect the power cable to the dash cam's power input port.
2. Route the power cable along the edge of the windshield and dashboard to the vehicle's 12V power outlet (cigarette lighter socket) or fuse box.
3. For 24/7 Parking Mode functionality, connect the included hardwire kit to your vehicle's fuse box according to the hardwire kit's specific instructions. This allows the dash cam to receive continuous power even when the vehicle is off.
4. Connect the rear camera cable to the G980H main unit and route it to the rear camera.

Figure 4.1: Recommended installation position for a wide, unobstructed view (170°).

5. Instrucțiuni de utilizare

5.1 Operare de bază

• Pornire/Oprire: The dash cam will automatically power on and begin recording when the vehicle's ignition is turned on. It will power off automatically when the ignition is turned off (unless hardwired for parking mode).
• Înregistrare: Loop recording is enabled by default. Older files will be overwritten by new ones when the memory card is full.
• Înregistrare de urgență (senzor G): In the event of a collision or sudden braking, the built-in G-Sensor will automatically detect the event and lock the current video segment, preventing it from being overwritten.

5.2 Sisteme avansate de asistență a șoferului (ADAS)

The dash cam features an AI NPU chip that provides real-time ADAS alerts to enhance driving safety:

• Avertizare coliziune pietoni: Alerts you to potential pedestrian collisions.
• Vehicle Movement Ahead: Notifies you when the vehicle in front starts moving.
• Avertisment de părăsire a benzii: Alerts you if you unintentionally drift out of your lane.
• Headway Monitoring: Helps maintain a safe distance from the vehicle ahead.
• Driver Fatigue Alerts: Provides alerts every 2 hours to remind you to take a break.

Figure 5.1: Visual representation of ADAS alerts and the AI NPU chip.

Figura 5.2: Example of a timely alert for front vehicle departure.

Figura 5.3: Example of pedestrian recognition with voice reminders.

5.3 Built-in GPS Functionality

The integrated GPS module records your driving data, including speed and location. This data can be viewed on Google Maps via a connected smartphone application, ensuring your travel data remains private and secure.

Figure 5.4: Visualization of GPS route recording and data display.

5.4 Modul de parcare

When connected with the dedicated hardwire kit (ASIN: B0D3QK86TQ), the dash cam can continue to monitor your vehicle even when it is turned off. This mode provides protection against theft and vandalism by recording events while parked.

5.5 Night Vision and Clarity

Both dash cam models are equipped with advanced sensors and optics (like the Sony IMX 415 in G980H) to ensure clear video capture even in low-light conditions or at night, without relying on streetlights.

Figura 5.5: Example of clear video capture in dark road conditions.

Figure 5.6: Comparison showing enhanced clarity with the G300H's 2.5K resolution.

6. Întreținere

6.1 Managementul cardului SD

• Formatare: It is recommended to format the microSD card regularly (e.g., once a month) to prevent data corruption and ensure optimal recording performance. This can usually be done through the dash cam's settings menu.
• Înlocuire card: MicroSD cards have a limited lifespan. If you experience frequent recording errors or corrupted files, consider replacing the card.

6.2 Curăţarea dispozitivului

• Use a soft, dry cloth to clean the dash cam's lens and body.
• Do not use chemical cleaners or solvents, as they may damage the device.

7. Depanare

Dacă întâmpinați probleme cu camera de bord, consultați următoarele probleme și soluții frecvente:

8. Specificații

9. Garanție și asistență

For warranty information and technical support, please contact BOTSLAB customer service directly. Details can typically be found on the official BOTSLAB website or through the contact information provided with your purchase documentation.
