1. Introducere
Thank you for choosing the BuTure VAC BR700 Portable Car Jump Starter with Air Compressor. This versatile device is designed to be your reliable companion for various automotive and outdoor needs, combining multiple essential functions into one compact unit. Please read this manual thoroughly before use to ensure safe and optimal performance.
The BR700 integrates a powerful jump starter, a high-capacity power bank, a digital tire inflator, and an emergency LED light, making it an indispensable tool for roadside emergencies, campși utilizare zilnică.
2. Caracteristicile produsului
- Aprindere rapidă de 6000A: Capable of starting all 12V gas engines and up to 8.0L diesel engines. Features a manual override function for extreme cases.
- 150PSI Air Compressor: Cordless digital tire inflator with 45L/Min airflow, smart preset pressure, and auto shut-off to prevent over-inflation. Suitable for car tires, bicycles, motorcycles, balls, and inflatable toys.
- Baterie externă de 26800mAh: High-capacity battery charger with two smart USB output ports (including 18W Quick Charge) and a 160W max DC output for powering various 12V devices like car vacuum cleaners or refrigerators.
- Lampă LED de urgență de 5W: Features a large luminous area with upgraded floodlight brightness and enlarged coverage. Includes multiple modes: steady, strobe, and SOS for emergency signaling.
- Ecran LCD: Clear digital display for real-time battery status and tire pressure readings, enhancing diagnostics and adjustments.
- Protecții avansate de siguranță: Built-in intelligent clip protection against over-discharge, over-current, reverse-connection, high-temperature, reverse-charge, short-circuit, high-voltage, și supraîncărcare.
3. Conținutul pachetului
Vă rugăm să verificați conținutul pachetului la despachetare:
- BuTure VAC BR700 Jump Starter Unit
- Cabluri Smart Jumper
- Air Hose with Nozzle Adapters (Tire Pump Nozzle, Ball Needle, Cone Adapter)
- Cablu de încărcare USB-C
- 12V DC Car Charger Adapter
- Carcasă de depozitare durabilă
- Manual de utilizare
Image: BuTure VAC BR700 Jump Starter with all included accessories.
4. Configurare și utilizare inițială
4.1 Încărcarea unității
Before first use, fully charge the BR700 unit. It is recommended to charge the product every 3 months to prolong its lifespan, especially if not in regular use.
- Connect the provided USB-C charging cable to the unit's input port.
- Connect the other end of the USB-C cable to a 5V/2A or higher rated USB charger (not included).
- The LCD screen will indicate charging status. The unit is fully charged when the battery icon is full.
4.2 Familiarizing with Ports and Controls
Locate the various ports and controls on your BR700 unit:
- Întrerupător: On/Off toggle for the main unit.
- Display LCD: Shows battery level, pressure readings, and operating modes.
- Butoane de control: Navigation and selection for air compressor settings and light modes.
- Porturi de ieșire USB: Pentru încărcarea dispozitivelor mobile.
- Port de ieșire DC: Pentru alimentarea dispozitivelor de 12V.
- Jump Start Port: For connecting the smart jumper cables.
- Orificiu furtun aer: For connecting the air inflation hose.
5. Instrucțiuni de utilizare
5.1 Pornirea cu sarcină a unui vehicul
Ensure the BR700 unit is sufficiently charged before attempting a jump start.
- Opriți contactul vehiculului și toate accesoriile.
- Insert the blue plug of the smart jumper cables into the jump start port on the BR700 unit.
- Conectați roșu (+) clamp la borna pozitivă a bateriei vehiculului dumneavoastră.
- Conectați negru (-) clamp la borna negativă a bateriei vehiculului dumneavoastră.
- Once connected, the indicator light on the smart jumper cable will turn verde solid, indicating it's ready to jump start. If it flashes red/green, check connections. If it's solid red, there's an error (e.g., reverse polarity).
- Porniți-vă vehiculul.
- Once the vehicle starts, immediately remove the negru (-) clamp from the vehicle battery, followed by the roșu (+) clamp.
- Disconnect the smart jumper cables from the BR700 unit.
Manual Override (Force Start): In extreme cases where the battery is completely dead and the smart cable indicator does not turn green, you can use the manual override function. Press and hold the 'Force Start' button on the smart cable until the indicator turns solid green. Atenţie: Using manual override disables safety features. Ensure correct polarity before proceeding.
Image: Proper connection for jump starting a vehicle.
Video: Demonstration of the 6000A Heavy-duty Car Jump Starter in action.
5.2 Utilizarea compresorului de aer
The BR700's air compressor can inflate tires and other inflatables quickly and accurately.
- Connect the air hose to the air hose port on the BR700 unit.
- Attach the appropriate nozzle adapter to the air hose and securely connect it to the item you wish to inflate (e.g., tire valve).
- Turn on the BR700 unit using the power switch. The LCD screen will display the current pressure.
- Use the control buttons to set your desired pressure (PSI, BAR, KPA, Kg/CM²).
- Apăsați butonul de pornire pentru a începe umflarea. Compresorul se va opri automat odată ce presiunea presetată este atinsă.
- Disconnect the air hose from the item and the BR700 unit.
Nota: For extended inflation, it's recommended to stop the compressor every 8 minutes to allow it to cool down, preventing overheating.

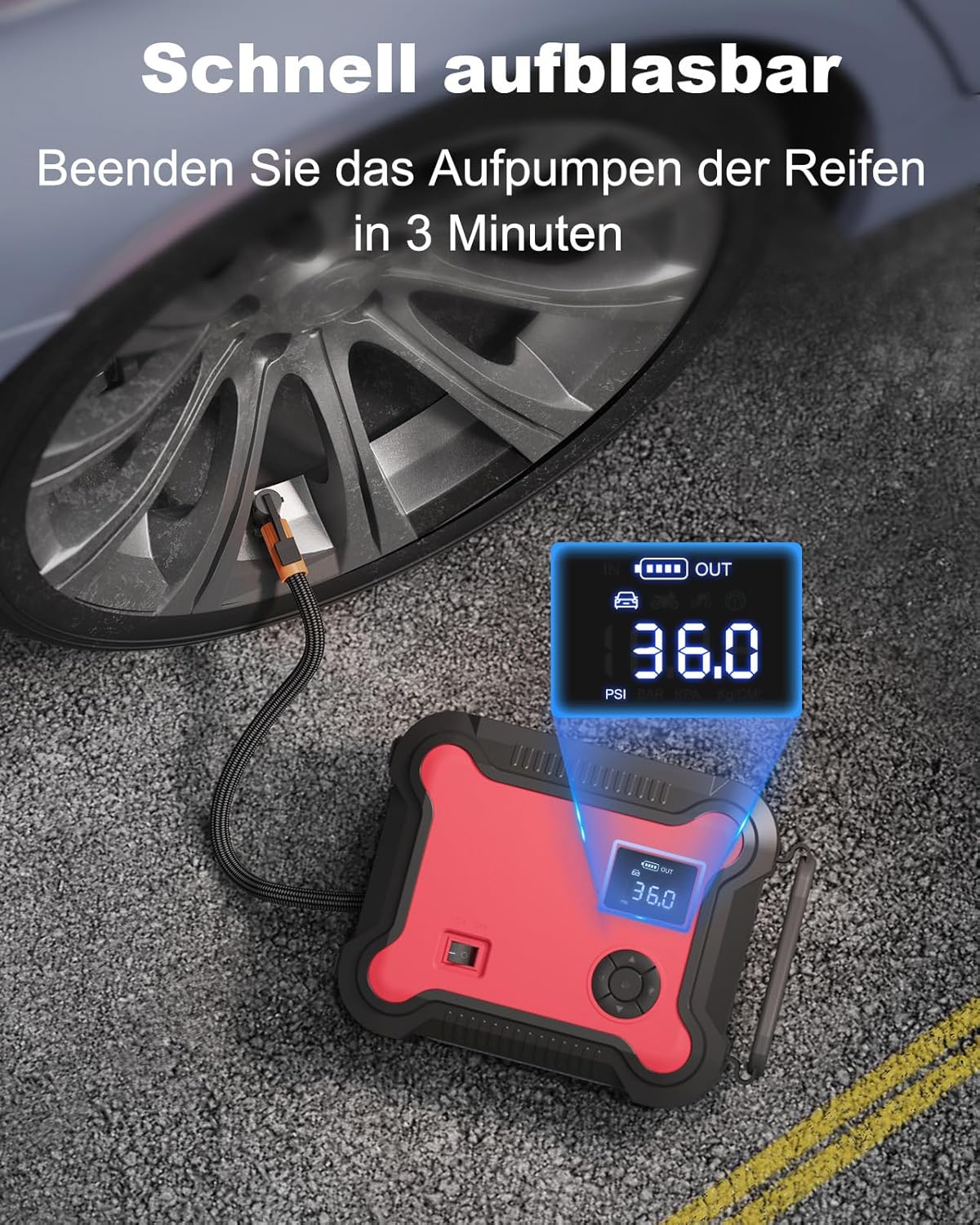

Image: The BR700 unit actively inflating a car tire, showing the digital pressure display.
Image: Various nozzle adapters for different inflation needs, including tire, ball, and cone adapters.
5.3 Utilizarea ca baterie externă
The 26800mAh capacity allows you to charge multiple electronic devices or power 12V accessories.
- Open the protective cover for the USB output ports.
- Connect your mobile phone, tablet, or other USB-powered devices to the USB-A or USB-C output ports using their respective charging cables.
- For 12V accessories, connect the 12V DC car charger adapter to the DC output port on the BR700, then plug in your accessory.
Image: The BR700 unit charging a smartphone and a tablet, demonstrating its power bank functionality.
Image: The BR700 unit powering a car vacuum cleaner via its 160W DC output, highlighting its versatility.
5.4 Using the Emergency LED Light
Lumina LED integrată oferă iluminare pentru diverse situații.
- Press the dedicated light button to cycle through the different light modes:
- Prima apăsare: Steady white light (flashlight mode).
- A doua apăsare: Strobe light (for signaling).
- A treia apăsare: SOS signal (for emergencies).
- A patra presa: Stinge lumina.
Image: The BR700 unit providing bright illumination in a dark outdoor setting, showcasing its emergency light feature.
6. Întreținere și depozitare
Proper maintenance ensures the longevity and optimal performance of your BR700 unit.
- Încărcare regulată: Recharge the unit every 3 months, even if not in use, to maintain battery health.
- Temperatura de depozitare: Store the unit at temperatures no higher than 122℉ (50℃). The operating temperature range is -4℉ to 140℉ (-20℃ to 60℃).
- Avoid Full Discharge: Do not frequently fully discharge the unit, as this can reduce battery lifespan.
- Evitați lumina directă a soarelui: Prolonged exposure to direct sunlight can damage the unit.
- curatenie: Use a soft, dry cloth to clean the unit. Do not use harsh chemicals or abrasive materials.
- Air Compressor Cooling: If using the air inflator for extended periods, stop for 8 minutes after every 8 minutes of continuous use to allow the unit to cool down.
7. Depanare
If you encounter issues with your BR700 unit, refer to the following common problems and solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Unitatea nu pornește. | Bateria este complet descărcată. | Încărcați unitatea complet. |
| Jump start fails. | cl. incorectăamp connection; battery too low; vehicle issue. | Ensure correct polarity (red to +, black to -). Use manual override if necessary (with caution). Check vehicle battery health. |
| Compresorul de aer nu se umflă. | Hose not securely connected; pressure not set; unit not powered on. | Check all connections. Ensure unit is on and desired pressure is set. |
| Ecranul LCD nu se afișează. | Unit is off or in standby mode. | Apăsați butonul de pornire pentru a activa afișajul. |
Dacă problema persistă după ce încercați aceste soluții, vă rugăm să contactați serviciul de asistență pentru clienți.
8. Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | BR700 |
| Curentul de vârf | 6000A |
| Capacitatea bateriei | 26800mAh |
| Presiune maximă a aerului | 150 PSI |
| Debitul de aer | 45 l/min |
| Ieșire continuă | 160W |
| Putere de lumină LED | 5W |
| Greutatea articolului | 6.36 lire sterline |
| Dimensiuni pachet | 12.52 x 11.69 x 6.18 inci |
| Tip baterie | Polimer de litiu |
9. Garanție și asistență
BuTure VAC offers a Lifetime Hassle-Free Service for this product. For any inquiries or support needs, please contact our dedicated support team.
E-mail de asistență: support@ibuture.com
We aim to reply to all inquiries within 12 working hours.
