1. Introducere
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your NIIMBOT B1 Portable Thermal Label Printer. Please read this manual thoroughly before using the device to ensure proper function and longevity.
Image 1.1: The NIIMBOT B1 Label Maker shown with examples of printed labels for various applications.
2. Produs terminatview
2.1 Conținutul pachetului
Verificați dacă toate articolele sunt prezente în colet:
- NIIMBOT B1 Label Maker x1
- Cablu de tip C x1
- Manual de utilizare x1
- Roll label tape (50x30mm) x1 (pre-installed in some models)
Image 2.1: The NIIMBOT B1 Label Maker and its included accessories.
2.2 Caracteristici cheie
- 2-Inch Label Printing: Supports label widths from 20mm to 50mm (1-2 inches).
- Imprimare termică: No ink or toner required, reducing operational costs.
- Automatic Label Identification: For faster and easier printing.
- Conectivitate: Compatible with iOS & Android smartphones via Bluetooth, and PC via USB.
- NIIMBOT App: Offers 10+ fonts/languages, 100+ borders, 1500+ symbols, barcodes, QR codes, icons, time stamps, pictures, photos, and OCR print functions.
- Design portabil: Compact and lightweight for easy transport and use.
- Oprire automată: Customizable auto-off settings (15min, 30min, 60min, never) to conserve battery.

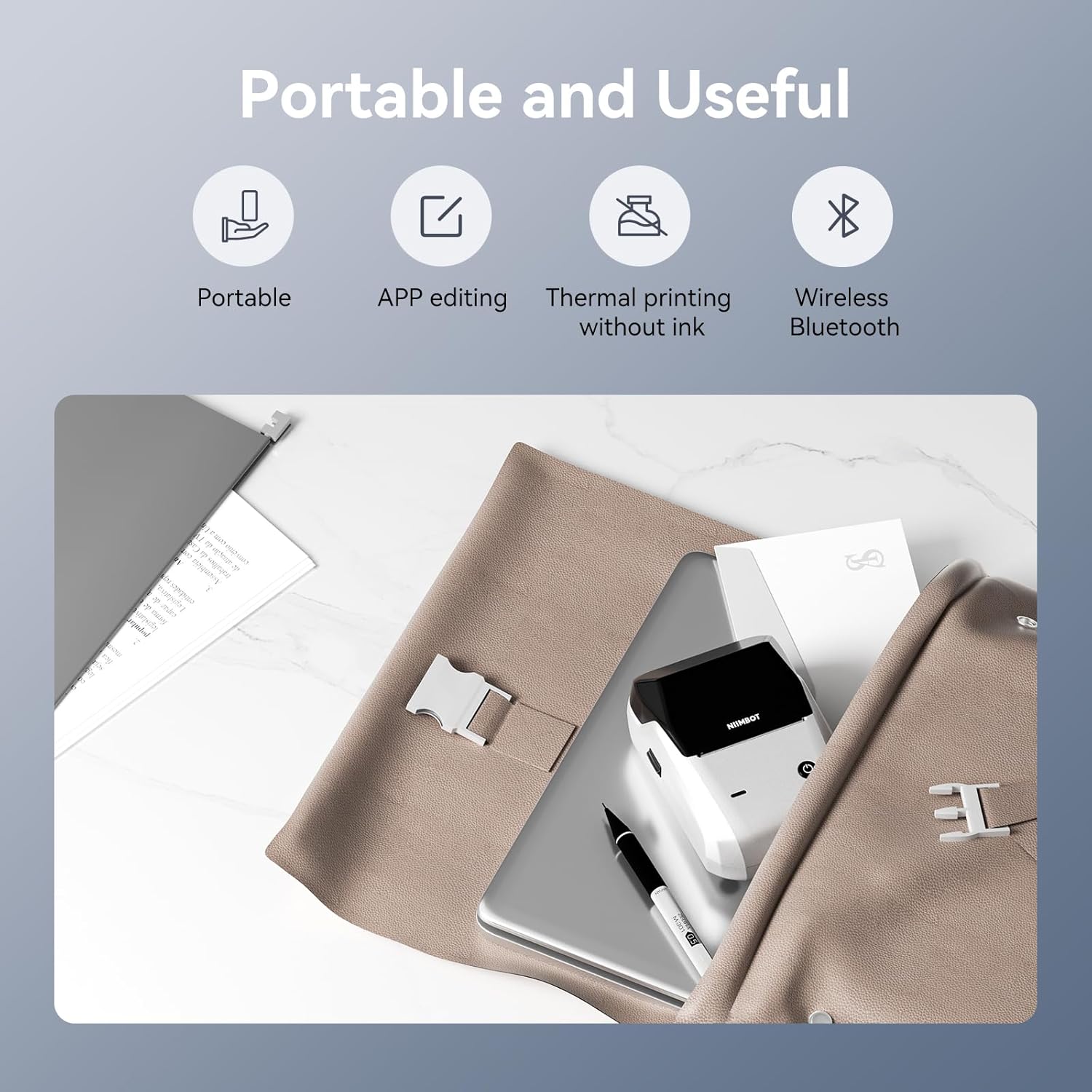

Imaginea 2.2: Pesteview of the NIIMBOT B1's portable and useful features.
3. Configurare
3.1 Încărcarea benzii de etichete
- Rotate the side latch to open the tape slot.
- Load the label tape into the slot, ensuring the label side faces upwards.
- Adjust the guide plate to fit the label roll snugly.
- Close the tape slot, leaving a small portion of the label tape extending for smooth feeding.
Image 3.1: Proper installation of label tape in the NIIMBOT B1.
3.2 Instalarea și conectarea aplicației
The NIIMBOT B1 requires the NIIMBOT app for smartphone operation.
- Download the NIIMBOT app from the App Store (iOS) or Google Play Store (Android). Caută "NIIMBOT".
- Asigurați-vă că Bluetooth-ul telefonului este activat.
- Open the NIIMBOT app and click "Connect" to search for nearby devices.
- Select your B1 printer from the list (e.g., B1-XXXXXX) to pair. If prompted for a pairing code, enter 0000 or 1234.
- Once connected, the app will automatically identify the label tape in the printer.
Image 3.2: NIIMBOT App download and connection process.
3.3 Conectare PC (Windows)
For PC connectivity, you will need to download the driver from the official NIIMBOT website-ul.
- Vizitați NIIMBOT oficial website and download the B1 printer driver for Windows 7/10.
- Install the driver on your PC.
- Connect the NIIMBOT B1 printer to your PC using the provided USB Type-C cable.
- Open the NIIMBOT desktop software to begin printing.
Image 3.3: Connecting the NIIMBOT B1 to a PC via USB.
3.4 Quick Start Video Guide
Watch this video for a quick visual guide on setting up and using your B1 Label Maker.
Video 3.4: A quick start guide demonstrating the initial setup and basic operation of the NIIMBOT B1 Label Maker.
4. Instrucțiuni de utilizare
4.1 Crearea și editarea etichetelor
- In the NIIMBOT app, select a template or create a new label.
- Use the various editing tools to add text, images, icons, barcodes, QR codes, and other elements.
- Customize font styles, sizes, alignment, and other layout options.
- The app supports features like OCR (Optical Character Recognition) for converting images to text.
Image 4.1: The NIIMBOT App interface for creating and editing labels.
4.2 Imprimarea etichetelor
- After designing your label, click the "Print" button in the app.
- Adjust the number of copies and print density as needed.
- Confirm the print settings and initiate printing.
- The printer will automatically feed and print the labels. Gently tear off the printed labels.
Image 4.2: Smartphone printing process with the NIIMBOT B1.
4.3 Semnificațiile luminii indicatoare
Understand the status of your printer through its indicator light:
- Flash Blue: Actualizare firmware în curs.
- Albastru constant: Printer is in standby mode.
- Verde intermitent: Printer is actively printing.
- Verde constant: Bluetooth is successfully connected.
- Roșu intermitent: Printer is charging.
- Roșu constant: Cover is open, out of paper, or low battery.
Image 4.3: Guide to the NIIMBOT B1 indicator light statuses.
4.4 Utilizare Examples
The NIIMBOT B1 is versatile for various labeling needs:
- Utilizare acasă: Kitchen labels, gift labels, kids' item labels, trip item labels.
- Business Use: Beauty & personal care, DIY item labels, mail labels, perfume labels, bakery food labels.
Imaginea 4.4: Examples of NIIMBOT B1 usage for home organization.
Imaginea 4.5: Examples of NIIMBOT B1 usage for small businesses.
Imaginea 4.6: Examples of labels for bakery and food products.
Video 4.7: Demonstration of the NIIMBOT B1 Label Maker's ease of use for various labeling tasks.
Videoclip 4.8: Prezentareasing the multipurpose capabilities of the NIIMBOT B1 Label Maker for different applications.
5. Întreținere
5.1 Curățarea capului de imprimare
Regular cleaning of the print head ensures optimal print quality.
- Opriți imprimanta și deconectați cablul de alimentare.
- Deschideți compartimentul pentru etichete.
- Ștergeți ușor capul de imprimare cu un bețișor de bumbacampterminat cu alcool izopropilic.
- Allow the print head to dry completely before closing the compartment and turning on the printer.
5.2 Îngrijirea bateriei
- Încărcați imprimanta în mod regulat, chiar dacă nu o utilizați frecvent, pentru a menține bateria sănătoasă.
- Avoid exposing the printer to extreme temperatures.
- Folosiți doar cablul Type-C furnizat pentru încărcare.
6. Depanare
6.1 Probleme comune și soluții
| Emisiune | Cauza posibila | Soluţie |
|---|---|---|
| Imprimanta nu pornește | Baterie descărcată; Butonul de pornire nu a fost apăsat suficient de mult timp | Charge the printer; Press and hold the power button for 3 seconds. |
| Nu se poate conecta prin Bluetooth | Bluetooth off on phone; Printer not in pairing mode; App permissions | Ensure Bluetooth is on; Restart printer; Check app permissions for nearby devices. |
| Calitate slabă a imprimării | Dirty print head; Incorrect print density; Low battery | Clean the print head (see 5.1); Adjust print density in the app; Charge the printer. |
| Etichetele nu se alimentează corect | Incorrect label installation; Guide plate not adjusted | Reinstall label tape correctly (see 3.1); Adjust the guide plate to fit the label roll. |
| Imprimanta nu este recunoscută de PC | Driver not installed; Faulty USB cable | Install the correct PC driver (see 3.3); Try a different USB cable. |
7. Specificații
| Caracteristică | Detaliu |
|---|---|
| Numele modelului | B1 |
| Tehnologia de imprimare | Termic |
| Conectivitate | Bluetooth, USB |
| Rezoluție maximă de imprimare | 203 dpi |
| Viteză maximă de imprimare (monocrom) | 15 mm/s |
| Dimensiune maximă a suportului media | 2 inch (50 mm) |
| Dispozitive compatibile | Smartphone (Android & iOS), PC (Windows 7/10) |
| Greutatea articolului | 1.1 lire (499 grame) |
| Dimensiunile produsului | 5.5" D x 3.5" L x 2.5" H |
| Baterie | 1 baterie necesară (inclusă) |
| Utilizări specifice | Labeling for Small Business Product Price/Address, School and Office Files Classification, Home Supplies Organization, Personal Item Identification, Name Tags and Warehouse |
8. Garanție și asistență
8.1 Informații despre garanție
The NIIMBOT B1 Label Printer comes with a 1-year warranty coverage. Please retain your proof of purchase for warranty claims.
8.2 Asistență pentru clienți
For further assistance, technical support, or warranty inquiries, please contact NIIMBOT customer service through their official website-ul sau informațiile de contact furnizate împreună cu ambalajul produsului.
