1. Introducere
Thank you for choosing the Baseus 5000mAh Magnetic Power Bank. This portable charger is designed to provide convenient and fast charging for your MagSafe-compatible iPhone models (iPhone 12/13/14/15 series) with both wireless and wired charging capabilities, along with an integrated kickstand for enhanced usability. This manual provides detailed instructions on how to set up, operate, and maintain your device.
2. Produs terminatview
2.1 Conținutul pachetului
Vă rugăm să verificați dacă toate articolele sunt prezente în coletul dumneavoastră:
- Baseus Magnetic Power Bank with Stand
- Cablu de încărcare USB-C la USB-C
- Manual de utilizare
- Baseus Mascot Sticker
2.2 Caracteristici cheie
- Snap to Charge: Strong magnetic connection for safe and reliable wireless charging.
- PD 20W Fast Charge: USB-C port provides 20W PD Fast Charge, charging iPhone 15 up to 50% in 30 minutes. Wireless charging provides 7.5W.
- MagSafe Stand: Built-in folding stand supports vertical or horizontal phone orientation and iOS 17 standby mode.
- Subțire și compactă: Pocket-sized and scratch-resistant design for on-the-go charging.
- Charging While Self-Recharging: Conveniently recharges itself via the USB-C port while simultaneously charging your smartphone wirelessly.
2.3 Diagrama produsului

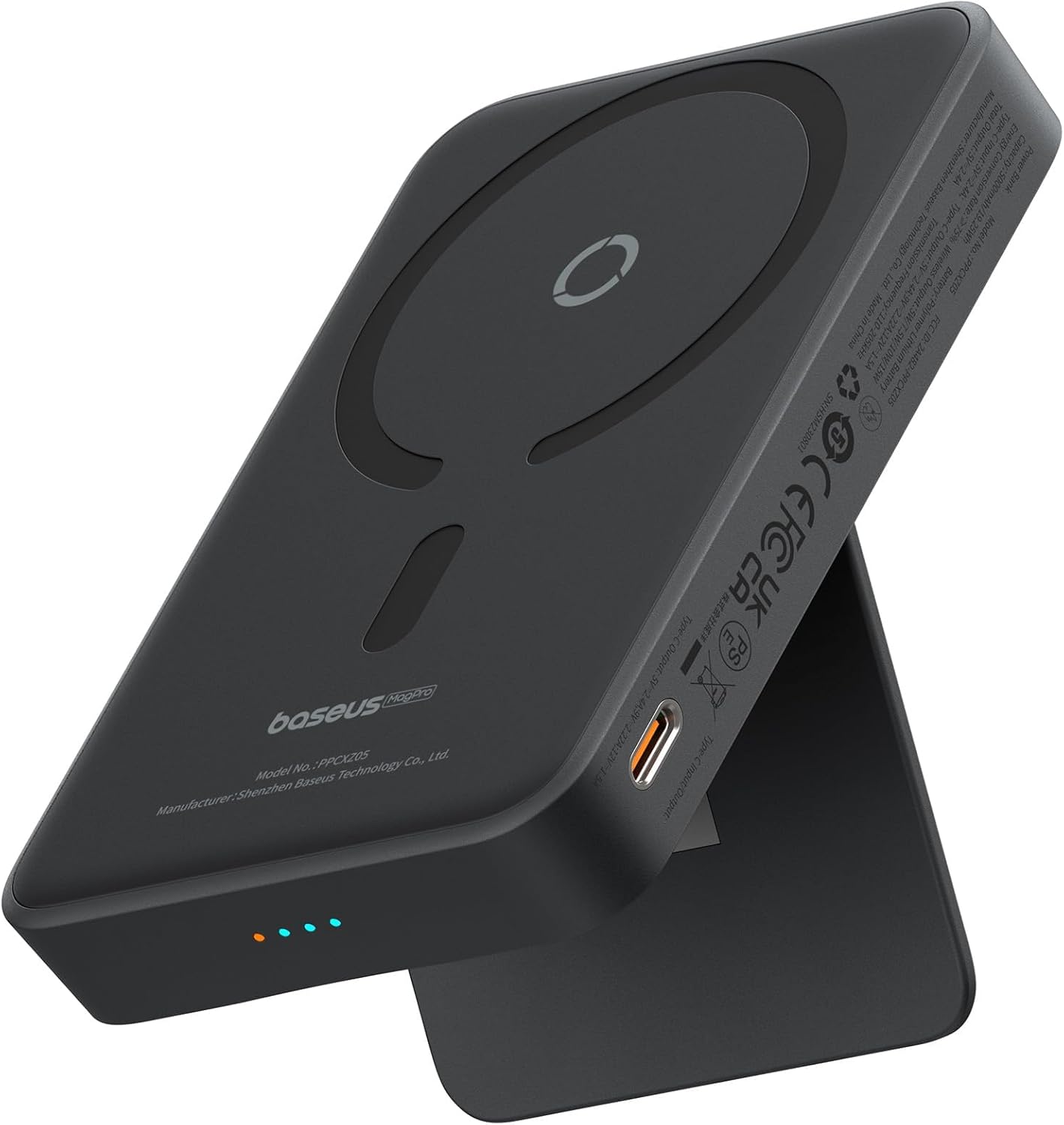

Figura 2.1: Faţă view of the Baseus Magnetic Power Bank, showcasing its sleek design and integrated kickstand in an open position. The magnetic charging surface is visible on the front.
Figura 2.2: Latura view illustrating the USB-C port for input and output, and the LED indicator lights at the bottom, showing the power bank being recharged while simultaneously charging a phone wirelessly.
2.4 Video demonstrativ de produs
Video 2.1: Official demonstration of the Baseus Magnetic Power Bank, showcasing its magnetic attachment, kickstand functionality, and compact design. This video provides a visual overview of the product's key features and ease of use.
3. Configurare
3.1 Taxa inițială
Before first use, it is recommended to fully charge your Baseus Magnetic Power Bank. Connect the included USB-C to USB-C cable to the power bank's USB-C port and the other end to a compatible USB-C power adapter (not included). The LED indicator lights will show the charging progress.
3.2 Conectarea la dispozitiv (încărcare wireless)
For optimal magnetic attachment and wireless charging, ensure your iPhone is MagSafe-compatible (iPhone 12 series or newer) or uses a MagSafe-compatible case.
- Align the magnetic charging surface of the power bank with the back of your iPhone.
- The strong magnets will snap the power bank firmly into place.
- Wireless charging will begin automatically.
Figura 3.1: Demonstrating the "Snap to Charge" feature, where the power bank magnetically attaches to the iPhone for instant wireless power.
4. Instrucțiuni de utilizare
4.1 Încărcare fără fir
Once magnetically attached to your compatible iPhone, the power bank will automatically initiate 7.5W wireless charging. Ensure there are no foreign objects between the power bank and your phone that could obstruct the magnetic connection or charging efficiency.
4.2 Wired Fast Charging (PD 20W)
The USB-C port on the side of the power bank supports Power Delivery (PD) 20W fast charging for compatible devices. Use the included USB-C to USB-C cable to connect your device to the power bank for rapid charging.
Figura 4.1: The power bank's USB-C port functions as both input for recharging the power bank and output for wired fast charging of other devices.
4.3 Using the Integrated Kickstand
The built-in folding kickstand allows you to prop up your iPhone for hands-free viewing in both vertical (portrait) and horizontal (landscape) orientations. This is ideal for watching videos, video calls, or utilizing iOS 17 StandBy mode.
- Trageți ușor suportul din spatele băncilor externe.
- Adjust the angle (0-45°) to your preferred viewpoziție de ing.
- Ensure the kickstand is stable on a flat surface before placing your device.
Figura 4.2: The foldable kickstand provides a stable and adjustable viewing angle for your iPhone, enhancing convenience during use.
Figura 4.3: The kickstand allows for versatile positioning, ensuring an optimal viewing angle for various activities.
4.4 Reîncărcarea bateriei externe
To recharge the power bank, connect the included USB-C to USB-C cable to the power bank's USB-C port and a power source (e.g., wall adapter, computer USB-C port). The power bank supports 12W ultra-fast USB-C recharging input. You can also wirelessly charge your phone while the power bank itself is recharging.
4.5 Indicatoare LED
The LED lights on the power bank indicate the remaining battery level and charging status:
| Stare LED | Sens |
|---|---|
| Toate LED-urile sunt aprinse constant | Fully charged (when charging) |
| LEDs blinking sequentially | Power Bank se încarcă |
| Multiple solid LEDs | Indicates remaining battery capacity (e.g., 4 LEDs = 75-100%, 3 LEDs = 50-75%, etc.) |
| First LED blinking | Baterie descărcată (0-25%) |
5. Întreținere
- curatenie: Folosește o lavetă moale și uscată pentru a curăța suprafața bateriei externe. Evită utilizarea substanțelor chimice dure sau a materialelor abrazive.
- Depozitare: Depozitați bateria externă într-un loc răcoros și uscat, ferit de lumina directă a soarelui și de temperaturi extreme.
- Îngrijirea bateriei: Pentru a prelungi durata de viață a bateriei, încărcați complet bateria externă cel puțin o dată la trei luni dacă nu o utilizați în mod regulat.
- Evitați picăturile: Do not drop or subject the power bank to strong impacts, as this may damage internal components.
6. Depanare
If you encounter issues with your Baseus Magnetic Power Bank, please refer to the following common problems and solutions:
| Problemă | Cauză/Soluție posibilă |
|---|---|
| Bateria externă nu încarcă dispozitivul wireless. |
|
| Bateria externă nu se reîncarcă. |
|
| Viteză lentă de încărcare. |
|
| Power bank or phone gets warm during charging. |
|
7. Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | PPCXZ05 |
| Capacitatea bateriei | 5000 mAh |
| Ieșire de încărcare wireless | 7.5 W (maximum) |
| USB-C Output (PD Fast Charge) | 20 W (maximum) |
| Intrare USB-C | 12 W (maximum) |
| Dimensiunile produsului | 4.2 x 2.7 x 0.7 inci |
| Greutatea articolului | 5.5 uncii |
| Caracteristici speciale | LED Indicator Lights, Short Circuit Protection, Over Charging Protection, Pocket Size, Wireless Charging, Integrated Kickstand |
8. Informații de siguranță
Pentru a asigura o funcționare sigură și a preveni deteriorarea dispozitivului sau vătămările corporale, vă rugăm să respectați următoarele măsuri de siguranță:
- Nu dezasamblați, reparați sau modificați produsul.
- Do not expose the product to fire, water, or extreme temperatures.
- Evitați scăderea sau supunerea produsului la impacturi puternice.
- A nu se lăsa la îndemâna copiilor.
- Aruncați produsul în mod responsabil, conform reglementărilor locale.
Figura 8.1: The power bank incorporates multiple safety protections, including over-voltage, sub-voltage, over-charge, over-power, over-current, temperature, short circuit, and over-discharge protection, along with a flame-retardant shell.
9. Garanție și asistență
Baseus provides a 2-year assurance for this product. For warranty claims, technical support, or any inquiries, please contact Baseus customer service through the following channels:
- E-mail: Refer to your product packaging or the official Baseus website pentru detalii de contact.
- Suport online: Vizitați pagina oficială Baseus website pentru întrebări frecvente și resurse de asistență.
Please have your purchase receipt and product model number (PPCXZ05) ready when contacting support.
