Manual de instrucțiuni pentru asamblarea motorului frigiderului Samsung DA97-08630A

1. Introducere

The Samsung DA97-08630A Refrigerator Motor Assembly, also known as a Step Valve Module, is a critical component designed for use in household refrigerators. Its primary function is to control and switch the flow direction of refrigerant, particularly in dual-temperature or double-control refrigeration systems with variable temperature areas. This part is a genuine Original Equipment Manufacturer (OEM) component, ensuring compatibility and performance with Samsung appliances. It serves as a direct replacement for the prior Samsung Part #: DA62-04678C.

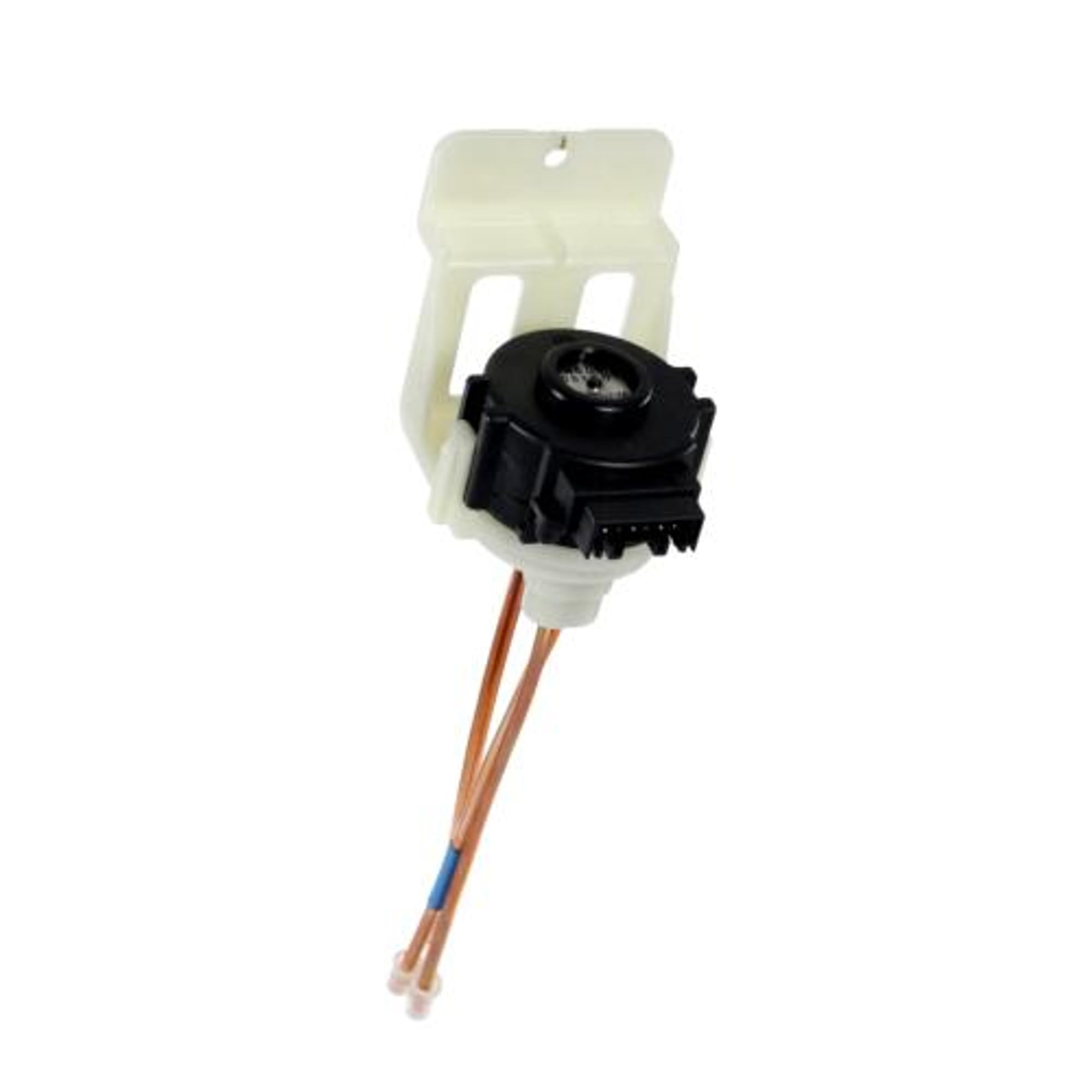

Image 1.1: The Samsung DA97-08630A Refrigerator Motor Assembly. This image displays the physical appearance of the motor assembly, which is a genuine OEM replacement part for Samsung refrigerators.

2. Informații de siguranță

Avertizare: Before attempting any repair or replacement of refrigerator components, always disconnect the appliance from its power source to prevent electric shock or injury. Refrigerator repairs involve electrical components and refrigerants, which can be hazardous if not handled correctly. It is strongly recommended to consult a qualified appliance service professional for installation and repair of this part. Failure to follow these safety guidelines may result in property damage, personal injury, or death.

• Always unplug the refrigerator before beginning any service.
• Purtați echipament individual de protecție adecvat, cum ar fi mănuși și ochelari de protecție.
• Asigurați-vă că zona de lucru este bine iluminată și lipsită de obstacole.
• Do not attempt to repair or replace this part if you are not confident in your abilities or lack the necessary tools and knowledge.

3. Conținutul pachetului

Pachetul dumneavoastră trebuie să conțină următoarele articole:

• One (1) Samsung DA97-08630A Refrigerator Motor Assembly

4. Compatibilitate

The Samsung DA97-08630A Refrigerator Motor Assembly is compatible with various supported Samsung brand refrigerator models. This part is a functional equivalent and a perfect fit replacement/substitution for the prior Samsung Part #: DA62-04678C. It is essential to verify the correct part number for your specific appliance model before purchasing and installation. Refer to your appliance service manual, contact your appliance manufacturer, or consult a service professional to confirm compatibility.

5. Instalare

Installation of the DA97-08630A Refrigerator Motor Assembly requires technical knowledge and specialized tools. It is highly recommended that this part be installed by a qualified appliance service professional. The following is a general overview and should not replace professional guidance or your appliance's specific service manual:

1. Deconectați alimentarea: Deconectați frigiderul de la priza electrică.
2. Accesați componenta: Depending on your refrigerator model, you may need to remove panels or other components to access the existing motor assembly.
3. Identificare și deconectare: Locate the old motor assembly (DA62-04678C or equivalent). Carefully disconnect any wiring harnesses and refrigerant lines connected to it. Proper handling of refrigerant lines is crucial and often requires specialized tools to prevent leaks and environmental damage.
4. Îndepărtați piesa veche: Unmount and remove the old motor assembly.
5. Instalați o piesă nouă: Mount the new Samsung DA97-08630A motor assembly in the same location.
6. Reconectați-vă: Reconnect all wiring harnesses and refrigerant lines. Ensure all connections are secure and properly sealed.
7. Test: Once installed, restore power to the refrigerator and monitor its operation to ensure the new motor assembly functions correctly and there are no refrigerant leaks.

Nota: The appearance of the new OEM Samsung Part # DA97-08630A may differ slightly from the prior part # DA62-04678C, but it is a brand new, unused, functional equivalent.

6. Funcționare

The DA97-08630A Refrigerator Motor Assembly functions as a step valve module within the refrigerator's sealed system. It is responsible for precisely controlling the direction and flow of refrigerant to different sections of the refrigerator, particularly in models designed with multiple temperature zones or variable temperature compartments. By regulating refrigerant flow, it enables the appliance to maintain distinct temperature settings and optimize cooling performance across various compartments.

7. Întreținere

As a sealed system component, the DA97-08630A Refrigerator Motor Assembly itself does not require routine user maintenance. However, general maintenance of your refrigerator can help ensure the longevity and efficient operation of all its components, including the motor assembly:

• Keep the condenser coils clean to ensure proper heat exchange and reduce strain on the refrigeration system.
• Asigurați o ventilație adecvată în jurul frigiderului.
• Periodically check door seals for proper closure to prevent warm air from entering the refrigerator.

If you suspect an issue with the motor assembly, it is best to contact a qualified service technician for diagnosis and repair.

8. Depanare

If your refrigerator is experiencing issues that might be related to the motor assembly, consider the following general symptoms. Due to the complexity of the refrigeration system, professional diagnosis is always recommended.

• Inconsistent Temperatures: If different compartments of your refrigerator are not maintaining their set temperatures, or if one section is too warm while another is too cold, it could indicate a problem with the step valve module's ability to direct refrigerant flow.
• Zgomote neobișnuite: While less common for this specific part, any new or unusual mechanical noises coming from the sealed system area could suggest an internal component issue.
• Frigiderul nu răcește: In severe cases, a malfunctioning motor assembly could contribute to the refrigerator not cooling effectively at all.

If you observe any of these symptoms, contact a certified appliance technician for a thorough inspection and repair. Attempting to diagnose or repair sealed system components without proper training and tools can be dangerous and may void your appliance's warranty.

9. Specificații

10. Garanție și asistență

As a genuine Original Equipment Manufacturer (OEM) part, the Samsung DA97-08630A Refrigerator Motor Assembly is manufactured to Samsung's quality standards. For specific warranty information regarding this replacement part, please refer to your original appliance's warranty documentation or contact Samsung customer support directly. You may also contact the seller from whom you purchased the part for details on their return or replacement policy.

For further assistance or to locate a certified service professional, please visit the official Magazin Samsung or Samsung's official support website-ul.
