Manual de utilizare a camerei de securitate solare pentru exterior COCOCAM 4G LTE

Introducere

Thank you for choosing the COCOCAM 4G LTE Outdoor Solar Security Camera. This manual provides detailed instructions for the installation, operation, and maintenance of your camera. Please read this manual thoroughly before use to ensure proper functionality and to maximize the benefits of your device. This camera is designed for outdoor surveillance in areas without Wi-Fi access, utilizing 4G LTE connectivity and solar power for continuous operation.

Informații de siguranță

Vă rugăm să respectați următoarele măsuri de siguranță pentru a preveni deteriorarea produsului sau vătămarea dumneavoastră sau a altora:

• Asigurați-vă că camera este instalată în siguranță pentru a preveni căderea acesteia.
• Nu expuneți camera la temperaturi extreme în afara intervalului său de funcționare (-20°C până la 50°C).
• Keep the camera and solar panel away from open flames or heat sources.
• Nu încercați să dezasamblați sau să modificați camera. Aceasta va anula garanția.
• Use only the provided accessories and power sources.
• Ensure all cables are properly connected and secured to prevent tripping hazards or damage.
• Aruncați bateriile în conformitate cu reglementările locale.

Conținutul pachetului

Verificați dacă toate articolele sunt prezente în colet:

• 1x 4G Camera
• 1x panou solar
• 1x cablu de încărcare USB
• 1x Suport panou solar
• 1x Screw Bag for Camera
• 1x Screw Bag for Solar Panel
• 1x manual de instrucțiuni

Produs terminatview

The COCOCAM 4G LTE Outdoor Solar Security Camera (Model ZY-C5) is a wireless surveillance solution designed for remote locations without Wi-Fi. It features 2K resolution, pan-tilt-zoom (PTZ) capabilities, and is powered by a 10000mAh battery and a 6W solar panel. The camera supports 4G LTE connectivity via a SIM card for real-time monitoring and alerts.

Image: The COCOCAM 4G LTE Outdoor Solar Security Camera, featuring its main unit, solar panel, and a smartphone displaying the live camera feed.

Înființat

1. Instalarea cartelei SIM

The camera operates using a 4G LTE SIM card, making it ideal for areas without Wi-Fi. A SIM card is pre-installed for convenience.

Image: The COCOCAM 4G LTE camera installed outdoors, connected to its solar panel, highlighting its independence from Wi-Fi.

• Locate the SIM card slot on the camera, usually protected by a rubber cover.
• If replacing, gently press the existing SIM card to eject it.
• Insert the Nano-SIM (4FF) card into the slot, ensuring correct orientation.
• Close the rubber cover firmly to maintain IP66 water resistance.

2. Charging and Solar Panel Setup

The camera is powered by a 10000mAh rechargeable battery, continuously charged by the included 6W solar panel.

Image: The COCOCAM 4G LTE camera and its solar panel mounted on an exterior wall, illustrating the solar power connection for uninterrupted power.

• Connect the solar panel cable to the charging port on the camera.
• Position the solar panel in a location that receives maximum direct sunlight throughout the day for optimal charging efficiency.
• For initial setup or if the battery is low, you can also charge the camera using the provided USB cable.

3. Montarea camerei

The camera is designed for easy wall mounting.

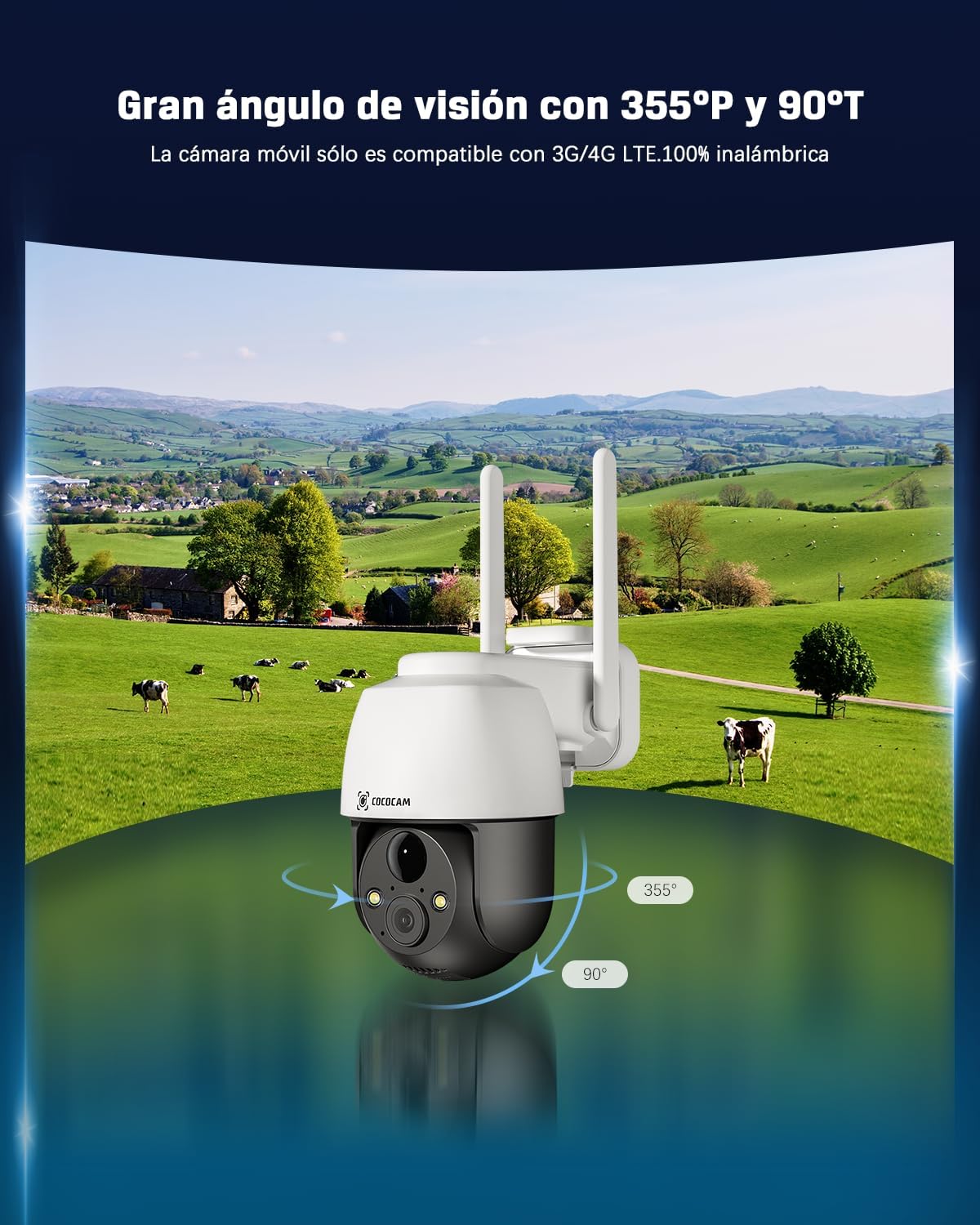

Image: The COCOCAM 4G LTE camera demonstrating its wide field of view with 355-degree horizontal pan and 90-degree vertical tilt.

• Alegeți o locație de montare potrivită care să ofere viewing angle and is within reach of the solar panel cable.
• Use the provided screw bag to securely attach the camera bracket to the wall.
• Atașați camera la suportul montat.
• Adjust the camera's angle to cover the desired surveillance area.

4. App Installation and Initial Connection

Control and monitor your camera remotely via the dedicated mobile application.

• Download the CloudEdge app from your smartphone's app store (Android/iOS).
• Înregistrați-vă pentru un cont și conectați-vă.
• Follow the in-app instructions to add your COCOCAM camera. This typically involves scanning a QR code on the camera or entering its device ID.
• Once connected, you can access the live feed and configure settings.

Operarea camerei

1. în direct View și control PTZ

Access real-time video and control the camera's movement.

• Deschideți aplicația CloudEdge și selectați camera pentru a view fluxul live.
• Use the on-screen controls to pan (355° horizontal) and tilt (90° vertical) the camera, providing comprehensive coverage of your area.

2. Sunet bidirecțional

Comunicați cu vizitatorii sau descurajați intrușii folosind microfonul și difuzorul încorporate.

• Atingeți pictograma microfonului în transmisiunea live view să vorbească prin cameră.
• The camera's speaker will transmit your voice, and you can hear audio from the camera's location.

3. Vedere de noapte

The camera provides clear visibility even in low-light conditions.

Image: Comparison of day and 2K full-color night vision captured by the COCOCAM camera, demonstrating its clarity in various lighting conditions.

• The camera automatically switches to night vision mode in low light.
• Enjoy full-color night vision up to 25 meters with white light, and up to 30 meters with infrared.

4. Smart Detection and AI Analysis

Receive accurate alerts with advanced detection features.

Image: The COCOCAM 4G LTE camera demonstrating its AI-powered human detection, distinguishing people from other movements and sending precise alerts.

• The PIR human detection technology reduces false alarms by focusing on human shapes.
• Customize alarm areas and utilize the smart light and sound alarm system for enhanced security.

5. Opțiuni de stocare

Foo înregistrattage can be stored locally or in the cloud.

• Stocare card TF: The camera supports local storage on a TF (microSD) card up to 128GB (card not included). Ensure the card is formatted before use.
• Stocare în cloud: Recorded 6-second fragments can be stored for 7 days of loop coverage (compatible when using the camera's built-in SIM card). COCOCAM offers unlimited data packages and a 7-day free trial for cloud storage.

6. Integrarea asistenței vocale

Control your camera with voice commands.

• The COCOCAM 4G security camera works with Alexa and Google Assistant.
• Link your camera to your smart home system for convenient voice control and access to live streams.

Întreţinere

• curatenie: Ștergeți regulat lentila camerei și panoul solar cu o lavetă moale și drăguță.amp cloth to ensure clear images and efficient charging. Do not use harsh chemicals.
• Îngrijirea bateriei: While the solar panel provides continuous charging, ensure the camera receives adequate sunlight. If the camera is stored for extended periods, fully charge the battery before storage and recharge every few months to maintain battery health.
• Actualizări de software: Check the CloudEdge app periodically for firmware updates to ensure optimal performance and access to new features.

Depanare

Specificatii tehnice

Garanție și asistență pentru clienți

COCOCAM is committed to providing high-quality products and excellent customer service. Your product is covered by a standard warranty. For specific warranty details, please refer to the documentation included with your purchase or contact COCOCAM customer support.

If you encounter any issues or have questions regarding your COCOCAM 4G LTE Outdoor Solar Security Camera, please do not hesitate to contact our support team. We offer professional technical support to assist you.

Visit the official COCOCAM store for more information and support: Magazin COCOCAM
