XTU Trail Camera X1 User Manual

Introducere

This manual provides detailed instructions for the setup, operation, and maintenance of your XTU X1 Trail Camera. Designed for versatile outdoor use, this camera features 64MP photo resolution, 2.7K video recording, advanced night vision, solar power capabilities, and convenient WiFi/Bluetooth connectivity for app control. It is suitable for wildlife monitoring, outdoor security, hunting, and farm surveillance.

Image: XTU X1 Trail Camera, solar panel, and included 32GB SD card, highlighting its features.

Image: Multiple scenarios for using the XTU Trail Camera, including hunting, home security, farm, and wildlife monitoring.

Ce este în cutie?

Verificați dacă toate componentele sunt prezente la despachetare:

• XTU Trail Camera (X1) x 1
• Panou solar x 1
• Card SD de 32 GB x 1
• Manual de utilizare x 1
• Șuruburi
• Suport pentru cameră
• Suport panou solar
• Curea de montare x 1
• Cablu tip C x 1

Image: All components included in the XTU Trail Camera package.

Ghid de instalare

1. Battery and Solar Panel Installation

The camera is powered by a rechargeable lithium battery and an external solar panel. Ensure the battery is charged before initial use. The solar panel provides continuous power, extending operational time.

• Connect the solar panel to the camera using the provided cable.
• Montați panoul solar într-o locație care primește amplumina directă a soarelui pe tot parcursul zilei.
• The camera can also be charged via the Type C cable using a standard USB power adapter (not included).

Image: Trail camera with integrated solar power supply, showing connection to the solar panel.

Image: Charging options for the camera: solar power and USB cable.

2. Instalarea cardului SD

The camera supports up to a 256GB micro SD card. A 32GB micro SD card is included.

• Open the camera's housing.
• Introduceți cardul micro SD în slotul corespunzător, cu contactele orientate în direcția corectă.
• Close the housing securely to maintain the IP66 waterproof rating.
• It is recommended to format the SD card within the camera's settings before first use.

3. Montarea camerei

Use the provided mounting strap or brackets to secure the camera.

• Montarea curelei: Introduceți cureaua de montare prin fantele de pe spatele camerei și fixați-o în jurul unui copac sau al unui stâlp.
• Montare suport: Attach the camera bracket to a tree or wall using the screws. Then, attach the camera to the bracket. Ensure the camera is stable and pointed towards the desired monitoring area.

Image: XTU Trail Camera mounted on a tree, demonstrating its outdoor use and IP66 waterproof rating.

4. App Connection (Morecam APP)

The XTU Trail Camera connects to your smartphone via WiFi and Bluetooth for remote viewing și control.

1. Instalați aplicația: Download and install the "Morecam" app from your smartphone's app store.
2. Înregistrare Cont: Open the Morecam app and register a new user account.
3. Pornirea camerei: Porniți camera folosind comutatorul de alimentare.
4. Conectare: Follow the in-app instructions to connect to the camera. The camera uses its own hotspot WiFi for connection, not your home WiFi network.

Image: Steps for connecting the camera to the Morecam mobile application.

Imagine: Telecomandă viewing and control of the camera via WiFi and Bluetooth connection to a smartphone.

Instrucțiuni de operare

Basic Operation and Modes

The camera offers various modes for capturing wildlife activity:

• Mod foto: Capturează imagini statice la o rezoluție de 64MP.
• Mod video: Records video at 2.7K resolution.
• Mod Foto + Video: Captures a still image followed by a video recording.

Settings for these modes, such as resolution, video length, and photo burst, can be adjusted via the camera's internal menu or the Morecam app.

Imagine: Examples of 64MP photos and 2.7K UHD videos captured by the camera.

Image: High-quality 2.7K video and 64MP image capture capabilities.

Vedere de noapte

The camera is equipped with 8pcs 850nm low glow infrared lights, providing clear night vision up to 65 feet (20 meters). These lights are designed to be discreet, minimizing disturbance to wildlife.

Image: Crystal night vision performance with 850nm infrared lights, showing a bobcat.

Image: Enhanced night vision capabilities, capturing clear images in low light conditions.

Detectarea mișcării și viteza de declanșare

The camera features 3 PIR sensors for a 120° wide motion detection angle and a rapid 0.2-second trigger speed. This ensures that fleeting moments of wildlife activity are captured effectively.

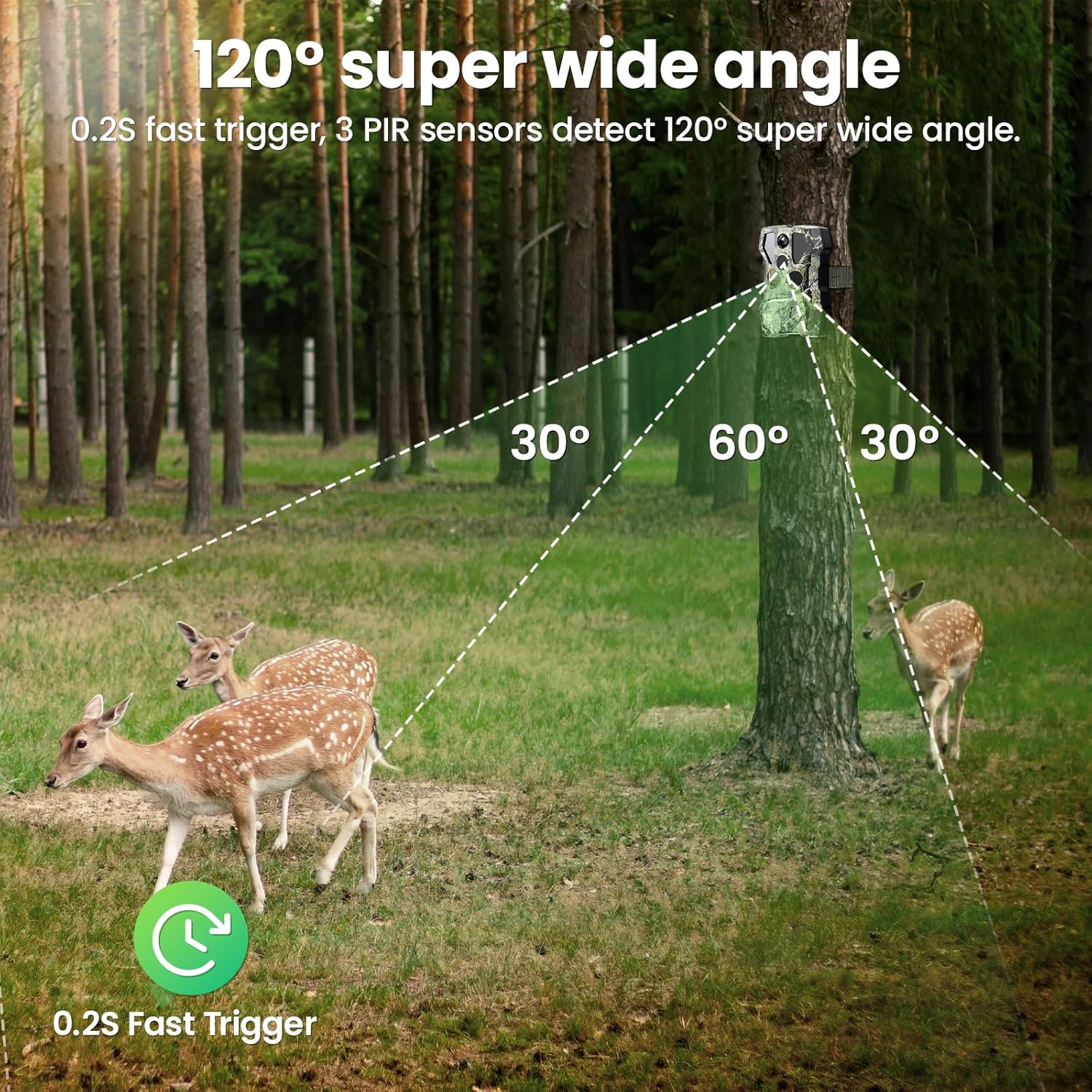

Image: 120° super wide angle detection with 3 PIR sensors.

Image: Demonstration of the 0.2-second ultra-fast trigger speed capturing a hippo.

Audio bidirecțional

After connecting to the Morecam app, the camera supports two-way audio communication, allowing you to speak to individuals near the camera remotely.

Înregistrare în buclă video

When the SD card is full, the camera will automatically overwrite the oldest files to continue recording new footage. This ensures continuous monitoring without manual intervention.

Image: Explanation of video loop recording functionality.

Întreţinere

Curatenie

• Regularly clean the camera lens and PIR sensors with a soft, dry cloth to ensure optimal performance.
• Keep the solar panel free of dirt, leaves, or snow to maximize charging efficiency.

Îngrijirea bateriei

• While the solar panel provides continuous power, ensure the camera's internal battery is periodically checked, especially during prolonged periods of low sunlight.
• If storing the camera for an extended period, fully charge the battery and store it in a cool, dry place.

Hidroizolarea

The camera has an IP66 weather-proof rating, making it resistant to rain, snow, and dust. Ensure all ports and the housing are securely closed to maintain this protection.

Image: The camera's IP66 waterproof rating, suitable for various weather conditions.

Depanare

Camera nu se pornește

• Ensure the internal battery is charged. Connect the camera to a power source via the Type C cable or ensure the solar panel is receiving sufficient sunlight.
• Verificați poziția comutatorului de alimentare.

Probleme de conectare la aplicație

• Asigurați-vă că Bluetooth este activat pe telefon.
• Verify that you are within the camera's WiFi hotspot range (up to 98ft/30m).
• Reporniți atât camera, cât și smartphone-ul.
• Re-attempt the connection process as outlined in the "App Connection" section.
• Note: The camera connects via its own hotspot, not your home Wi-Fi network.

Calitate slabă a imaginii/videolui

• Curățați obiectivul camerei.
• Ensure the camera is stable and not subject to vibrations.
• Check the resolution settings in the camera menu or app.

Motion Detection Not Triggering / Slow Trigger

• Adjust the PIR sensitivity settings (Low, Medium, High) in the camera menu or app. Higher sensitivity may be needed for smaller or faster-moving subjects.
• Ensure there are no obstructions directly in front of the PIR sensors.
• Avoid placing the camera where moving branches or tall grass might cause false triggers.

Probleme de vedere pe timp de noapte

• Ensure the infrared lights are not obstructed.
• Check for any reflective surfaces close to the camera that might cause overexposure in night mode.

Specificații

Garanție și suport

XTU is committed to providing quality products and customer service. While specific warranty details are not provided in this manual, please refer to your purchase documentation or the official XTU website pentru informații despre garanție.

For technical support, questions, or assistance, please contact XTU customer service. Many users have reported positive experiences with XTU's responsive and helpful support team.

• Răspuns rapid: Expect timely responses to your inquiries.
• 24/7 Professional Technical Support: Assistance is available around the clock.

Image: XTU's commitment to customer support.
