Oasser Airbrush Set with Mini Compressor User Manual

1. Introducere

Thank you for choosing the Oasser Airbrush Set. This comprehensive kit is designed for a wide range of artistic and hobby applications, offering precise control and ease of use. Featuring a double-action airbrush and a mini compressor with stepless pressure control from 2 to 36 PSI, it is suitable for both beginners and experienced users. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your airbrush set.

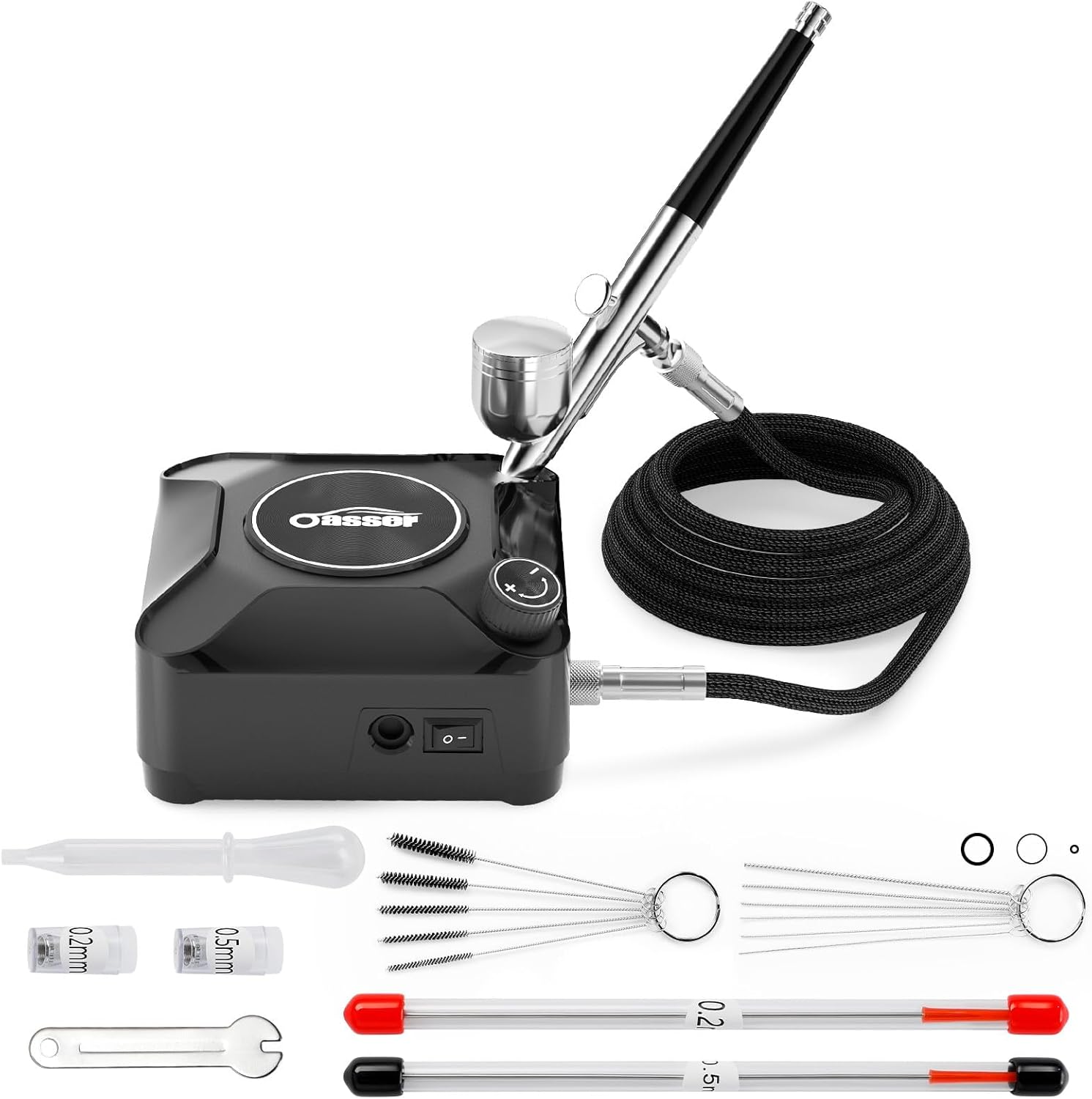

2. Conținutul pachetului

Vă rugăm să verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:

• Furtun de aer
• Compresor
• Adaptor AC
• Cutie de ambalare
• Cleaning Brushes (various sizes)
• Ace de curățare
• Picurator
• Nozzles (0.2mm, 0.5mm)
• Cheie pentru duză
• inele O
• Needles (0.2mm, 0.5mm)
• Aerograf
• Japanese User Manual (for detailed instructions in Japanese)

3. Ghid de instalare

Follow these steps to set up your Oasser Airbrush Set for first use:

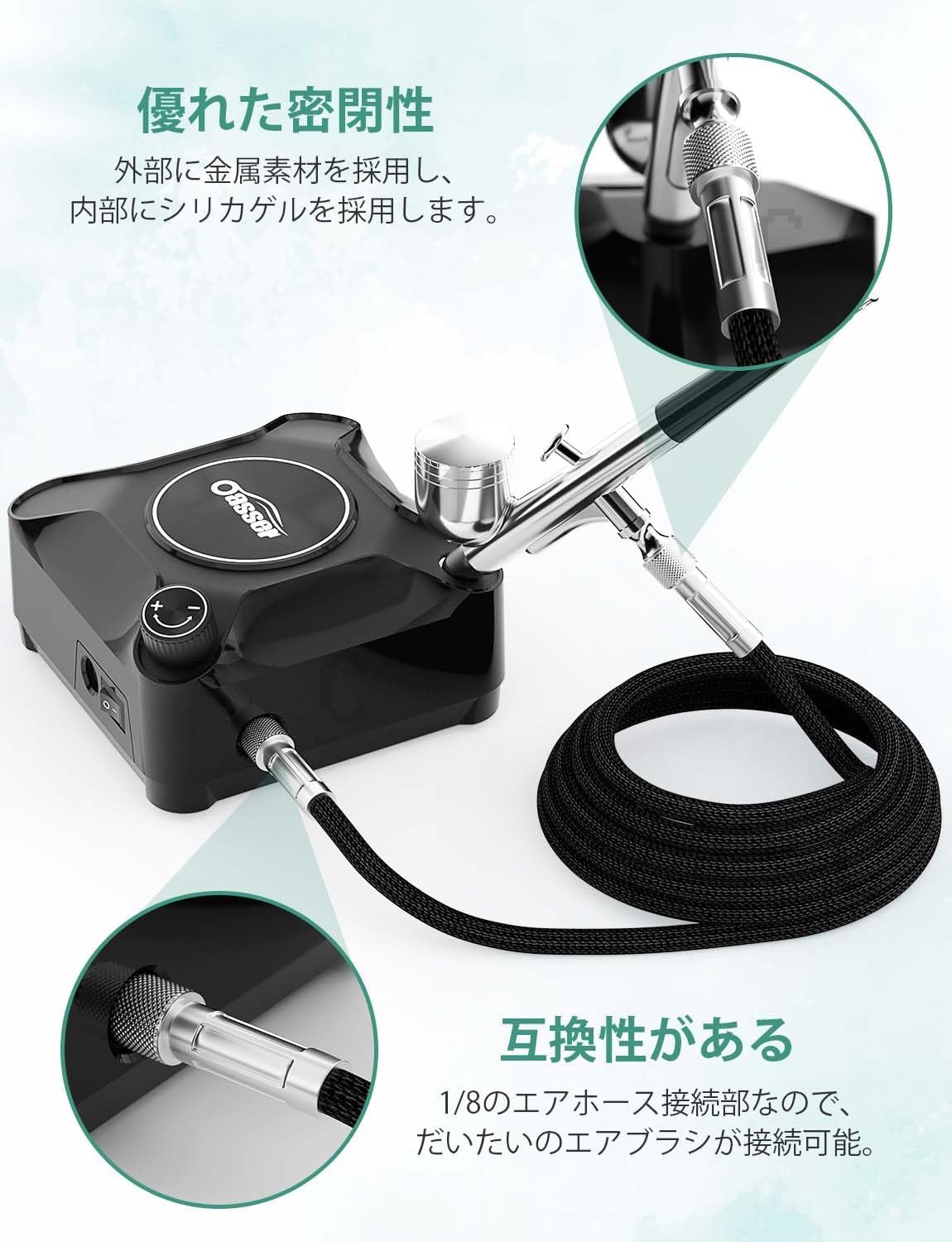

1. Conectați furtunul de aer: Securely attach the air hose to the compressor's air outlet. Ensure a tight connection to prevent air leaks.
2. Fill the Paint Cup: Pour your desired paint (diluted as necessary) into the airbrush's paint cup. Do not fill more than 2/3 capacity.
3. Connect Power and Turn On: Plug the AC adapter into a power outlet and connect it to the compressor. Turn the power switch to the "ON" position.
4. Reglați presiunea aerului: Use the dial on the compressor to adjust the air pressure to your desired level (2-36 PSI).
5. Testarea fluxului de aer: Before applying paint, press the airbrush lever down to ensure air is flowing correctly.

This airbrush set features a "Plug and Play" design, meaning it's ready for immediate use once connected to power, without the need for battery charging.

4. Instrucțiuni de utilizare

4.1 Double-Action Control

The Oasser airbrush features a double-action mechanism, allowing for independent control of both air and paint flow:

• Air Only: Press the lever down to release air only. This is useful for drying or clearing the nozzle.
• Air and Paint: While holding the lever down, pull it back to release paint. The further back you pull, the more paint is released, allowing for fine lines or broader coverage.

4.2 Stepless Pressure Control (2-36 PSI)

The compressor offers stepless pressure adjustment, enabling you to fine-tune the output for various applications:

• Low Pressure (e.g., 2-10 PSI): Ideal for delicate work such as nail art, makeup, or fine details.
• Medium Pressure (e.g., 10-25 PSI): Suitable for plastic models, DIY hand-painting, and general artwork.
• High Pressure (e.g., 25-36 PSI): Best for broader coverage, base coats, or larger painting projects like graffiti.

4.3 Nozzle and Needle Sizes

The set includes interchangeable nozzles and needles (0.2mm, 0.3mm, 0.5mm) to accommodate different painting needs:

• 0.2mm Nozzle: For extremely fine lines and intricate details, such as camouflage patterns or delicate illustrations.
• 0.3mm Nozzle: A versatile size for general purpose painting, including plastic models and body art.
• 0.5mm Nozzle: For broader coverage, base coats, and thicker paints.

4.4 Paint Compatibility

This airbrush set is compatible with a variety of paint types. Always ensure paints are properly diluted to a milk-like consistency for optimal flow and to prevent clogging.

• Vopsele pe bază de apă
• Vopsele acrilice
• Vopsele pe bază de ulei
• Metallic paints

Note: For first-time users, it is recommended to practice with water to understand the airbrush operation before using paint.

5. Întreținere și curățare

Proper cleaning and maintenance are crucial for the longevity and performance of your airbrush. Always clean the airbrush immediately after each use, especially parts that come into contact with paint.

5.1 Procedura de curățare

1. Cupă goală de vopsea: Îndepărtați orice urmă de vopsea rămasă din cană.
2. Adăugați soluție de curățare: Pour a small amount of appropriate cleaning solution (e.g., water for water-based paints, thinner for oil-based paints) into the paint cup.
3. Back-Flush: Block the nozzle with your finger or a cap, then press the lever down. This will cause air to bubble back into the paint cup, cleaning the inside.
4. Spray Out: Remove your finger from the nozzle and spray the cleaning solution onto a paper towel or into a waste container until clear.
5. Demontare și curățare: For thorough cleaning, disassemble the airbrush (nozzle, needle, paint cup) and clean each component using the provided cleaning brushes and needles.

Important: Inadequate or improper cleaning can lead to paint blockages inside the airbrush, which may cause the compressor to malfunction or the airbrush to stop spraying. Refer to the included Japanese manual and product videos for detailed cleaning demonstrations.

6. Depanare

If you encounter issues with your Oasser Airbrush Set, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Oasser customer support for further assistance.

7. Specificațiile produsului

8. Videoclip oficial al produsului

Watch the official product video for a visual guide on setting up and using your Oasser Airbrush Set.

9. Garanție și asistență

Oasser products are designed for quality and reliability. For any questions, concerns, or technical support regarding your airbrush set, please refer to the contact information provided in your product packaging or visit the official Oasser website. Our customer support team is ready to assist you.

Vă rugăm să păstrați bonul fiscal ca dovadă a achiziției pentru orice reclamații în garanție.
