Bun venit
Thank you for choosing the vidaXL Electric Massage Recliner Chair. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new recliner. Please read it thoroughly before use and retain it for future reference.
Informații de siguranță
Please observe all safety instructions provided in this user manual. Ensure the product is correctly assembled and used according to these guidelines. Pay close attention to the maximum load capacity of 110 kg (242 lbs). Only use the electrical functions after carefully reading and understanding all instructions related to electrical operation.
Configurare: Instrucțiuni de asamblare
Assembly is required for this recliner chair. Please follow the steps below carefully. It is recommended to have two people for assembly to ensure safety and ease.
- Unpack all components and verify against the parts list (not provided in this document, refer to packaging).
- Attach the backrest to the seat base, ensuring all connection points are securely fastened.
- Connect the footrest mechanism to the main frame.
- Fixați în siguranță picioarele la baza scaunului.
- Connect all electrical cables for the reclining and massage functions as indicated in the separate wiring diagram (not provided in this document, refer to packaging).
- Asigurați-vă că toate șuruburile și bolțurile sunt strânse înainte de utilizare.
Image: Technical diagram illustrating the dimensions of the recliner in both seated and fully reclined positions.

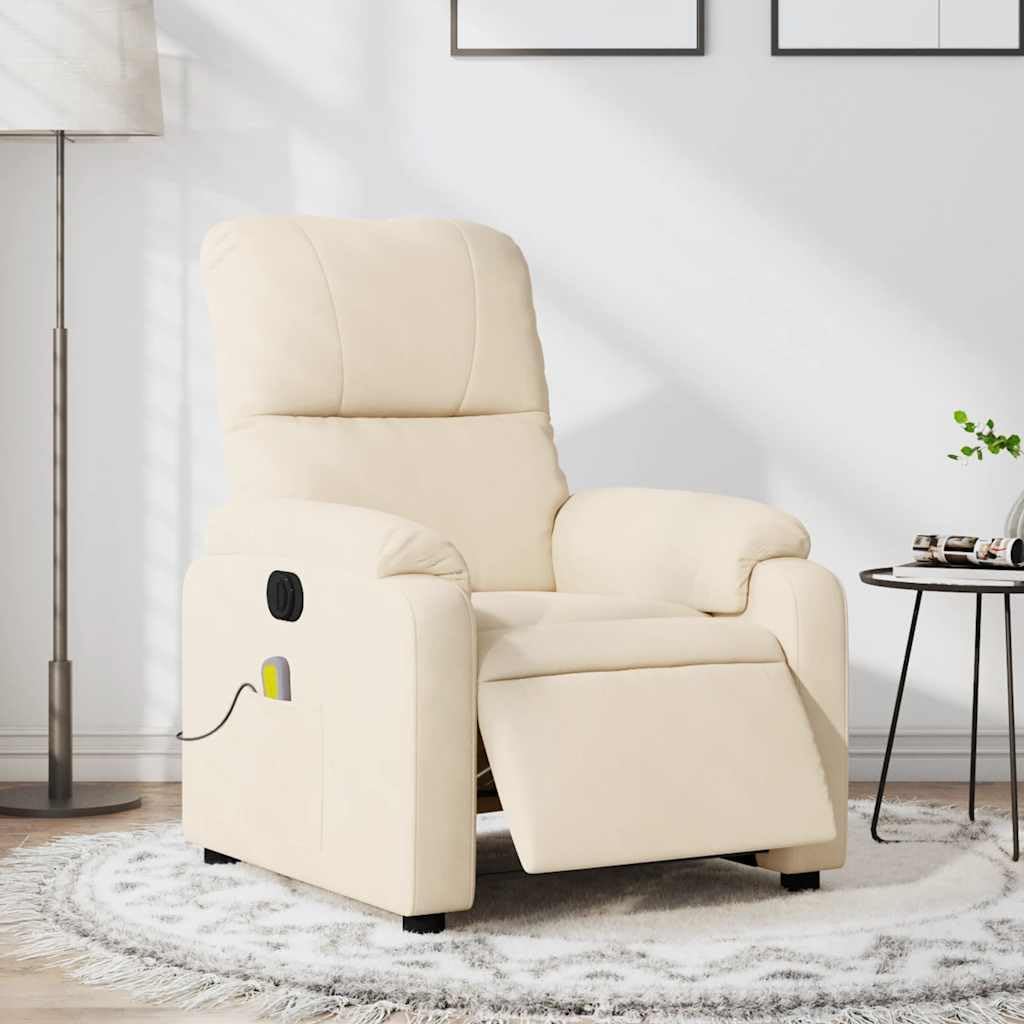

Image: The vidaXL Electric Massage Recliner Chair in beige, showcasing its design and appearance in a home environment.
Instrucțiuni de operare
Funcție de înclinare electrică
The recliner is equipped with an electric motor for automatic adjustment of the backrest and footrest. To recline, press the button located on the side of the chair. The chair can recline up to a maximum of 135 degrees. To return to the upright position, press the button again. This function allows you to find your preferred position for optimal comfort.
Image: Diagram illustrating the ergonomic design and various recline positions for reading, watching TV, and sleeping.
Funcția de masaj
The chair features a 6-point vibration massage function. Use the included remote control to select different massage programs, intensity levels, and positions. The massage function is powered via a USB connector, which requires a certified 5V USB power source (not supplied).
- Niveluri de intensitate: Choose from 3 levels of intensity.
- Massage Positions: Select from 3 different massage positions.
- Moduri de masaj: Utilize 5 distinct massage modes for varied experiences.
Image: Remote control for the massage function, displaying options for intensity, positions, and modes.
Întreţinere
Îngrijire și curățare
The recliner is upholstered in microfiber fabric, known for its durability and ease of maintenance. For general cleaning, spot clean any spills or stains immediately. For a more thorough cleaning, the fabric can be machine washed at 30 °C. Always ensure the fabric is completely dry before reassembly or use.
Imagine: Prim-plan view of the microfiber fabric, emphasizing its soft texture, quick-drying capability, and breathability.
Depanare
If you encounter any issues with your recliner, please refer to the following common troubleshooting steps:
- Reclining Function Not Working: Check if the power adapter is securely plugged into both the chair and a working wall outlet. Ensure all electrical connections within the chair are firm.
- Funcția de masaj nu se activează: Verify that the USB power source for the massage function is connected and providing 5V DC. Check the remote control batteries if applicable (remote control power source not specified, assume wired or internal).
- Zgomote neobișnuite: Inspect the chair for any loose components or obstructions in the reclining mechanism. Tighten any loose screws.
- Probleme de stabilitate: Ensure the chair is placed on a flat, stable surface and that all legs are securely attached and level.
Dacă problemele persistă după încercarea acestor pași, vă rugăm să contactați serviciul de asistență pentru clienți.
Specificații
| Caracteristică | Detaliu |
|---|---|
| Marca | vidaXL |
| Numărul de model | 3204927 |
| Culoare | Bej |
| Material | Microfiber fabric (100% polyester), plywood, metal |
| Material de umplere | Foam, polypropylene fiber |
| Seated Dimensions (W x D x H) | 75 x 89.5 x 103.5 cm (29.5 x 35.2 x 40.7 țoli) |
| Dimensiuni în poziție înclinată (L x A x Î) | 75 x 149 x 84.5 cm (29.5 x 58.7 x 33.3 țoli) |
| Lățimea scaunului | 50 cm (19.7 inchi) |
| Adâncimea scaunului | 57 cm (22.4 inchi) |
| Înălțimea scaunului de la podea | 42-44 cm (16.5-17.3 inchi) |
| Înălțimea cotierei de la podea | 58 cm (22.8 inchi) |
| Tip masaj | Masaj cu vibrații în 6 puncte (fără încălzire) |
| Massage Input Voltage | 5V DC |
| Massage Input Current | 2A |
| Intrare motor electric | 24V DC, 1.5A |
| Putere motor electric | 100-240 V ~, 50-60 Hz |
| Capacitate maximă de încărcare | 110 kg (242 lbs) |
| Greutatea articolului | 20.2 kg (44.5 lbs) |
| Asamblare necesară | Da |
| Utilizare recomandată | Relaxare |

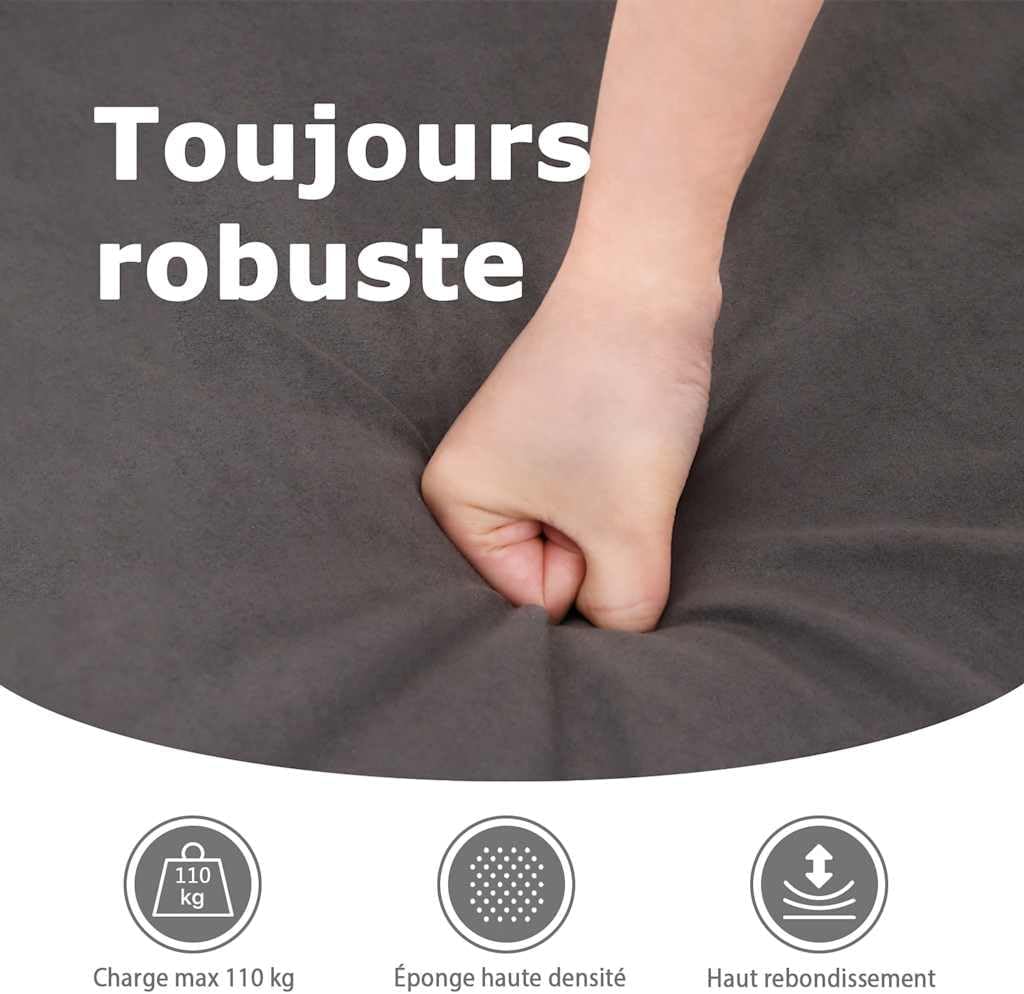

Image: A hand pressing into the chair's cushion, demonstrating the high-density foam and its robust, high-rebound properties.
Garanție și suport
Informații despre garanție
Specific warranty details are not provided in this manual. Please refer to your purchase documentation or contact the retailer for information regarding the warranty period and terms for your vidaXL Electric Massage Recliner Chair.
Asistență pentru clienți
For any questions, technical assistance, or to report issues not covered in this manual, please contact vidaXL customer support. Contact information can typically be found on the vidaXL official website sau prin intermediul platformei dvs. de achiziții.
