Manual de utilizare pentru trotineta electrică off-road Atomi Tuobo-1

1. Introducere

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Atomi Tuobo-1 Off Road Electric Scooter. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your scooter. Retain this manual for future reference.

2. Informații de siguranță

Operating an electric scooter carries inherent risks. Adhere to all local laws and regulations regarding electric scooter use. Always wear a helmet and appropriate safety gear, including knee and elbow pads. Ensure all components are securely fastened before each ride. Avoid riding in adverse weather conditions or on slippery surfaces. Do not operate the scooter under the influence of alcohol or drugs. This scooter is designed for adult use only.

• Verificare înainte de călătorie: Inspect tires, brakes, and all connections before each use.
• Mediul de mers: Use on appropriate terrain. The Tuobo-1 is designed for off-road use but exercise caution.
• Limită de greutate: Do not exceed the maximum weight capacity specified in the specifications section.
• Siguranța bateriei: Only use the provided charger. Do not modify the battery pack.

3. Conținutul pachetului

La despachetare, verificați dacă toate articolele enumerate mai jos sunt prezente și nedeteriorate:

• Atomi Tuobo-1 Electric Scooter
• Încărcător
• Manual de utilizare
• Instrumente de asamblare (dacă este necesar)
• Suport pentru telefon

4. Produs terminatview

The Atomi Tuobo-1 is an off-road electric scooter featuring a powerful dual motor system, a removable battery, and robust suspension for varied terrain. It also includes a handlebar-mounted phone holder.

4.1 Componente și caracteristici cheie

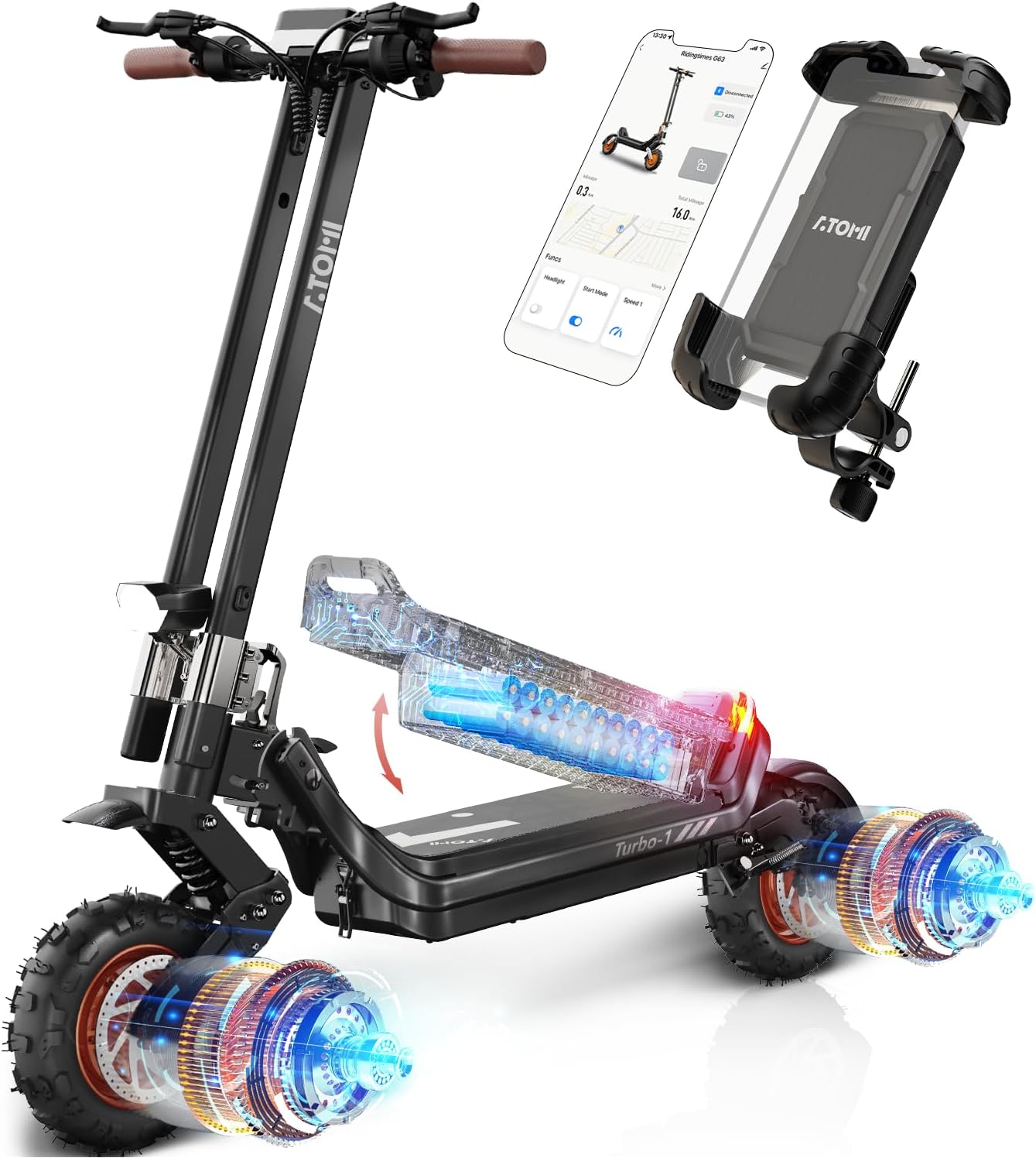

Imaginea 4.1: Pesteview of the Atomi Tuobo-1 Electric Scooter, showcasing its design, integrated phone holder, and internal components like the battery and dual motors.

• Motoare duble de 2400 W: Provides significant power for acceleration and climbing.
• 11-inch Knotty All-Terrain Tires: Designed for enhanced grip and stability on various surfaces.
• Quadruple Suspension: Front and rear dual spring suspension combined with C-type suspension absorbers for a smooth ride.
• Removable 20AH Battery: Offers a long range and convenient charging options.
• Safety Folding System: Permite depozitarea și transportul compact.
• Smart APP Connectivity: Enables control and monitoring via a smartphone application.
• Handlebar-Mounted Phone Holder: Securely holds smartphones for navigation or app access.

4.2 Powerful Dual Motor System

Imaginea 4.2: Detaliată view of the scooter's dual motor system, highlighting its 2400W power, 37 MPH max speed, 48V 20.8Ah battery, and 40° climbing capability.

4.3 Detachable Battery

Image 4.3: Illustration showing the removable 48V 20.8Ah battery pack, emphasizing its long-lasting life and ease of removal.

4.4 Quadruple Suspension System

Image 4.4: Visual representation of the front and rear dual spring suspension and C-type suspension absorber, designed for enhanced ride comfort.

4.5 Safety Folding System

Image 4.5: A user demonstrating the scooter's safety folding system, making it portable for transport in a car trunk.

4.6 Suport pentru telefon

Image 4.6: Illustrates the one-hand operation of the handlebar-mounted phone holder, designed for easy phone placement.

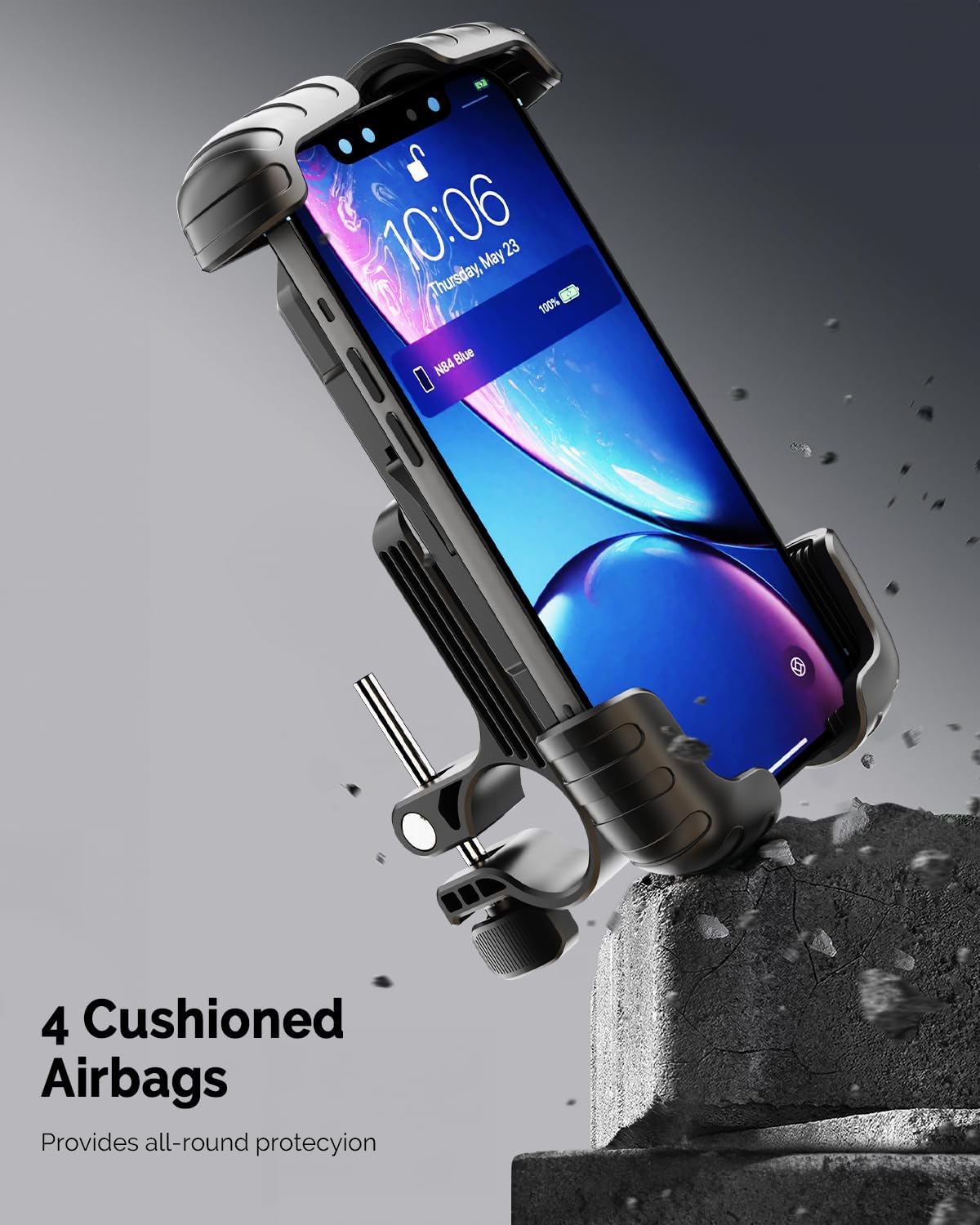

Imaginea 4.7: Detaliată view of the phone holder's design, featuring four cushioned airbags for all-round protection of the smartphone.

Image 4.8: Shows a smartphone mounted in the holder, displaying the Atomi scooter app interface alongside the scooter's digital dashboard, indicating adjustable positioning.

Image 4.9: Illustrates the phone holder's universal design, compatible with various smartphone sizes (4.7" to 6.8"), and its powerful security lock and collision-resistant features.

5. Configurare

5.1 Desfacerea trotinetei

1. Așezați trotineta pe o suprafață plană și stabilă.
2. Localizați mecanismul de pliere lângă baza coloanei de direcție.
3. Release the safety latch and carefully unfold the steering column until it locks into place. Ensure it is fully extended and secured.
4. Adjust the handlebar height if necessary using the quick-release clamp.

5.2 Încărcarea inițială a bateriei

1. Before first use, fully charge the battery. The battery can be charged while installed in the scooter or removed.
2. Connect the charger to the charging port on the scooter or directly to the removable battery.
3. Plug the charger into a standard wall outlet. The indicator light on the charger will typically turn red during charging and green when fully charged.
4. Charging time may vary, but typically takes several hours for a full charge. Refer to specifications for exact times.

5.3 Installing the Phone Holder

1. Attach the phone holder clamp to a suitable section of the handlebar.
2. Strângeți clamp securely using the provided tools until the holder is stable and does not rotate freely.
3. Adjust the angle and orientation of the phone holder for optimal viewing.

6. Instrucțiuni de utilizare

6.1 Pornire/Oprire

• Pentru a porni: Press and hold the power button on the display panel for a few seconds until the screen illuminates.
• Pentru a opri: Apăsați și țineți apăsat din nou butonul de pornire până când afișajul se stinge.

6.2 Mersul cu trotineta

1. Pune un picior pe punte și împinge-te cu celălalt picior pentru a câștiga impulsul inițial.
2. După ce vă mișcați, apăsați ușor maneta de accelerație pentru a cupla motorul.
3. Use the handlebar controls to adjust speed and activate lights.
4. To brake, gently squeeze the brake levers. Apply both brakes simultaneously for optimal stopping power.
5. Maintain a balanced posture and keep both hands on the handlebars while riding.

6.3 Using the Smart APP

• Download the Atomi scooter application from your smartphone's app store.
• Activați Bluetooth pe smartphone și deschideți aplicația.
• Follow the in-app instructions to pair your Atomi Tuobo-1 scooter.
• The app allows for monitoring speed, battery level, mileage, and may offer additional controls like locking the scooter or adjusting ride modes.

7. Întreținere

7.1 Curățare

Curățați-vă scuterul în mod regulat cu anunțuriamp cloth. Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components. Ensure the charging port cover is securely closed during cleaning.

7.2 Îngrijirea bateriei

• Încărcați complet bateria după fiecare utilizare, mai ales dacă o depozitați pentru o perioadă lungă de timp.
• If storing for more than 30 days, charge the battery to approximately 50-70% and recharge every 30-60 days to prevent deep discharge.
• Depozitați bateria într-un loc răcoros și uscat, ferit de lumina directă a soarelui și de temperaturi extreme.
• Do not attempt to open or repair the battery pack. Contact customer support for battery-related issues.

7.3 Presiunea anvelopelor

Check tire pressure regularly. Proper tire pressure is crucial for ride performance, range, and safety. Refer to the tire sidewall for recommended PSI or consult the specifications section.

7.4 Reglarea frânei

Periodically inspect brake pads and cables for wear. Adjust brake tension as needed to ensure responsive braking. If you are unsure how to adjust the brakes, seek professional assistance.

8. Depanare

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Atomi customer support.

9. Specificații

10. Garanție și asistență

Atomi provides a limited warranty for the Tuobo-1 Electric Scooter against defects in materials and workmanship under normal use. The specific terms and duration of the warranty may vary by region and purchase date. Please refer to the warranty card included with your product or visit the official Atomi website pentru informații detaliate despre garanție.

For technical support, warranty claims, or replacement parts, please contact Atomi customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (Tuobo-1) and proof of purchase readily available.

Atomi Official Website: Visit the Atomi Store on Amazon
