1. Introducere
Thank you for choosing the Atomi Turbo-1 Off Road Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.
2. Informații de siguranță
Siguranța dumneavoastră este primordială. Respectați întotdeauna următoarele instrucțiuni de siguranță:
- Always wear a helmet and appropriate safety gear (knee pads, elbow pads, gloves) when riding.
- Nu conduceți sub influența alcoolului sau a drogurilor.
- Respectați toate legile și reglementările locale de circulație.
- Evitați mersul pe suprafețe alunecoase, în condiții de umiditate ridicată, în ploaie abundentă sau în condiții de ploaie.
- Păstrați o distanță sigură față de alte vehicule și pietoni.
- Regularly inspect your scooter for any damage, loose parts, or wear before each ride.
- Ensure the battery is properly secured before riding.
- The scooter is designed for adult use. Do not allow children to operate it.
3. Conținutul pachetului
Vă rugăm să bifați căsuța pentru următoarele elemente:
- Atomi Turbo-1 Electric Scooter
- Scaun detașabil
- Suport pentru telefon
- Adaptor de încărcare
- Manual de utilizare
- Unelte de asamblare (dacă este cazul)
Imagine: Pesteview of the Atomi Turbo-1 Electric Scooter, including the detachable seat and phone holder, along with internal component visualization.
4. Configurare și asamblare
4.1 Despachetarea și inspecția inițială
Carefully remove all components from the packaging. Inspect for any signs of damage during transit. If any parts are missing or damaged, contact customer support immediately.
4.2 Instalarea ghidonului
Unfold the main stem of the scooter. Secure the handlebar into place, ensuring all locking mechanisms are engaged. Refer to the diagrams for proper alignment.
4.3 Instalare scaun
Insert the seat post into the designated slot on the scooter's deck. Adjust the height to your preference and tighten the quick-release clamp or bolts to secure it firmly.
4.4 Phone Holder Attachment
Attach the phone holder to the handlebar using the provided clamp. Ensure it is securely fastened and positioned for easy viewing without obstructing your ride. The holder features 4 cushioned airbags for secure phone retention.
Image: A hand demonstrating the one-hand operation of placing a smartphone into the handlebar-mounted phone holder.
Imagine: Un prim-plan view of the phone holder, highlighting its four cushioned airbags designed to provide all-round protection for the smartphone.
4.5 Încărcare inițială
Before first use, fully charge the scooter's battery. Connect the charging adapter to the scooter's charging port and then to a power outlet. The charging indicator will show the charging status. The Atomi Turbo-1 features a 48V 20.8Ah detachable battery for convenience.

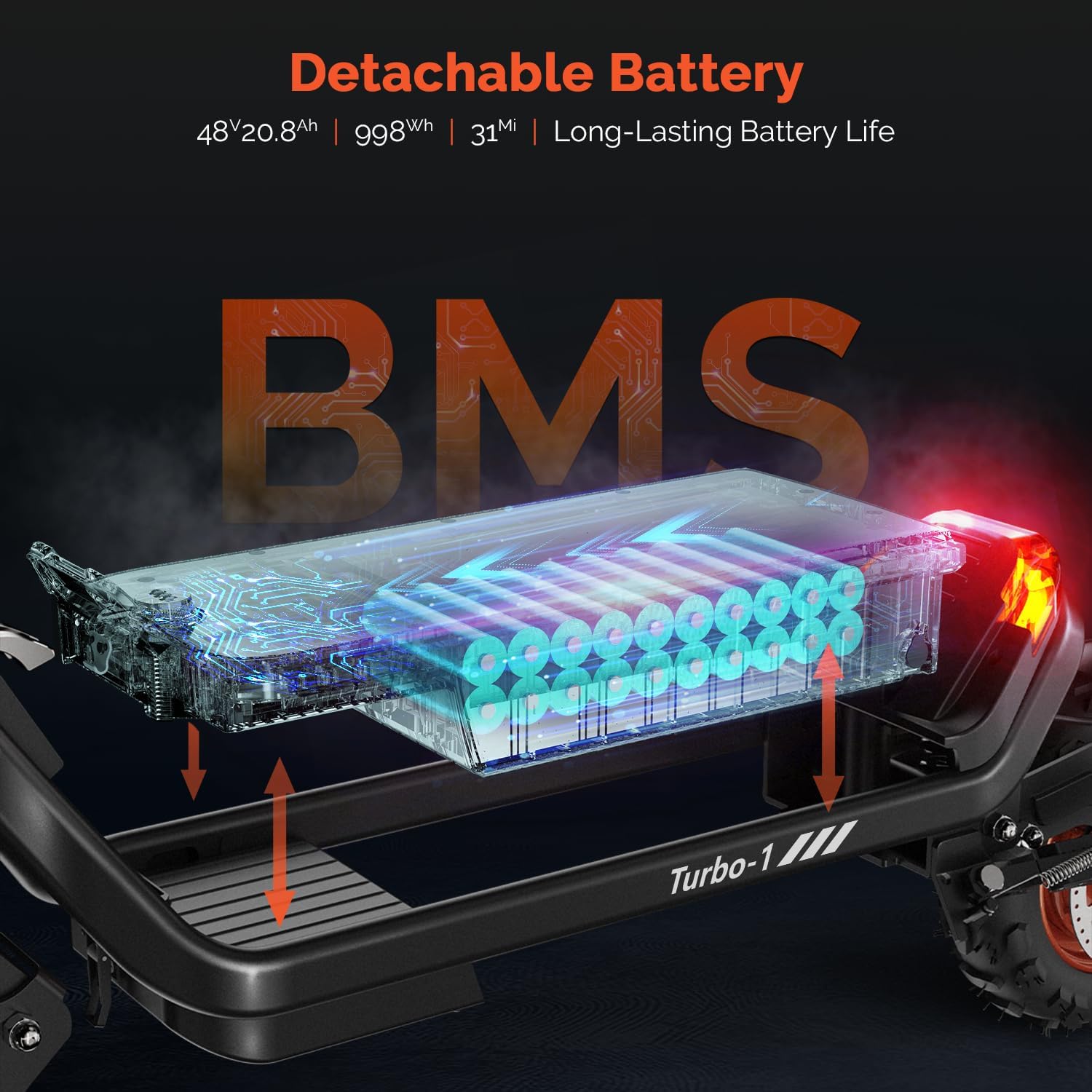

Image: An illustration showing the detachable battery compartment of the Atomi Turbo-1 scooter, emphasizing its easy removal and long-lasting capacity.
4.6 Tire Pressure Check
Ensure the 11-inch pneumatic tires are inflated to the recommended pressure before riding. Proper tire pressure is crucial for performance and safety.
4.7 Folding System
The scooter features a safety folding system for easy transport and storage. To fold, locate the folding mechanism on the stem and follow the instructions to collapse the scooter. Ensure it is securely locked in the folded position before carrying.
Image: A person demonstrating the safety folding system, easily placing the folded Atomi Turbo-1 scooter into a car trunk for convenient travel.
5. Instrucțiuni de utilizare
5.1 Pornire/Oprire
Press and hold the power button on the display to turn the scooter on. Repeat to turn it off. The display will show speed, battery level, and other relevant information.
5.2 Călărie
Place one foot on the deck and push off with the other foot to gain initial momentum. Gently press the throttle to accelerate. The Atomi Turbo-1 is equipped with a 2400W dual motor, providing powerful acceleration and hill-climbing capability.
Image: The Atomi Turbo-1 scooter positioned on a slope, illustrating its powerful 2400W dual motor system and ability to climb hills.
5.3 Frânare
Apply the brake levers to slow down or stop. The scooter features rear braking for effective stopping power. Always brake smoothly to avoid sudden stops.
5.4 Smart App Integration
Download the Atomi smart app to connect with your scooter via Bluetooth. The app allows you to monitor speed, battery life, mileage, and potentially adjust riding modes or lock the scooter. The phone holder provides a secure and adjustable mount for your device.
Image: A smartphone securely mounted in the phone holder, displaying the Atomi app interface with scooter information and controls, alongside the scooter's digital display.
Image: A composite image showing a rider on the scooter with the phone holder in use, and a close-up of the phone holder demonstrating its secure grip, ensuring anti-fall off during riding.
6. Întreținere
6.1 Îngrijirea bateriei
To prolong battery life, charge it regularly, even if not in use. Avoid completely draining the battery. Store the scooter in a cool, dry place when not in use.
6.2 Întreținerea anvelopelor
Regularly check tire pressure and inflate to the recommended PSI. Inspect tires for wear, punctures, or damage. Replace worn tires promptly.
6.3 Inspecția sistemului de frânare
Periodically check the brake levers, cables, and brake pads for proper function and wear. Adjust or replace components as needed to ensure effective braking.
6.4 Curățare
Curățați scuterul cu anunțuriamp Nu folosiți jeturi de apă sub presiune și nu scufundați trotineta în apă, deoarece acest lucru poate deteriora componentele electronice.
6.5 Verificări generale
Before each ride, check all bolts and fasteners to ensure they are tight. Inspect the frame, handlebars, and folding mechanism for any signs of damage or looseness. The scooter features quadruple suspension (front and rear dual spring suspension + C type suspension absorber) which should also be checked for proper function.
Imagine: O imagine detaliată view of the scooter's quadruple suspension system, highlighting the front and rear dual spring suspension and C-type suspension absorber for enhanced ride comfort.
7. Depanare
- Trotineta nu pornește: Check if the battery is charged and properly inserted. Ensure the power button is pressed firmly.
- Loss of power/range: Battery may be low or nearing end of life. Ensure proper charging habits. Check for loose connections.
- Frânele nu sunt eficiente: Inspect brake pads for wear and brake cables for proper tension. Adjust or replace as necessary.
- Zgomote neobișnuite: Stop riding immediately. Inspect for loose parts, damaged components, or foreign objects.
For issues not listed here, please contact Atomi customer support.
8. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Marca | Atomi |
| Numele modelului | Turbo 1 |
| Interval de vârstă (Descriere) | Adult |
| Caracteristica specială | Scaun |
| Numărul de roți | 2 |
| Materialul roții | Cauciuc |
| Material cadru | Aluminiu |
| Tip ghidaj | Plat |
| Dimensiunea roții | 11 inchi |
| Tip roată | Pneumatic |
| Tip suspensie | Suspensie dublă |
| Stil de frână | Frânare spate |
| Distanță maximă de acțiune | 34 mile |
| Puterea motorului | 2400W Dual Motor |
| Capacitatea bateriei | 48 V 20.8 Ah |
9. Garanție și asistență
Atomi provides a limited warranty for the Turbo-1 Electric Scooter. Please refer to the warranty card included in your package or visit the official Atomi website-ul pentru termenii și condițiile detaliate ale garanției.
For technical support, troubleshooting assistance, or parts inquiries, please contact Atomi customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model name (Turbo-1) and purchase details ready.
