1. Introducere

The Team Associated RC8B4.1 Team Kit is a high-performance 1/8 scale nitro off-road buggy designed for competitive racing. This kit requires assembly and additional components to be fully operational. This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your RC8B4.1 Team Kit.

1.1 Caracteristici cheie

• RC8B4.1 RWB Chassis and Side Guards
• Low CG and Lightweight Aluminum Shock Towers
• 16mm Front and Rear Shock Bodies
• Durable Rear Hub Design with Wide Footprint
• 47T Machined Spur Gear

2. Asamblare și configurare

This section outlines the general steps for assembling your RC8B4.1 Team Kit. Refer to the detailed assembly manual included in your kit for specific instructions and part numbers. Ensure you have all necessary tools before beginning assembly.

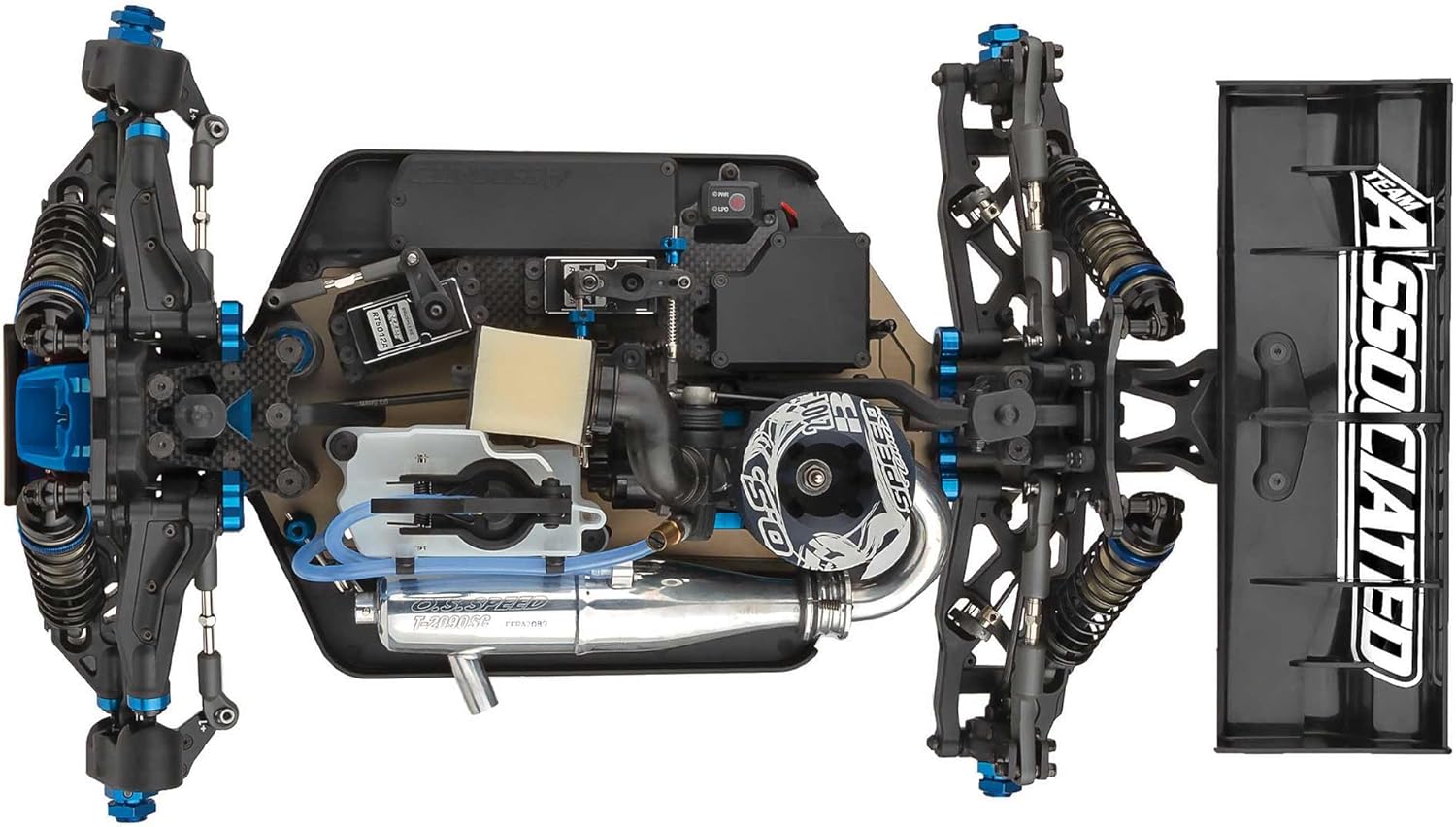

2.1 Ansamblul șasiului

Begin by assembling the main chassis components. The RC8B4.1 features a new RWB chassis design with a tapered profile for enhanced stiffness and predictable handling. Carefully attach the side guards and ensure all screws are tightened to specification.

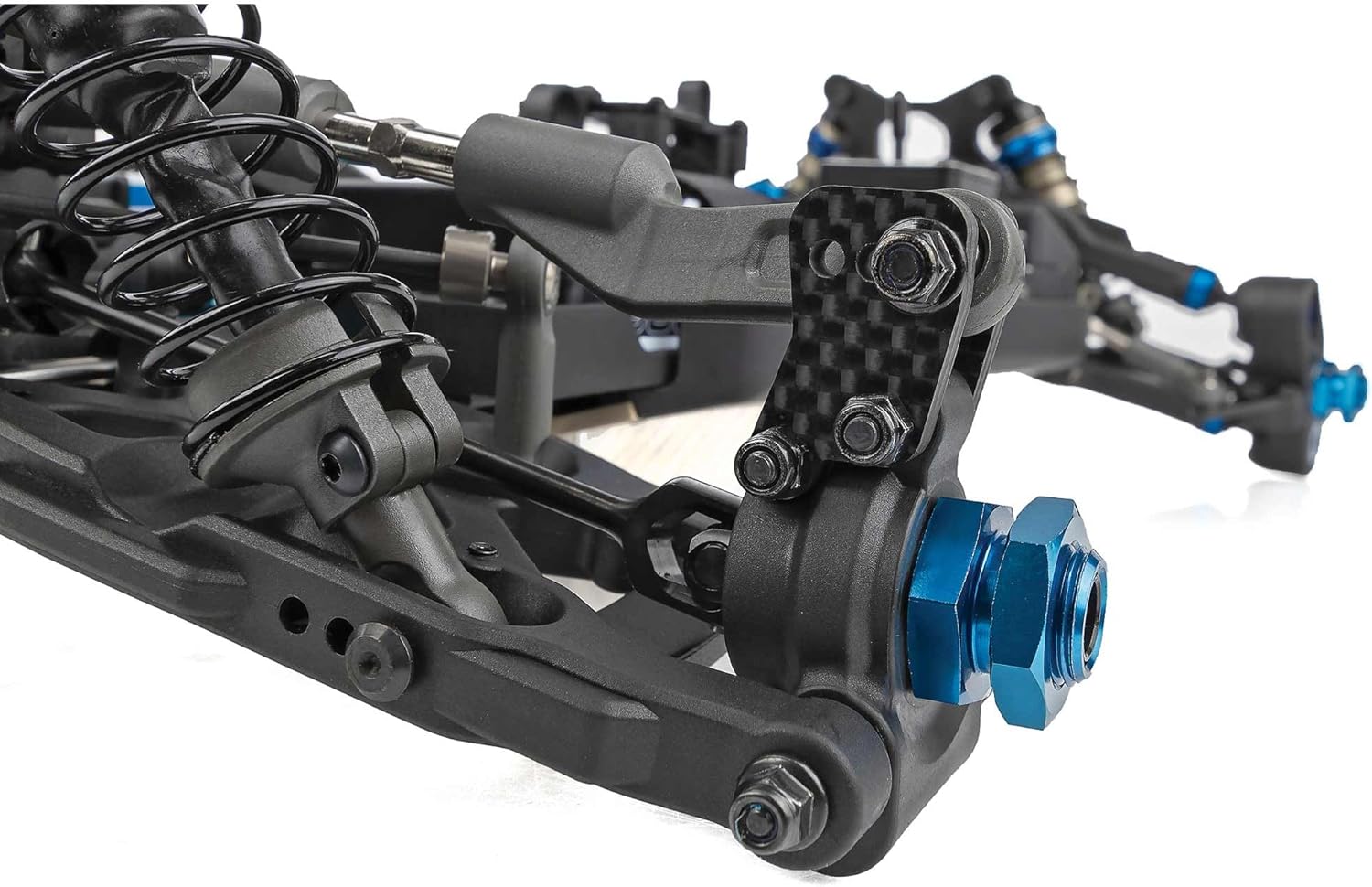

2.2 Sistem de suspensie

Assemble the front and rear suspension arms, shock towers, and shock absorbers. The kit includes new low-CG aluminum shock towers and shorter 16mm shock bodies. Pay close attention to the orientation of the 3-hole rear suspension arms and the installation of the emulsion shock cap seals.

2.3 Drivetrain Components

Install the universal joints, 44/13 bevel gears, and the 47T spur gear. Ensure all bearings are properly seated and lubricated. Correct assembly of the drivetrain is crucial for smooth power delivery and durability.

2.4 Engine and Fuel System Installation

Mount your chosen nitro engine and connect the fuel tank, fuel lines, and exhaust system. Ensure all connections are secure and leak-free. Proper routing of fuel lines is essential for reliable engine operation.

2.5 Radio System Installation

Install your receiver, servos, and battery pack. Ensure all wires are neatly routed and secured to prevent interference or damage during operation. Calibrate your radio system according to its manufacturer's instructions.

2.6 Ajustări inițiale

After assembly, perform initial adjustments for ride height, camber, toe, and shock settings. These adjustments are critical for optimal performance and handling. Consult the detailed kit manual for recommended starting settings.

3. Operating Your RC8B4.1

This section provides guidance on safely operating your RC8B4.1 Team Kit. Always operate your RC vehicle in a safe and responsible manner.

3.1 Pre-Run Checklist

• Check fuel level and condition.
• Ensure all radio batteries are fully charged.
• Inspect all screws and fasteners for tightness.
• Verify proper operation of steering and throttle servos.
• Check tire condition and pressure.

3.2 Engine Starting Procedure

1. Prime the engine by covering the exhaust and pulling the starter cord until fuel reaches the carburetor.
2. Attach a glow plug igniter to the glow plug.
3. Trageți ferm și lin de șnurul de pornire până când motorul pornește.
4. Lăsați motorul să se încălzească câteva minute înainte de a conduce.

3.3 Sfaturi de conducere

• Start with gentle throttle inputs to familiarize yourself with the vehicle's response.
• Practice steering and braking in an open area.
• Avoid prolonged full-throttle operation, especially during the break-in period.
• Be aware of your surroundings and avoid obstacles or other people.

3.4 Post-Run Procedures

• Turn off the engine and radio transmitter.
• Remove any remaining fuel from the tank.
• Clean the vehicle thoroughly to remove dirt and debris.
• Inspect for any damage or loose parts.

4. Ghid de întreținere

Regular maintenance is crucial for the longevity and performance of your RC8B4.1 Team Kit.

4.1 Curățare regulată

After each run, clean the buggy using a soft brush, compressed air, or a damp cloth. Pay attention to areas where dirt and debris can accumulate, such as around the suspension and drivetrain components.

4.2 Drivetrain Maintenance

• Inspect gears for wear and replace as needed.
• Clean and re-grease universal joints and differentials periodically.
• Check bearings for smooth operation and replace any rough or seized bearings.

4.3 Suspension Maintenance

• Inspect shock shafts for bends or damage.
• Check shock oil levels and replace as necessary.
• Ensure suspension arms move freely without excessive play.

4.4 Engine Care

• Curățați regulat filtrul de aer.
• Inspect the glow plug and replace if worn.
• Ensure all engine mounting screws are tight.
• After each run, apply after-run oil to the engine to prevent corrosion.

4.5 Depozitare

When storing your RC8B4.1, ensure it is clean and dry. Remove batteries from the radio and vehicle. Store in a cool, dry place away from direct sunlight.

5. Depanarea problemelor comune

This section addresses common problems you might encounter with your RC8B4.1 Team Kit.

5.1 Engine Related Issues

• Motorul nu pornește: Check glow plug, fuel level, fuel lines for clogs, and carburetor settings. Ensure the engine is properly primed.
• Engine stalls frequently: Adjust carburetor settings (idle, high-speed, low-speed needles). Check for air leaks in fuel lines or engine seals.
• Lipsa puterii: Inspect air filter for clogs, check glow plug, and verify carburetor tuning.

5.2 Handling and Performance Issues

• Poor steering response: Check steering servo operation, linkages for binding, and front suspension settings (toe, camber).
• Unstable handling: Verify shock oil viscosity, spring rates, and overall suspension setup. Ensure tires are in good condition and properly inflated.
• Excessive noise from drivetrain: Inspect gears for wear, check differential fluid levels, and ensure all bearings are smooth.

5.3 Radio System Issues

• Pierderea controlului: Check transmitter and receiver battery levels. Ensure antenna is properly extended and free from obstruction. Re-bind transmitter and receiver if necessary.
• Erratic servo movement: Check for loose connections, damaged wires, or interference.

6. Specificațiile produsului

Below are the key specifications for the Team Associated RC8B4.1 Team Kit (ASC80949).

7. Garanție și asistență pentru clienți

Team Associated products are manufactured to high standards. For specific warranty information, please refer to the documentation included with your kit or visit the official Team Associated website. Termenii de garanție acoperă de obicei defectele de fabricație.

7.1 Asistență pentru clienți

If you encounter any issues or have questions regarding your RC8B4.1 Team Kit, please contact Team Associated customer support directly. Their contact information can typically be found on their official website or in the kit's packaging.

Website: www.associatedelectrics.com
