Manual de utilizare pentru sistemul Mesh WiFi 6 MERCUSYS Halo H1500X AX1500 (pachet de 3)

1. Introducere

This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your MERCUSYS Halo H1500X AX1500 WiFi 6 Mesh System (3-Pack). Please read this guide carefully to ensure proper installation and optimal performance of your mesh network.

2. Conținutul pachetului

Verificați dacă pachetul dvs. conține următoarele articole:

• 3 x Halo H1500X Units
• 3 x adaptoare de alimentare
• 1 x cablu Ethernet
• 1 x Ghid de instalare rapidă

Image: The MERCUSYS Halo H1500X 3-Pack Mesh WiFi System, including three white cube-shaped units and an Ethernet cable, displayed within its red retail packaging.

3. Produs terminatview

The MERCUSYS Halo H1500X is an AX1500 WiFi 6 Mesh System designed to provide seamless, high-speed internet coverage throughout your home. Key features include:

• Dual-Band WiFi 6 Speeds: Up to 1500 Mbps (1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz).
• Roaming fără întreruperi: Halo units work together to automatically switch between nodes as you move, maintaining a single unified WiFi network name and password.
• Acoperire completă a locuinței: A 3-pack system can cover up to 550 m² (approximately 5920 sq ft), eliminating WiFi dead zones.
• Conectați mai multe dispozitive: Provides fast and stable connections for over 100 devices.
• Gestionare ușoară a rețelei: Configure and manage your WiFi quickly using the MERCUSYS app, including parental controls for managing online time and content.
• Porturi Gigabit complete: Each unit includes Gigabit Ethernet ports for ultra-fast wired connections.

Image: Three white, cube-shaped MERCUSYS Halo H1500X units, viewed from the front, showcasindatorită designului lor minimalist.

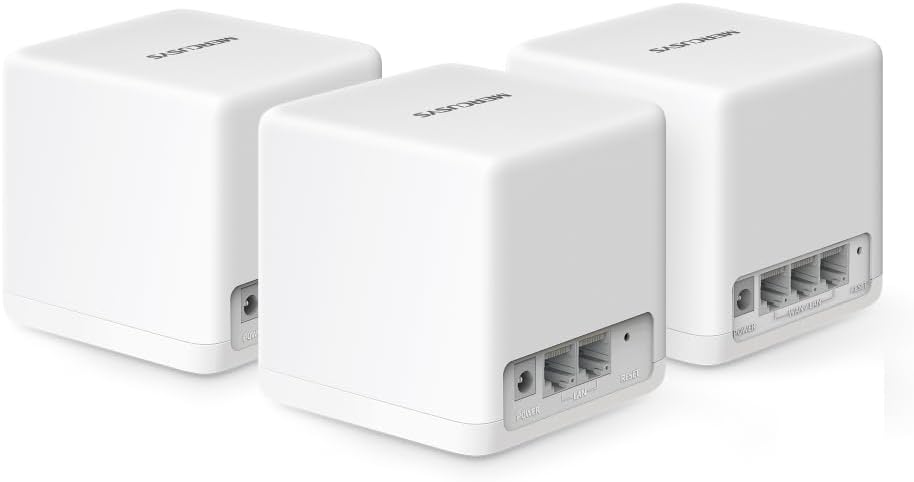

Imagine: Partea din spate view of three MERCUSYS Halo H1500X units, highlighting the power input, WAN/LAN, and LAN ports on each device.

Image: An infographic illustrating key features of the Halo H1500X, including 1500 Mbps Wi-Fi 6, seamless roaming, Mercusys app control, connectivity for over 100 devices, up to 550 m² coverage, and Gigabit ports.

4. Ghid de instalare

Follow these steps to set up your MERCUSYS Halo H1500X Mesh System:

1. Descărcați aplicația MERCUSYS: Caută "MERCUSYS" in your mobile device's app store (App Store for iOS or Google Play Store for Android) and download the application.
2. Connect the Main Halo Unit:
   • Unpack one Halo unit. This will be your main unit.
   • Connect your modem's Ethernet port to any Ethernet port on the main Halo unit using the provided Ethernet cable.
   • Connect the power adapter to the main Halo unit and plug it into a power outlet.
   • Așteptați ca indicatorul LED de pe unitatea Halo să se aprindă continuu în albastru, indicând faptul că este gata de configurare.
3. Configure the Main Halo Unit via App:
   • Open the MERCUSYS app on your smartphone or tablet.
   • Follow the on-screen instructions to create a MERCUSYS ID (if you don't have one) and set up your main Halo unit. This includes creating your new WiFi network name (SSID) and password.
4. Add Additional Halo Units:
   • Place the remaining Halo units in desired locations within your home to extend coverage. Ensure they are within range of another Halo unit or the main unit.
   • Connect the power adapters to the additional Halo units and plug them into power outlets.
   • The additional units will automatically detect and join the existing mesh network. Wait for their LED indicators to turn solid blue.
   • You can verify the connection and signal strength of each unit through the MERCUSYS app.

Image: A visual guide showing the four steps for setting up the Halo H1500X: identifying components, connecting devices (modem to Halo), configuring the main Halo via the app, and powering on additional units for automatic network integration.

5. Instrucțiuni de utilizare

Once your Halo Mesh System is set up, it operates as a single, unified WiFi network. Your devices will automatically connect to the strongest signal as you move around your home, ensuring a seamless online experience.

5.1 Using the MERCUSYS App

The MERCUSYS app is your central control panel for the mesh system:

• Managementul dispozitivului: View all connected devices, their connection status, and which Halo unit they are connected to.
• Control parental: Creați utilizator profiles, set time limits for internet access, and filter content for specific devices.
• Rețea de oaspeți: Easily create a separate WiFi network for guests, keeping your main network secure.
• Network Prioritization (QoS): Prioritize bandwidth for specific devices or activities (e.g., gaming, streaming) to ensure optimal performance.
• Actualizări firmware: Check for and install the latest firmware updates to ensure security and performance.

Image: A smartphone screen displaying the MERCUSYS app interface, showing a list of connected devices and their respective network speeds, illustrating easy network management.

5.2 Indicatori LED

The LED on each Halo unit provides status information:

• Albastru solid: Funcționează corect.
• Albastru pulsatoriu: Starting up or connecting.
• Roșu continuu: No internet connection or an issue with the unit.
• Roșu pulsatoriu: Disconnected from the mesh network.

6. Întreținere

To ensure the longevity and optimal performance of your MERCUSYS Halo Mesh System, consider the following maintenance tips:

• Actualizări regulate de firmware: Check the MERCUSYS app periodically for new firmware updates. Updates often include security patches, performance improvements, and new features.
• Plasare optimă: Ensure Halo units are placed in open areas, away from obstructions like large metal objects, thick walls, or other electronic devices that may cause interference.
• curatenie: Gently wipe the units with a soft, dry cloth to remove dust. Do not use liquid cleaners or abrasive materials.
• Repornire: If you experience minor network issues, try restarting your Halo units and modem. Unplug them from power, wait 30 seconds, then plug them back in.

7. Depanare

This section addresses common issues you might encounter with your Halo Mesh System.

7.1 Fără conexiune la internet

• Verificați modemul: Asigurați-vă că modemul funcționează corect și are o conexiune activă la internet.
• Conexiuni prin cablu: Verify that the Ethernet cable connecting your modem to the main Halo unit is securely plugged in.
• Halo LED: If the main Halo unit's LED is solid red, it indicates no internet connection. Check your modem and ISP status.
• Repornire: Restart your modem and then your main Halo unit.

7.2 Poor WiFi Coverage or Slow Speeds

• Plasarea unității: Relocate Halo units to optimize coverage. Ensure they are not too far apart and are centrally located. Refer to the coverage diagram in the Product Overview.
• Interferență: Move Halo units away from potential sources of interference such as microwaves, cordless phones, or large metal objects.
• Backhaul Connection: For optimal performance, especially in multi-story homes or large areas, consider using an Ethernet cable to connect Halo units (wired backhaul) if possible. This provides a more stable and faster connection between units than wireless backhaul.
• Device Count: While the system supports over 100 devices, excessive simultaneous high-bandwidth usage can impact performance.
• Firmware: Ensure all Halo units are running the latest firmware.

7.3 Cannot Connect to the MERCUSYS App

• Conexiune WiFi: Ensure your smartphone is connected to the Halo WiFi network.
• Versiunea aplicației: Make sure you have the latest version of the MERCUSYS app installed.
• MERCUSYS ID: Verify your MERCUSYS ID and password.

8. Specificații

9. Garanție și asistență

For warranty information and technical support, please refer to the official MERCUSYS website or contact their customer service. Details are typically provided in the product packaging or on the manufacturer's support pages.
