Manual de instrucțiuni pentru mașina de spălat automată portabilă KRIB BLING de 17.7 kg (model XQB)

1. Introducere

Thank you for choosing the KRIB BLING 17.7 lbs Portable Automatic Washing Machine. This manual provides essential information for the safe and efficient operation of your appliance. Please read it thoroughly before use and retain it for future reference.

This compact, full-automatic washing machine is designed for convenience in various living spaces, including apartments, dorms, RVs, and for camping. It features a 17.7 lbs capacity, 10 washing programs, and 8 water level selections to meet diverse laundry needs.

2. Instrucțiuni importante de siguranță

• Always ensure the washing machine is placed on a stable, level surface to prevent vibration and noise during operation.
• Do not overload the machine beyond its 17.7 lbs capacity. Refer to the capacity guidelines for different fabric types.
• Keep children and pets away from the appliance during operation. Utilize the child lock feature for added safety.
• Ensure all water inlet and drain hoses are securely connected to prevent leaks.
• Unplug the appliance from the power outlet and turn off the water supply when not in use or during maintenance.
• Do not attempt to repair or modify the appliance yourself. Contact qualified service personnel for any repairs.

3. Ce se află în cutie

Your KRIB BLING Portable Automatic Washing Machine package includes:

• 1 x KRIB BLING Automatic Washing Machine
• 1 x manual de instrucțiuni
• 1 x Furtun de admisie a apei
• 1 x furtun de scurgere
• 1 x Washing Impeller
• 1 x Adaptor

4. Configurare și instalare

Urmați acești pași pentru a configura mașina de spălat:

1. Despachetarea: Scoateți cu grijă mașina de spălat și toate accesoriile din ambalaj.
2. Pozitionare: Place the machine on a firm, level surface. Ensure there is adequate space around the unit for ventilation and hose connections.
3. Connecting the Water Inlet Hose: Attach one end of the inlet hose to the water inlet on the back of the washing machine. Connect the other end to a suitable water faucet. Ensure all connections are tight to prevent leaks.
4. Conectarea furtunului de evacuare: Securely attach the drain hose to the drain outlet on the machine. Position the other end of the drain hose into a sink, bathtub, or designated drain area. The built-in drain pump allows for flexible drainage angles.
5. Conexiune de alimentare: Conectați cablul de alimentare la o priză cu împământare.

Image: The portable washing machine with its water inlet hose connected to a standard kitchen faucet, ready for operation.

Imagine: O imagine detaliată view highlighting the inlet pipe and water inlet on the washing machine, indicating where connections should be made.

5. Instrucțiuni de utilizare

Your washing machine features a multi-functional control panel with an LED display for easy operation.

Imagine: Un prim-plan view of the control panel, showing the LED display, program selection buttons, water level options, and child lock indicator.

5.1. Panoul de control pesteview

• Display LED: Shows remaining time, delay start hours, and current program stage.
• Selectarea programului: Choose from 10 washing programs.
• Water Level Selection: Select from 8 water levels (Minimum 1/2 to High 7/8).
• Pornire întârziată: Set a delayed start time for your wash cycle.
• Blocare pentru copii: Previne modificările accidentale ale setărilor în timpul funcționării.

5.2. Programe de spălare

The machine offers 10 distinct programs:

1. Standard
2. Moale
3. Spălare rapidă
4. Greutate
5. Spălare la înmuiat
6. Numai spălare
7. Numai rotire
8. Curățarea cuvei
9. Tub Air Dry
10. Reciclarea apei

To select a program, press the 'Program' button until your desired program number is displayed on the LED screen.

5.3. Water Level Selection

After selecting a program, you can adjust the water level by pressing the 'Water Level' button. Choose from 8 available levels to match your laundry load size.

5.4. Funcția de blocare pentru copii

To activate the child lock, press and hold the 'Water Level' and 'Program' buttons simultaneously for 3 seconds. The 'CL' indicator will appear on the LED display. To deactivate, repeat the process.

5.5. Pornirea unui ciclu de spălare

1. Load your clothes into the inner tub.
2. Add appropriate detergent.
3. Press the 'Power on/off' button.
4. Select your desired washing program and water level.
5. Press the 'Start/Pause' button to begin the cycle.

6. Caracteristici cheie

• Full Automatic Operation: This 2-in-1 compact washer handles washing and spinning automatically after program and water level selection, freeing up your time.
• Pompă de scurgere integrată: Equipped with a powerful drain pump for convenient water drainage from various angles.
• Portable and Space-Saving Design: Its compact size makes it an ideal laundry solution for small living spaces such as RVs, camping setups, dorm rooms, and apartments.
• Automatic Imbalance Adjustment: The machine features an imbalance adjustment system to minimize shaking and vibration during wash and spin cycles, ensuring stability and reducing noise.
• Capacitate generoasă: The inner tub can accommodate up to 17.7 lbs of laundry, suitable for households of 3-4 members.
• Durable Stainless Steel Tub: The inner tub is constructed from stainless steel with a diamond honeycomb design to protect clothing from damage during washing.

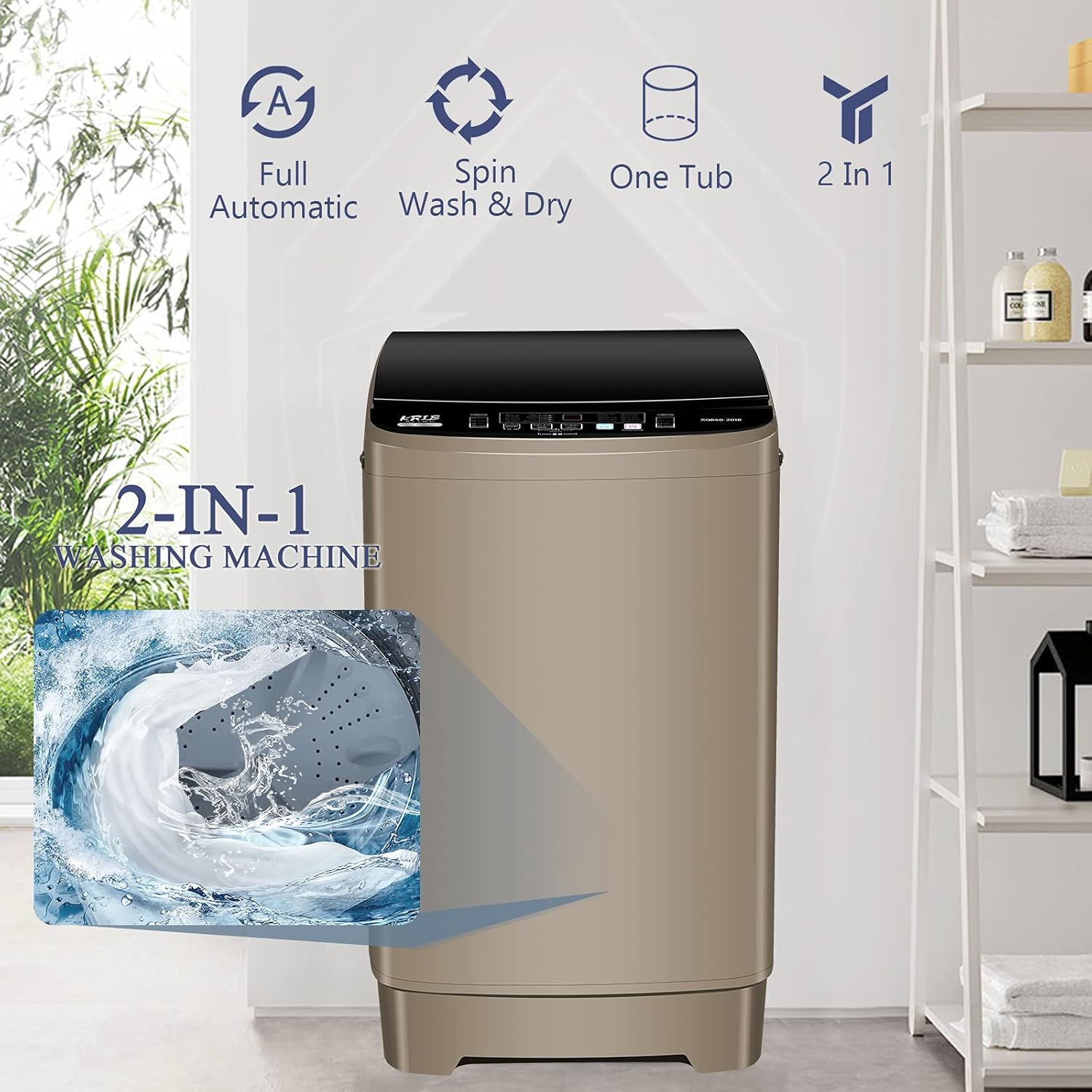

Imagine: Produsul principal view of the KRIB BLING portable washer, highlighting its 17.7 lbs capacity and compact dimensions.

Image: A diagram demonstrating the functionality of the integrated drain pump, allowing water to be expelled efficiently.

Image: The portable washing machine is depicted in different compact settings, illustrating its suitability for apartments, dorms, and RV camping.

Image: An illustration demonstrating the automatic imbalance adjustment feature, which helps maintain stability and reduce noise during operation.

Imagine: O secțiune view of the powerful motor, emphasizing its high speed, all-copper wiring, stability, and durability for effective cleaning.

Image: A close-up of the stainless steel inner tub, showcasing its diamond honeycomb design and mini drainage holes for gentle yet effective washing.

7. Întreținere și îngrijire

• Curățarea exteriorului: Ștergeți exteriorul mașinii cu un material moale, damp pânză. Evitați curățarea abrazivă.
• Cleaning the Inner Tub: Use the 'Tub Clean' program regularly to maintain hygiene and prevent odor buildup.
• Curățarea filtrului: Periodically check and clean the built-in lint filter to ensure optimal performance.
• Furtun de scurgere: Ensure the drain hose is free from kinks or blockages.
• Depozitare: If storing the machine for an extended period, drain all water, clean the tub, and unplug the power cord.

8. Depanare

Dacă întâmpinați probleme cu mașina de spălat, consultați următoarele probleme și soluții comune:

• Mașina nu pornește: Asigurați-vă că este conectat corect cablul de alimentare și că alimentarea cu apă este pornită. Verificați dacă capacul este închis corect.
• Scurgeri de apă: Verify that all hose connections (inlet and drain) are tight and secure. Check for any damage to the hoses.
• Vibrații/zgomot excesiv: Ensure the machine is on a level surface. Reduce the laundry load if it is overloaded. The automatic imbalance adjustment system should help mitigate this.
• Drenaj deficitar: Check the drain hose for kinks or blockages. Ensure the drain pump is functioning correctly.
• Clothes Not Clean: Ensure you are using the correct amount of detergent and selecting an appropriate wash program and water level for the load size and fabric type.

For persistent issues not covered here, please refer to the warranty and support section.

9. Specificații

10. Garanție și asistență

This KRIB BLING washing machine comes with a 1-year manufacturer's warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support, warranty claims, or any questions regarding your product, please refer to the contact information provided in your purchase documentation or on the official KRIB BLING website-ul.
