Introducere
This manual provides detailed instructions for the assembly, operation, and maintenance of your BOMGE Boom Arm Mic Stand MS808. Designed for podcasts, streaming, gaming, home office, and recording environments, this stand offers stability and flexibility for various microphone setups. Please read this manual thoroughly before use to ensure proper installation and optimal performance.
Image: The BOMGE Boom Arm Mic Stand MS808, showcasing its design and color. A microphone is shown attached to the arm.
Conținutul pachetului
Verify that all components are present in the package before proceeding with assembly.
- Braț Stand
- Tabelul Clamp
- 3/8" to 1/4" Screw Adapter
- 3/8" to 5/8" Screw Adapter
Image: A visual representation of the items included in the BOMGE Boom Arm Mic Stand MS808 package: the arm stand, table clamp, and two screw adapters.
Instrucțiuni de configurare
- Attach the Table Clamp: Securely fasten the table clamp to the edge of your desk or desired surface. Ensure the clamp is tightened firmly to prevent movement during use. The clamp is designed to accommodate various desk thicknesses.
Image: The table clamp component of the boom arm stand, shown attached to a desk edge.
- Insert the Arm Stand: Insert the base of the boom arm stand into the hole on the table clamp. The arm should rotate freely within the clamp.
- Mount Your Microphone:
- The stand features a standard 5/8" connector.
- If your microphone requires a different thread size, use the provided 3/8" to 1/4" or 3/8" to 5/8" screw adapters as needed.
- Screw your microphone or shock mount onto the threaded connector at the end of the boom arm. Ensure it is securely fastened.
Image: The boom arm stand with a microphone attached, demonstrating broad compatibility with various microphone devices.
- Organizare de cabluri: The boom arm features integrated cable management channels. Gently pry open the covers on the back of the lower arm and the underside of the upper arm. Route your microphone cable through these channels for a clean and organized setup. Press the covers back into place once the cable is routed.
Instrucțiuni de operare
Reglarea brațului brațului
The BOMGE Boom Arm Mic Stand is designed for flexible positioning to optimize your microphone placement for various activities such as podcasting, gaming, or streaming.
- Rotație 360°: The arm can rotate 360 degrees at its base, allowing you to swing the microphone into position or out of the way as needed.
- Ajustare multi-unghi: The arm features multiple joints that allow for flexible adjustment of height and reach. The joints are tension-adjustable to hold your microphone securely in any desired position.
- Acoperire verticală: The arm provides a vertical reach of up to 800 mm (31.5 inches), suitable for extending over most monitors.
- Reglarea tensiunii: For heavier microphones (up to 3.5 lbs / 1.6 kg), the internal spring system can be adjusted to increase tension, ensuring the arm remains stable and prevents accidental drops.
Image: The boom arm stand demonstrating flexible adjustment from multiple angles, highlighting its range of motion.
Imagine: Detaliată view of the BOMGE Boom Arm Mic Stand MS808's adjustable joints, showing 210° and 180° rotation capabilities for precise microphone positioning.
Întreţinere
To ensure the longevity and optimal performance of your BOMGE Boom Arm Mic Stand, follow these maintenance guidelines:
- curatenie: Wipe the stand with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents, which can damage the finish.
- Inspecție comună: Periodically check the tension of the joints. If the arm feels loose or struggles to hold your microphone's weight, adjust the tension screws as necessary.
- Clamp Securitate: Asigurați-vă că biroul clamp remains tightly secured to your surface. Re-tighten if any looseness is detected to maintain stability.
- Cable Channels: Keep the cable management channels clear of obstructions.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Brațul nu își menține poziția sau se lasă. | Insufficient joint tension; microphone too heavy. | Adjust the tension screws on the arm joints. Ensure microphone weight does not exceed 3.5 lbs (1.6 kg). |
| Suportul se simte clătinat sau instabil. | Birou clamp not securely fastened; uneven surface. | Strângeți din nou clemele birouluiamp firmly. Ensure the desk surface is stable and flat. |
| Squeaking noise during adjustment. | Friction in joints. | Apply a small amount of silicone-based lubricant to the moving parts of the joints. |
| Microphone cannot be screwed onto the arm. | Incorrect thread size. | Use the appropriate 3/8" to 1/4" or 3/8" to 5/8" screw adapter. |
Specificații
- Număr de model: MS808
- Material: Metal
- Culoare: Roz
- Capacitate maximă de încărcare: 3.5 lbs (1.6 kg)
- Acoperire verticală: 800 mm (31.5 țoli)
- Product Dimensions (folded): Aproximativ 17.72 x 3.94 x 2.36 inchi (45 x 10 x 6 cm)
- Tip conector: 5/8-inch thread (with 3/8" to 1/4" and 3/8" to 5/8" adapters included)
- Caracteristici: Internal springs, integrated cable management channels, 360° swivel base, multi-angle adjustable joints.
Image: A diagram illustrating the BOMGE Boom Arm Mic Stand MS808's maximum load capacity of 3.5 lbs and its dimensions, comparing it to other stands.

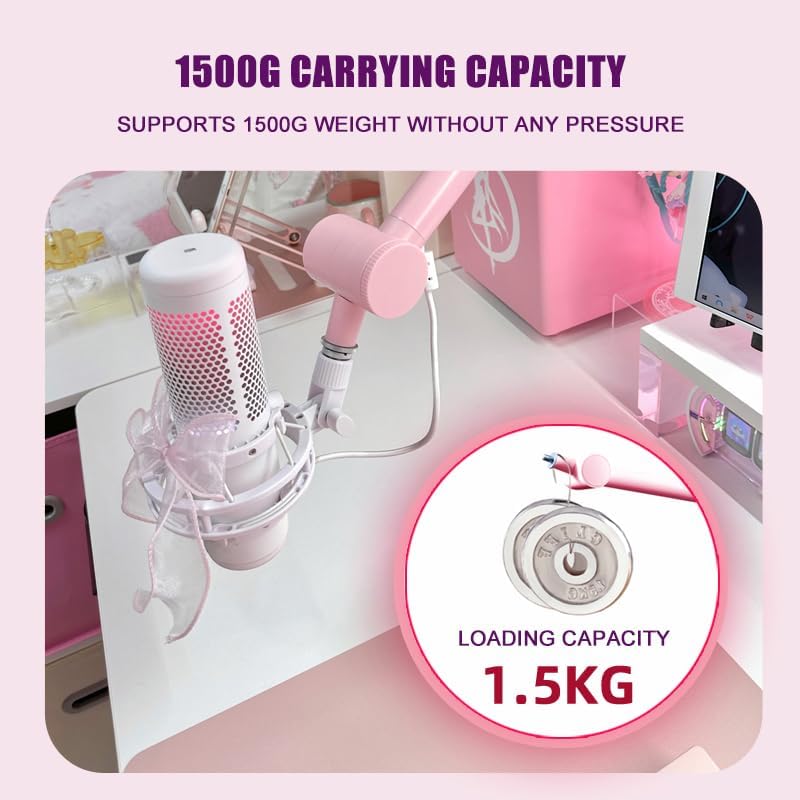

Image: A close-up illustrating the 1500g (1.5kg) carrying capacity of the BOMGE Boom Arm Mic Stand MS808, indicating its ability to support significant weight.
Garanție și suport
For warranty information or technical support regarding your BOMGE Boom Arm Mic Stand MS808, please refer to the official BOMGE website-ul lor web sau contactați direct serviciul lor de asistență pentru clienți. Păstrați bonul fiscal pentru reclamații în garanție.
BOMGE Official Website: Visit BOMGE Store on Amazon
