Introducere
This user manual provides detailed instructions for the installation, operation, and maintenance of your DEATTI 2K Wireless Outdoor Security Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety.
Informații de siguranță
- Ensure the camera is installed in a location where it is protected from extreme temperatures outside its operating range (-22°F to 122°F / -30°C to 50°C).
- Nu expuneți camera la foc sau surse de căldură.
- Folosiți doar accesoriile de încărcare specificate.
- A nu se lăsa la îndemâna copiilor.
- Evitați expunerea directă a obiectivului camerei la surse puternice de lumină.
Conținutul pachetului
- DEATTI 2K Wireless Outdoor Security Camera(s)
- Suport(e) de montare
- Cablu de încărcare USB
- Șuruburi de montare și dibluri de perete
- Manual de utilizare
Image: Two DEATTI 2K Wireless Outdoor Security Cameras, showing their compact design and front view with lens, spotlight, and PIR sensor.
Produs terminatview
The DEATTI 2K Wireless Outdoor Security Camera features a 2K QHD resolution lens, integrated spotlight, PIR motion sensor, and two-way audio capabilities. It is designed for both outdoor and indoor surveillance with IP66 weather resistance.
Image: A DEATTI camera mounted on a wall, with a transparent casing overlay showing the internal rechargeable battery, highlighting its 100% cordless design.
Înființat
1. Încărcarea camerei
Before initial use, fully charge the camera using the provided USB cable. The charging indicator will show the charging status.
2. Instalarea aplicației și crearea contului
Download the companion mobile application (e.g., "CloudEdge" as suggested by image) from your device's app store. Follow the on-screen instructions to create an account and log in.
3. Împerecherea camerei
- Open the app and select "Add Device" or the "+" icon.
- Follow the in-app prompts to connect the camera to your 2.4GHz Wi-Fi network. Ensure your camera is close to your Wi-Fi router during the pairing process.
- Scanați codul QR afișat pe telefon cu obiectivul camerei.
- După conectare, puteți denumi camera și puteți începe să transmiteți live-ul viewing.
4. Montarea camerei
Choose a suitable location for mounting, ensuring a clear field of view and good Wi-Fi signal strength. Use the provided mounting bracket, screws, and wall plugs to securely attach the camera to a wall or ceiling. The camera's flexible mount allows for angle adjustment.
Instrucțiuni de operare
Trăi View
Access the live video feed of your camera through the mobile application. This allows you to monitor your property in real-time from anywhere.
Detectarea mișcării (PIR)
The camera features an advanced PIR (Passive Infrared) motion sensor that detects human movement, minimizing false alarms from pets or environmental factors. When motion is detected, the camera can trigger an alarm, activate a spotlight, and send a notification to your phone.
Image: A DEATTI camera mounted outdoors, detecting a person. The image illustrates the built-in siren, spotlight activation, and a push notification on a smartphone indicating human detection.
Audio bidirecțional
Utilize the built-in microphone and speaker for two-way communication. This allows you to speak to visitors or deter intruders directly through the camera via the app.
Image: A person interacting with a delivery driver via the DEATTI camera's two-way audio feature, demonstrating remote communication.
Vedere de noapte
The camera provides 2K QHD color night vision, offering clear and detailed images even in low-light conditions. It combines 2K resolution with integrated lights for enhanced night visibility.
Image: A comparison showing the camera's 2K Color Night Vision mode versus traditional Infrared Mode, demonstrating clearer and more detailed night time imaging.
Înregistrare și stocare
Recordings can be stored locally on a Micro SD card (up to 128GB, not included) or via cloud storage (7-day free trial available). Recordings are automatically overwritten when storage is full.

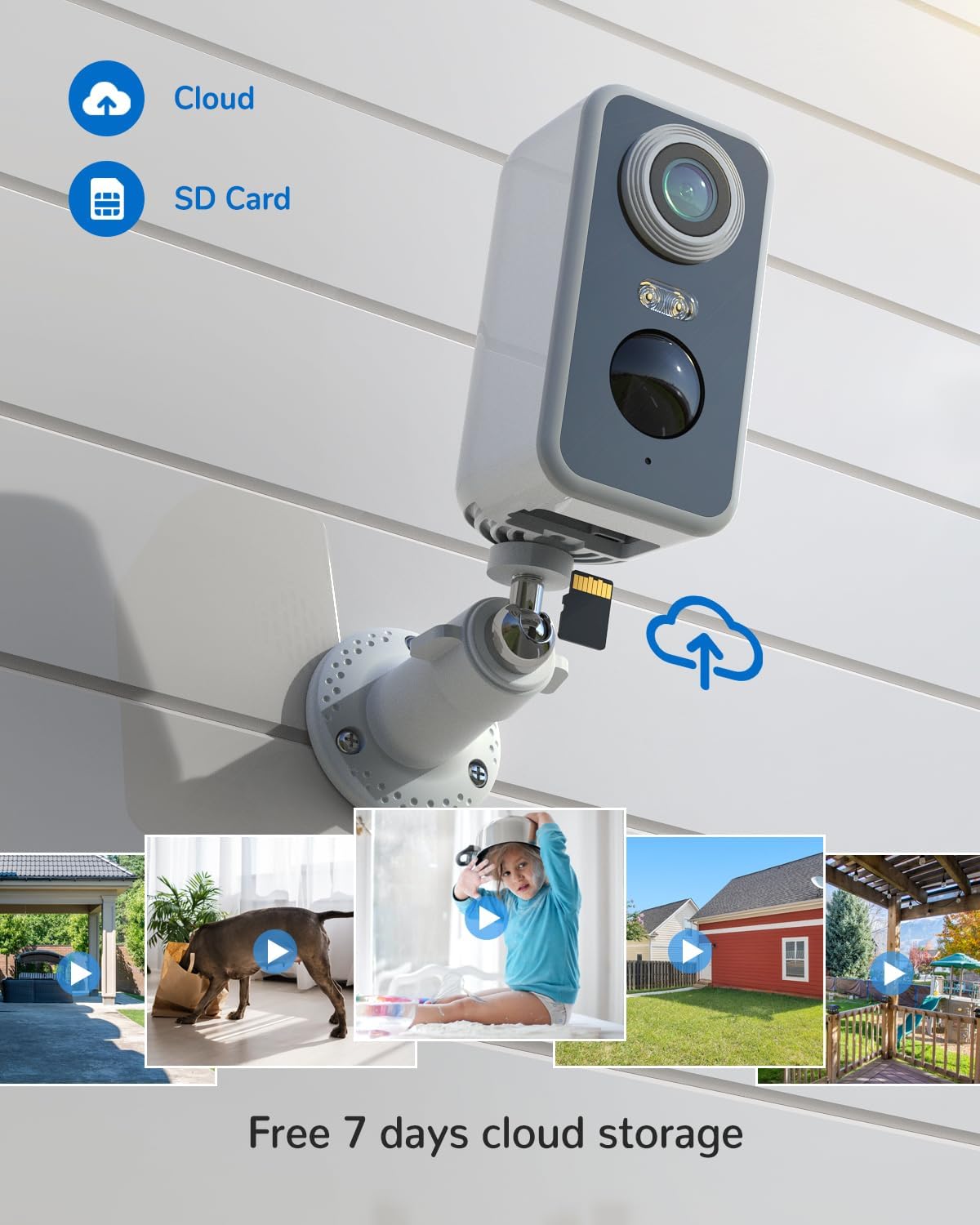

Image: A DEATTI camera illustrating its dual storage options: cloud storage and local Micro SD card storage.
Partajarea dispozitivului
You can share access to your camera's live feed and recordings with family members through the mobile application, allowing multiple users to monitor the property.
Întreţinere
Încărcarea bateriei
The camera is powered by a rechargeable lithium-polymer battery. Recharge the battery when the app indicates low power. Battery life varies based on usage and environmental conditions.
Curatenie
Wipe the camera lens and body with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
Rezistență la intemperii
The camera is IP66 weatherproof, designed to withstand various outdoor conditions including rain, snow, and dust. Ensure all ports are securely sealed to maintain water resistance.
Image: A DEATTI camera mounted outdoors, shown enduring heavy rain, illustrating its IP66 weatherproof rating.
Depanare
| Problemă | Soluție posibilă |
|---|---|
| Camera nu se conectează la Wi-Fi | Ensure your Wi-Fi is 2.4GHz. Check Wi-Fi signal strength at the camera's location. Restart your router and the camera. Re-attempt pairing. |
| Alarme false frecvente | Adjust PIR motion detection sensitivity in the app. Ensure the camera is not pointed at busy roads or areas with constant movement (e.g., swaying trees). |
| Calitate slabă a vederii pe timp de noapte | Ensure the camera lens is clean. Check for obstructions in the camera's field of view. Ensure there are no strong light sources directly facing the camera at night. |
| Bateria se descarcă rapid | Reduce motion detection frequency or sensitivity. Ensure the camera is not in an area with constant activity. Consider purchasing a solar panel charger (sold separately) for continuous power. |
| Probleme audio bidirecționale | Check your phone's microphone and speaker settings. Ensure the camera's microphone and speaker are not obstructed. Check network connection stability. |
Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | ZS-GX3S-2P |
| Rezoluţie | 2K QHD (1440p) |
| Conectivitate | Wi-Fi (2.4 GHz) |
| Sursa de alimentare | Battery Powered (1 Lithium-polymer included) |
| Compoziția bateriei | Litiu-ion |
| Rezistență la intemperii | IP66 Impermeable |
| Gama de vedere nocturnă | Până la 15 metri |
| Opțiuni de stocare | Micro SD Card (max. 128GB, not included), Cloud Storage |
| Audio | Audio bidirecțional |
| Detectarea mișcării | PIR Human AI Detection |
| Temperatura de operare | -22°F până la 122°F (-30°C până la 50°C) |
| Dimensiuni (L x l x H) | 25.4 x 5.08 x 7.62 cm (10 x 2 x 3 țoli) |
| Greutate | 330 grame (0.73 lbs) |
| Dispozitive compatibile | Smartphone (prin aplicație) |
| Tip controler | Amazon Alexa |
Garanție și suport
DEATTI products are designed for reliability and performance. For warranty information, please refer to the product packaging or contact DEATTI customer support directly. For technical assistance or further inquiries, please visit the official DEATTI website or contact their support team through the contact information provided with your purchase.
Notă: Nu sunt furnizate informații privind disponibilitatea pieselor de schimb.
