Topwise G1-B 1D 2D Wireless Barcode Scanner User Manual

Introducere

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Topwise G1-B 1D 2D Wireless Barcode Scanner. Designed for versatility and efficiency, this scanner offers multiple connectivity options and robust barcode compatibility for various applications, including retail, logistics, and inventory management.

Conținutul pachetului

Upon opening the package, verify that all components are present and in good condition. The standard package includes:

• Topwise G1-B Barcode Scanner
• Adjustable Holder/Stand
• Cablu de încărcare USB
• USB Wireless Dongle (2.4G receiver)
• Manual de instructiuni

Imagine: The Topwise G1-B barcode scanner, its adjustable holder, USB charging cable, and USB wireless dongle, laid out on a white surface.

Configurare și conectivitate

1. Assembling the Holder

The included holder is flexible and can be adjusted for optimal scanning angles. Ensure the screws are tightened for stability after adjusting the position.

2. Conectarea scanerului

The Topwise G1-B scanner offers three versatile connection methods:

• Conexiune wireless 2.4G: Insert the USB wireless dongle into your computer's USB port. The scanner will automatically connect, offering up to 100 meters (330 feet) of open-air transmission range.
• Conexiune wireless Bluetooth: Enable Bluetooth on your device (laptop, PC, smartphone, tablet). Pair with "BARCODE SCANNER" or "topwise0001". This mode provides up to 50 meters (164 feet) indoors.
• Conexiune prin cablu USB: Connect the scanner directly to your computer using the provided USB cable. This is a plug-and-play connection, requiring no additional software or driver installations. The scanner can also be charged via this connection.

Imagine: Visual representation of the scanner's 3-in-1 connectivity options and broad operating system compatibility.

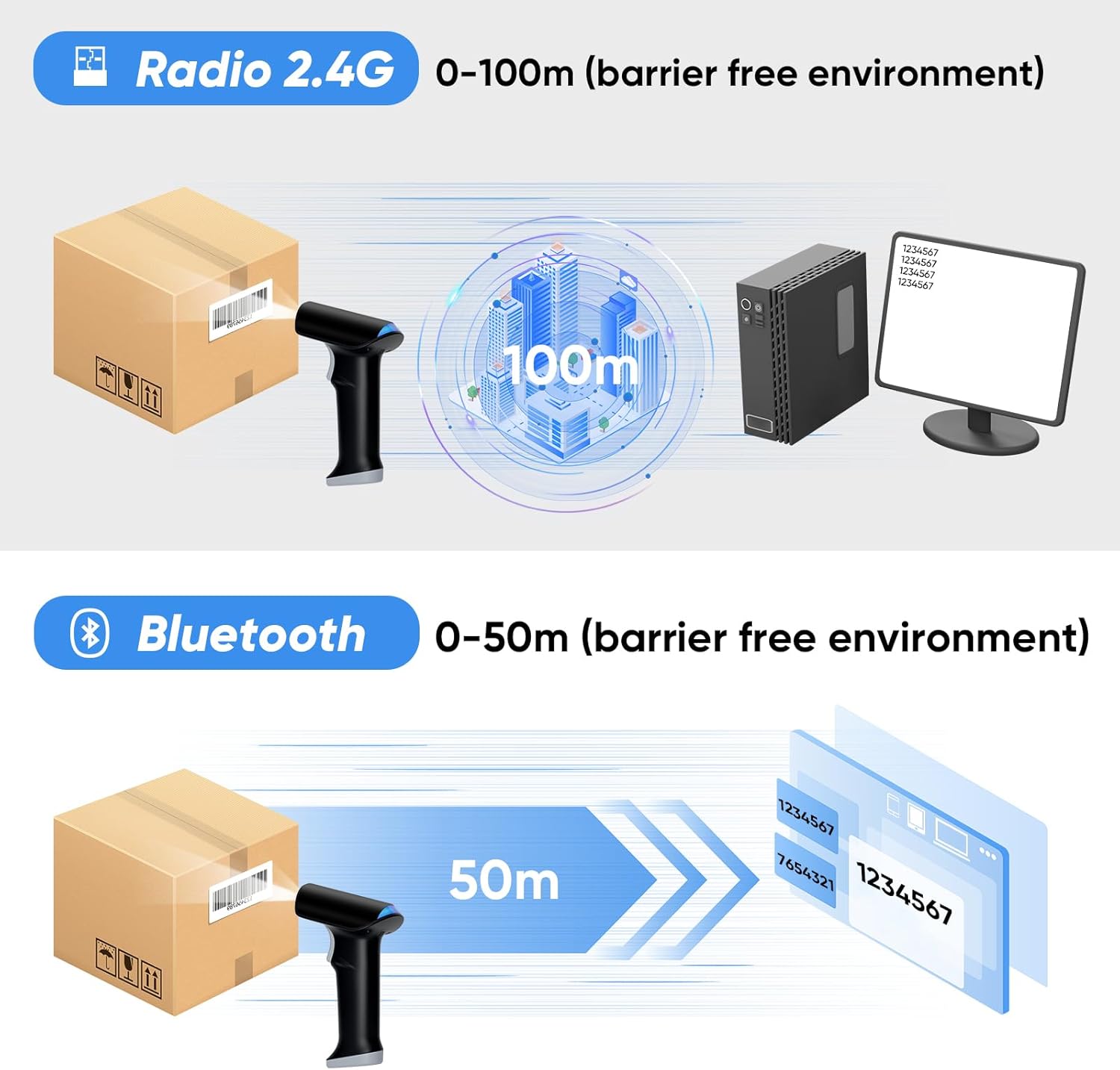

Imagine: Illustration of the wireless transmission ranges for 2.4G and Bluetooth connections.

Moduri de operare

The Topwise G1-B scanner supports various operating and pairing modes to suit different working environments:

• Mod de încărcare instantanee: Scanned data is immediately transmitted to the connected device. Ideal for real-time inventory updates or point-of-sale systems.
• Mod de stocare: Scanned data is stored internally in the scanner's memory and can be uploaded later. Useful for batch scanning or when out of range of the connected device.
• One-to-One Pairing: A single scanner is paired with a single receiver/device.
• More-to-One Pairing: Multiple scanners can be paired to a single receiver/device, allowing for collaborative scanning.

Moduri de scanare

The scanner offers three distinct scanning activation modes:

• Auto-sensing Scanning Mode: Scanerul detectează automat un cod de bare în câmpul său de view and scans it without requiring a trigger press.
• Modul de scanare continuă: The scanner continuously emits its scanning beam, allowing for rapid, successive scans without individual trigger presses.
• Modul de declanșare cheie: The scanning beam is activated only when the trigger button on the scanner is pressed.

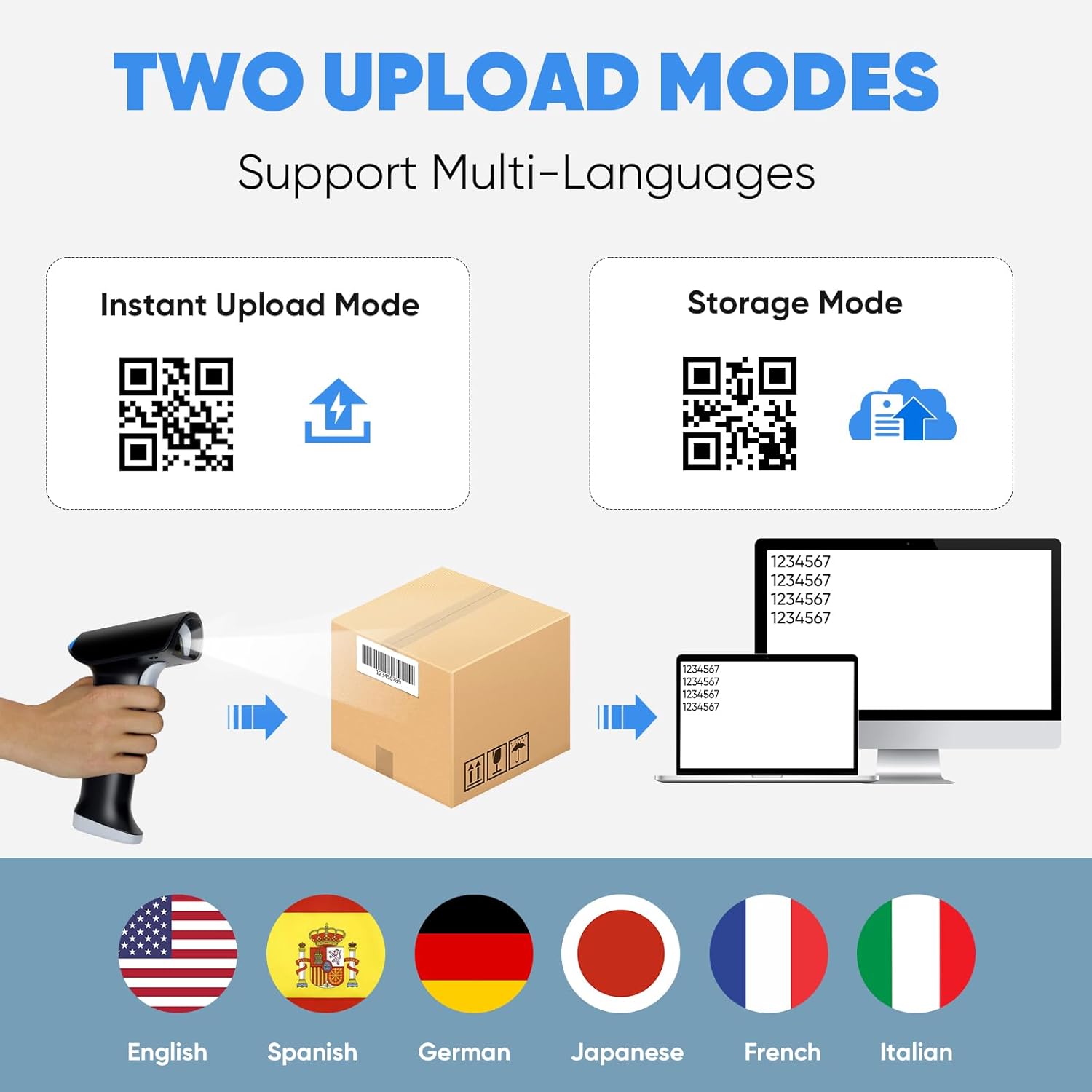

Imagine: Visual explanation of the Instant Upload and Storage modes, demonstrating how scanned data is handled.

Imagine: Visual guide to the three available scanning modes for the device.

Compatibilitatea codurilor de bare

The Topwise G1-B scanner is designed to read a broad range of 1D and 2D barcodes, including those on paper and digital screens. It supports mainstream barcode types such as EAN, QR Code, Data Matrix, and PDF 417. The advanced CMOS scanning technology allows it to read various conditions of barcodes, including:

• Coduri de bare deteriorate
• Fuzzy barcodes
• Coduri de bare colorate
• Reflective barcodes
• Barcodes displayed on screens (e.g., mobile phones, monitors)

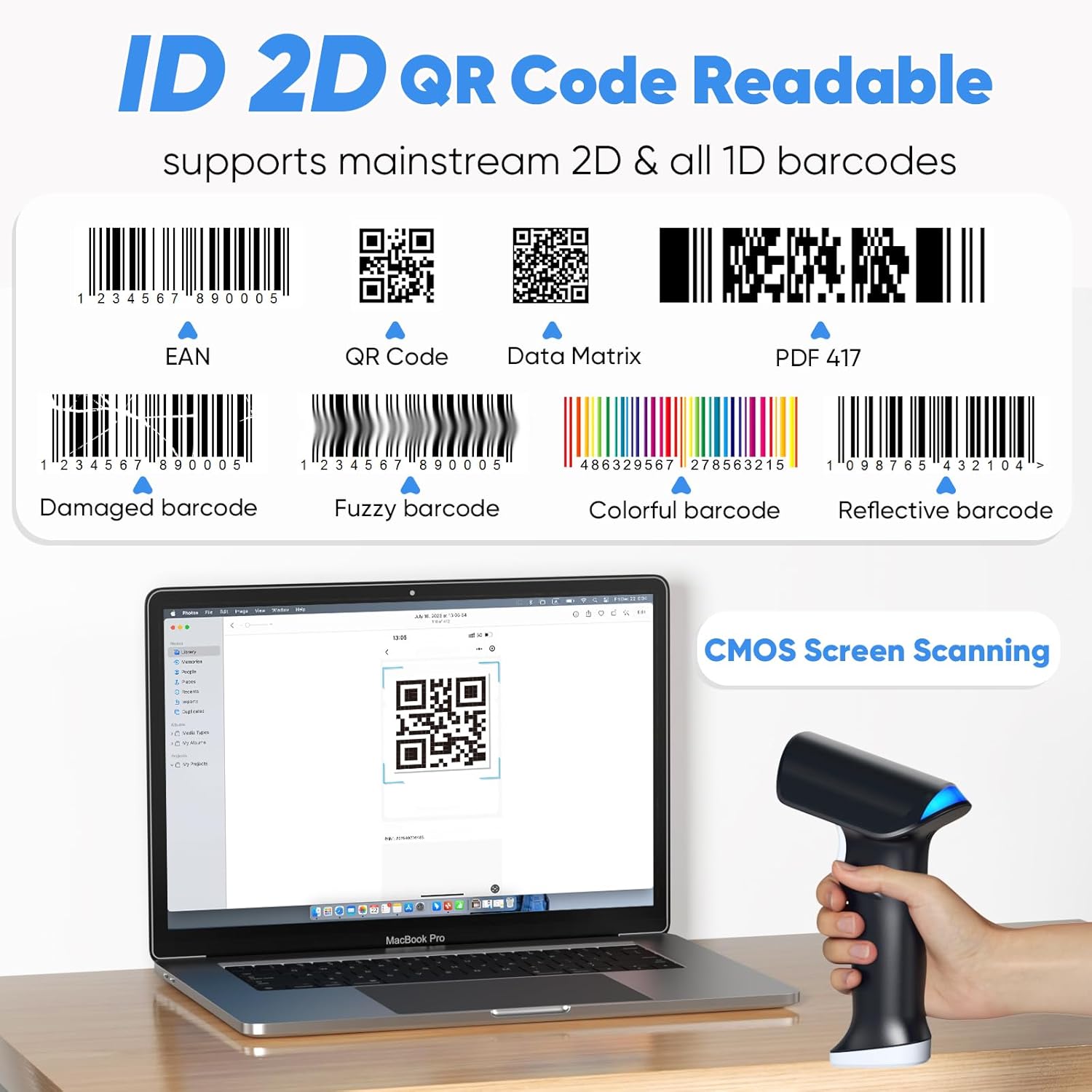

Imagine: Examples of different barcode types and conditions that the scanner can read, highlighting its versatility.

Durata de viață a bateriei și încărcare

The Topwise G1-B is equipped with a powerful 2000mAh Lithium Ion battery, designed for extended use. A full charge typically takes 3-4 hours and allows for several days of continuous operation, significantly enhancing work efficiency.

• Timp de lucru: Approximately 24 hours of continuous scanning.
• Timp de încărcare: 3-4 hours for a full charge.
• Timp de așteptare: Până la 150 zile.

The scanner can be charged via the USB cable connected to a computer or a compatible USB power adapter.

Imagine: Information on the scanner's battery capacity and estimated usage times.

Caracteristici programabile

The Topwise G1-B barcode scanner offers several programmable features to customize its operation according to your needs. These settings are typically configured by scanning specific QR codes found in the detailed instruction manual (not included in this summary).

• Support Prefix & Suffix: Add custom characters before or after scanned barcode data.
• Turn on/off the Buzzer: Control the audible feedback for successful scans.
• Turn on/off the Vibration: Control the haptic feedback for successful scans.
• Hide Front / End Characters: Configure the scanner to omit a specified number of characters from the beginning or end of the scanned data.

Imagine: Visual representation of the scanner's customizable features, including adding prefixes/suffixes and controlling feedback.

Depanare

If you encounter issues with your Topwise G1-B barcode scanner, consider the following general troubleshooting steps:

• No Scan/No Data Output:
  • Asigurați-vă că scanerul este complet încărcat.
  • Verify the connection method (2.4G dongle, Bluetooth, or USB cable) is properly established. For 2.4G, ensure the dongle is securely plugged in. For Bluetooth, confirm it's paired and connected in your device's settings.
  • Check if the scanner is in the correct operating mode (e.g., Instant Upload Mode).
  • Ensure the barcode is clear, undamaged, and within the scanner's optimal reading range and angle.
• Bip continuu:
  • A continuous beep might indicate a low battery, a connection issue, or an error state. Try recharging the scanner.
  • Attempt to re-establish the connection (unplug/replug dongle, re-pair Bluetooth).
  • Refer to the full instruction manual for specific error codes or beeping patterns.
• Settings Not Applying (QR Codes):
  • Ensure you are scanning the QR codes accurately and completely.
  • Some settings may require a specific sequence of scans or a restart of the scanner to take effect.
  • If scanning from a screen, ensure the screen brightness is adequate and there is no glare.
• Ieșire incorectă a datelor:
  • Check the programmable features (prefix/suffix, character hiding) to ensure they are not altering the data unintentionally.
  • Verify the barcode type is fully supported and the scanner is configured for it if necessary.

For more detailed troubleshooting or advanced configurations, please consult the complete instruction manual provided with your product or contact Topwise customer support.
