Alpine iLX-W670 Digital Multimedia Receiver & PAC RPK4-HD1101 Installation Kit Instruction Manual

1. Introducere

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Alpine iLX-W670 Digital Multimedia Receiver bundled with the PAC RPK4-HD1101 Radio Replacement Kit. This bundle is specifically designed for 2003-2007 Honda Accord vehicles, ensuring seamless integration and enhanced in-car entertainment.

The Alpine iLX-W670 is a 7-inch mech-less receiver featuring Apple CarPlay and Android Auto compatibility, advanced sound tuning options, and a user-friendly interface. The PAC RPK4-HD1101 kit facilitates the installation of the aftermarket radio while retaining essential vehicle features such as climate control and steering wheel controls.

2. Informații de siguranță

WARNING: Improper installation or use can lead to serious injury or damage. Always consult a qualified professional for installation if you are unsure.

• Citiți cu atenție toate instrucțiunile înainte de instalare și utilizare.
• Deconectați borna negativă a bateriei vehiculului înainte de a începe orice lucrare electrică.
• Asigurați-vă că toate cablurile sunt izolate și fixate corespunzător pentru a preveni scurtcircuitele.
• Nu utilizați unitatea într-un mod care vă distrage atenția de la condus. Acordați întotdeauna prioritate siguranței rutiere.
• Evitați expunerea unității la umiditate excesivă sau temperaturi extreme.
• Use only specified parts and accessories.

3. Conținutul pachetului

Verificați dacă toate componentele enumerate mai jos sunt prezente în pachet:

• Alpine iLX-W670 Digital Multimedia Receiver
• PAC RPK4-HD1101 Radio Replacement Kit (includes dash kit, interface module, and wiring harnesses)
• Mounting hardware and screws
• User Manuals for both Alpine iLX-W670 and PAC RPK4-HD1101

Image: The complete bundle including the Alpine iLX-W670 head unit and the various components of the PAC RPK4-HD1101 installation kit, such as the dash bezel, mounting brackets, and wiring harnesses.

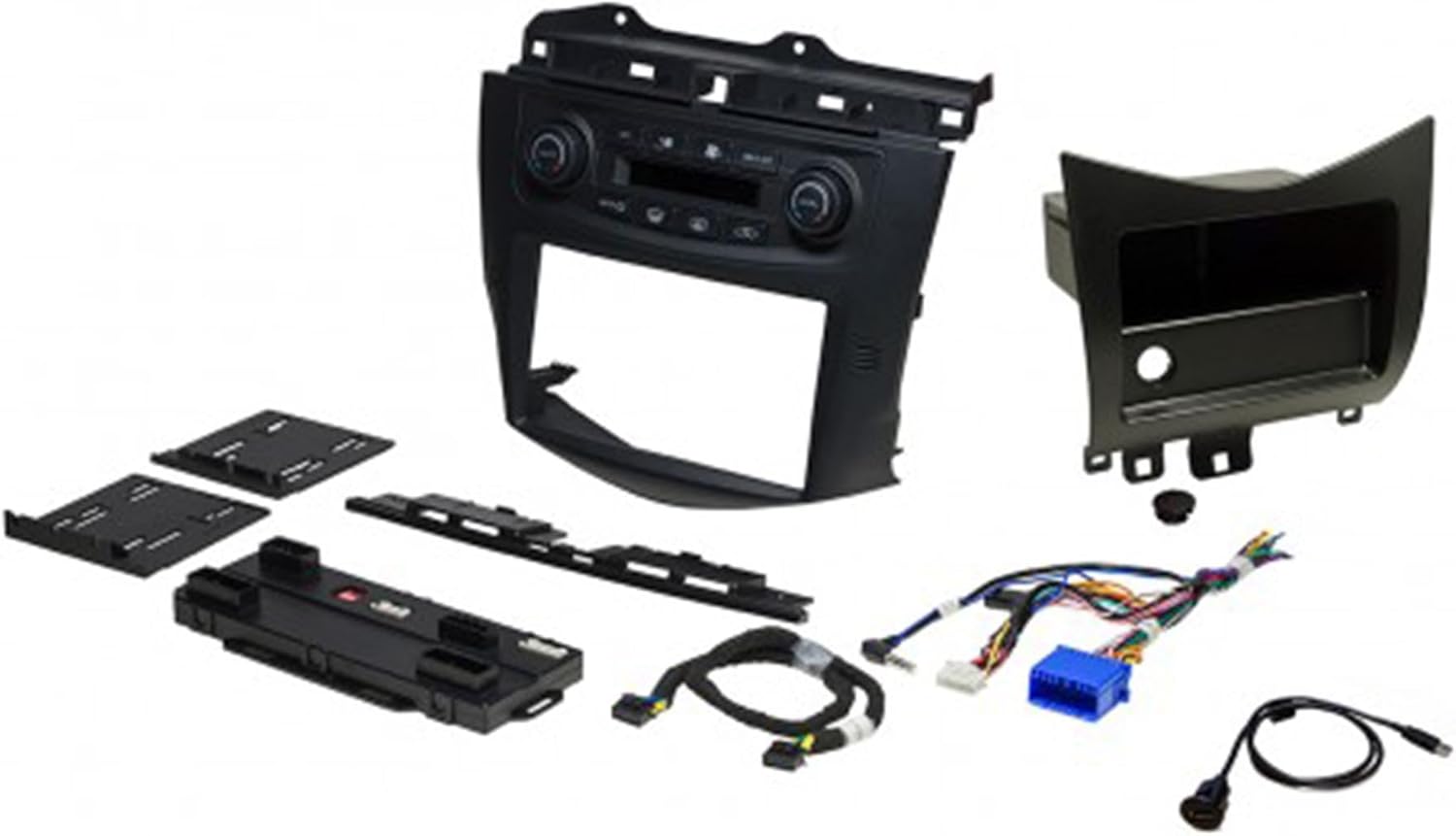

Imagine: O imagine detaliată view of the PAC RPK4-HD1101 kit components, including the factory-matched radio mounting dash kit, electronic interface module, and plug-n-play harnesses.

4. Configurare și instalare

Installation of this product bundle requires technical knowledge and should ideally be performed by a qualified installer. Refer to the detailed installation guides provided with both the Alpine iLX-W670 and PAC RPK4-HD1101 for specific wiring diagrams and vehicle disassembly instructions.

4.1. Pași de pre-instalare

1. Deconectați bateria: Deconectați întotdeauna borna negativă a bateriei vehiculului înainte de a începe orice lucrare electrică.
2. Scoateți radioul din fabrică: Carefully remove the existing factory radio and associated trim panels from your Honda Accord (2003-2007 model years).
3. Identificați cablajul: Familiarize yourself with the vehicle's wiring harness and the provided PAC RPK4-HD1101 harnesses.

4.2. PAC RPK4-HD1101 Kit Assembly

The PAC RPK4-HD1101 kit is designed to integrate the new Alpine receiver seamlessly while retaining factory features.

• Assemble the factory-matched radio mounting dash kit according to the PAC instructions. This kit accommodates both single and double-DIN radios.
• Connect the electronic interface module and plug-n-play harnesses. These are crucial for retaining climate control and steering wheel controls.
• Ensure correct selection of single zone or dual zone control knob button insets if applicable to your vehicle.
• Configure for left or right-hand drive as necessary.

4.3. Alpine iLX-W670 Integration

• Mount the Alpine iLX-W670 receiver into the assembled PAC dash kit.
• Connect the Alpine receiver's wiring harness to the PAC RPK4-HD1101 harnesses. Ensure all connections are secure.
• Connect the antenna adapter (if required).
• Route any necessary cables for USB, microphone, or external video inputs.

4.4. Post-instalare

1. Funcționalitate de testare: Before reassembling the dash, reconnect the battery and test all functions of the Alpine receiver, including audio, touchscreen response, Apple CarPlay/Android Auto, Bluetooth, and especially the retained climate and steering wheel controls. Verify exterior temperature display retention.
2. Unitate securizată: Once confirmed, carefully reassemble the dash panels, ensuring no wires are pinched.
3. Configurare inițială: Follow the on-screen prompts for initial setup of the Alpine iLX-W670, including language, time, and radio region settings.

5. Instrucțiuni de utilizare

5.1. Alpine iLX-W670 Digital Multimedia Receiver

The iLX-W670 features a responsive 7-inch touchscreen display for intuitive control.

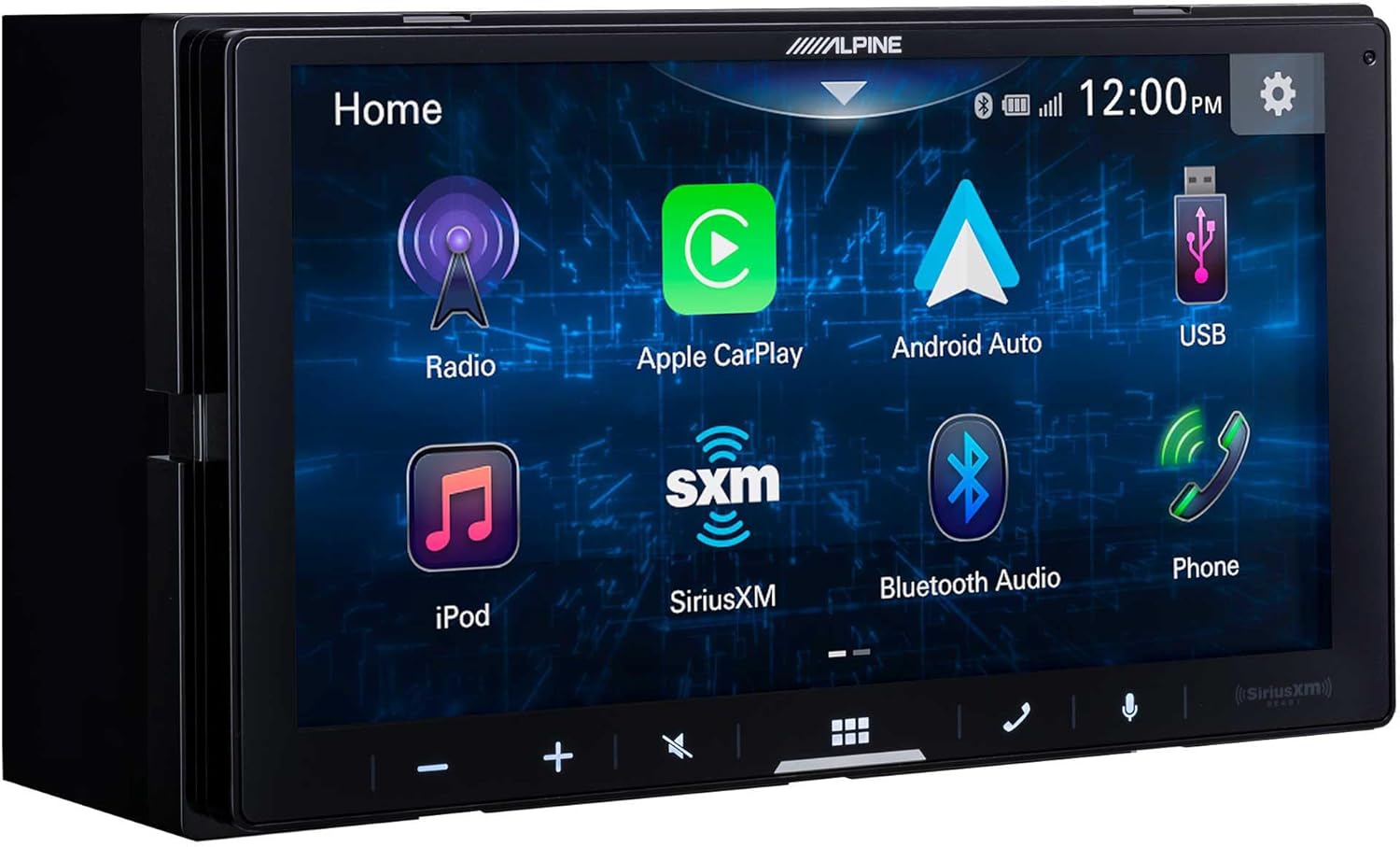

Image: The home screen of the Alpine iLX-W670, displaying icons for Radio, Apple CarPlay, Android Auto, USB, iPod, SiriusXM, Bluetooth Audio, and Phone.

5.1.1. Home Screen and Navigation

• Customizable Home Screen: Arrange icons for frequently used functions for quick access.
• Navigare: Tap icons to access different sources (Radio, USB, Bluetooth) or features (Apple CarPlay, Android Auto, Phone).

5.1.2. Smartphone Integration (Wired)

• Apple CarPlay: Connect your iPhone via USB to access navigation, music, messages, and more through the receiver's display.
• Android Auto: Connect your Android phone via USB to use Google Maps, Spotify, and other compatible apps.

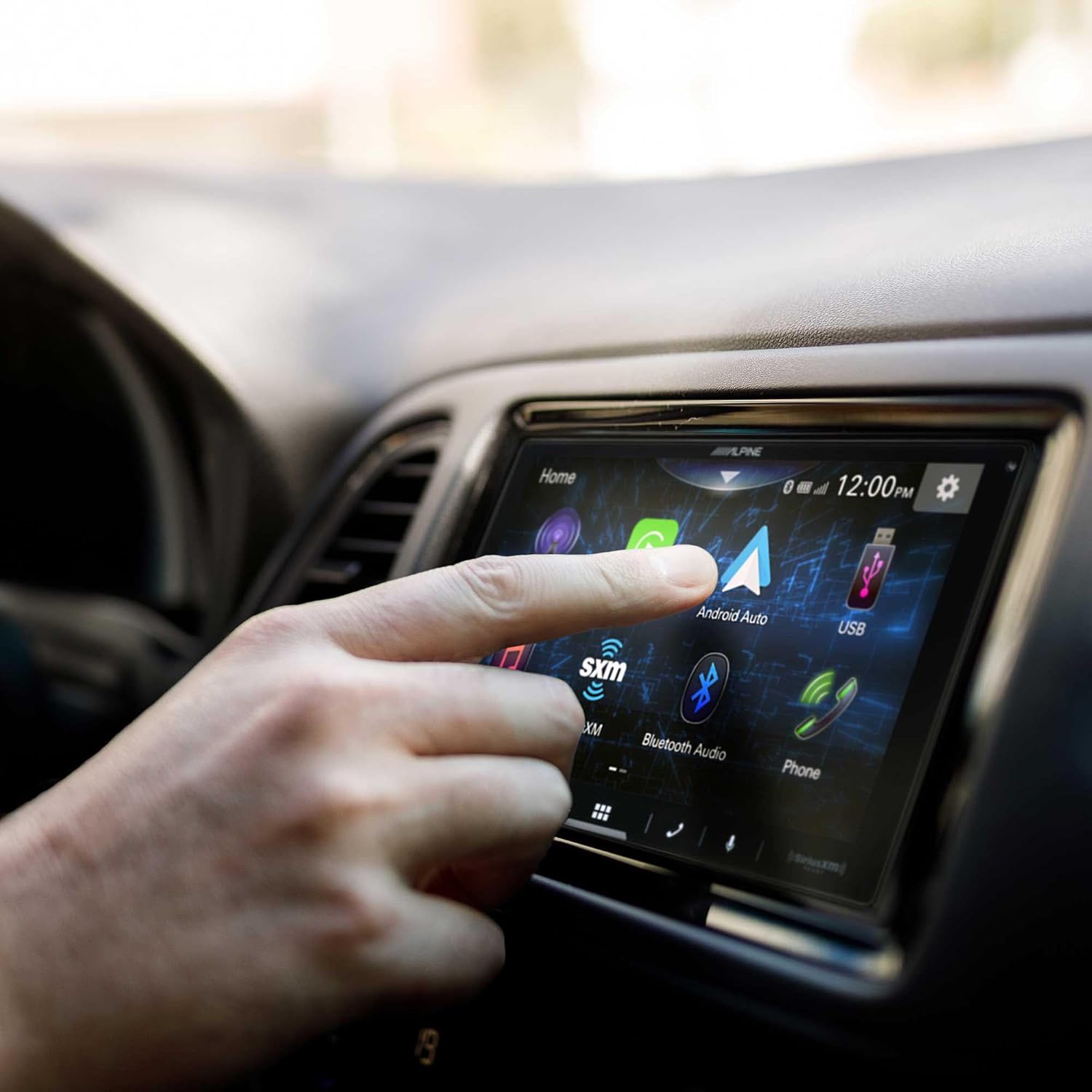

Image: A user's hand tapping the Android Auto icon on the Alpine iLX-W670's touchscreen display, indicating activation of the Android Auto feature.

5.1.3. Audio Features and Sound Tuning

• Sound Boost Menu: Access enhanced controls for Bass Boost, Mid-Bass Boost, and Subwoofer adjustments.
• EQ grafic pe 13 benzi: Fine-tune the audio frequency response to your preference.
• 6-Channel Time Correction: Adjust the sound timing for optimal staging.
• Încrucișări: Configure high-pass and low-pass filters for front speakers, rear speakers, and subwoofer.
• Lighting Link Control: If connected to compatible Alpine PrismaLink subwoofer enclosures, control their lighting directly from the screen.

Image: The Sound Boost menu on the Alpine iLX-W670 display, showing options for Bass Boost, Mid-Bass Boost, Subwoofer level, Phase adjustment, and Lighting Link control.

5.1.4. Alte caracteristici

• Mâini libere Bluetooth: Asociați telefonul pentru apeluri hands-free și streaming audio.
• SiriusXM-Ready: Necesită un tuner pentru vehicule SiriusXM Connect și un abonament (se vând separat).

Image: A user's hand tapping the SiriusXM icon on the Alpine iLX-W670's touchscreen, indicating selection of the satellite radio source.

5.2. PAC RPK4-HD1101 Kit Functionality

The PAC kit ensures that critical vehicle functions are maintained after installing the aftermarket receiver.

• Climate Control Retention: The kit integrates with your vehicle's climate control system, allowing you to operate it directly from the new dash panel.
• Reținerea controlului volanului: Your factory steering wheel audio controls (volume, track, mode) will continue to function with the Alpine iLX-W670.
• Exterior Temperature Display: The vehicle's exterior temperature display in the instrument cluster is retained.
• USB Outlet: The replacement lower pocket includes a USB outlet for convenient charging or data connection.

6. Întreținere

• Curățarea ecranului: Use a soft, lint-free cloth to gently wipe the touchscreen. For stubborn smudges, dampCurățați ușor cârpa cu apă sau cu un produs de curățare sigur pentru ecran. Evitați materialele abrazive sau substanțele chimice dure.
• Curatenie generala: Keep the unit and surrounding dash area free of dust and debris. Use a soft, dry cloth.
• Actualizări de software: Verificați periodic sistemul Alpine website for firmware updates for the iLX-W670 to ensure optimal performance and access to new features.
• Verificarea cablului: Occasionally inspect all visible cables and connections for wear or damage.

7. Depanare

If you encounter issues, refer to the table below for common problems and solutions. For more complex issues, consult a professional installer or contact customer support.

8. Specificații

8.1. Alpine iLX-W670 Digital Multimedia Receiver

• Afişa: Ecran tactil capacitiv de 7 inci
• Șasiu: Mech-Less (no CD/DVD mechanism)
• Integrare smartphone: Apple CarPlay (Wired), Android Auto (Wired)
• Caracteristici audio: 13-Band Graphic EQ, 6-Channel Time Correction, Crossovers, Sound Boost Menu
• Conectivitate: Bluetooth Hands-Free, USB Input, SiriusXM-Ready
• Iluminare: 5-Color Key Illumination

8.2. PAC RPK4-HD1101 Radio Replacement Kit

• Compatibilitate: 2003-2007 Honda Accord (with/without factory navigation, single/dual zone climate control)
• Radio Accommodation: Single or Double-DIN
• Caracteristici păstrate: Climate Control, Steering Wheel Controls, Exterior Temperature Display
• Caracteristici suplimentare: Replacement lower pocket with USB outlet

8.3. Bundle Specifications

• Număr de model articol: AlpineBDL230912-18
• Greutatea articolului: Aproximativ 10 lire sterline
• Dimensiuni pachet: Aproximativ 19 x 15 x 9 inci

9. Informații despre garanție

This product bundle is covered by a 1 an garanție de producător from Alpine. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, neglect, or unauthorized modification.

For detailed warranty terms and conditions, please refer to the warranty documentation included with your Alpine iLX-W670 receiver or visit the official Alpine website-ul.

10. Asistență pentru clienți

If you require further assistance or have questions not covered in this manual, please contact:

• Alpine Customer Support: Visit the official Alpine website (www.alpine-usa.com/support) for FAQs, troubleshooting, and contact information.
• PAC Audio Support: For issues specifically related to the PAC RPK4-HD1101 kit, visit the PAC Audio website (pac-audio.com/support).
• Dealer autorizat: Contact the dealer from whom you purchased the product for installation support or service.
