Introducere
Thank you for choosing the Toowell Outdoor Motion Sensor Battery-Powered Wall Light. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new light. Please read this manual thoroughly before use and retain it for future reference.
This product is designed to provide efficient, motion-activated illumination for outdoor areas such as porches, garages, driveways, and gardens, enhancing both convenience and security.
Produs terminatview
Caracteristici cheie
- Detecție îmbunătățită a mișcării: Equipped with an upgraded detection chip and a 180° sensing angle, detecting motion up to 30 feet.
- Funcționare automată: Activates for 20 seconds when motion is detected in ambient light conditions below 15 lux (dusk/night). Remains off during the day.
- Iluminare eficientă: 4.5W power, 480 lumens, and 5000K (daylight white) light output, equivalent to a 50W halogen light.
- Durată lungă de viață a bateriei: Designed for extended operation with 4D-cell batteries (not included), providing up to 180 days of battery life.
- Durabil și rezistent la intemperii: Constructed from durable ABS material with an IP65 waterproof rating, ensuring resistance to rain, hail, and snow.
- Capete de lumină reglabile: Two adjustable light heads allow customization of the beam angle for optimal coverage.
Conținutul pachetului
- Toowell Outdoor Motion Sensor Wall Light
- Placa de montare
- Șuruburi și dibluri pentru instalare
- Manual de instructiuni
Diagrama produsului
Figura 1: Față view of the Toowell Outdoor Motion Sensor Wall Light, showing the central sensor and two adjustable LED light panels.
Figure 2: Illustration of the adjustable light heads, demonstrating various beam angles from 180° to 270°.
Configurare și instalare
Instalarea bateriei
- Remove the mounting plate from the back of the light unit using a flat-head screwdriver.
- Insert 4 new D-type batteries into the battery compartment. Ensure the positive (+) and negative (-) terminals are aligned correctly according to the markings inside the compartment.
- Securely reattach the battery cover and mounting plate.
Figure 3: Battery compartment for 4 D-cell batteries (not included).
Montarea Luminii
The recommended installation height for optimal motion detection is 8-9 feet (approximately 2.4-2.7 meters) from the ground.
- Choose a suitable location for installation. Ensure the area is clear and the motion sensor will have an unobstructed view of the detection zone.
- Using the mounting plate as a template, mark the positions for drilling holes on the wall.
- Dați găuri în pozițiile marcate și introduceți diblurile de perete.
- Atașați placa de montare pe perete folosind șuruburile furnizate.
- Align the light unit with the mounted plate and slide it into the groove until it clicks securely into place.
Figure 4: Step-by-step installation guide for the Toowell outdoor light.
Optimizing Sensor Performance
For best performance, ensure the motion sensor is not obstructed and is positioned to cover the desired area. Avoid placing the light where constant movement (e.g., from trees or busy streets) might trigger it unnecessarily.
Figure 5: Correct (left) and incorrect (right) sensor placement for optimal detection.
Instrucțiuni de operare
Funcționalitatea senzorului de mișcare
The Toowell Outdoor Motion Sensor Wall Light features an advanced PIR (Passive Infrared) motion sensor and a photocell sensor for automatic operation.
- Funcționare în timpul zilei: The light will remain off during the day when ambient light is above 15 lux, conserving battery power.
- Funcționare pe timp de noapte: When ambient light drops below 15 lux (dusk/night), the motion sensor becomes active. Upon detecting movement within its 180° and 30-foot range, the light will automatically turn on for approximately 20 seconds.
- Continuous Detection: If motion is continuously detected, the light will remain on. It will turn off 20 seconds after the last detected movement.
Figure 6: Motion activation at dusk/night cycle.

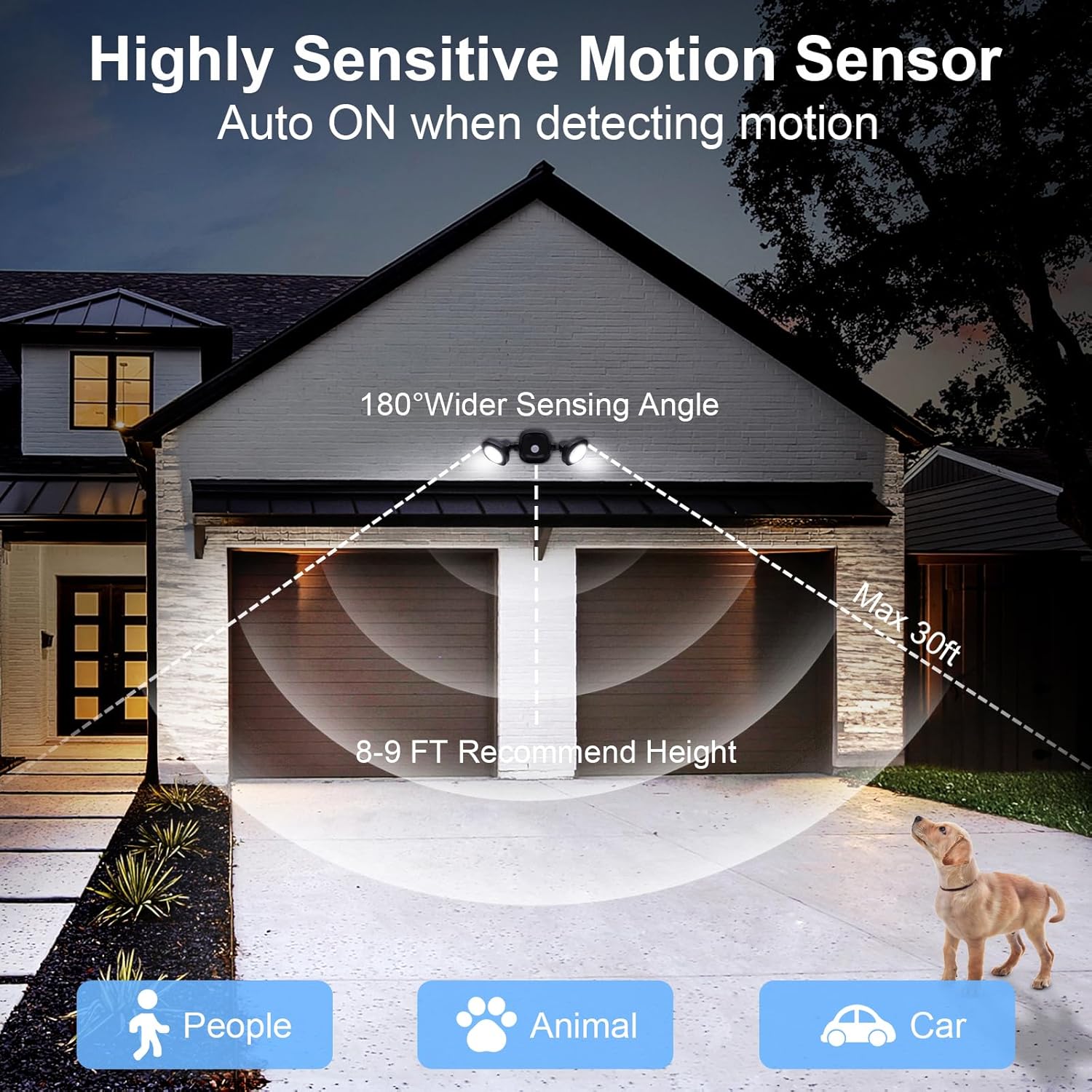

Figure 7: Highly sensitive motion sensor with 180° sensing angle and up to 30ft detection range.
Adjusting Light Heads
The two light heads can be manually adjusted to direct the light beam precisely where needed. Gently pivot each light head to achieve the desired illumination angle.
Întreținere și îngrijire
Înlocuirea bateriei
When the light output diminishes or the light stops activating, it is time to replace the batteries. Follow the battery installation steps outlined in the 'Setup and Installation' section.
- Always use new D-type batteries.
- Nu amestecați baterii vechi cu noi sau diferite tipuri de baterii.
- Aruncați bateriile uzate în mod responsabil, conform reglementărilor locale.
Curatenie
To maintain optimal performance and appearance, clean the light periodically.
- Asigurați-vă că lumina este stinsă înainte de curățare.
- Ștergeți exteriorul cu un material moale, damp pânză.
- Do not use abrasive cleaners or solvents, as these can damage the finish or electronic components.
- Keep the motion sensor lens clean and free from obstructions for accurate detection.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Lumina nu se aprinde noaptea. | 1. Putere insuficientă a bateriei. 2. Motion sensor obstructed or dirty. 3. Ambient light is too high. | 1. Înlocuiți bateriile. 2. Clean the sensor lens and ensure no obstructions. 3. Ensure the light is installed in a dark area at night. |
| Lumina rămâne aprinsă continuu. | 1. Constant motion in detection zone. 2. Defecțiune a senzorului. | 1. Reposition the light to avoid constant triggers. 2. Contact customer support if problem persists after repositioning. |
| Raza de detecție este slabă. | 1. Incorrect installation height. 2. Sensor obstructed. 3. Extreme temperatures affecting sensor. | 1. Adjust installation height to 8-9 feet. 2. Îndepărtați orice obstrucție din raza senzorului view. 3. Ensure operating within specified temperature ranges. |
Specificatii tehnice
- Marca: Toowell
- Model: Toowell Außenlampe mit Bewegungsmelder
- Dimensiuni produs: 28 x 12 x 10 cm (11 x 4.7 x 3.9 țoli)
- Greutate: 390 grame (0.86 lbs)
- Material: Acrilonitril Butadien Stiren (ABS)
- Culoare: Negru
- Evaluare IP: IP65 (protejat împotriva prafului și jeturilor de apă)
- Sursa de alimentare: Battery Powered (4 x D-type batteries, not included)
- Voltage: 6 volți
- Tip bec: LED
- Flux luminos: 480 lumeni
- Putere: 4.5 wați
- Temperatura de culoare: 5000 Kelvin (alb la lumina zilei)
- Caracteristici speciale: Motion Detector, Anti-rust, Shock Resistant, Energy Saving, Portable
- Tip de instalare: Montare pe perete
Informații de siguranță
- Acest produs este destinat exclusiv utilizării în aer liber.
- Do not attempt to disassemble or modify the light. This may void the warranty and pose a safety risk.
- Ensure proper battery polarity when installing batteries. Incorrect installation can cause damage to the device or batteries.
- Înlocuiți toate bateriile în același timp. Nu amestecați baterii vechi cu noi sau baterii de tipuri diferite.
- Aruncați bateriile în conformitate cu reglementările locale de mediu.
- A nu se lăsa la îndemâna copiilor.
- Avoid looking directly into the LED light when it is on, as it may cause temporary vision impairment.
Garanție și asistență pentru clienți
Toowell products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Toowell website. If you encounter any issues or have questions regarding your product, please contact Toowell customer support through the retailer where the product was purchased or via the contact information provided on the official Toowell website-ul.
Spare parts availability and software update information for this product are currently unavailable.
