1. Introducere
This manual provides detailed instructions for the installation, operation, and maintenance of your Anpviz 4K PoE IP Camera Outdoor, Model IPC-D3083WD-S. Please read this manual thoroughly before using the product to ensure proper setup and functionality. This camera is designed for both indoor and outdoor surveillance, offering high-resolution video and advanced detection features.
2. Conținutul pachetului
Verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:
- 1x Anpviz 4K PoE Security Camera
- 1x Screws kits
- 1x Manual de instrucțiuni (acest document)
- 1x Drill Template
- 1x Card post-vânzare

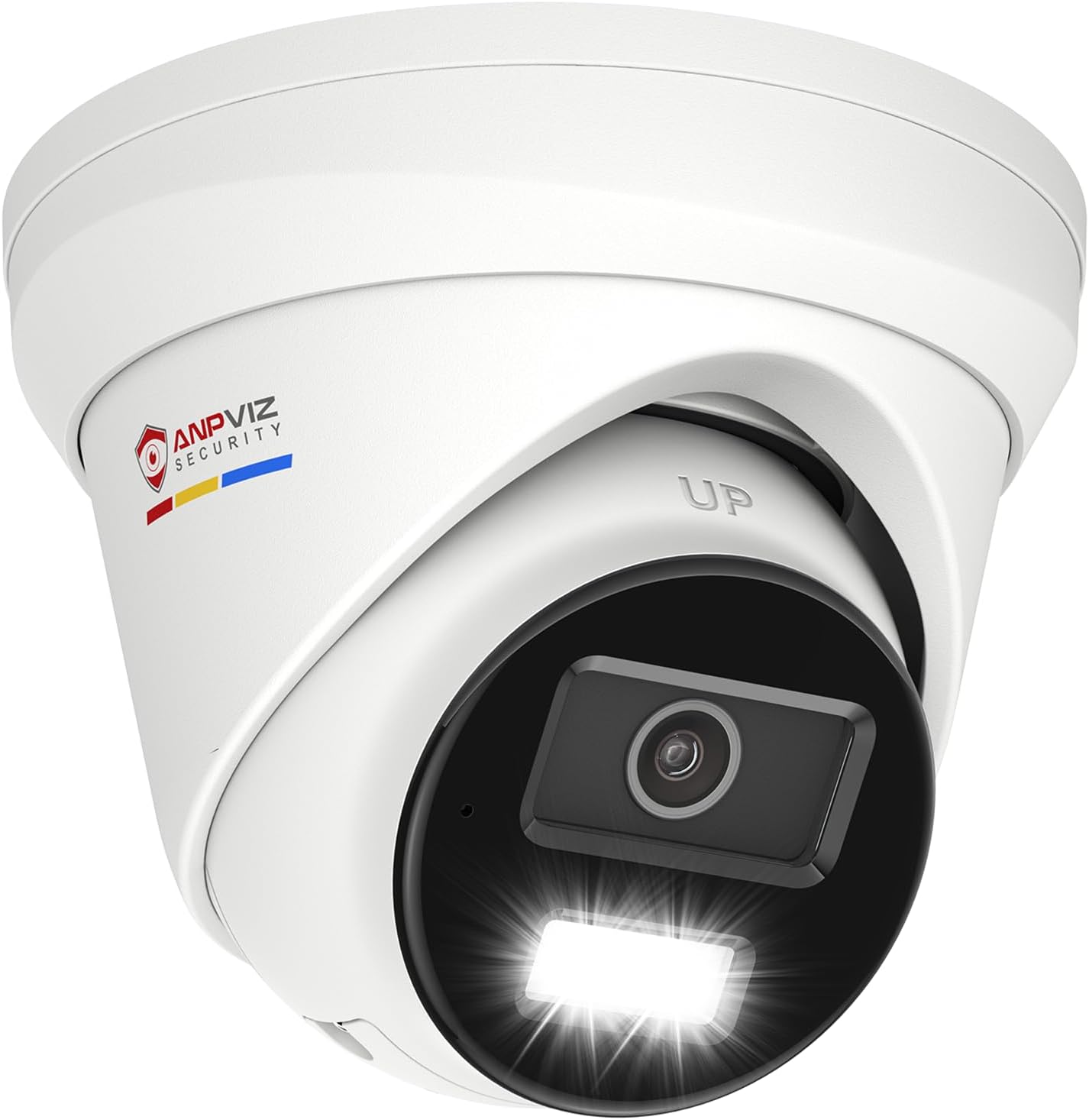

Image: The Anpviz 4K PoE IP Camera Outdoor, a white turret-style camera with a black lens housing and integrated light, shown from a slightly elevated angle.
3. Produs terminatview
The Anpviz IPC-D3083WD-S is an 8MP 4K PoE IP turret camera featuring smart dual light technology, human/vehicle detection, and a built-in microphone. Its robust metal housing ensures durability for outdoor use.
Caracteristici cheie:
- Rezoluție 4K Ultra HD: Provides crisp 3840x2160 video at 15fps.
- Smart Dual Light Night Vision: Combines infrared and warm light for clear night imaging. Switches to color when human/vehicle is detected, otherwise infrared for black and white.
- Human/Vehicle Detection: Advanced AI minimizes false alarms by distinguishing people and vehicles from other motion.
- Microfon încorporat: Captures audio from the surveillance area.
- Compresie H.265+: Efficient video encoding for reduced bandwidth and storage requirements.
- Rezistență la intemperii IP67: Full metal housing designed for outdoor use in various weather conditions (-30°C to 60°C / -4°F to 140°F).
- Gamă dinamică largă (WDR): 120dB WDR for clear images in challenging lighting conditions.
4. Configurare și instalare
4.1 Montarea camerei
The camera supports both ceiling and wall mounting. Use the provided drill template to mark the screw holes. Ensure the mounting surface is strong enough to support the camera's weight.
- Select a suitable mounting location, considering the desired viewing angle and network cable access.
- Use the drill template to mark the positions for drilling.
- Drill pilot holes and insert the provided wall anchors if necessary.
- Secure the camera base to the mounting surface using the included screws.
- Reglați unghiul camerei pentru o acoperire optimă.
Image: Illustration showing various mounting scenarios for the Anpviz camera, including wall mount with a bracket and ceiling mount.
4.2 Conectarea la rețea și la alimentare
This camera supports Power over Ethernet (PoE) or a DC 12V power adapter (not included).
- Conexiune PoE: Connect an Ethernet cable from a PoE switch or PoE NVR to the camera's RJ45 port. This provides both power and data.
- DC 12V Connection: If not using PoE, connect a DC 12V power adapter (sold separately) to the camera's power input, and an Ethernet cable to a router or network switch for data.

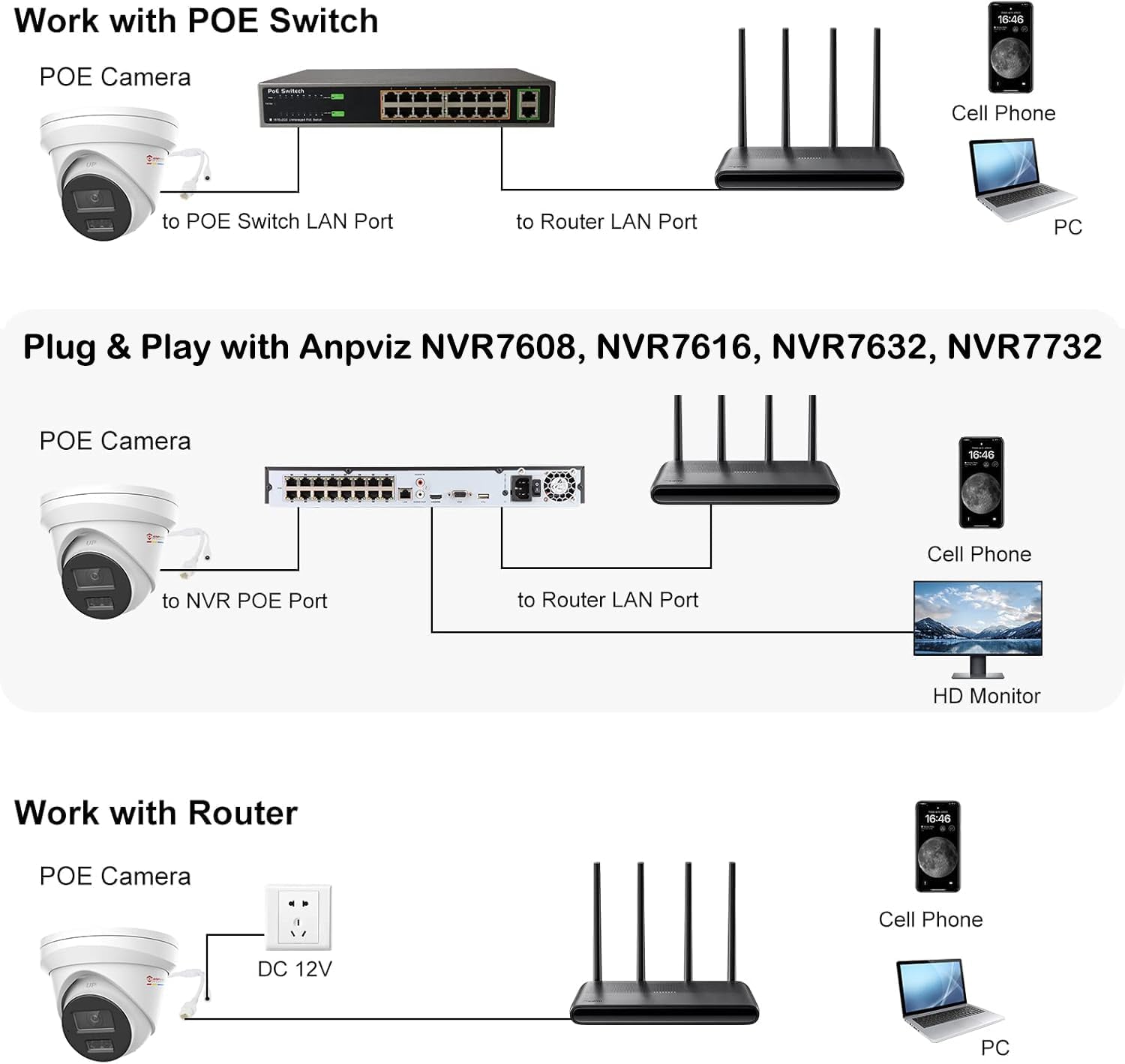

Image: Diagrams illustrating different connection methods: with a PoE switch, directly to an Anpviz NVR, and with a DC 12V adapter connected to a router.
For optimal performance, plug & play with Anpviz NVRs (NVR7608, NVR7616, NVR7632, NVR7732). Compatibility with 3rd-party ONVIF NVRs and software like ISpy, Synology, and Blue Iris is also supported. Note that the camera may need to be activated first for some NVRs.
4.3 Acces inițial și configurare
Access the camera via the Anpviz Viewer app or a web browser.
- Aplicație mobilă: Download the "Anpviz Viewer" app from the App Store or Google Play. Follow the in-app instructions to add your camera.
- Web Browser: For Windows users, access the camera's web interface using Edge, Chrome, or Firefox. A plug-in may be required for live video viewing. (Mac OS is not supported for direct web browser access requiring a plug-in).
Image: Screenshot showing the Anpviz Viewer app interface on a smartphone and a laptop displaying camera footage, indicating remote access capabilities.
5. Operarea camerei
5.1 În direct View și Înregistrare
Odată conectat, poți view trăi footage through the Anpviz Viewer app or NVR. The camera supports up to 512GB Micro SD card storage (not included) for local recording. Recordings can be continuous or motion-triggered. When the SD card is full, older videos will be overwritten automatically.
Imagine: O persoană viewing camera footage on a smartphone, with icons indicating SD card storage and overwrite function, demonstrating local video saving.
5.2 Smart Dual Light Night Vision
The camera features advanced night vision capabilities:
- Mod infraroșu: By default, infrared light is active at night, providing clear black and white images.
- Viziune nocturnă inteligentă în culori: When a person or vehicle is detected in the monitoring area, the warm lights activate, providing a full-color image. The camera reverts to infrared mode when no objects are detected.
Image: An illustration demonstrating the Smart Dual Light feature, showing the camera switching from infrared (black and white) to warm light (color) upon detecting a person.
Image: A split image comparing the clear 4K daytime view with the detailed infrared night vision of the camera, showing a house and backyard.
5.3 Human/Vehicle Detection and Smart Alerts
The camera utilizes advanced AI to accurately detect human and vehicle shapes, reducing false alarms from animals or shadows. Configure smart alerts to receive notifications on your phone, specifying the type of detection.
Image: An illustration showing the camera detecting both a human and a vehicle, highlighting the areas of detection with red boxes, demonstrating the smart motion capture feature.
Image: A smartphone displaying a motion detection alert from the Anpviz Viewer app, showing a person near a garage, illustrating the smart alert system.
5.4 Microfon încorporat
The integrated microphone allows for unidirectional audio capture, enabling you to hear sounds from the camera's vicinity through the app or NVR.
Image: A close-up of the Anpviz camera mounted on a wall, with sound waves emanating from it, indicating the built-in microphone feature.
Image: A scene showing a delivery person at a door, with a speech bubble indicating audio capture ("Hi, your package delivered."), demonstrating the built-in microphone's function.
6. Întreținere
6.1 Curățare
Curățați periodic obiectivul și carcasa camerei pentru a asigura performanțe optime. Folosiți o lavetă moale și delicată.amp Evitați substanțele de curățare abrazive sau solvenții care ar putea deteriora suprafața.
6.2 Considerații de mediu
The camera is IP67 weatherproof, designed to withstand dust and water immersion. Its metal housing provides corrosion resistance and allows operation in temperatures from -30°C to 60°C (-4°F to 140°F).
Image: The Anpviz camera shown outdoors with rain falling, illustrating its IP67 waterproof rating and ability to operate in extreme temperatures.
7. Depanare
- Fără putere:
- Ensure the PoE switch/NVR is powered on and the Ethernet cable is securely connected.
- If using a DC 12V adapter, verify it is properly connected and the power outlet is functional.
- Fără flux video:
- Check network connectivity. Ensure the camera and viewing device are on the same network or properly configured for remote access.
- Pentru web browser access on Windows, ensure the necessary plug-in is installed and enabled.
- Verify the camera is activated if using a new NVR.
- Calitate slabă a imaginii:
- Curățați obiectivul camerei.
- Check network bandwidth. H.265+ compression helps, but a congested network can affect streaming quality.
- Ensure sufficient lighting for night vision.
- Alerte de mișcare falsă:
- Adjust motion detection sensitivity settings in the app or NVR.
- Utilize human/vehicle detection features to filter out irrelevant motion.
8. Specificații
| Caracteristică | Detaliu |
|---|---|
| Numele modelului | IPC-D3083WD-S |
| Rezoluţie | 8 MP (3840x2160) |
| Frame Rate | 15 fps |
| Obiectiv | 2.8mm (Wide Angle) |
| Vedere de noapte | Smart Dual Light (IR & Warm Light), 130 Feet Range |
| Detectare | Human/Vehicle Detection (AI-powered) |
| Audio | Built-in Microphone (Unidirectional) |
| Compresie video | H.265 + |
| Depozitare | Card Micro SD (până la 512 GB, nu este inclus) |
| Conectivitate | PoE (Power over Ethernet), Wired Ethernet |
| Sursa de alimentare | PoE or DC 12V (adapter not included) |
| Rezistență la intemperii | IP67 rezistent la apa |
| Temperatura de operare | -30°C până la 60°C (-4°F până la 140°F) |
| Material | Carcasă complet metalică |
| Dimensiuni (L x l x H) | 6.02 x 5.98 x 5.63 inci |
| Greutate | 1.76 lire (0.8 kg) |
| WDR | 120 dB |
9. Garanție și asistență
Anpviz provides a 2-year warranty for this product. For technical assistance or warranty claims, please contact Anpviz customer support:
- E-mail: support@anpviz.com
- Ore de funcționare: Monday - Friday, 9:00 AM - 6:00 PM (Time Zone not specified, assume PST/EST based on typical US support)
Please have your model number (IPC-D3083WD-S) and purchase information ready when contacting support.
